Cat入门学习笔记整理

#由于仓库的git历史记录众多，对于不关注历史，只关注最新版本或者基于最新版本贡献的新用户，可以在第一次克隆代码时增加--depth=1参数以加快下载速度，如
git clone --depth=1 https://github.com/dianping/cat.git

mysql -uroot -Dcat < CatApplication.sql

mkdir /data
chmod -R 777 /data/

mkdir -p /data/appdatas/cat
cd /data/appdatas/cat
vi client.xml

<?xml version="1.0" encoding="utf-8"?>
<config mode="client">
    <servers>
    	<!--下面的IP地址替换为主机的IP地址-->
        <server ip="192.168.1.101" port="2280" http-port="8080"/>
    </servers>
</config>

vi datasources.xml

<?xml version="1.0" encoding="utf-8"?>

<data-sources>
	<data-source id="cat">
		<maximum-pool-size>3</maximum-pool-size>
		<connection-timeout>1s</connection-timeout>
		<idle-timeout>10m</idle-timeout>
		<statement-cache-size>1000</statement-cache-size>
		<properties>
			<driver>com.mysql.jdbc.Driver</driver>
			<url><![CDATA[jdbc:mysql://127.0.0.1:3306/cat]]></url>  <!-- 请替换为真实数据库URL及Port  -->
			<user>root</user>  <!-- 请替换为真实数据库用户名  -->
			<password>root</password>  <!-- 请替换为真实数据库密码  -->
			<connectionProperties><![CDATA[useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&socketTimeout=120000]]></connectionProperties>
		</properties>
	</data-source>
</data-sources>

#1.拉取镜像
docker pull tomcat:8.5.40

from tomcat:8.5.40
RUN rm -rf /usr/local/tomcat/webapps/*
COPY cat.war   /usr/local/tomcat/webapps
RUN mkdir -p /data/appdatas/cat
RUN mkdir -p /data/applogs/cat
RUN chmod -R 777 /data/
COPY client.xml   /data/appdatas/cat
COPY datasources.xml   /data/appdatas/cat
COPY server.xml   /data/appdatas/cat
ENV TZ=Asia/Shanghai
RUN ln -snf /usr/share/zoneinfo/$TZ /etc/localtime && echo $TZ > /etc/timezone
EXPOSE 8080
EXPOSE 2280

docker build -t cat:3.0 .

docker run -di --name=tomcat -p 8080:8080 -p 2280:2280 -v /root/tomcat/webapps:/usr/local/tomcat/webapps  -v /root/tomcat/conf:/usr/local/tomcat/conf -v /data:/data tomcat:8

#修改/root/tomcat/conf目录下 server.xml配置文件，防止中文乱码产生
<Connector port="8080" protocol="HTTP/1.1"
           URIEncoding="utf-8"    connectionTimeout="20000"
               redirectPort="8443" />  <!-- 增加  URIEncoding="utf-8"  -->

<?xml version="1.0" encoding="utf-8"?>
<server-config>
   <server id="default">
      <properties>
         <property name="local-mode" value="false"/>
         <property name="job-machine" value="false"/>
         <property name="send-machine" value="false"/>
         <property name="alarm-machine" value="false"/>
         <property name="hdfs-machine" value="false"/>
            #替换为当前cat所在服务器ip,如果cat采用集群部署,这里可以指定各个节点的地址
         <property name="remote-servers" value="10.1.1.1:8080,10.1.1.2:8080,10.1.1.3:8080"/>
      </properties>
       # 没有使用分布式文件系统HDFS,下面这段配置可以不用管
      <storage  local-base-dir="/data/appdatas/cat/bucket/" max-hdfs-storage-time="15" local-report-storage-time="7" local-logivew-storage-time="7">
        <hdfs id="logview" max-size="128M" server-uri="hdfs://10.1.77.86/" base-dir="user/cat/logview"/>
        <hdfs id="dump" max-size="128M" server-uri="hdfs://10.1.77.86/" base-dir="user/cat/dump"/>
        <hdfs id="remote" max-size="128M" server-uri="hdfs://10.1.77.86/" base-dir="user/cat/remote"/>
      </storage>
      <consumer>
         <long-config default-url-threshold="1000" default-sql-threshold="100" default-service-threshold="50">
            <domain name="cat" url-threshold="500" sql-threshold="500"/>
            <domain name="OpenPlatformWeb" url-threshold="100" sql-threshold="500"/>
         </long-config>
      </consumer>
   </server>
   #替换为当前cat所在服务器ip
   <server id="10.1.1.1">
      <properties>
         <property name="job-machine" value="true"/>
         <property name="alarm-machine" value="true"/>
     <property name="send-machine" value="true"/>
      </properties>
   </server>
</server-config>

<?xml version="1.0" encoding="utf-8"?>
<router-config backup-server="cat所在服务器IP" backup-server-port="2280">
   <default-server id="cat所在服务器IP" weight="1.0" port="2280" enable="true"/>
   <network-policy id="default" title="默认" block="false" server-group="default_group">
   </network-policy>
   <server-group id="default_group" title="default-group">
      <group-server id="cat所在服务器IP"/>
   </server-group>
   <domain id="cat">
      # 对服务器进行分组,如果配置了多个服务器，下面需要指明这多个服务器的地址
      <group id="default">
         <server id="cat所在服务器IP" port="2280" weight="1.0"/>
      </group>
   </domain>
</router-config>

        <dependency>
            <groupId>com.dianping.cat</groupId>
            <artifactId>cat-client</artifactId>
            <version>3.0.1</version>
        </dependency>

app.name={appkey}

<?xml version="1.0" encoding="utf-8"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema" xsi:noNamespaceSchemaLocation="config.xsd">
    <servers>
        <server ip="127.0.0.1" port="2280" http-port="8080" />
    </servers>
</config>

@RestController
public class TestController {
    @GetMapping("/test")
    public String test() {
        Transaction t = Cat.newTransaction("URL", "pageName");

        try {
            Cat.logEvent("URL.Server", "serverIp", Event.SUCCESS, "ip=${serverIp}");
            Cat.logMetricForCount("metric.key");
            Cat.logMetricForDuration("metric.key", 5);

            //让代码抛出异常
            int i = 1 / 0;
            t.setStatus(Transaction.SUCCESS);
        } catch (Exception e) {
            t.setStatus(e);
            Cat.logError(e);
        } finally {
            t.complete();
        }

        return "test";
    }
}

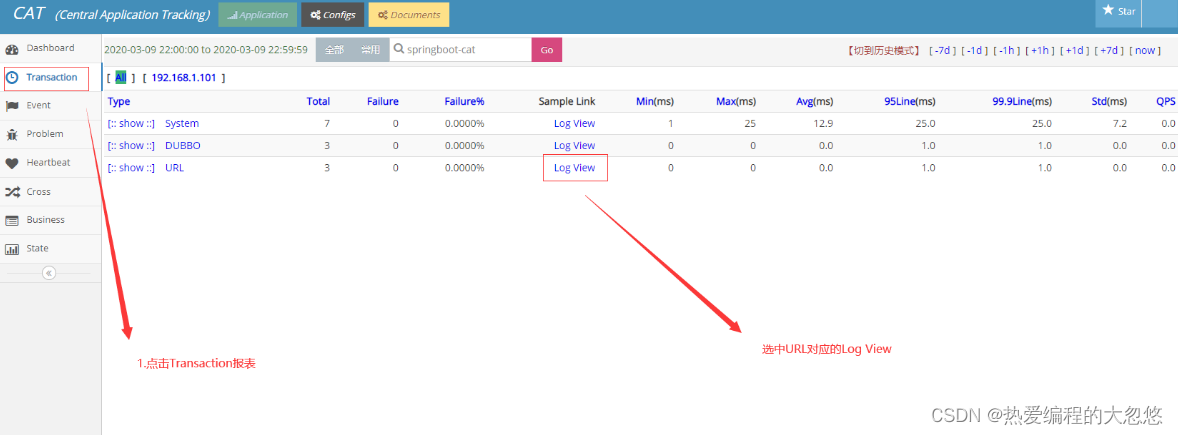

    @GetMapping("/test1")
    public String test1(){
        //开启第一个Transaction,类别为URL,名称为test
        Transaction t = Cat.newTransaction("URL", "test");

        try {
            dubbo();
            t.setStatus(Transaction.SUCCESS);
        } catch (Exception e) {
            t.setStatus(e);
            Cat.logError(e);
        } finally {
            t.complete();
        }

        return "test";
    }


    private String dubbo(){
        //开启第二个Transaction，类别为DUBBO,名称为dubbo
        Transaction t = Cat.newTransaction("DUBBO", "dubbo");

        try {
            t.setStatus(Transaction.SUCCESS);
        } catch (Exception e) {
            t.setStatus(e);
            Cat.logError(e);
        } finally {
            t.complete();
        }

        return "test";
    }

    @GetMapping("/api")
    public String api() {
        Transaction t = Cat.newTransaction("URL", "pageName");

        try {
            //设置执行时间1秒
            t.setDurationInMillis(1000);
            t.setTimestamp(System.currentTimeMillis());
            //添加额外数据
            t.addData("content");
            t.setStatus(Transaction.SUCCESS);
        } catch (Exception e) {
            t.setStatus(e);
            Cat.logError(e);
        } finally {
            t.complete();
        }

        return "api";
    }

Cat.logEvent("URL.Server", "serverIp", Event.SUCCESS, "ip=${serverIp}");

1. 如果 `e` 是一个 `Error`, `type` 会被设置为 `Error`。
2. 如果 `e` 是一个 `RuntimeException`, `type` 会被设置为 `RuntimeException`。
3. 其他情况下，`type` 会被设置为 `Exception`。

try {
    int i = 1 / 0;
} catch (Throwable e) {
    Cat.logError(e);
}

Cat.logError("error(X) := exception(X)", e);

@RestController
@RequestMapping("/event")
public class EventController {
    @RequestMapping("/logEvent")
    public String logEvent(){
        Cat.logEvent("URL.Server", "serverIp",
                Event.SUCCESS, "ip=127.0.0.1");
        return "test";
    }

    @RequestMapping("/logError")
    public String logError(){
        try {
            int i = 1 / 0;
        } catch (Throwable e) {
            Cat.logError("error(X) := exception(X)", e);
        }
        return "test";
    }
}

error(X) := exception(X)

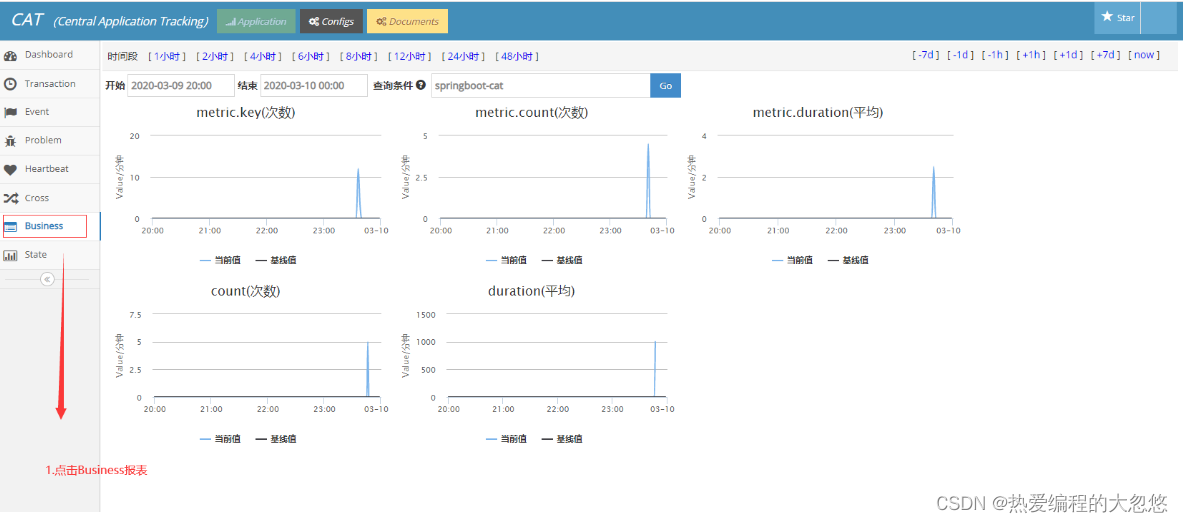

# Counter
Cat.logMetricForCount("metric.key");
Cat.logMetricForCount("metric.key", 3);

# Duration
Cat.logMetricForDuration("metric.key", 5);

@RestController
@RequestMapping("/metric")
public class MetricController {

    @RequestMapping("/count")
    public String count(){
        Cat.logMetricForCount("count");
        return "test";
    }

    @RequestMapping("/duration")
    public String duration(){
        Cat.logMetricForDuration("duration", 1000);
        return "test";
    }
}

1. 我想监控订单数量。
2. 我想监控订单耗时。

		<dependency>
			<groupId>net.dubboclub</groupId>
			<artifactId>cat-monitor</artifactId>
			<version>0.0.6</version>
		</dependency>

        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>3.0.7</version>
        </dependency>

        <dependency>
            <groupId>net.dubboclub</groupId>
            <artifactId>cat-monitor</artifactId>
            <version>0.0.6</version>
        </dependency>

server.port=9300
spring.application.name=dubbo_provider_cat
# 默认为dubbo协议
dubbo.protocol.name=dubbo
# dubbo协议默认通信端口号为20880
dubbo.protocol.port=20880
# 为了简化环境搭建，采用了本地直接调用的方式，所以将注册中心写成N/A表示不注册到注册中心
dubbo.registry.address=N/A

public interface HelloService {
    String hello();
}

@DubboService(interfaceClass = HelloService.class)
public class HelloServiceImpl implements HelloService {

    public String hello() {
        return "hello cat";
    }
}

@EnableDubbo(scanBasePackages = "org.example.dubbo")
@SpringBootApplication
public class CatProviderDemo {
    public static void main(String[] args) {
        SpringApplication.run(CatProviderDemo.class,args);
    }
}

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>3.0.7</version>
        </dependency>
        <dependency>
            <groupId>net.dubboclub</groupId>
            <artifactId>cat-monitor</artifactId>
            <version>0.0.6</version>
        </dependency>

server.port=9500
spring.application.name=dubbo_consumer_cat

public interface HelloService {
    public String hello();
}

@EnableDubbo(scanBasePackages = "org.example.dubbo")
@SpringBootApplication
public class CatConsumerDemo {
    public static void main(String[] args) {
        SpringApplication.run(CatConsumerDemo.class,args);
    }
}

@SpringBootTest(classes = CatConsumerDemo.class)
public class ConsumerTest {
    //采用直连而非从注册中心获取服务地址的方式，在@Reference注解中声明
    @DubboReference(url = "dubbo://127.0.0.1:20880")
    private HelloService helloService;

    @Test
    public void test(){
        for (int i = 0; i < 1000; i++) {
            System.out.println(helloService.hello());
        }
    }
}

CREATE TABLE `t_user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(32) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
  `password` varchar(32) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
            <version>5.1.27</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.dianping.cat</groupId>
            <artifactId>cat-client</artifactId>
            <version>3.0.1</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.10</version>
        </dependency>
    </dependencies>

# datasource
spring:
  datasource:
   url: jdbc:mysql://119.91.143.140:3306/test?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&serverTimezone=Asia/Shanghai
   username: root
   password: xfx123xfx
   driver-class-name: com.mysql.jdbc.Driver
   type: com.alibaba.druid.pool.DruidDataSource

# mybatis
mybatis:
  mapper-locations: classpath:mapper/*Mapper.xml # mapper映射文件路径
  type-aliases-package: org.example.dao
server:
  port: 9500

@Mapper
public interface UserXmlMapper {
    List<User> findAll();
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.example.mapper.UserXmlMapper">
    <select id="findAll" resultType="user">
        select * from t_user
    </select>
</mapper>

@SpringBootApplication
public class CatMybaitsDemo {
    public static void main(String[] args) {
        SpringApplication.run(CatMybaitsDemo.class,args);
    }
}

@SpringBootTest(classes = CatMybaitsDemo.class)
public class CatMybaitsDemoTest {
    @Resource
    private UserXmlMapper userXmlMapper;

    @Test
    public void testSearchUser() throws InterruptedException {
        try {
            userXmlMapper.findAll().forEach(System.out::println);
        } catch (Exception e) {
            e.printStackTrace();
        }
        Thread.sleep(30000);
    }
}

import com.alibaba.druid.pool.DruidDataSource;
import com.dianping.cat.Cat;
import com.dianping.cat.message.Message;
import com.dianping.cat.message.Transaction;
import org.apache.ibatis.datasource.pooled.PooledDataSource;
import org.apache.ibatis.datasource.unpooled.UnpooledDataSource;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.*;
import org.apache.ibatis.plugin.*;
import org.apache.ibatis.reflection.MetaObject;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.type.TypeHandlerRegistry;

import javax.sql.DataSource;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;
import java.text.DateFormat;
import java.util.Date;
import java.util.List;
import java.util.Locale;
import java.util.Properties;
import java.util.regex.Matcher;
import java.util.regex.Pattern;


/**
 *  1.Cat-Mybatis plugin:  Rewrite on the version of Steven;
 *  2.Support DruidDataSource,PooledDataSource(mybatis Self-contained data source);
 * @author zhanzehui(west_20@163.com)
 */

@Intercepts({
        @Signature(method = "query", type = Executor.class, args = {
                MappedStatement.class, Object.class, RowBounds.class,
                ResultHandler.class }),
        @Signature(method = "update", type = Executor.class, args = { MappedStatement.class, Object.class })
})
public class CatMybatisPlugin implements Interceptor {

    private static final Pattern PARAMETER_PATTERN = Pattern.compile("\\?");
    private static final String MYSQL_DEFAULT_URL = "jdbc:mysql://UUUUUKnown:3306/%s?useUnicode=true";
    private Executor target;

    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        MappedStatement mappedStatement = this.getStatement(invocation);
        String          methodName      = this.getMethodName(mappedStatement);
        Transaction t = Cat.newTransaction("SQL", methodName);

        String sql = this.getSql(invocation,mappedStatement);
        SqlCommandType sqlCommandType = mappedStatement.getSqlCommandType();
        Cat.logEvent("SQL.Method", sqlCommandType.name().toLowerCase(), Message.SUCCESS, sql);

        String url = this.getSQLDatabaseUrlByStatement(mappedStatement);
        Cat.logEvent("SQL.Database", url);

        return doFinish(invocation,t);
    }

    private MappedStatement getStatement(Invocation invocation) {
        return (MappedStatement)invocation.getArgs()[0];
    }

    private String getMethodName(MappedStatement mappedStatement) {
        String[] strArr = mappedStatement.getId().split("\\.");
        String methodName = strArr[strArr.length - 2] + "." + strArr[strArr.length - 1];

        return methodName;
    }

    private String getSql(Invocation invocation, MappedStatement mappedStatement) {
        Object parameter = null;
        if(invocation.getArgs().length > 1){
            parameter = invocation.getArgs()[1];
        }

        BoundSql boundSql = mappedStatement.getBoundSql(parameter);
        Configuration configuration = mappedStatement.getConfiguration();
        String sql = sqlResolve(configuration, boundSql);

        return sql;
    }

    private Object doFinish(Invocation invocation,Transaction t) throws InvocationTargetException, IllegalAccessException {
        Object returnObj = null;
        try {
            returnObj = invocation.proceed();
            t.setStatus(Transaction.SUCCESS);
        } catch (Exception e) {
            Cat.logError(e);
            throw e;
        } finally {
            t.complete();
        }

        return returnObj;
    }


    private String getSQLDatabaseUrlByStatement(MappedStatement mappedStatement) {
        String url = null;
        DataSource dataSource = null;
        try {
            Configuration configuration = mappedStatement.getConfiguration();
            Environment environment = configuration.getEnvironment();
            dataSource = environment.getDataSource();

            url = switchDataSource(dataSource);

            return url;
        } catch (NoSuchFieldException|IllegalAccessException|NullPointerException e) {
            Cat.logError(e);
        }

        Cat.logError(new Exception("UnSupport type of DataSource : "+dataSource.getClass().toString()));
        return MYSQL_DEFAULT_URL;
    }

    private String switchDataSource(DataSource dataSource) throws NoSuchFieldException, IllegalAccessException {
        String url = null;

        if(dataSource instanceof DruidDataSource) {
            url = ((DruidDataSource) dataSource).getUrl();
        }else if(dataSource instanceof PooledDataSource) {
            Field dataSource1 = dataSource.getClass().getDeclaredField("dataSource");
            dataSource1.setAccessible(true);
            UnpooledDataSource dataSource2 = (UnpooledDataSource)dataSource1.get(dataSource);
            url =dataSource2.getUrl();
        }else {
            //other dataSource expand
        }

        return url;
    }

    public String sqlResolve(Configuration configuration, BoundSql boundSql) {
        Object parameterObject = boundSql.getParameterObject();
        List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
        String sql = boundSql.getSql().replaceAll("[\\s]+", " ");
        if (parameterMappings.size() > 0 && parameterObject != null) {
            TypeHandlerRegistry typeHandlerRegistry = configuration.getTypeHandlerRegistry();
            if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
                sql = sql.replaceFirst("\\?", Matcher.quoteReplacement(resolveParameterValue(parameterObject)));

            } else {
                MetaObject metaObject = configuration.newMetaObject(parameterObject);
                Matcher matcher = PARAMETER_PATTERN.matcher(sql);
                StringBuffer sqlBuffer = new StringBuffer();
                for (ParameterMapping parameterMapping : parameterMappings) {
                    String propertyName = parameterMapping.getProperty();
                    Object obj = null;
                    if (metaObject.hasGetter(propertyName)) {
                        obj = metaObject.getValue(propertyName);
                    } else if (boundSql.hasAdditionalParameter(propertyName)) {
                        obj = boundSql.getAdditionalParameter(propertyName);
                    }
                    if (matcher.find()) {
                        matcher.appendReplacement(sqlBuffer, Matcher.quoteReplacement(resolveParameterValue(obj)));
                    }
                }
                matcher.appendTail(sqlBuffer);
                sql = sqlBuffer.toString();
            }
        }
        return sql;
    }

    private String resolveParameterValue(Object obj) {
        String value = null;
        if (obj instanceof String) {
            value = "'" + obj.toString() + "'";
        } else if (obj instanceof Date) {
            DateFormat formatter = DateFormat.getDateTimeInstance(DateFormat.DEFAULT, DateFormat.DEFAULT, Locale.CHINA);
            value = "'" + formatter.format((Date) obj) + "'";
        } else {
            if (obj != null) {
                value = obj.toString();
            } else {
                value = "";
            }

        }
        return value;
    }

    @Override
    public Object plugin(Object target) {
        if (target instanceof Executor) {
            this.target = (Executor) target;
            return Plugin.wrap(target, this);
        }
        return target;
    }

    @Override
    public void setProperties(Properties properties) {
    }

}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <plugins>
        <plugin interceptor="org.example.cat.CatMybatisPlugin"/>
    </plugins>
</configuration>

# mybatis
mybatis:
  mapper-locations: classpath:mapper/*Mapper.xml # mapper映射文件路径
  type-aliases-package: org.example.dao
  # config-location:  # 指定mybatis的核心配置文件
  config-location: classpath:mybatis/mybatis-config.xml

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.dianping.cat</groupId>
            <artifactId>cat-client</artifactId>
            <version>3.0.1</version>
        </dependency>

logging:
  level:
    root: info
  path: ./logs
  config: classpath:logback-spring.xml
server:
  port: 9600

<?xml version="1.0" encoding="UTF-8" ?>
<configuration>
    <!-- 属性文件:在properties文件中找到对应的配置项 -->
    <springProperty scope="context" name="logging.path" source="logging.path"/>
    <contextName>cat</contextName>
    <appender name="consoleLog" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出（配色）：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>%yellow(%d{yyyy-MM-dd HH:mm:ss}) %red([%thread]) %highlight(%-5level) %cyan(%logger{50}) -
                %magenta(%msg) %n
            </pattern>
            <charset>UTF-8</charset>
        </encoder>
    </appender>

    <!--根据日志级别分离日志，分别输出到不同的文件-->
    <appender name="fileInfoLog" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>ERROR</level>
            <onMatch>DENY</onMatch>
            <onMismatch>ACCEPT</onMismatch>
        </filter>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <pattern>
                %d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n
            </pattern>
            <charset>UTF-8</charset>
        </encoder>
        <!--滚动策略-->
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--按时间保存日志 修改格式可以按小时、按天、月来保存-->
            <fileNamePattern>${logging.path}/cat.info.%d{yyyy-MM-dd}.log</fileNamePattern>
            <!--保存时长-->
            <MaxHistory>90</MaxHistory>
            <!--文件大小-->
            <totalSizeCap>1GB</totalSizeCap>
        </rollingPolicy>
    </appender>

    <appender name="fileErrorLog" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <level>ERROR</level>
        </filter>
        <encoder>
            <pattern>
                %d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n
            </pattern>
        </encoder>
        <!--滚动策略-->
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--路径-->
            <fileNamePattern>${logging.path}/cat.error.%d{yyyy-MM-dd}.log</fileNamePattern>
            <MaxHistory>90</MaxHistory>
        </rollingPolicy>
    </appender>
    <root level="info">
        <appender-ref ref="consoleLog"/>
        <appender-ref ref="fileInfoLog"/>
        <appender-ref ref="fileErrorLog"/>
    </root>
</configuration>

package org.example.appender;

import ch.qos.logback.classic.Level;
import ch.qos.logback.classic.spi.ILoggingEvent;
import ch.qos.logback.classic.spi.ThrowableProxy;
import ch.qos.logback.core.AppenderBase;
import ch.qos.logback.core.LogbackException;
import com.dianping.cat.Cat;

import java.io.PrintWriter;
import java.io.StringWriter;

public class CatLogbackAppender extends AppenderBase<ILoggingEvent> {

	@Override
	protected void append(ILoggingEvent event) {
		try {
			boolean isTraceMode = Cat.getManager().isTraceMode();
			Level level = event.getLevel();
			if (level.isGreaterOrEqual(Level.ERROR)) {
				logError(event);
			} else if (isTraceMode) {
				logTrace(event);
			}
		} catch (Exception ex) {
			throw new LogbackException(event.getFormattedMessage(), ex);
		}
	}

	private void logError(ILoggingEvent event) {
		ThrowableProxy info = (ThrowableProxy) event.getThrowableProxy();
		if (info != null) {
			Throwable exception = info.getThrowable();

			Object message = event.getFormattedMessage();
			if (message != null) {
				Cat.logError(String.valueOf(message), exception);
			} else {
				Cat.logError(exception);
			}
		}
	}

	private void logTrace(ILoggingEvent event) {
		String type = "Logback";
		String name = event.getLevel().toString();
		Object message = event.getFormattedMessage();
		String data;
		if (message instanceof Throwable) {
			data = buildExceptionStack((Throwable) message);
		} else {
			data = event.getFormattedMessage().toString();
		}

		ThrowableProxy info = (ThrowableProxy) event.getThrowableProxy();
		if (info != null) {
			data = data + '\n' + buildExceptionStack(info.getThrowable());
		}

		Cat.logTrace(type, name, "0", data);
	}

	private String buildExceptionStack(Throwable exception) {
		if (exception != null) {
			StringWriter writer = new StringWriter(2048);
			exception.printStackTrace(new PrintWriter(writer));
			return writer.toString();
		} else {
			return "";
		}
	}

}

    <appender name="CatAppender" class="org.example.appender.CatLogbackAppender"/>
    <root level="info">
        <appender-ref ref="consoleLog"/>
        <appender-ref ref="fileInfoLog"/>
        <appender-ref ref="fileErrorLog"/>
        <appender-ref ref="CatAppender" />
    </root>
</configuration>

@SpringBootTest(classes = CatDemoMain.class)
@Slf4j
public class CatLogBackDemoTest {

    @Test
    public void testLog() throws InterruptedException {
        //需要开启跟踪模式,才会生效--可以参考CatLogbackAppender的append方法,一看便知
        Cat.getManager().setTraceMode(true);
        log.info("cat info");
        try {
            int i = 1/0;
        }catch (Exception e){
            log.error("cat error",e);
        }
        //睡眠一会,让cat客户端有时间上报错误
        Thread.sleep(100000);
    }
}

@Configuration
public class CatFilterConfigure {

    @Bean
    public FilterRegistrationBean catFilter() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        CatFilter filter = new CatFilter();
        registration.setFilter(filter);
        registration.addUrlPatterns("/*");
        registration.setName("cat-filter");
        registration.setOrder(1);
        return registration;
    }
}

@Retention(RUNTIME)
@Target(ElementType.METHOD)
public @interface CatAnnotation {
}

@Component
@Aspect
public class CatAopService {

	@Around(value = "@annotation(CatAnnotation)")
	public Object aroundMethod(ProceedingJoinPoint pjp) throws Throwable {
		MethodSignature joinPointObject = (MethodSignature) pjp.getSignature();
		Method method = joinPointObject.getMethod();

		Transaction t = Cat.newTransaction("method", method.getName());

		try {
			Object res = pjp.proceed();
			t.setSuccessStatus();
			return res;
		} catch (Throwable e) {
			t.setStatus(e);
			Cat.logError(e);
			throw e;
		} finally {
			t.complete();
		}

	}

}

@RestController
public class AopController {

    @RequestMapping("aop")
    @CatAnnotation
    public String aop1(){

        return  "aop";
    }
}

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
public @interface CatTransaction {
    String type() default "Handler";//"URL MVC Service SQL" is reserved for Cat Transaction Type
    String name() default "";
}

 @Around("@annotation(catTransaction)")
    public Object catTransactionProcess(ProceedingJoinPoint pjp, CatTransaction catTransaction) throws Throwable {
        String transName = pjp.getSignature().getDeclaringType().getSimpleName() + "." + pjp.getSignature().getName();
        if(StringUtils.isNotBlank(catTransaction.name())){
            transName = catTransaction.name();
        }
        Transaction t = Cat.newTransaction(catTransaction.type(), transName);
        try {
            Object result = pjp.proceed();
            t.setStatus(Transaction.SUCCESS);
            return result;
        } catch (Throwable e) {
            t.setStatus(e);
            throw e;
        }finally{
            t.complete();
        }
    }
