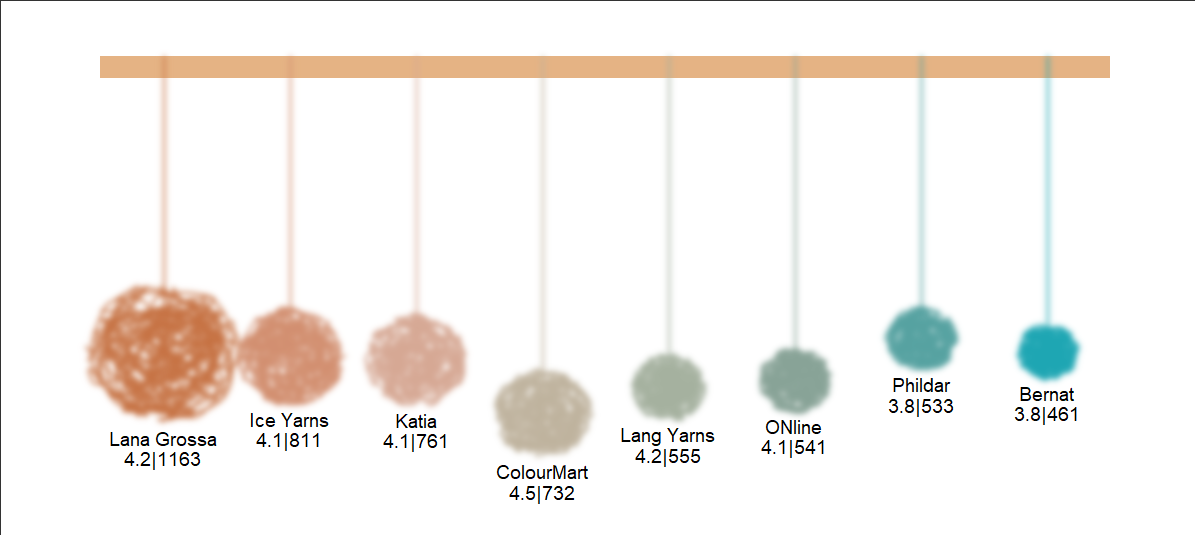

ggforce优雅的绘制线圈棒棒糖图

library(tidyverse)
library(janitor)
library(ggtext)
library(ggforce)
library(ggfx)
library(colorspace)

yarn <- read_csv("data.csv")

pal <- tribble(~r, ~g, ~b,198, 114, 67,
  220, 166, 146,180, 185, 163,129, 160, 149,30, 166, 179) %>%
  mutate(pal = rgb(r, g, b, maxColorValue = 255)) %>%
  pull(pal)

pal <- colorRampPalette(pal)(8)

df_base <- yarn %>%
  group_by(yarn_company_name) %>%  # 按 yarn_company_name 分组
  summarise(rating = mean(rating_average, na.rm = TRUE),n = n()) %>%  # 计算平均评分和数量
  arrange(desc(n)) %>%  # 按数量降序排列
  head(8) %>%  # 选择前 8 条数据
  ungroup() %>%  # 取消分组
  mutate(p = n/sum(n),x0 = 1:n())  # 计算百分比和 x 坐标

df_yarn <- map_dfr(1:nrow(df_base), ~{
  tibble(
    x = 3*df_base$p[.x]*sin(seq(0, 2*pi, length = 200)) + df_base$x0[.x],  # 计算 x 坐标
    y = 3*df_base$p[.x]*cos(seq(0, 2*pi, length = 200)) + df_base$rating[.x] - 3*df_base$p[.x],  # 计算 y 坐标
    id = runif(200),yarn_company_name = df_base$yarn_company_name[.x]  # 生成随机 id 和 yarn_company_name
    )}) %>%
  mutate(y = -y) %>%  # 反转 y 坐标
  arrange(yarn_company_name, id)  # 按 yarn_company_name 和 id 排序

df_yarn %>%
  ggplot(aes(x, y)) +
  geom_rect(aes(xmin=0.5,xmax=8.5,ymin=-1.2,ymax = -1),fill = lighten("#d4a373", 0.2)) +  # 绘制矩形背景
  with_blur(geom_segment(aes(x = x0, xend = x0, y = -1, yend = -rating+0.2,
                             colour = yarn_company_name), df_base, size = 0.6),sigma = 3) +  # 绘制模糊线段
  with_blur(geom_bspline0(aes(colour = yarn_company_name),size=0.6),sigma=3) +  # 绘制模糊曲线
  geom_text(aes(x0, -rating-0.2, label = paste0(yarn_company_name, "\n\n\n",round(rating, 1), "|", n)),
            df_base,size =4, colour = "black", lineheight = 0.3) +  # 绘制文本标签
  coord_cartesian(clip = "off") +  # 设置坐标系
  scale_colour_manual(values = pal,breaks = df_base$yarn_company_name) +  # 设置颜色
  scale_x_continuous(breaks = 1:8,labels = df_base$yarn_company_name) +  # 设置 x 轴刻度
  ylim(-5, -1) +  # 设置 y 轴范围
  theme_void() +  # 设置空白主题
  theme(
    text = element_text(size =4, colour = "grey20"),
    legend.position = "none",
    plot.background = element_rect(fill ="white", colour = "grey20"),
    plot.margin = margin(t=20,b=0,l=20,r=20))  # 设置主题样式
