流程图（二）利用python绘制网络图

网络图（Network chart）简介

网络图使用节点和连接线来显示事物之间的连接关系，用于说明实体之间的关系。一般分为定向网络图和非定向网络图。

快速绘制

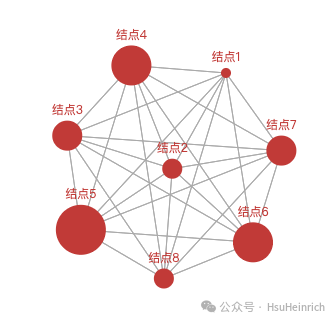

基于pyecharts

from pyecharts import options as opts
from pyecharts.charts import Graph

nodes = [
    {"name": "结点1", "symbolSize": 10},
    {"name": "结点2", "symbolSize": 20},
    {"name": "结点3", "symbolSize": 30},
    {"name": "结点4", "symbolSize": 40},
    {"name": "结点5", "symbolSize": 50},
    {"name": "结点6", "symbolSize": 40},
    {"name": "结点7", "symbolSize": 30},
    {"name": "结点8", "symbolSize": 20},
]
links = []
for i in nodes:
    for j in nodes:
        links.append({"source": i.get("name"), "target": j.get("name")})
c = (
    Graph()
    .add("", nodes, links, repulsion=8000)
    .set_global_opts(title_opts=opts.TitleOpts(title="基本网络图"))
)

c.render_notebook()

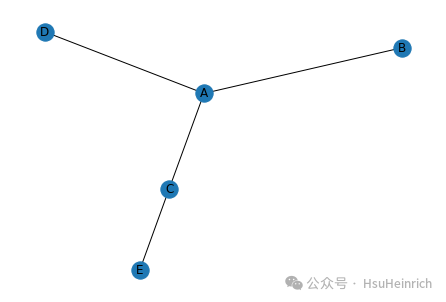

基于networkx

import pandas as pd
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt

# 自定义数据
df = pd.DataFrame({ 'from':['A', 'B', 'C','A'], 'to':['D', 'A', 'E','C']})

# 构造网络图数据格式
G=nx.from_pandas_edgelist(df, 'from', 'to')

# 绘制网络图
nx.draw(G, with_labels=True)
plt.show()

定制多样化的网络图

自定义网络图一般是结合使用场景对相关参数进行修改，并辅以其他的绘图知识。参数信息可以通过官网进行查看，其他的绘图知识则更多来源于实战经验，大家不妨将接下来的绘图作为一种学习经验，以便于日后总结。

通过pyecharts绘制多样化的网络图

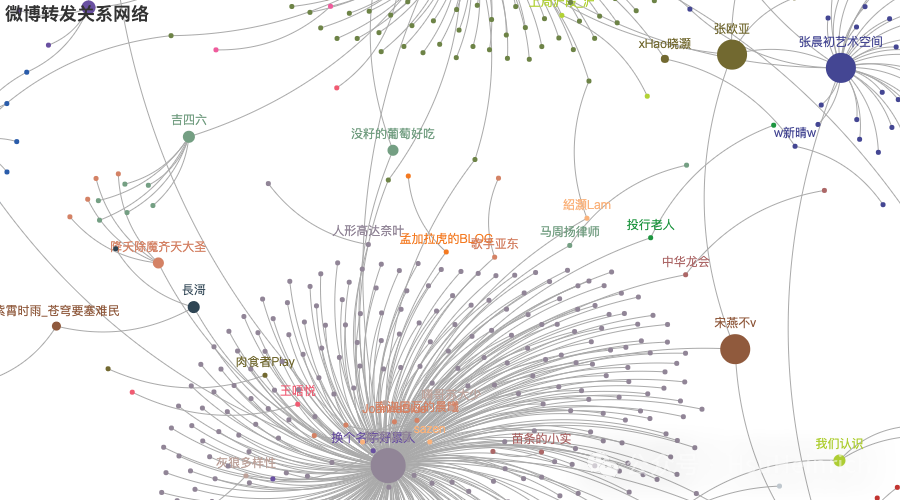

点线网络

import requests
import json
from pyecharts import options as opts
from pyecharts.charts import Graph

# 获取官方的数据
url = "https://raw.githubusercontent.com/pyecharts/pyecharts-gallery/master/Graph/weibo.json"

response = requests.get(url)
j = json.loads(response.text)
nodes, links, categories, cont, mid, userl = j

c = (
    Graph()
    .add(
        "",
        nodes,
        links,
        categories,
        repulsion=50,
        linestyle_opts=opts.LineStyleOpts(curve=0.2),
        label_opts=opts.LabelOpts(is_show=False),
    )
    .set_global_opts(
        legend_opts=opts.LegendOpts(is_show=False),
        title_opts=opts.TitleOpts(title="微博转发关系网络"),
    )
)

c.render_notebook()

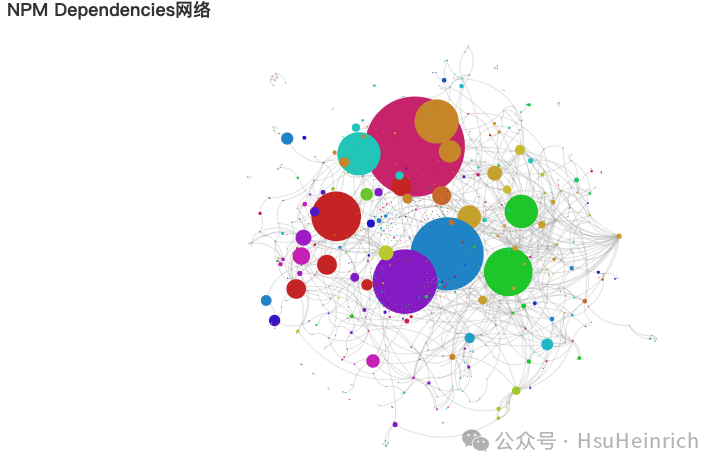

球状网络

import pyecharts.options as opts
from pyecharts.charts import Graph

# 获取官方的数据
url = 'https://echarts.apache.org/examples/data/asset/data/npmdepgraph.min10.json'
response = requests.get(url)
data = response.json()  # 将响应内容解析为JSON

nodes = [
    {
        "x": node["x"],
        "y": node["y"],
        "id": node["id"],
        "name": node["label"],
        "symbolSize": node["size"],
        "itemStyle": {"normal": {"color": node["color"]}},
    }
    for node in data["nodes"]
]

edges = [
    {"source": edge["sourceID"], "target": edge["targetID"]} for edge in data["edges"]
]


c = (
    Graph()
    .add(
        series_name="",
        nodes=nodes,
        links=edges,
        layout="none",
        is_roam=True,
        is_focusnode=True,
        label_opts=opts.LabelOpts(is_show=False),
        linestyle_opts=opts.LineStyleOpts(width=0.5, curve=0.3, opacity=0.7),
    )
    .set_global_opts(title_opts=opts.TitleOpts(title="NPM Dependencies网络"))
)

c.render_notebook()

通过networkx绘制多样化的网络图

更多用法可参考：Networkx Tutorial[1]

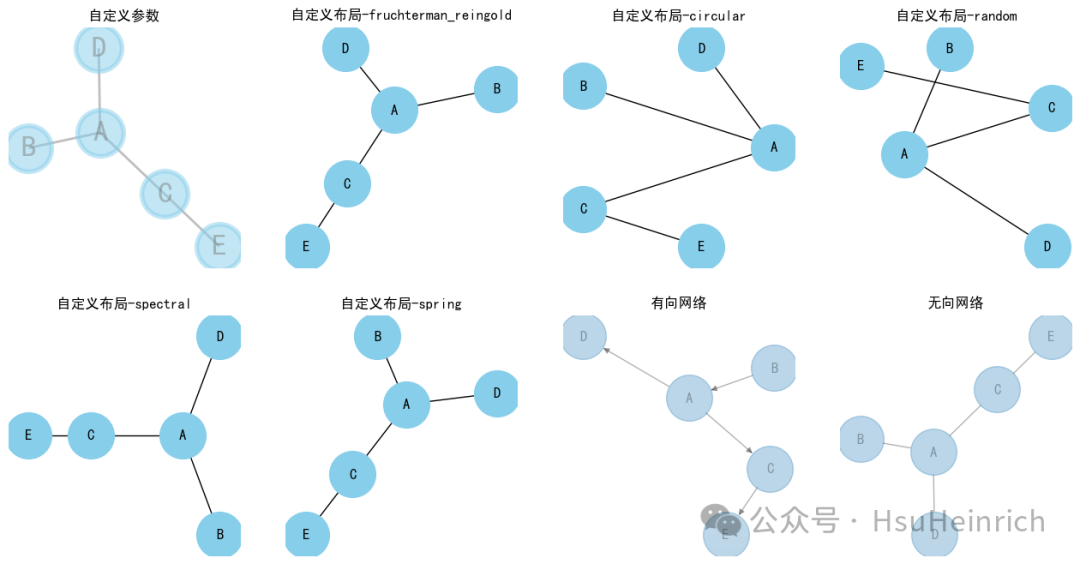

修改参数

import pandas as pd
import numpy as np
import networkx as nx
import matplotlib as mpl
import matplotlib.pyplot as plt

plt.rcParams['font.sans-serif'] = ['SimHei'] # 用来正常显示中文标签

# 初始化布局
fig = plt.figure(figsize=(16,8))

# 自定义数据
df = pd.DataFrame({ 'from':['A', 'B', 'C','A'], 'to':['D', 'A', 'E','C']})

# 构造网络图数据格式
G=nx.from_pandas_edgelist(df, 'from', 'to')

# 自定义参数
plt.subplot(2, 4, 1)
nx.draw(G, with_labels=True, node_size=1500, node_color="skyblue", node_shape="o", alpha=0.5, linewidths=4, font_size=25,
        font_color="grey", font_weight="bold", width=2, edge_color="grey")
plt.title('自定义参数')


# 自定义布局-fruchterman_reingold
plt.subplot(2, 4, 2)
nx.draw(G, with_labels=True, node_size=1500, node_color="skyblue", pos=nx.fruchterman_reingold_layout(G))
plt.title('自定义布局-fruchterman_reingold')

# 自定义布局-circular
plt.subplot(2, 4, 3)
nx.draw(G, with_labels=True, node_size=1500, node_color="skyblue", pos=nx.circular_layout(G))
plt.title('自定义布局-circular')

# 自定义布局-random
plt.subplot(2, 4, 4)
nx.draw(G, with_labels=True, node_size=1500, node_color="skyblue", pos=nx.random_layout(G))
plt.title('自定义布局-random')

# 自定义布局-spectral
plt.subplot(2, 4, 5)
nx.draw(G, with_labels=True, node_size=1500, node_color="skyblue", pos=nx.spectral_layout(G))
plt.title('自定义布局-spectral')

# 自定义布局-spring
plt.subplot(2, 4, 6)
nx.draw(G, with_labels=True, node_size=1500, node_color="skyblue", pos=nx.spring_layout(G))
plt.title('自定义布局-spring')

# 有向网络
plt.subplot(2, 4, 7)
GD=nx.from_pandas_edgelist(df, 'from', 'to', create_using=nx.DiGraph() )
nx.draw(GD, with_labels=True, node_size=1500, alpha=0.3, arrows=True)
plt.title('有向网络')

# 无向网络
plt.subplot(2, 4, 8)
GUD=nx.from_pandas_edgelist(df, 'from', 'to', create_using=nx.Graph() )
nx.draw(GUD, with_labels=True, node_size=1500, alpha=0.3, arrows=True)
plt.title('无向网络')


plt.show()

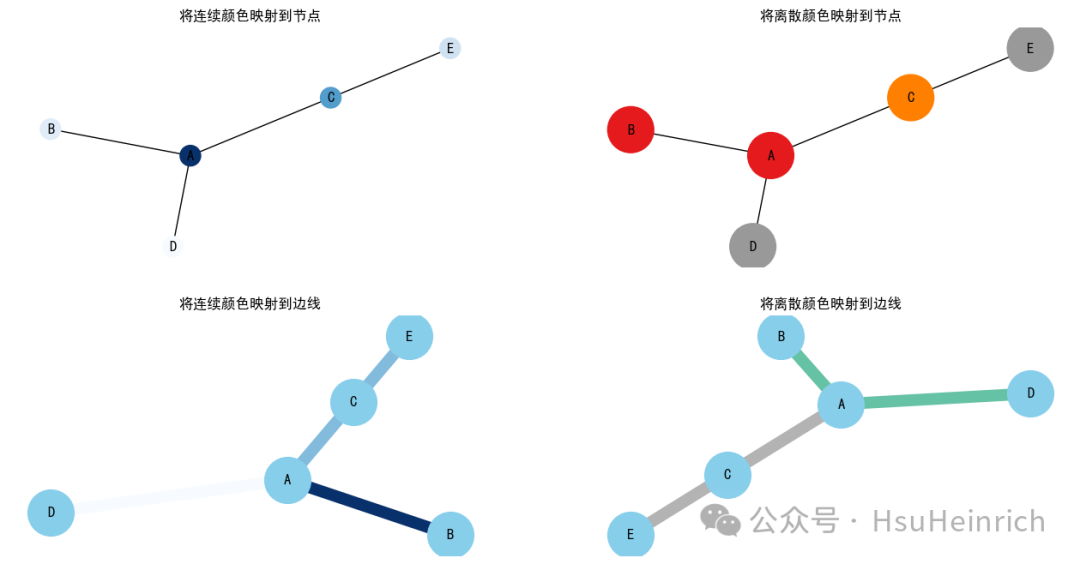

颜色映射

import pandas as pd
import numpy as np
import networkx as nx
import matplotlib as mpl
import matplotlib.pyplot as plt

plt.rcParams['font.sans-serif'] = ['SimHei'] # 用来正常显示中文标签

# 自定义数据
df = pd.DataFrame({ 'from':['A', 'B', 'C','A'],
                   'to':['D', 'A', 'E','C'],
                   'value1':[1, 10, 5, 5],
                   'value2':['typeA', 'typeA', 'typeB', 'typeB']
                  })
# 具有节点特征的数据1-连续颜色分配
carac1 = pd.DataFrame({ 'ID':['A', 'B', 'C','D','E'], 'myvalue':['123','25','76','12','34'] })
# 具有节点特征的数据2-离散颜色分配
carac2 = pd.DataFrame({ 'ID':['A', 'B', 'C','D','E'], 'myvalue':['group1','group1','group2','group3','group3'] })
# 构造网络图数据格式
G=nx.from_pandas_edgelist(df, 'from', 'to', create_using=nx.Graph() )
# 利用节点顺序排序carac1
carac1 = carac1.set_index('ID')
carac1 = carac1.reindex(G.nodes())
# 利用节点顺序排序carac2，并转化为Categorical编码
carac2 = carac2.set_index('ID')
carac2 = carac2.reindex(G.nodes())
carac2['myvalue']=pd.Categorical(carac2['myvalue'])
carac2['myvalue'].cat.codes
# 将value2化为Categorical编码
df['value2']=pd.Categorical(df['value2'])
df['value2'].cat.codes

# 初始化布局
fig = plt.figure(figsize=(16,8))

# 将连续颜色映射到节点
plt.subplot(2, 2, 1)
nx.draw(G, with_labels=True, node_color=carac1['myvalue'].astype(int), cmap=plt.cm.Blues)
plt.title('将连续颜色映射到节点')

# 将离散颜色映射到节点
plt.subplot(2, 2, 2)
nx.draw(G, with_labels=True, node_color=carac2['myvalue'].cat.codes, cmap=plt.cm.Set1, node_size=1500)
plt.title('将离散颜色映射到节点')

# 将连续颜色映射到边线
plt.subplot(2, 2, 3)
nx.draw(G, with_labels=True, node_color='skyblue', node_size=1500, edge_color=df['value1'], width=10.0, edge_cmap=plt.cm.Blues)
plt.title('将连续颜色映射到边线')

# 将离散颜色映射到边线
plt.subplot(2, 2, 4)
nx.draw(G, with_labels=True, node_color='skyblue', node_size=1500, edge_color=df['value2'].cat.codes, width=10.0, edge_cmap=plt.cm.Set2)
plt.title('将离散颜色映射到边线')



plt.show()

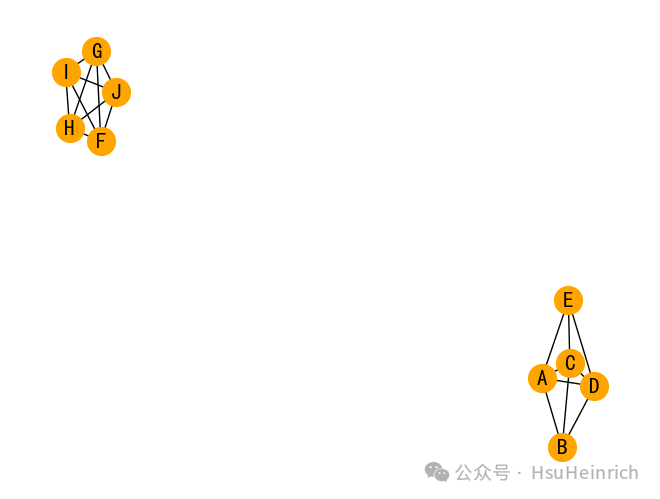

基于相关矩阵的网络图

import pandas as pd
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt

# 自定义数据
ind1=[5,10,3,4,8,10,12,1,9,4]
ind5=[1,1,13,4,18,5,2,11,3,8]
df = pd.DataFrame({ 'A':ind1,
                   'B':ind1 + np.random.randint(10, size=(10)) ,
                   'C':ind1 + np.random.randint(10, size=(10)) ,
                   'D':ind1 + np.random.randint(5, size=(10)) ,
                   'E':ind1 + np.random.randint(5, size=(10)),
                   'F':ind5,
                   'G':ind5 + np.random.randint(5, size=(10)) ,
                   'H':ind5 + np.random.randint(5, size=(10)),
                   'I':ind5 + np.random.randint(5, size=(10)),
                   'J':ind5 + np.random.randint(5, size=(10))})

# 计算相关性
corr = df.corr()

# 转化为长格式
links = corr.stack().reset_index()
links.columns = ['var1', 'var2', 'value']

# 过滤数据，仅保留高相关性，并删除自相关
links_filtered=links.loc[ (links['value'] > 0.8) & (links['var1'] != links['var2']) ]

# 构造网络图数据格式
G=nx.from_pandas_edgelist(links_filtered, 'var1', 'var2')

# 绘制相关矩阵网络图
nx.draw(G, with_labels=True, node_color='orange', node_size=400, edge_color='black', linewidths=1, font_size=15)

plt.show()

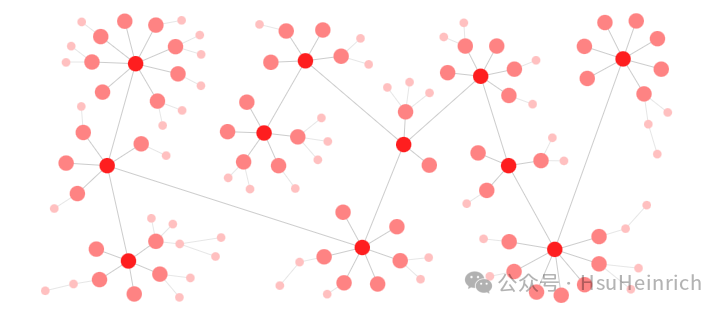

拓展-绘制具有边缘捆绑的网络图

%%capture --no-display
# 上述代码隐藏警告信息输出

import matplotlib.pyplot as plt
import networkx as nx
from netgraph import Graph

# 自定义数据
partition_sizes = [10, 20, 30, 40]
g = nx.random_partition_graph(partition_sizes, 0.5, 0.1)


# 将数据按照partition_sizes分为4类
node_to_community = dict()
node = 0
for community_id, size in enumerate(partition_sizes):
    for _ in range(size):
        node_to_community[node] = community_id
        node += 1

# 针对各类自定义颜色
community_to_color = {
    0 : 'tab:blue',
    1 : 'tab:orange',
    2 : 'tab:green',
    3 : 'tab:red',
}
node_color = {node: community_to_color[community_id] \
              for node, community_id in node_to_community.items()}


fig, ax = plt.subplots()
Graph(g,
      node_color=node_color, # 节点颜色
      node_edge_width=0,     # 去除节点边缘的边框
      edge_width=0.1,        # 边缘宽度
      edge_alpha=0.5,        # 边缘透明度
      node_layout='community', node_layout_kwargs=dict(node_to_community=node_to_community),
      edge_layout='bundled', # 带捆绑的束
      ax=ax,
)
plt.show()
