作者，Evil Genius

小年了，俗话说，过了腊八就是年，现在我们都过小年了，就提醒一句啊，大家速度结婚。

今天我们复习，mistyR的python版本。

一些基础知识需要大家掌握

首先是decoupler，大家先要学习一下，链接在decoupler - Ensemble of methods to infer biological activities — decoupler 1.8.1 documentation

。

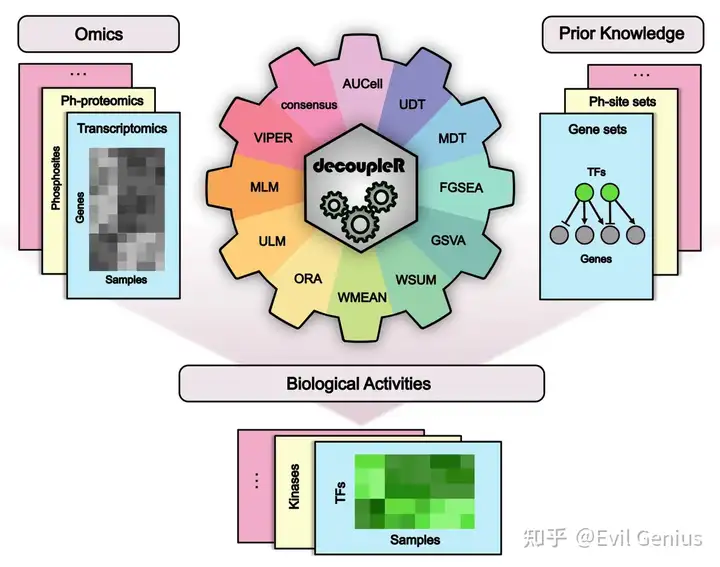

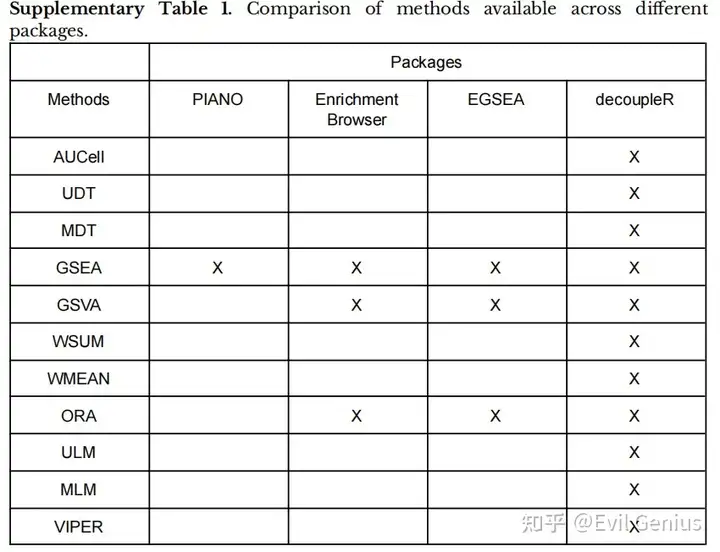

decoupler囊括了11个包，这11个软件很多大家都很熟悉。

decoupleR包里面封装了PROGENy, PROGENy是一个综合资源，包含精心挑选的通路及其目标基因集合，每个相互作用都有权重，下面是简单的介绍。

Androgen: involved in the growth and development of the male reproductive organs. EGFR: regulates growth, survival, migration, apoptosis, proliferation, and differentiation in mammalian cells Estrogen: promotes the growth and development of the female reproductive organs. Hypoxia: promotes angiogenesis and metabolic reprogramming when O2 levels are low. JAK-STAT: involved in immunity, cell division, cell death, and tumor formation. MAPK: integrates external signals and promotes cell growth and proliferation. NFkB: regulates immune response, cytokine production and cell survival. p53: regulates cell cycle, apoptosis, DNA repair and tumor suppression. PI3K: promotes growth and proliferation. TGFb: involved in development, homeostasis, and repair of most tissues. TNFa: mediates haematopoiesis, immune surveillance, tumour regression and protection from infection. Trail: induces apoptosis. VEGF: mediates angiogenesis, vascular permeability, and cell migration. WNT: regulates organ morphogenesis during development and tissue repair.

我们获取一下

progeny = dc.get_progeny(organism='human', top=500)
progeny

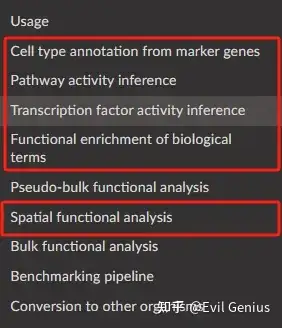

当然了，这个软件的功能很多，重点部分已经给大家标注了。

然后就是我们今天的重点，空间细胞关系

MISTy是一个工具，帮助理解不同特征，如基因或细胞类型，在空间中的相互作用方式。MISTy通过学习细胞内和细胞外的关系来实现这一点-即发生在细胞/spot内部和之间的关系。MISTy的一个主要优势是其灵活性。它可以模拟不同的视角，或“视图”，每个视图描述标记物之间不同的关联方式。这些视图中的每一个都可以描述不同的空间背景，即定义标记物观察表达之间的关系，如细胞内调节或旁分泌调节。

我们来实现一下，先做好单细胞空间联合分析（cell2location）

#pip install "decoupler>=1.4.0"
import scanpy as sc
import decoupler as dc
import plotnine as p9
import liana as li

from liana.method import MistyData, genericMistyData, lrMistyData

from liana.method.sp import RandomForestModel, LinearModel, RobustLinearModel

adata = sc.read("test.h5ad"）

adata.layers['counts'] = adata.X.copy()
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)

sc.pl.spatial(adata, color=[None, 'celltype_niche'], size=1.3, palette='Set1')

看一下cell2location的结果,细胞矩阵。

adata.obsm['compositions']

对细胞类型采用缩写表示

# Rename to more informative names
full_names = {'Adipo': 'Adipocytes',
              'CM': 'Cardiomyocytes',
              'Endo': 'Endothelial',
              'Fib': 'Fibroblasts',
              'PC': 'Pericytes',
              'prolif': 'Proliferating',
              'vSMCs': 'Vascular_SMCs',
              }
# but only for the ones that are in the data
adata.obsm['compositions'].columns = [full_names.get(c, c) for c in adata.obsm['compositions'].columns]

comps = li.ut.obsm_to_adata(adata, 'compositions')

comps.var

接下来估计通路活性， PROGENy。

# obtain genesets
progeny = dc.get_progeny(organism='human', top=500)

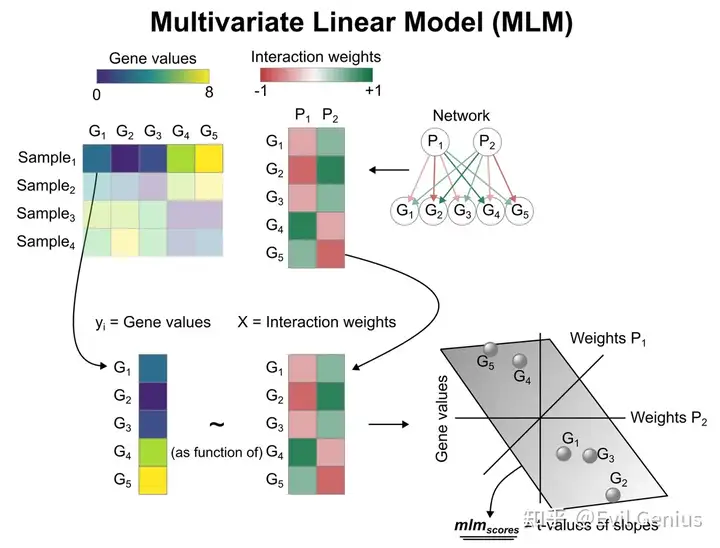

# use multivariate linear model to estimate activity
dc.run_mlm(
    mat=adata,
    net=progeny,
    source='source',
    target='target',
    weight='weight',
    verbose=True,
    use_raw=False,
)

# extract progeny activities as an AnnData object
acts_progeny = li.ut.obsm_to_adata(adata, 'mlm_estimate')

# Check how the pathway activities look like

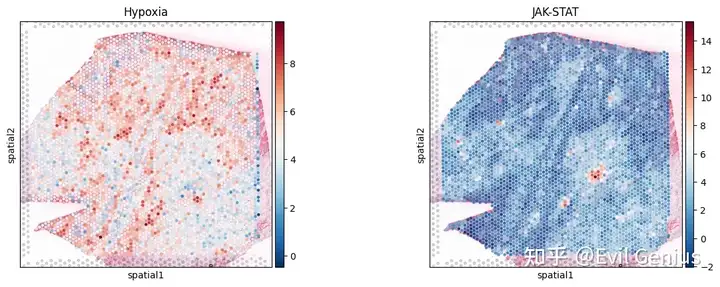

sc.pl.spatial(acts_progeny, color=['Hypoxia', 'JAK-STAT'], cmap='RdBu_r', size=1.3)

Formatting & Running MISTy

misty = genericMistyData(intra=comps, extra=acts_progeny, cutoff=0.05, bandwidth=200, n_neighs=6)

Learn Relationships with MISTy

misty(model=RandomForestModel, n_jobs=-1, verbose = True)

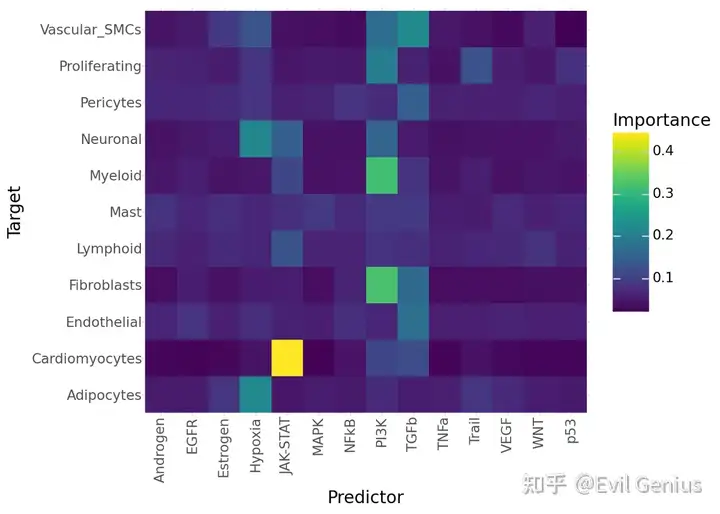

li.pl.interactions(misty, view='juxta', return_fig=True, figure_size=(7,5))

Ligand-Receptor Misty

sc.pp.highly_variable_genes(adata)
hvg = adata.var[adata.var['highly_variable']].index

misty = lrMistyData(adata[:, hvg], bandwidth=200, set_diag=False, cutoff=0.01, nz_threshold=0.1)

(
    li.pl.interactions(misty, view='extra', return_fig=True, figure_size=(6, 5), top_n=25, key=abs) +
    p9.scale_fill_gradient2(low = "blue", mid = "white", high = "red", midpoint = 0) +
    p9.labs(y='Receptor', x='Ligand')
)
