大家好,今天我们一起来实现一个鸿蒙版本的 screen_brightness
项目是一个用于控制屏幕亮度的 Flutter 插件项目,支持 Android、iOS、macOS 和 Windows 平台。
目前社区里还有一个 screen,但是在使用的时候发现一个问题,就是目前 screen 并没有支持空安全,在 3.21 的项目里不能使用,但是为了方便开发者,我其实也做了适配,大家可以直接使用,地址:https://gitcode.com/jianguoxu/fluttertpc_screen,
screen_brightness 在屏幕亮度控制方面功能更加强大和全面,适合对屏幕亮度有精细控制需求的应用;而 screen 则在屏幕状态控制的多样性上更具优势,适合需要同时控制屏幕亮度和防止屏幕睡眠的应用。开发者可以根据具体的应用场景和需求来选择合适的库。
但是相比较来说,screen_brightness 目前一直在更新,所以我们今天就一起来看看如何对这个库进行适配。
flutter 开发环境已配置:参考https://gitee.com/openharmony-sig/flutter_flutter/blob/master/README.md
下载待适配的三方插件:官方插件库地址https://pub.dev/

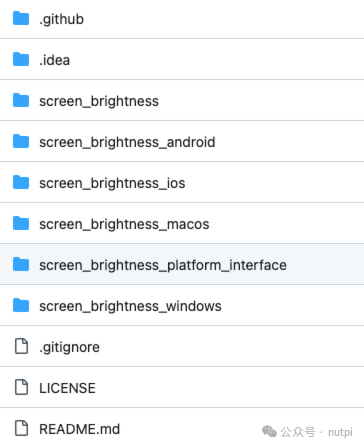

目前 screen_brightness 在 github 上。
https://github.com/aaassseee/screen_brightness
lib: 是对接 dart 端代码的入口,由此文件接收到参数后,通过 channel 将数据发送到原生端;
android:安卓端代码实现目录;
ios:ios 原生端实现目录;
example: 一个依赖于该插件的 Flutter 应用程序,来说明如何使用它;
README.md:介绍包的文件;
CHANGELOG.md: 记录每个版本中的更改;
LICENSE: 包含软件包许可条款的文件。

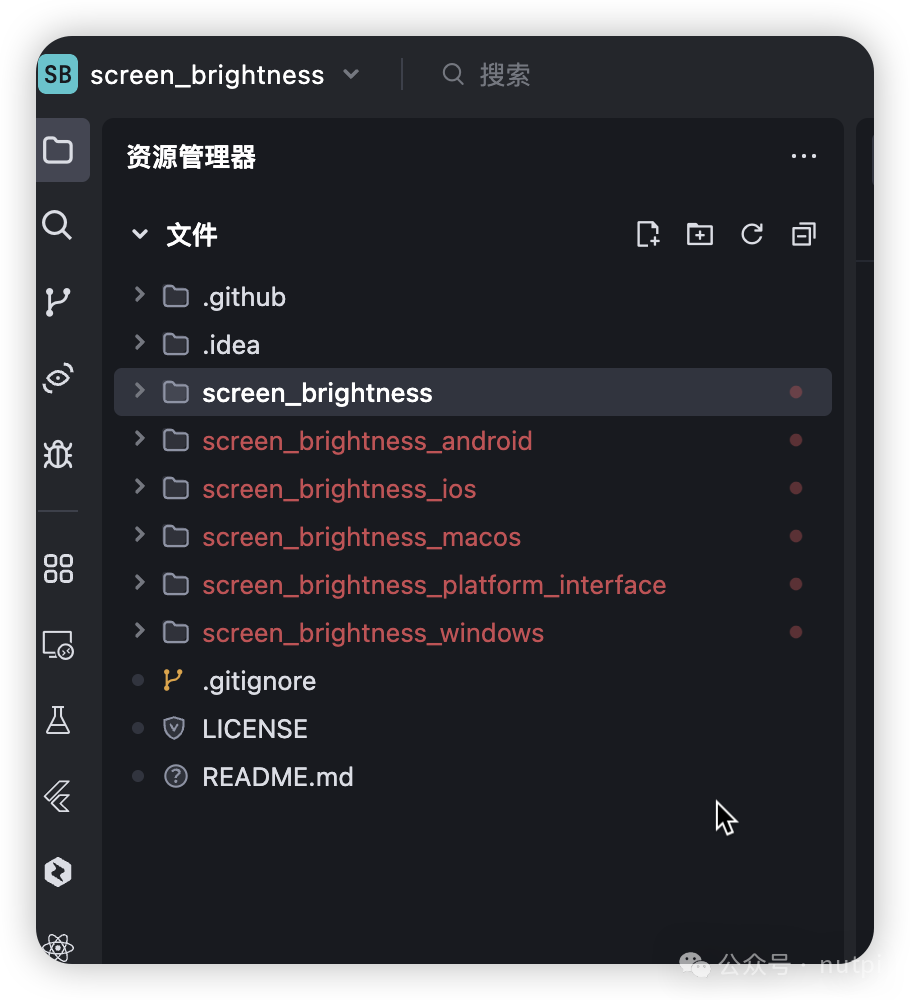

image-20250311152157610
.gitignore
:指定 Git 版本控制系统中需要忽略的文件和文件夹,避免将不必要的文件纳入版本控制。LICENSE
:项目的开源许可证文件,规定了项目代码的使用、修改和分发规则。README.md
:项目的说明文档,包含项目概述、插件信息和维护者信息。项目概述部分提到这是一个用于控制屏幕亮度的插件,并且实现了应用生命周期内设置和重置亮度的功能。同时还列出了各个平台插件的 Pub 链接,方便用户查看和使用。screen_brightness_macos
:包含 macOS 平台的插件代码和相关配置文件。其中 example
目录可能包含 macOS 平台的示例项目,macos
目录可能包含 macOS 原生代码和配置文件。screen_brightness_android
:包含 Android 平台的插件代码和相关配置文件。android
目录可能包含 Android 原生代码和配置文件,example
目录可能包含 Android 平台的示例项目。screen_brightness_windows
:包含 Windows 平台的插件代码和相关配置文件。.idea
:IntelliJ IDEA 或 Android Studio 的配置文件目录,包含 IDE 的项目设置、运行配置等信息。.github
:包含 GitHub 相关的配置文件和工作流。例如,可能包含用于自动化构建、测试和发布的 GitHub Actions 工作流配置文件。screen_brightness_ios
:包含 iOS 平台的插件代码和相关配置文件。screen_brightness
:主插件代码目录,可能包含跨平台的 Dart 代码和一些通用配置。screen_brightness_platform_interface
:包含跨平台接口定义的代码,为不同平台的插件提供统一的接口,方便实现多平台支持。命令:flutter create --platforms ohos,android,ios --org <org> <appName>
步骤:
1)用 VScode 打开刚刚下载好的插件;
2)打开 Terminal,cd 到插件目录下;
3)执行命令flutter create --platforms ohos screen_brightness_ohos
创建一个 ohos 平台的 flutter 模块。

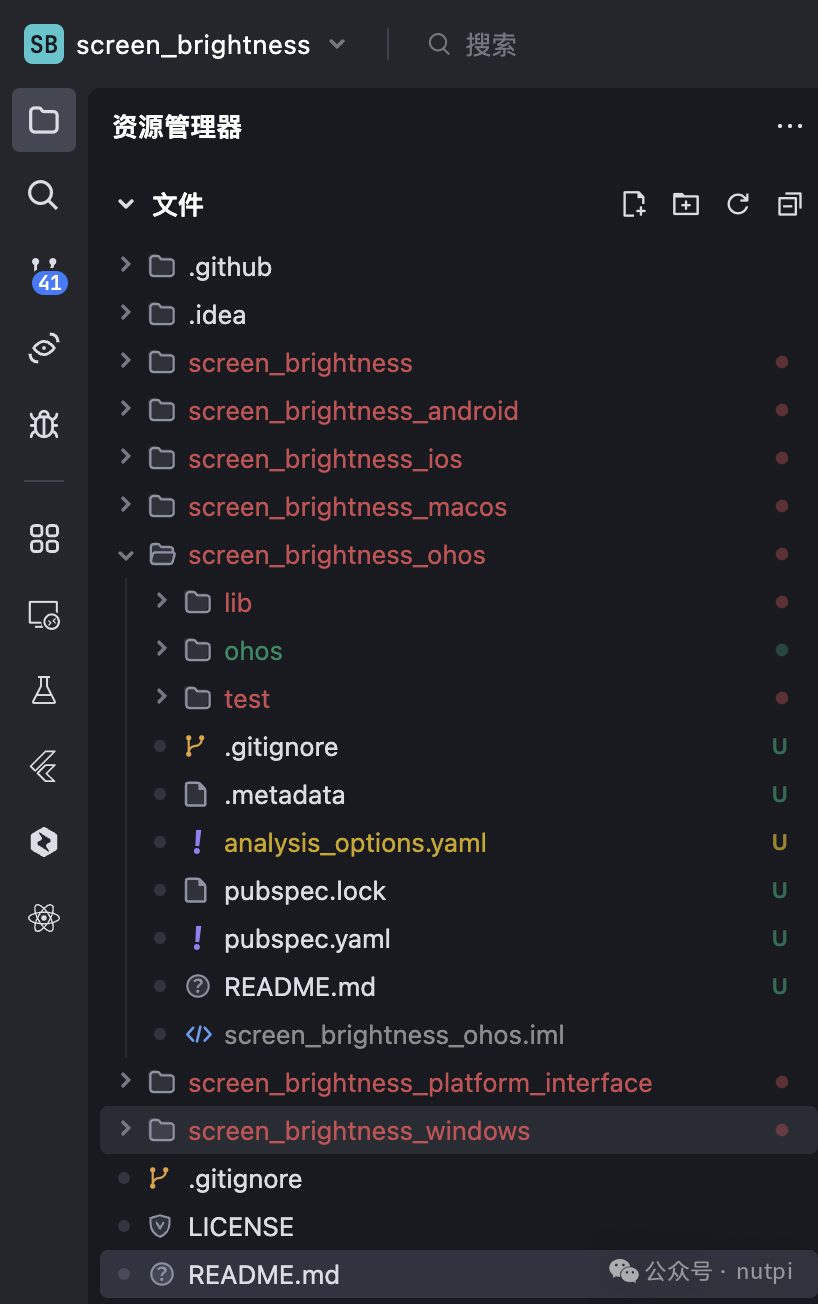

执行创建命令前:
执行创建命令后,可以将 screen_brightness_ohos 目录下的.dart_tool 和.ldea 文件删除。

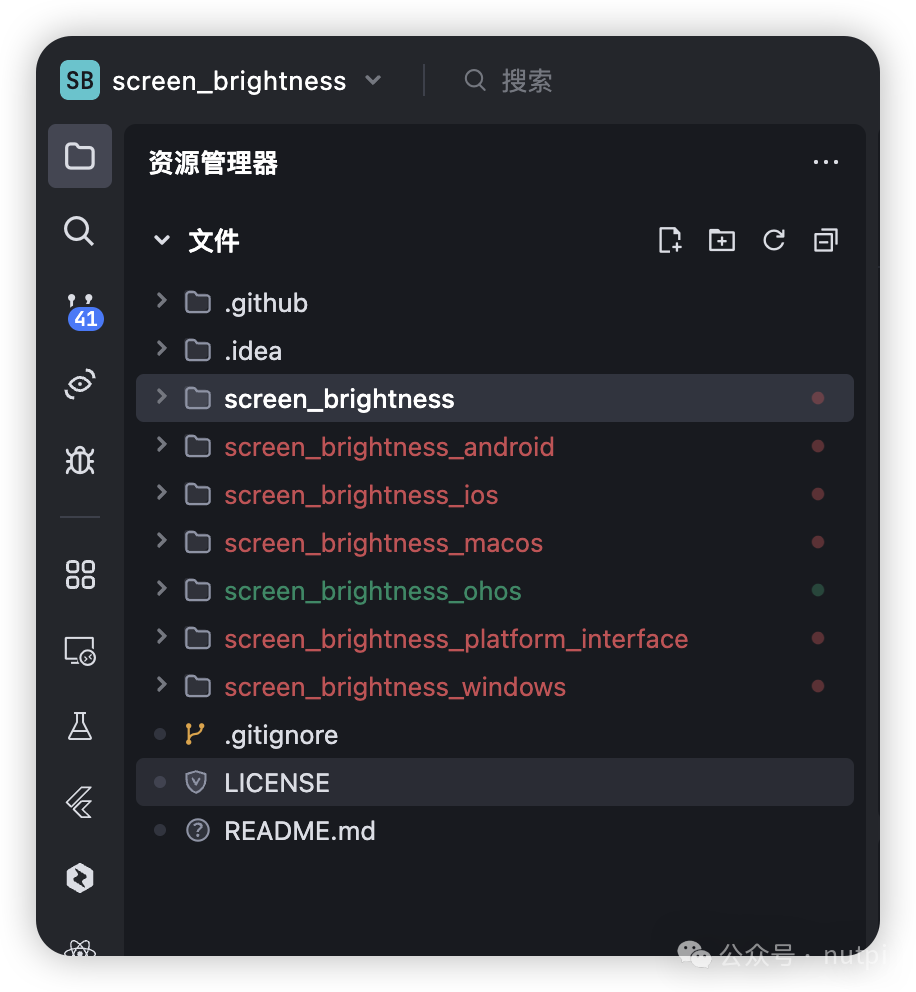

删除后
可直接复制 screen_brightness_android 目录下 lib 的 dart 代码和 pubspec.yaml 文件进行修改;
name: screen_brightness_android
description: The Android federated plugin implementation of screen_brightness.
version: 2.1.1
homepage: https://github.com/aaassseee/screen_brightness
repository: https://github.com/aaassseee/screen_brightness/tree/master/screen_brightness_android
issue_tracker: https://github.com/aaassseee/screen_brightness/issues
topics:
- screen
- monitor
- brightness
environment:
sdk: ">=3.0.0 <4.0.0"
flutter: ">=3.0.0"
dependencies:
flutter:
sdk: flutter
screen_brightness_platform_interface: ">=2.1.0 <3.0.0"
dev_dependencies:
flutter_test:
sdk: flutter
flutter_lints: ">=3.0.0 <4.0.0"
#dependency_overrides:
# screen_brightness_platform_interface:
# path: ../screen_brightness_platform_interface/
flutter:
plugin:
platforms:
android:
package: com.aaassseee.screen_brightness_android
pluginClass: ScreenBrightnessAndroidPlugin
name: screen_brightness_ohos
description: "A new Flutter project."
# The following line prevents the package from being accidentally published to
# pub.dev using `flutter pub publish`. This is preferred for private packages.
publish_to: 'none' # Remove this line if you wish to publish to pub.dev
# The following defines the version and build number for your application.
# A version number is three numbers separated by dots, like 1.2.43
# followed by an optional build number separated by a +.
# Both the version and the builder number may be overridden in flutter
# build by specifying --build-name and --build-number, respectively.
# In Android, build-name is used as versionName while build-number used as versionCode.
# Read more about Android versioning at https://developer.android.com/studio/publish/versioning
# In iOS, build-name is used as CFBundleShortVersionString while build-number is used as CFBundleVersion.
# Read more about iOS versioning at
# https://developer.apple.com/library/archive/documentation/General/Reference/InfoPlistKeyReference/Articles/CoreFoundationKeys.html
# In Windows, build-name is used as the major, minor, and patch parts
# of the product and file versions while build-number is used as the build suffix.
version: 1.0.0+1
environment:
sdk: '>=3.4.0 <4.0.0'
# Dependencies specify other packages that your package needs in order to work.
# To automatically upgrade your package dependencies to the latest versions
# consider running `flutter pub upgrade --major-versions`. Alternatively,
# dependencies can be manually updated by changing the version numbers below to
# the latest version available on pub.dev. To see which dependencies have newer
# versions available, run `flutter pub outdated`.
dependencies:
flutter:
sdk: flutter
# The following adds the Cupertino Icons font to your application.
# Use with the CupertinoIcons class for iOS style icons.
cupertino_icons: ^1.0.6
dev_dependencies:
flutter_test:
sdk: flutter
# The "flutter_lints" package below contains a set of recommended lints to
# encourage good coding practices. The lint set provided by the package is
# activated in the `analysis_options.yaml` file located at the root of your
# package. See that file for information about deactivating specific lint
# rules and activating additional ones.
flutter_lints: ^3.0.0
# For information on the generic Dart part of this file, see the
# following page: https://dart.dev/tools/pub/pubspec
# The following section is specific to Flutter packages.
flutter:
# The following line ensures that the Material Icons font is
# included with your application, so that you can use the icons in
# the material Icons class.
uses-material-design: true
# To add assets to your application, add an assets section, like this:
# assets:
# - images/a_dot_burr.jpeg
# - images/a_dot_ham.jpeg
# An image asset can refer to one or more resolution-specific "variants", see
# https://flutter.dev/assets-and-images/#resolution-aware
# For details regarding adding assets from package dependencies, see
# https://flutter.dev/assets-and-images/#from-packages
# To add custom fonts to your application, add a fonts section here,
# in this "flutter" section. Each entry in this list should have a
# "family" key with the font family name, and a "fonts" key with a
# list giving the asset and other descriptors for the font. For
# example:
# fonts:
# - family: Schyler
# fonts:
# - asset: fonts/Schyler-Regular.ttf
# - asset: fonts/Schyler-Italic.ttf
# style: italic
# - family: Trajan Pro
# fonts:
# - asset: fonts/TrajanPro.ttf
# - asset: fonts/TrajanPro_Bold.ttf
# weight: 700
#
# For details regarding fonts from package dependencies,
# see https://flutter.dev/custom-fonts/#from-packages

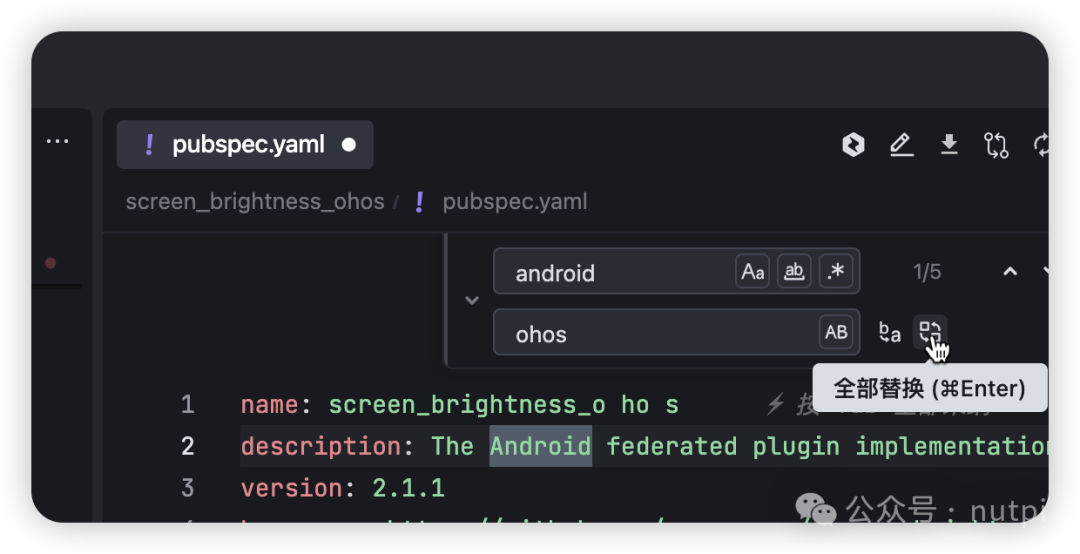

dart 代码基本不需要修改,只需要将 android 字样改为 ohos。
lib 目录 dart 代码:
image-20250311153908637
修改后的仅做参考
name: screen_brightness_o ho s
description: The ohos federated plugin implementation of screen_brightness.
version: 2.1.1
homepage: https://github.com/aaassseee/screen_brightness
repository: https://github.com/aaassseee/screen_brightness/tree/master/screen_brightness_ohos
issue_tracker: https://github.com/aaassseee/screen_brightness/issues
topics:
- screen
- monitor
- brightness
environment:
sdk: ">=3.0.0 <4.0.0"
flutter: ">=3.0.0"
dependencies:
flutter:
sdk: flutter
screen_brightness_platform_interface: ">=2.1.0 <3.0.0"
dev_dependencies:
flutter_test:
sdk: flutter
flutter_lints: ">=3.0.0 <4.0.0"
#dependency_overrides:
# screen_brightness_platform_interface:
# path: ../screen_brightness_platform_interface/
flutter:
plugin:
platforms:
ohos:
package: com.aaassseee.screen_brightness_ohos
pluginClass: ScreenBrightnessohosPlugin
由于是写 ohos 平台的 flutter 插件,而不是写一个应用,需要将原来的 entry 模块删除,新建一个 path_provider 插件的静态模块,用来写 ets 原生代码逻辑。
步骤:

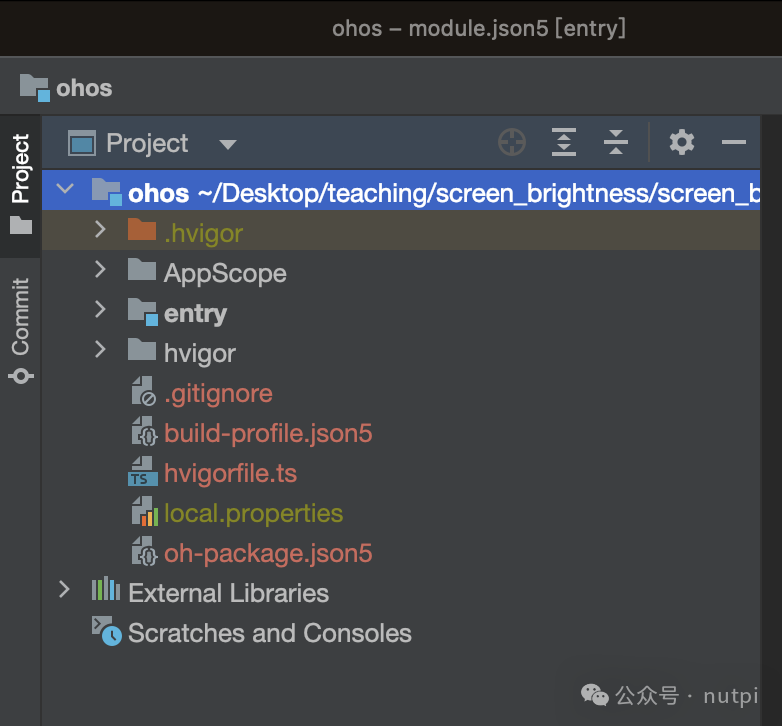

1)用 DevEco Studio 打开 screen_brightness_ohos 下的 ohos 项目:
image-20250311154231152

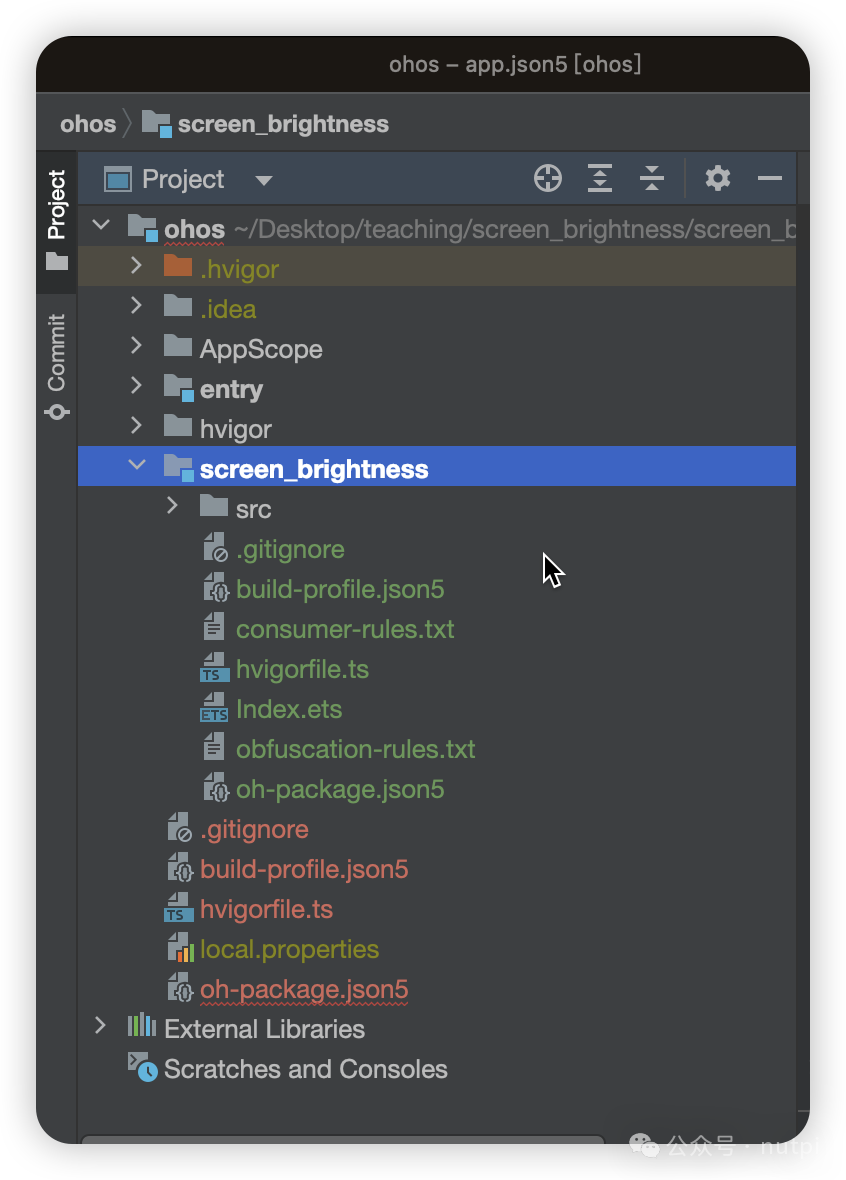

2)新建一个名称为 screen_brightness 的静态模块:
在 DevEco Studio 左上角点击Flie > New > Module > Static Library > Next
;
module name 填写为screen_brightness
,其他选项为默认,点击 Finish,完成创建。
3)删除 entry 以及其他多余目录:
entry 目录(entry 是用来写应用的,现在是要写插件,此处已不需要,应该删除);
image-20250311155825385
删除 entry

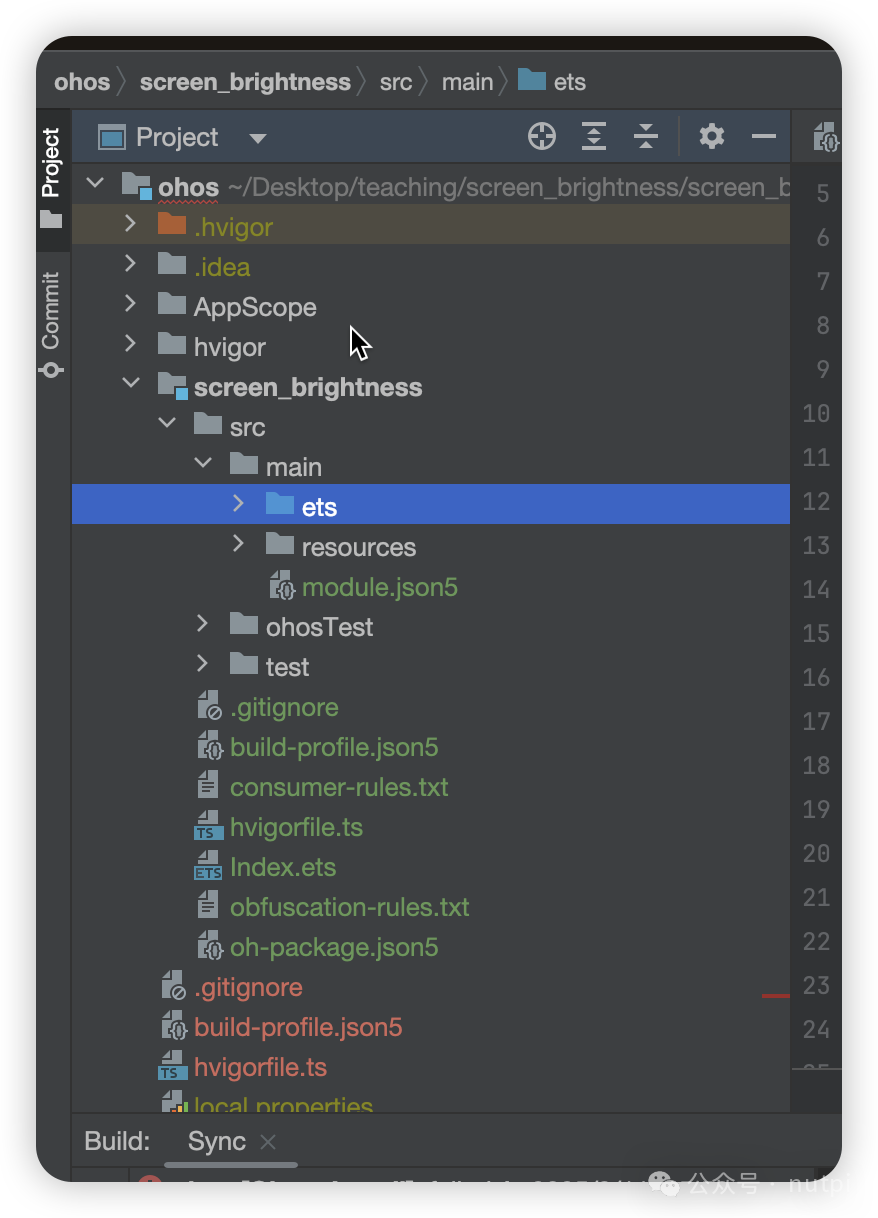

将screen_brightness > src > main > ets
目录下的文件全部删除(此处是一些模板代码可删除)。
image-20250311155956165
1)在 screen_brightness 目录内的 oh-package.json5 添加 libs/flutter.har 依赖:
{
"name": "screen_brightness",
"version": "1.0.0",
"description": "Please describe the basic information.",
"main": "Index.ets",
"author": "",
"license": "Apache-2.0",
"dependencies": {
"@ohos/flutter_ohos": "file:libs/har/flutter.har" //此处为添加的依赖
}
}
2)将 screen_brightness 目录外侧的 oh-package.json5 的 dependencies 中的 flutter.har 依赖删除:
/*
* Copyright (c) 2023 Hunan OpenValley Digital Industry Development Co., Ltd.
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
{
"modelVersion": "5.0.0",
"name": "screen_brightness_ohos",
"version": "1.0.0",
"description": "Please describe the basic information.",
"main": "",
"author": "",
"license": "",
"dependencies": {
},
"devDependencies": {
"@ohos/hypium": "1.0.6"
},
"overrides": {
}
}
3)在 screen_brightness 目录下添加 flutter.har:
image-20250311161026283
文件结构,和代码逻辑可参考安卓或 ios:
https://gitcode.com/nutpi/screen_brightness/tree/master/screen_brightness_android
ohos 的 api 可以参考:https://gitcode.com/openharmony/docs
import {ScreenBrightnessPlugin} from './src/main/ets/flutter/plugins/screenbrightness/ScreenBrightnessPlugin'
export default ScreenBrightnessPlugin
写完代码,改完配置文件后,即可打 har 包:
打包工具:DevEco Studio
打包步骤:1、鼠标定位到 screen_brightness 目录;2、点击 DevEco Studio 中的 Build;3、点击 Make Module 'screen_brightness'选项;4、等待打包完成。
预期结果:
在screen_brightness > build > default > outputs
中有 screen_brightness 生成,即为打 har 包成功。
cd 到 screen_brightness_ohos 目录下 ;

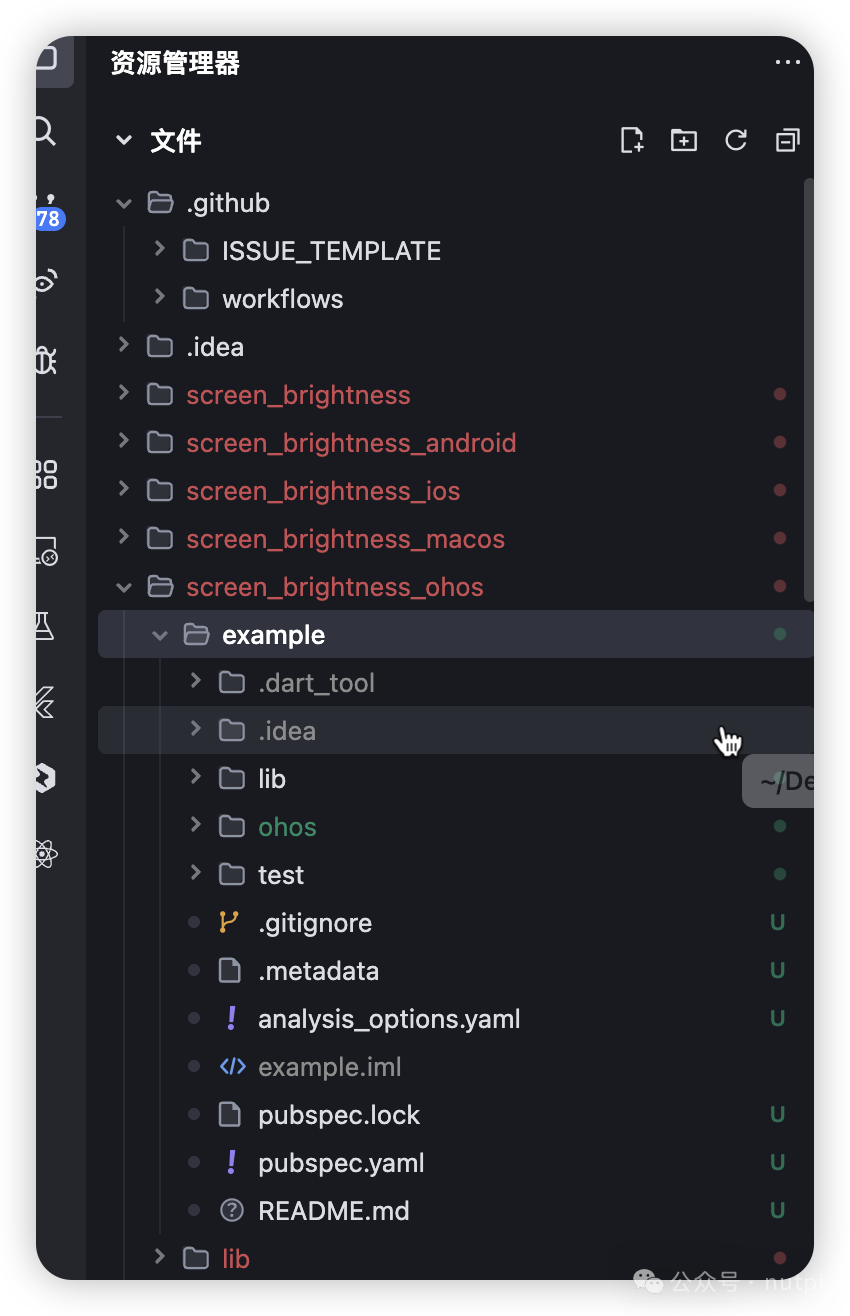

命令:flutter create --platforms ohos example
工具:Vscode
复制screen_brightness_android\example\lib
下的 main.dart 代码,替换screen_brightness_ohos\example\lib
下的 main.dart 代码。
image-20250311163754260
name: screen_brightness_android_example
description: Demonstrates how to use the screen_brightness_android plugin.
# The following line prevents the package from being accidentally published to
# pub.dev using `flutter pub publish`. This is preferred for private packages.
publish_to: 'none' # Remove this line if you wish to publish to pub.dev
environment:
sdk: ">=3.0.0 <4.0.0"
# Dependencies specify other packages that your package needs in order to work.
# To automatically upgrade your package dependencies to the latest versions
# consider running `flutter pub upgrade --major-versions`. Alternatively,
# dependencies can be manually updated by changing the version numbers below to
# the latest version available on pub.dev. To see which dependencies have newer
# versions available, run `flutter pub outdated`.
dependencies:
flutter:
sdk: flutter
screen_brightness_ohos:
path: ../
screen_brightness_platform_interface:
dev_dependencies:
flutter_test:
sdk: flutter
flutter_lints: ">=3.0.0 <4.0.0"
dependency_overrides:
screen_brightness_platform_interface:
path: ../../screen_brightness_platform_interface/
# For information on the generic Dart part of this file, see the
# following page: https://dart.dev/tools/pub/pubspec
# The following section is specific to Flutter.
flutter:
# The following line ensures that the Material Icons font is
# included with your application, so that you can use the icons in
# the material Icons class.
uses-material-design: true
# To add assets to your application, add an assets section, like this:
# assets:
# - images/a_dot_burr.jpeg
# - images/a_dot_ham.jpeg
# An image asset can refer to one or more resolution-specific "variants", see
# https://flutter.dev/assets-and-images/#resolution-aware.
# For details regarding adding assets from package dependencies, see
# https://flutter.dev/assets-and-images/#from-packages
# To add custom fonts to your application, add a fonts section here,
# in this "flutter" section. Each entry in this list should have a
# "family" key with the font family name, and a "fonts" key with a
# list giving the asset and other descriptors for the font. For
# example:
# fonts:
# - family: Schyler
# fonts:
# - asset: fonts/Schyler-Regular.ttf
# - asset: fonts/Schyler-Italic.ttf
# style: italic
# - family: Trajan Pro
# fonts:
# - asset: fonts/TrajanPro.ttf
# - asset: fonts/TrajanPro_Bold.ttf
# weight: 700
#
# For details regarding fonts from package dependencies,
# see https://flutter.dev/custom-fonts/#from-packages
flutter: plugin:platforms 添加 ohos;
dependencies:添加 screen_brightness_ohos 依赖。
name: screen_brightness
description: A Plugin for controlling screen brightness with application life cycle reset implemented
version: 2.1.2
homepage: https://github.com/aaassseee/screen_brightness
repository: https://github.com/aaassseee/screen_brightness/tree/master/screen_brightness
issue_tracker: https://github.com/aaassseee/screen_brightness/issues
topics:
- screen
- monitor
- brightness
environment:
sdk: ">=3.0.0 <4.0.0"
flutter: ">=3.0.0"
dependencies:
flutter:
sdk: flutter
screen_brightness_platform_interface: ">=2.1.0 <3.0.0"
screen_brightness_android: ">=2.1.1 <3.0.0"
screen_brightness_ios: ">=2.1.1 <3.0.0"
screen_brightness_macos: ">=2.1.1 <3.0.0"
screen_brightness_windows: ">=2.1.0 <3.0.0"
screen_brightnes_ohos:
path: ../screen_brightnes_ohos #此处为添加
dev_dependencies:
flutter_test:
sdk: flutter
flutter_lints: ">=3.0.0 <4.0.0"
plugin_platform_interface: ">=2.0.0 <3.0.0"
async: ">=2.0.0 <3.0.0"
#dependency_overrides:
# screen_brightness_platform_interface:
# path: ../screen_brightness_platform_interface/
# screen_brightness_android:
# path: ../screen_brightness_android
# screen_brightness_ios:
# path: ../screen_brightness_ios
# screen_brightness_macos:
# path: ../screen_brightness_macos
# screen_brightness_windows:
# path: ../screen_brightness_windows
# For information on the generic Dart part of this file, see the
# following page: https://dart.dev/tools/pub/pubspec
# The following section is specific to Flutter.
flutter:
# This section identifies this Flutter project as a plugin project.
# The 'pluginClass' and Android 'package' identifiers should not ordinarily
# be modified. They are used by the tooling to maintain consistency when
# adding or updating assets for this project.
plugin:
platforms:
android:
default_package: screen_brightness_android
ios:
default_package: screen_brightness_ios
macos:
default_package: screen_brightness_macos
windows:
default_package: screen_brightness_windows
ohos:
default_package: screen_brightness_ohos #此处为添加
# To add assets to your plugin package, add an assets section, like this:
# assets:
# - images/a_dot_burr.jpeg
# - images/a_dot_ham.jpeg
#
# For details regarding assets in packages, see
# https://flutter.dev/assets-and-images/#from-packages
#
# An image asset can refer to one or more resolution-specific "variants", see
# https://flutter.dev/assets-and-images/#resolution-aware.
# To add custom fonts to your plugin package, add a fonts section here,
# in this "flutter" section. Each entry in this list should have a
# "family" key with the font family name, and a "fonts" key with a
# list giving the asset and other descriptors for the font. For
# example:
# fonts:
# - family: Schyler
# fonts:
# - asset: fonts/Schyler-Regular.ttf
# - asset: fonts/Schyler-Italic.ttf
# style: italic
# - family: Trajan Pro
# fonts:
# - asset: fonts/TrajanPro.ttf
# - asset: fonts/TrajanPro_Bold.ttf
# weight: 700
#
# For details regarding fonts in packages, see
# https://flutter.dev/custom-fonts/#from-packages
用 Deveco Studio
打开三方库的 example > ohos
目录;
单击 File > Project Structure > Project > Signing Configs
界面勾选 Automatically generate signature
,等待自动签名完成即可,单击 OK
;
cd 到path_provider_ohos\example > ohos
目录,使用下列指令运行:
flutter pub get
flutter run -d <device-id>
ohos 平台适配 flutter 三方库指导[1]
[如何使用 Flutter 与 OpenHarmony 通信 FlutterChannel](https://gitcode.com/openharmony-sig/flutter_samples/blob/master/ohos/docs/04_development/如何使用Flutter与OpenHarmony通信 FlutterChannel.md "如何使用 Flutter 与 OpenHarmony 通信 FlutterChannel")
作者:坚果派
公众号:nutpi
phone:17752170152 官网: https://www.nutpi.net/
参考资料
[1]
ohos 平台适配 flutter 三方库指导: https://gitcode.com/openharmony-sig/flutter_samples/blob/master/ohos/docs/07_plugin/ohos%E5%B9%B3%E5%8F%B0%E9%80%82%E9%85%8Dflutter%E4%B8%89%E6%96%B9%E5%BA%93%E6%8C%87%E5%AF%BC.md
