S7-1500PLC TCP_FB_V1.2

原创

没事闲的

修改于 2025-03-17 09:30:38

810

文章被收录于专栏：TCP communicationTCP communication

TCP communication test function block, version V1.2, support data sending and receiving, heartbeat timing transmission, display receiving, and Time-limited reception, can be downloaded and tested.(Only for personal test use, do not use in the field production environment, if you have questions please contact the author)

支持常规数据收发，心跳定时发送，限时接收，以及数据接收验证；仅供个人测试；

程序中如有问题感谢反馈，我会及时做出修改！

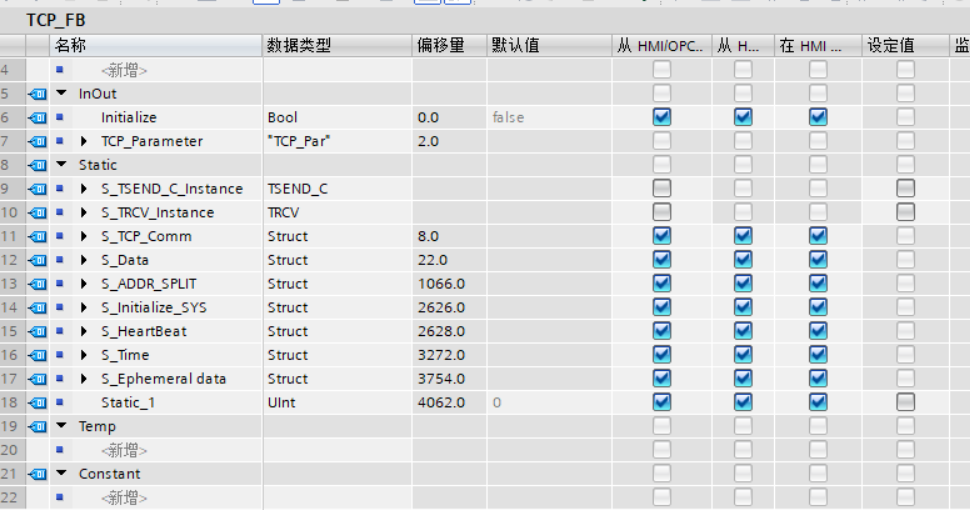

一、功能块引脚

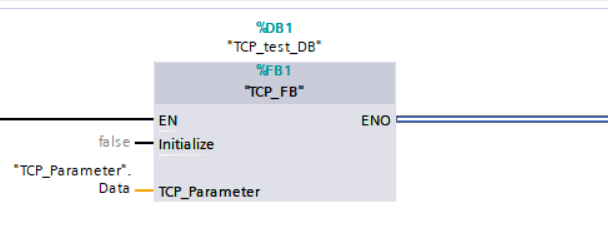

功能块引脚包括：initialize初始化、TCP_Parameter，两个引脚；

二、內部程序（部分）

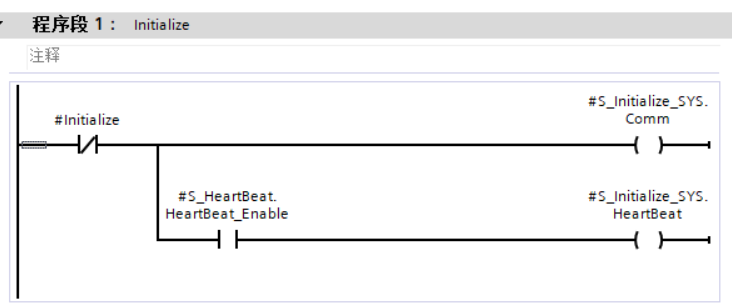

1、程序段1：Initialize初始化

2、Parameter mapping

//Control

#S_TSEND_C_Instance.CONT := #TCP_Parameter.DATA.Control.CONT; //连接赋值

//Data
IF #"S_Ephemeral data".HeartSend_State
THEN
    //#TCP_Parameter.DATA.S_HeartBeat.RECEIVE := #S_HeartBeat.RECEIVE;
    #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_LEN := #S_HeartBeat.RECEIVE.Recv_LEN;
    #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_Count := #S_HeartBeat.RECEIVE.Recv_Count;
    #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_Valid := #S_HeartBeat.RECEIVE.Recv_Valid;
    #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_Check_Err := #S_HeartBeat.RECEIVE.Recv_Check_Err;
    #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_ASCII := #S_HeartBeat.RECEIVE.Recv_ASCII;

    #S_HeartBeat.RECEIVE.Recv_Check_Enable := "TCP_Parameter".Data.DATA.S_HeartBeat.RECEIVE.Recv_Check_Enable;


    UMOVE_BLK(IN := #S_Data.RECEIVE.Recv[0],
              COUNT := 32,
              OUT => #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv[0]);
    UMOVE_BLK(IN := #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_CheckData[0],
              COUNT := 32,
              OUT => #S_HeartBeat.RECEIVE.Recv_CheckData[0]);

    #S_HeartBeat.RECEIVE.Recv_Check_Enable := #TCP_Parameter.DATA.S_HeartBeat.RECEIVE.Recv_Check_Enable;


    #S_TSEND_C_Instance.LEN := #TCP_Parameter.DATA.S_HeartBeat.SEND.Send_Len;

    #TCP_Parameter.DATA.S_HeartBeat.SEND.Send_Count := #S_HeartBeat.SEND.Send_Count;
    #TCP_Parameter.DATA.S_HeartBeat.SEND.Send_Valid := #S_Data.SEND.Send_Valid;
    #TCP_Parameter.DATA.S_HeartBeat.SEND.Send_ASCII := #S_Data.SEND.Send_ASCII;
    UMOVE_BLK(IN := #TCP_Parameter.DATA.S_HeartBeat.SEND.Send[0],
              COUNT := 32,
              OUT => #S_Data.SEND.Send[0]);

END_IF;

IF #"S_Ephemeral data".HeartSend_State = FALSE
THEN
    #TCP_Parameter.DATA.Data.RECEIVE := #S_Data.RECEIVE;

    #S_TSEND_C_Instance.LEN := #TCP_Parameter.DATA.Data.SEND.Send_Len;
    #TCP_Parameter.DATA.Data.SEND.Send_Count := #S_Data.SEND.Send_Count;
    #TCP_Parameter.DATA.Data.SEND.Send_Valid := #S_Data.SEND.Send_Valid;
    #TCP_Parameter.DATA.Data.SEND.Send_ASCII := #S_Data.SEND.Send_ASCII;
    #S_Data.SEND.Send := #TCP_Parameter.DATA.Data.SEND.Send;

    #S_TSEND_C_Instance.REQ := #TCP_Parameter.DATA.Control.Send_REQ;
    #S_TRCV_Instance.EN_R := #TCP_Parameter.DATA.Control.Recv_REQ;


END_IF;

//Communication
#S_TCP_Comm.Tcon_Connect.InterfaceId := #TCP_Parameter.DATA.TCP_Communication.parameter.InterfaceId;
#S_TCP_Comm.Tcon_Connect.ID := #TCP_Parameter.DATA.TCP_Communication.parameter.Connect_ID;
#S_TCP_Comm.Tcon_Connect.ActiveEstablished := #TCP_Parameter.DATA.TCP_Communication.parameter.ActiveEstablished;
#S_TCP_Comm.Tcon_Connect.RemotePort := #TCP_Parameter.DATA.TCP_Communication.parameter.RemotePort;
#S_TCP_Comm.Tcon_Connect.LocalPort:= #TCP_Parameter.DATA.TCP_Communication.parameter.LocalPort;

//Addr
#S_ADDR_SPLIT.Addr_ALL := #TCP_Parameter.DATA.TCP_Communication.parameter.RemoteAddress;

//Status
#TCP_Parameter.DATA.TCP_Communication.Status.Tsend_DONE := #S_TSEND_C_Instance.DONE;
#TCP_Parameter.DATA.TCP_Communication.Status.Tsend_BUSY := #S_TSEND_C_Instance.BUSY;
#TCP_Parameter.DATA.TCP_Communication.Status.Tsend_ERROR := #S_TSEND_C_Instance.ERROR;
#TCP_Parameter.DATA.TCP_Communication.Status.Tsend_STATUS := #S_TSEND_C_Instance.STATUS;
#TCP_Parameter.DATA.TCP_Communication.Status.Trcv_NDR := #S_TRCV_Instance.NDR;
#TCP_Parameter.DATA.TCP_Communication.Status.Trcv_BUSY := #S_TRCV_Instance.BUSY;
#TCP_Parameter.DATA.TCP_Communication.Status.Trcv_ERROR := #S_TRCV_Instance.ERROR;
#TCP_Parameter.DATA.TCP_Communication.Status.Trcv_STATUS := #S_TRCV_Instance.STATUS;

//HeartBeat

#S_HeartBeat.HeartBeat_Enable := #TCP_Parameter.DATA.S_HeartBeat.HeartBeat_Enable;
#S_HeartBeat.Send_interval := #TCP_Parameter.DATA.S_HeartBeat.Send_Interval;

3、地址拆分

IF #S_TSEND_C_Instance.CONT = FALSE
THEN

    #S_ADDR_SPLIT.Addr_S := #S_ADDR_SPLIT.Addr_ALL;
    #S_ADDR_SPLIT.Addr_S := CONCAT(IN1 := #S_ADDR_SPLIT.Addr_S, IN2 := '.');
    FOR #S_ADDR_SPLIT.Addr_C := 0 TO 3 DO
        // Statement section FOR
        //
        #S_ADDR_SPLIT.Len[#S_ADDR_SPLIT.Addr_C] := (FIND(IN1 := #S_ADDR_SPLIT.Addr_S, IN2 := '.')) - 1;

        #S_ADDR_SPLIT.ADDR_String[#S_ADDR_SPLIT.Addr_C] := LEFT(IN := #S_ADDR_SPLIT.Addr_S, L := #S_ADDR_SPLIT.Len[#S_ADDR_SPLIT.Addr_C]);
        #S_ADDR_SPLIT.ADDR_Int[#S_ADDR_SPLIT.Addr_C] := STRING_TO_INT(#S_ADDR_SPLIT.ADDR_String[#S_ADDR_SPLIT.Addr_C]);
        #S_ADDR_SPLIT.Addr_S := DELETE(IN := #S_ADDR_SPLIT.Addr_S, L := (#S_ADDR_SPLIT.Len[#S_ADDR_SPLIT.Addr_C] + 1), P := 1);
        #S_ADDR_SPLIT.ADDR_Byte[#S_ADDR_SPLIT.Addr_C] := INT_TO_BYTE(#S_ADDR_SPLIT.ADDR_Int[#S_ADDR_SPLIT.Addr_C]);

    END_FOR;

    IF #S_ADDR_SPLIT.ADDR_Int[0] > 0 AND
        #S_ADDR_SPLIT.ADDR_Int[1] > 0 AND
        #S_ADDR_SPLIT.ADDR_Int[2] >= 0 AND
        #S_ADDR_SPLIT.ADDR_Int[3] > 0 AND
        #S_ADDR_SPLIT.ADDR_Int[0] < 255 AND
        #S_ADDR_SPLIT.ADDR_Int[1] < 255 AND
        #S_ADDR_SPLIT.ADDR_Int[2] < 255 AND
        #S_ADDR_SPLIT.ADDR_Int[3] < 255
    THEN
        #S_ADDR_SPLIT."Address valid" := TRUE;
    ELSE
        #S_ADDR_SPLIT."Address valid" := FALSE;
    END_IF;

    IF #S_ADDR_SPLIT."Address valid"
    THEN
        #S_TCP_Comm.Tcon_Connect.RemoteAddress.ADDR := #S_ADDR_SPLIT.ADDR_Byte;
    END_IF;

END_IF;

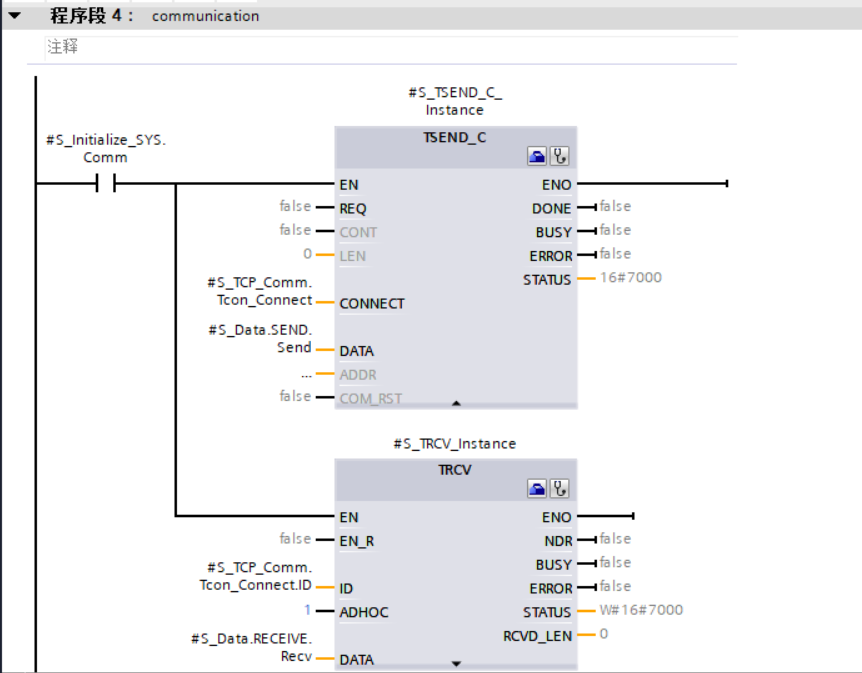

4、communication

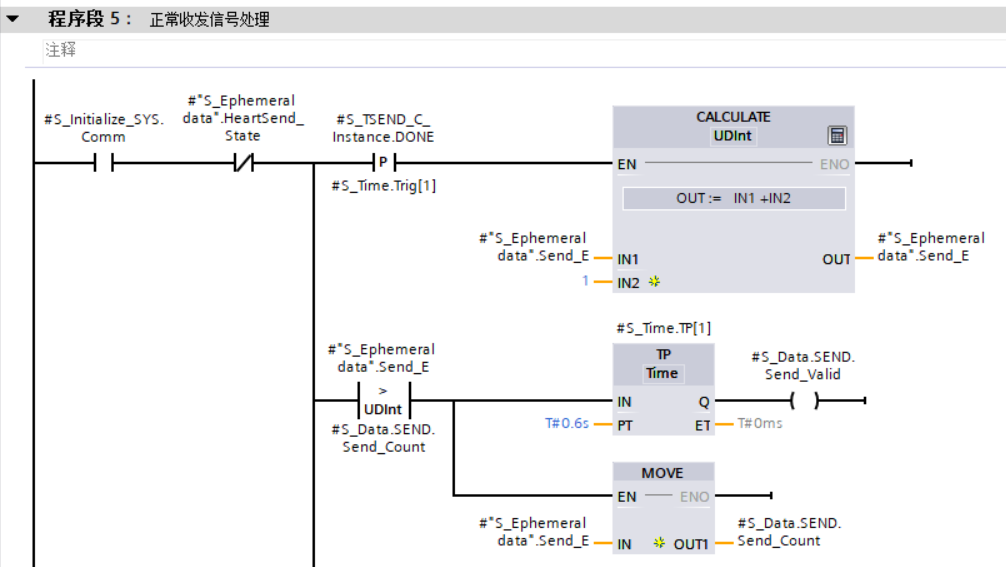

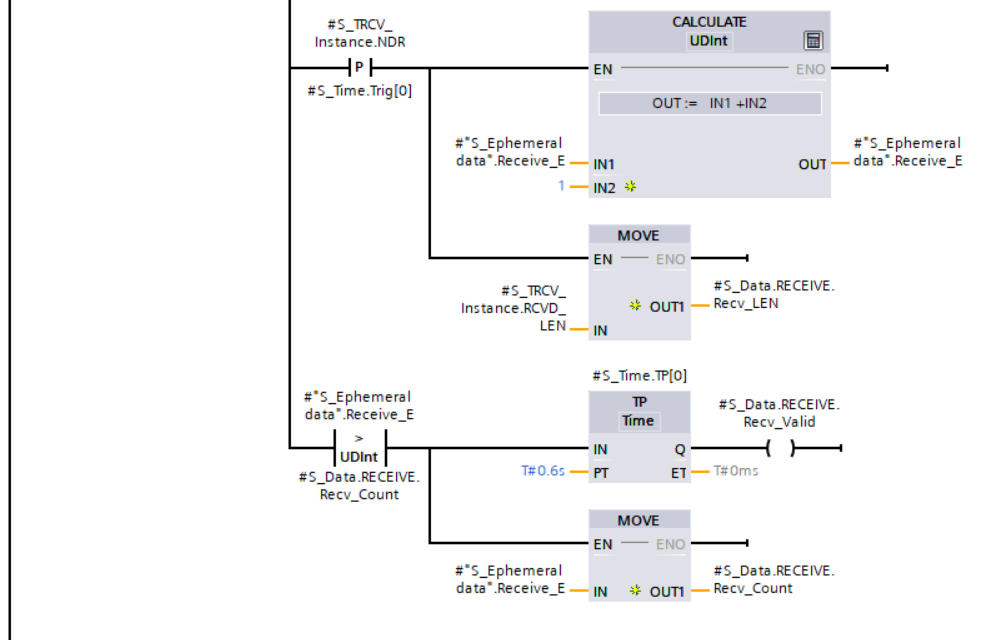

5、正常收发信号处理

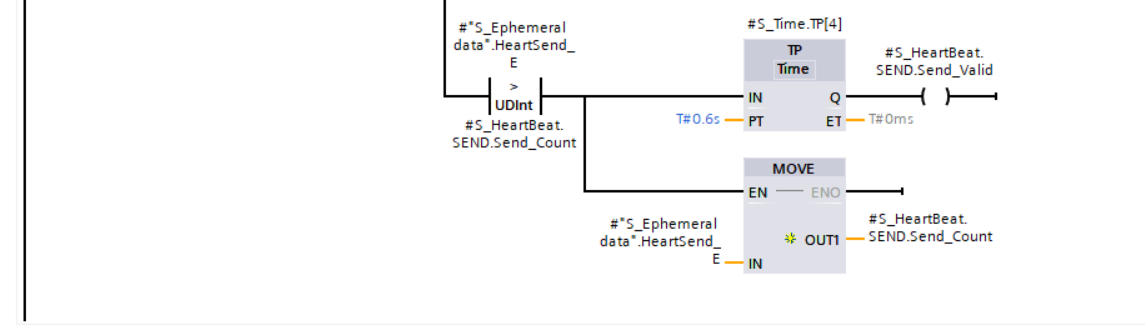

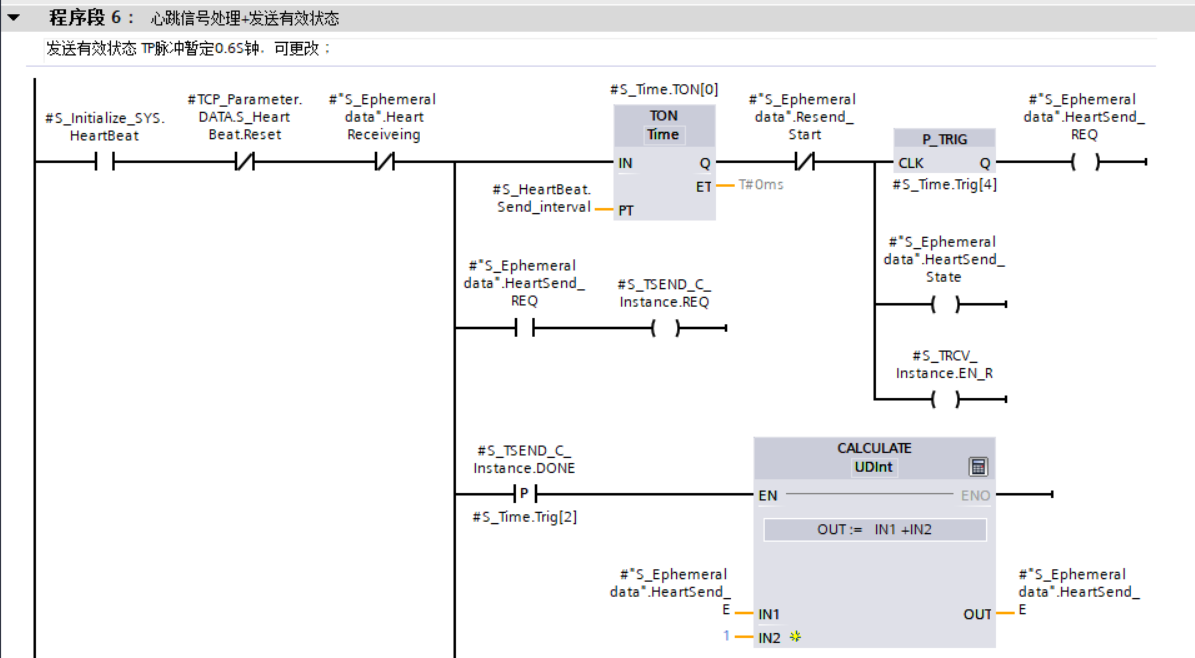

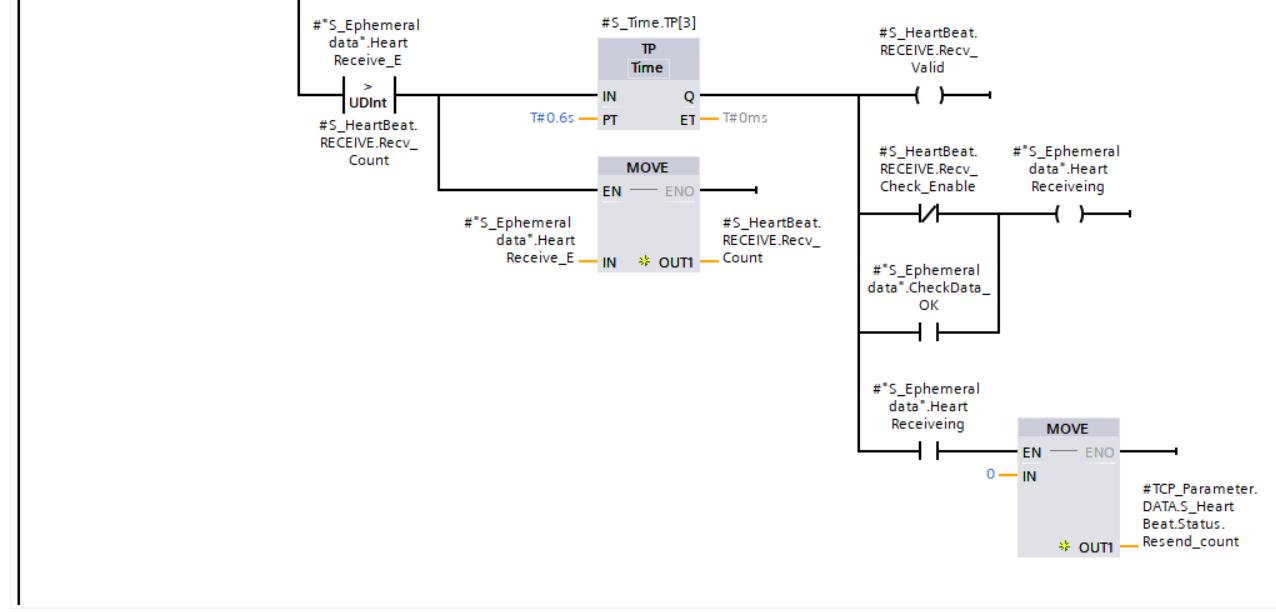

6、心跳信号处理+发送有效状态

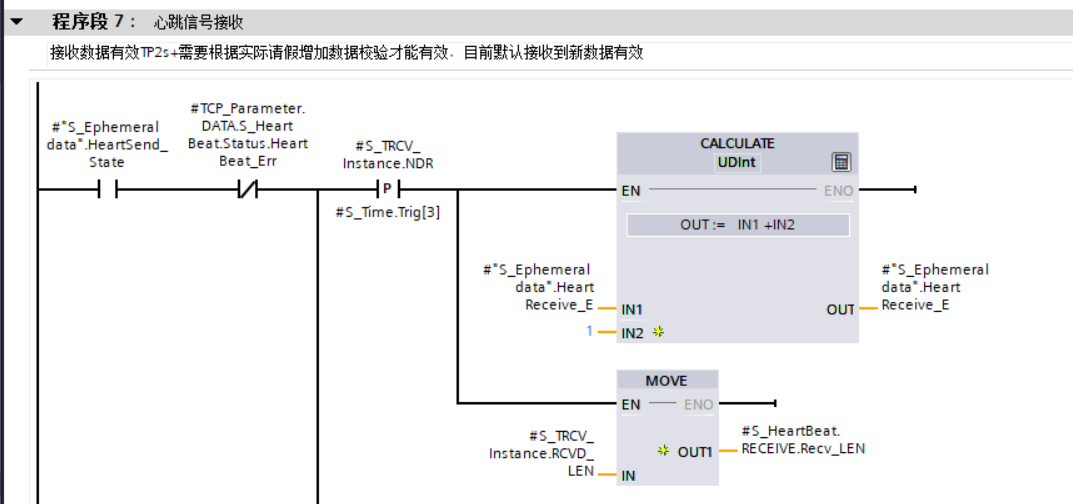

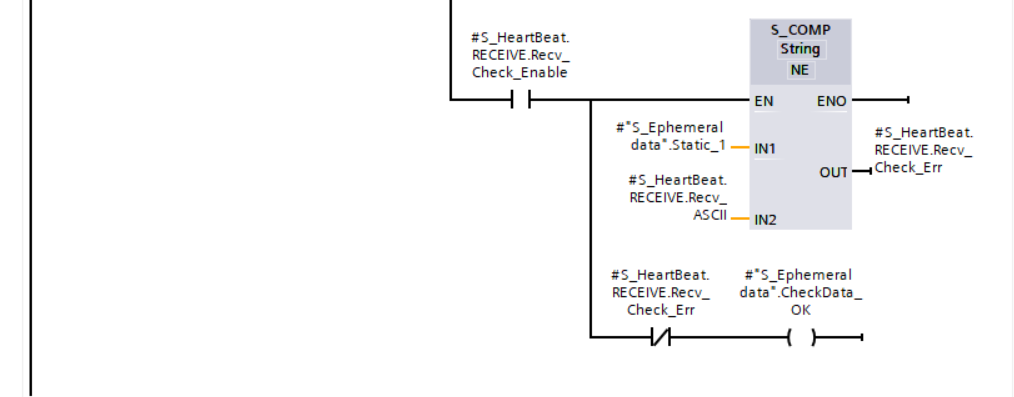

7、心跳信号接收

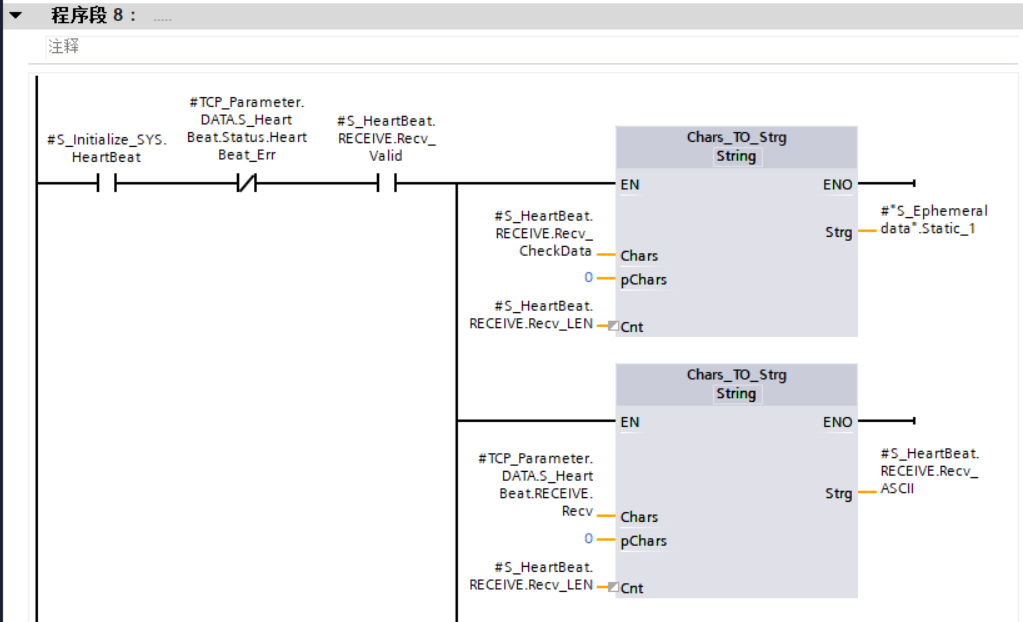

8、

9、超限判断

IF #"S_Ephemeral data".HeartSend_State AND

    #S_Time.TON[1].ET = #TCP_Parameter.DATA.S_HeartBeat.Send_Time_Limit AND
    #"S_Ephemeral data".Resend_Cycle=FALSE
THEN
    #TCP_Parameter.DATA.S_HeartBeat.Status.HeartBeat_Err := true;
END_IF;

IF  #TCP_Parameter.DATA.S_HeartBeat.HeartBeat_Enable = FALSE OR
    #TCP_Parameter.DATA.S_HeartBeat.Reset
THEN
    #TCP_Parameter.DATA.S_HeartBeat.Status.HeartBeat_Err := FALSE;
    #TCP_Parameter.DATA.S_HeartBeat.Status.Resend_count := 0;

END_IF;
