拯救海量数据：PostgreSQL分区表性能优化实战手册（附压测对比）

-- 关键系统视图
SELECT relname, relkind, relpages
FROM pg_class
WHERE relname LIKE 'sales_%';

# 输出示例
relname   | relkind | relpages
----------|---------|---------
sales     | p       | 0       # 父表元数据
sales_2023| r       | 87234   # 子表实际数据页
sales_2024| r       | 124891

-- 错误的分区维护方式
DELETE FROM orders WHERE created_at < '2020-01-01';
-- 触发全表顺序扫描+MVCC清理

graph TD
    A[选择分区键] --> B{数据类型}
    B -->|时间类型| C(RANGE分区)
    B -->|离散值| D(LIST分区)
    C --> E[分区粒度：按天/月/季]
    D --> F[分区数量：≤1000]
    E --> G[热数据SSD/冷数据HDD]
    F --> H[使用ATTACH/DETACH动态管理]

-- 自动创建分区函数
CREATE OR REPLACE FUNCTION create_partition() RETURNS TRIGGER AS $$
BEGIN
  EXECUTE format(
    'CREATE TABLE sales_%s PARTITION OF sales FOR VALUES FROM (%L) TO (%L)',
    to_char(NEW.order_date, 'YYYY_MM'),
    date_trunc('month', NEW.order_date),
    date_trunc('month', NEW.order_date) + interval '1 month'
  );
  RETURN NEW;
END;
$$ LANGUAGE plpgsql;

-- 测试表结构
CREATE TABLE sensor_data (
  id BIGSERIAL,
  sensor_id INT,
  log_time TIMESTAMPTZ,
  value FLOAT
) PARTITION BY RANGE (log_time);

-- 使用CONCURRENTLY避免锁表
CREATE INDEX CONCURRENTLY global_idx_sensor_id
ON sensor_data (sensor_id);

#!/bin/bash
# 自动卸载过期分区
CUTOFF=$(date -d "3 months ago" +%Y-%m-%d)
psql -c "ALTER TABLE sales DETACH PARTITION sales_old;"
pg_dump -t sales_old | gzip > /archive/sales_old_$(date +%s).sql.gz

barChart
    title 查询性能对比（单位：ms）
    x-axis 场景
    y-axis 响应时间
    series 单表, 分区表
    data
        "点查询", 320, 28
        "范围查询", 1800, 65
        "聚合分析", 15200, 830
        "批量删除", 4720, 210

-- pgbench测试命令
pgbench -c 32 -j 8 -T 600 -M prepared

ALTER TABLE sales_2023 SET
  (parallel_workers = 8);

EXPLAIN ANALYZE
SELECT product_id, AVG(price)
FROM sales
WHERE order_date BETWEEN '2023-01-01' AND '2023-12-31'
GROUP BY product_id;

Workers Planned: 6
Workers Launched: 6
Execution Time: 4.2 sec  -- 对比原22.7秒

CREATE TABLESPACE fast_ssd LOCATION '/ssd_data';
CREATE TABLESPACE slow_hdd LOCATION '/hdd_data';

-- 热分区
ALTER TABLE sales_2024 SET TABLESPACE fast_ssd;
-- 冷分区
ALTER TABLE sales_2020 SET TABLESPACE slow_hdd;

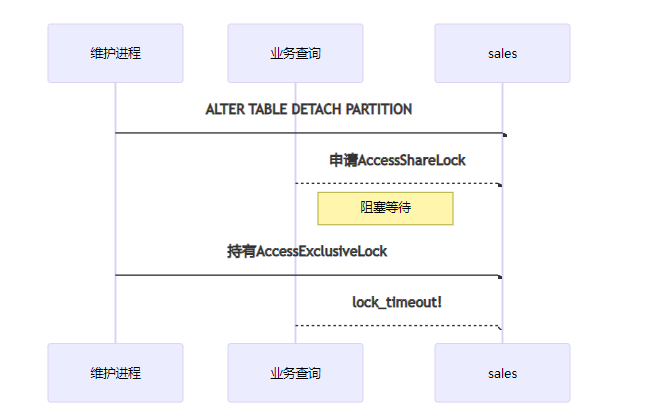

-- 使用CONCURRENTLY安全卸载
BEGIN;
ALTER TABLE sales DETACH PARTITION CONCURRENTLY sales_old;
COMMIT;  -- 仅需ShareUpdateExclusiveLock

-- 启用异步执行
SET enable_async_partition_pruning = on;

ALTER PARTITION sales_2024
  SET (work_mem = '64MB');
