springboot项目集成大数据第三方dolphinscheduler调度器执行/停止任务

原创

刘大猫

发布于 2025-07-17 20:17:02

2550

文章被收录于专栏：JAVA相关JAVA相关

dolphinscheduler调度器接入注意事项等信息可参考我的上一篇博客进行了解，地址在这里 ->

@TOC

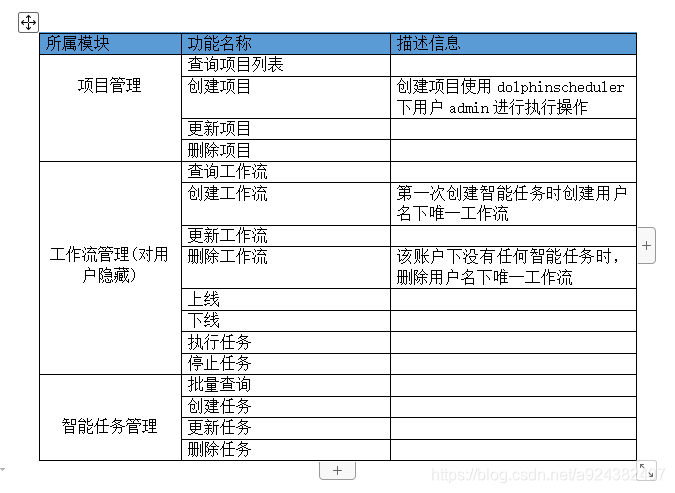

一、功能清单

二、执行/停止任务

说明：

大数据平台执行可拖拽spark任务实际实行的是dolphinscheduler调度器中项目下工作流下的某一节点而已，不是执行整个工作流。

共用的依赖

<!--httpclient-->

<dependency>

    <groupId>commons-httpclient</groupId>

    <artifactId>commons-httpclient</artifactId>

    <version>3.1</version>

</dependency>

共用配置文件

dolphinscheduler.token=xxx

dolphinscheduler.address=http://IP:12345

共用代码

@Autowired

private RestTemplate restTemplate;

@Value("${dolphinscheduler.token}")

String token;

@Value("${dolphinscheduler.address}")

String address;

public static final int ZERO = 0;

public static final int SUCCESS = 200;

@Autowired

private DragSparkTaskService dragSparkTaskService;

@Value("${spark.main.class}")

String mainClass;

public static final String CREATE = "create";

public static final String UPDATE = "update";

public static final String ADD = "add";

public static final String DELETE = "delete";

public static final String ONLINE = "ONLINE";

public static final String OFFLINE = "OFFLINE";

public static final int ONE\_THOUSAND\_AND\_FIVE\_HUNDRED = 1500;

public static final int SIX = 6;

public static final int EIGHTY = 80;

public static final int THREE = 3;

@Autowired

private StringRedisTemplate redisTemplate;

@Value("${drag.task.state}")

String dragTaskState;

@Autowired

private DragSparkTaskMapper dragSparkTaskMapper;

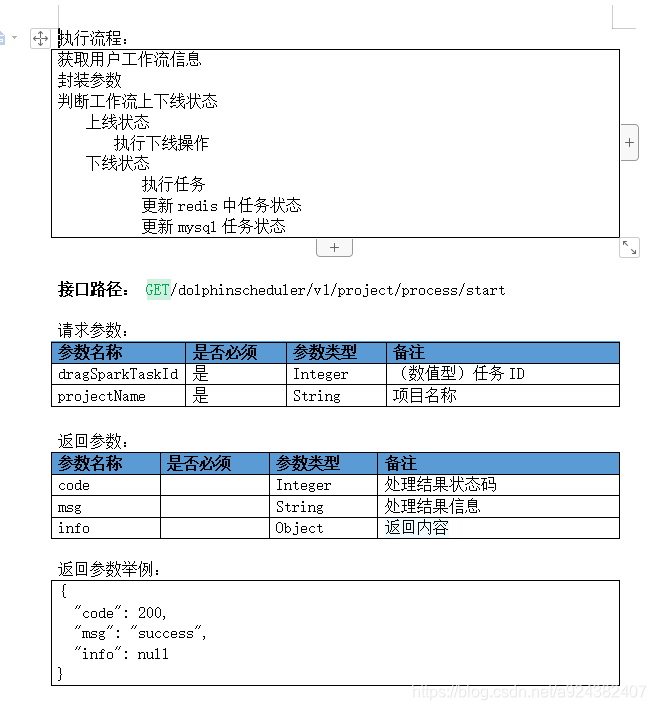

1.执行任务

代码：

/\*\*

     \* 运行流程实例

     \* @param projectName 项目名称

     \* @param request request

     \* @param dragSparkTaskId 任务ID

     \* @author liudz

     \* @date 2021/5/7

     \* @return 执行结果

     \*\*/

    @GetMapping("/project/process/start")

    public DolphinschedulerResponse startProcessInstance(

            @RequestParam("projectName") String projectName, @RequestParam("dragSparkTaskId") Integer dragSparkTaskId,

            HttpServletRequest request) {

        try {

            Long userId = Long.valueOf(request.getUserPrincipal().getName());

            DolphinschedulerResponse processInfoList = getUserProcess(projectName);

            if (processInfoList.getCode() != ZERO) {

                return processInfoList;

            }

            JSONObject processJson = new JSONObject();

            log.info("--(1)getUserProcess--success:{}", processInfoList);

            List<Map<String, Object>> list = (List<Map<String, Object>>) processInfoList.getData();

            for (Map<String, Object> map : list) {

                if (map.get("name").equals(userId + "-dragSparkTask")) {

                    processJson.fluentPutAll(map);

                }

            }

            if (processJson.getString(DictionaryEnum.RELEASE\_STATE.getFiledString()).equals(OFFLINE)) {

                releaseProcessDefinition(projectName, userId + "-dragSparkTask",

                        processJson.getInteger("id"), 1);

                log.info("--(2)releaseProcessDefinition--ONLINE--success");

            }

            String postURL = address + "/dolphinscheduler/projects/" + URLEncoder.encode(projectName, "utf-8")

                   + "/executors/start-process-instance";

            PostMethod postMethod = new PostMethod(postURL);

            postMethod.setRequestHeader("Content-Type",

                    "application/x-www-form-urlencoded;charset=utf-8");

            postMethod.setRequestHeader("token", token);

            // 参数设置，需要注意的就是里边不能传NULL，要传空字符串

            NameValuePair[] data = packageNameValuePair(processJson, dragSparkTaskId);

            postMethod.setRequestBody(data);

            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();

            httpClient.executeMethod(postMethod);

            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());

            log.info("--(2)startProcessInstance--result:{}", result);

            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {

                return DolphinschedulerResponse.error(result.getInteger("code"), result.getString("msg"));

            }

            redisTemplate.opsForValue().set(dragTaskState + dragSparkTaskId, "1", 1, TimeUnit.HOURS);

            DragSparkTask drag = new DragSparkTask();

            drag.setId(Long.valueOf(dragSparkTaskId));

            drag.setState("1");

            drag.setCreateId(userId);

            dragSparkTaskMapper.updateDragSparkTask(drag);

            log.info("--(3)----updateDragSparkTask--success!");

        } catch (Exception e) {

            log.info("请求异常:{}", e);

        }

        return DolphinschedulerResponse.success();

    }

/\*\*

     \*  packageNameValuePair封装参数

     \* @param processJson 工作流json

     \* @param dragSparkTaskId 任务ID

     \* @author liudz

     \* @date 2021/5/14

     \* @return NameValuePair

     \*\*/

    public NameValuePair[] packageNameValuePair(JSONObject processJson, Integer dragSparkTaskId) {

        NameValuePair[] data = {

                new NameValuePair("failureStrategy", "CONTINUE"),

                new NameValuePair("processDefinitionId", processJson.getString("id")),

                new NameValuePair("processInstancePriority", "MEDIUM"),

                new NameValuePair("warningGroupId", "0"),

                new NameValuePair("warningType", "NONE"),

                new NameValuePair("runMode", "RUN\_MODE\_SERIAL"),

                new NameValuePair("startNodeList", "spark-" + dragSparkTaskId),

                new NameValuePair("taskDependType", "TASK\_POST"),

                new NameValuePair("workerGroup", "default")};

        return data;

    }

/\*\*

     \*  解析节点和线，拼接nodesArray

     \* @param jsonObject 模型task

     \* @author liudz

     \* @date 2020/12/10

     \* @return 填充后的nodesArray

     \*\*/

    public JSONArray parseLineAndNode(JSONObject jsonObject) {

        JSONArray edgesArray = jsonObject.getJSONArray("edges");

        JSONArray nodesArray = jsonObject.getJSONArray("nodes");

        for (int i = 0; i < edgesArray.size(); i++) {

            JSONObject edgeJson = edgesArray.getJSONObject(i);

            for (int j = 0; j < nodesArray.size(); j++) {

                JSONObject nodeJson = nodesArray.getJSONObject(j);

                String nodeSourceId = edgeJson.getString("source");

                String nodeTargetId = edgeJson.getString("target");

if ("breakUp".equals(nodeJson.getString("modelType")) && nodeSourceId.equals(nodeJson.getString("id"))) {

                    double fraction = edgeJson.getJSONObject("config").getDoubleValue("fraction");

                    if (fraction > Double.parseDouble("0.5")) {

                        nodeJson.getJSONObject("config").put("fraction", fraction);

                    }

                    if (nodeJson.getJSONArray("firstOutputs").size() == 0) {

                        String[] outputsArr = JavaTools.arrayInsert(nodeJson.getJSONArray("firstOutputs").

                                toArray(new String[nodeJson.getJSONArray("firstOutputs").size()]), nodeTargetId);

                        nodeJson.put("firstOutputs", outputsArr);

                        continue;

                    } else {

                        String[] outputsArr = JavaTools.arrayInsert(nodeJson.getJSONArray("secondOutputs").

                                toArray(new String[nodeJson.getJSONArray("secondOutputs").size()]), nodeTargetId);

                        nodeJson.put("secondOutputs", outputsArr);

                        continue;

                    }

                } else {

                    if (nodeSourceId.equals(nodeJson.getString("id"))) {

                        String[] outputsArr = JavaTools.arrayInsert(nodeJson.getJSONArray("outputs").

                                toArray(new String[nodeJson.getJSONArray("outputs").size()]), nodeTargetId);

                        nodeJson.put("outputs", outputsArr);

                        continue;

                    }

                    if (nodeTargetId.equals(nodeJson.getString("id"))) {

                        String[] inputsArr = JavaTools.arrayInsert(nodeJson.getJSONArray("inputs").

                                toArray(new String[nodeJson.getJSONArray("inputs").size()]), nodeSourceId);

                        nodeJson.put("inputs", inputsArr);

                        continue;

                    }

                }

            }

        }

        for (int j = 0; j < nodesArray.size(); j++) {

            JSONObject nodeJson = nodesArray.getJSONObject(j);

            String label = nodeJson.getString("modelType") + "\_" + nodeJson.getString("id");

            String name = nodeJson.getString("label") + "\_" + nodeJson.getString("id");

            nodeJson.put("name", name);

            nodeJson.put("label", label);

        }

        return nodesArray;

    }

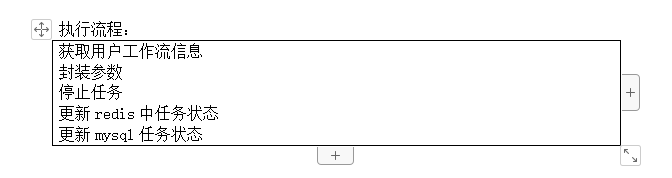

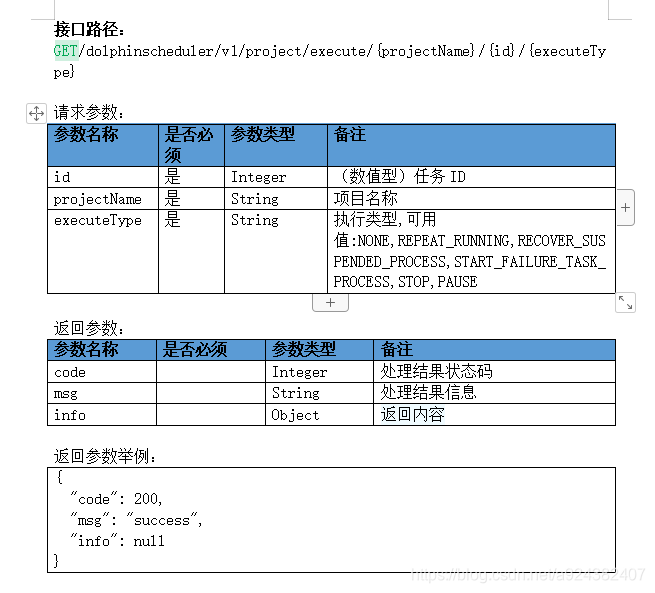

2.停止任务

代码：

/\*\*

     \* stopProcessSparkTask

     \* @param id id

     \* @param executeType executeType

     \* @param projectName 项目名称

     \* @return Response

     \* @author: liudz

     \* @author: lty update 2020/5/27

     \* @date: 2020/4/28 10:31

     \*/

    @GetMapping(value = "/project/execute/{projectName}/{id}/{executeType}")

    public Response<String> stopProcessSparkTask(@PathVariable("projectName") String projectName,

                                 @PathVariable("id") Long id, @PathVariable("executeType") String executeType) {

        log.info("--(1)stopProcessSparkTask--begin--projectName:{},id:{},executeType:{}", projectName, id, executeType);

        try {

            HttpHeaders headers = new HttpHeaders();

            headers.set("token", token);

            headers.set("Content-Type", "application/json");

            HttpEntity requestEntity = new HttpEntity(headers);

            ResponseEntity<JSONObject> response = restTemplate.exchange(address + "/"

   + "dolphinscheduler/projects/" + projectName + "/task-instance/list-paging?"

   + "pageNo=1&pageSize=100&taskName=spark-" + id, HttpMethod.GET, requestEntity, JSONObject.class);

List<Map<String, Object>> list = (List<Map<String, Object>>) response.getBody().getJSONObject("data").get("totalList");

            Integer processInstanceId = null;

            for (Map<String, Object> map : list) {

                if (map.get("state").equals("RUNNING\_EXEUTION")) {

                    processInstanceId = Integer.valueOf(map.get("processInstanceId").toString());

                }

            }

            log.info("--(2)getProcessInstanceId--success--:{}", processInstanceId);

            String postURL = address + "/dolphinscheduler/projects/"

                    + URLEncoder.encode(projectName, "utf-8") + "/executors/execute";

            PostMethod postMethod = new PostMethod(postURL);

            postMethod.setRequestHeader("Content-Type",

                    "application/x-www-form-urlencoded;charset=utf-8");

            postMethod.setRequestHeader("token", token);

            NameValuePair[] data = {new NameValuePair("executeType", executeType),

                    new NameValuePair("processInstanceId", processInstanceId.toString())};

            postMethod.setRequestBody(data);

            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();

            httpClient.executeMethod(postMethod);

            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());

            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {

                return Response.error(result.getInteger("code"), result.getString("msg"));

            }

            log.info("--(3)stopProcessSparkTask--success--:{}", result);

            redisTemplate.opsForValue().set(dragTaskState + id, "0", 1, TimeUnit.HOURS);

            DragSparkTaskVo dragSparkTaskVo = new DragSparkTaskVo();

            dragSparkTaskVo.setId(id);

            dragSparkTaskVo.setState("0");

            dragSparkTaskService.updateDragSparkTask(dragSparkTaskVo);

            log.info("--(4)updateDragSparkTask--success");

        } catch (UnsupportedEncodingException e) {

            log.info("UnsupportedEncodingException:{}", e);

        } catch (HttpException e) {

            log.info("HttpException:{}", e);

        } catch (IOException e) {

            log.info("IOException:{}", e);

        }

        return Response.success();

    }
