如何将堡塔云WAF备份、迁移到新的服务器

https://www.kancloud.cn/kern123/cloudwaf/3209672

停止WAF：btw stop

A的IP ： 192.168.1.3
B的IP ： 192.168.1.2

cd /www/ && tar -zcvf cloud_waf.tar.gz cloud_waf
​
ll -h
total 97M
drwxr-xr-x 7 root root 4.0K Aug  5 17:43 cloud_waf
-rw-r--r-- 1 root root  97M Aug 13 18:11 cloud_waf.tar.gz

scp cloud_waf.tar.gz root@B服务器IP:/root/

tar -zxf cloud_waf.tar.gz
cd cloud_waf
# 查看备份文件
ll
total 5612
-rw-r--r-- 1 root root   65137 Jul 29 17:52 btw.init
-rw-r--r-- 1 root root     347 Jul 29 17:52 btw.service
-rw-r--r-- 1 root root   54595 Jul 29 17:52 cloudwaf_check.sh
drwxr-xr-x 8 root root     155 Aug  4 10:41 console
-rw-r--r-- 1 root root   65575 Jul 29 17:52 master_btw.init
-rw-r--r-- 1 root root   55090 Jul 29 17:52 master_cloudwaf_check.sh
drwxr-xr-x 5 root root      38 Jul 24 14:02 mysql
drwxr-xr-x 5 root root      41 Jul 24 14:02 nginx
-rw-r--r-- 1 root root   65908 Jul 29 17:52 slave_btw.init
-rw-r--r-- 1 root root   42877 Jul 29 17:52 slave_cloudwaf_check.sh
-rw-r--r-- 1 root root 4521218 Jul 29 17:52 submit.gz
drwxr-xr-x 7 root root      92 May 26 15:55 vhost
-rw-r--r-- 1 root root  853792 Jul 29 17:52 waf-acme_sh.zip
drwxr-xr-x 8 root root     138 Aug 13 16:52 wwwroot

mkdir -pv /www/cloud_waf/nginx/conf.d/waf/
​
\cp -arpf /root/cloud_waf/nginx/conf.d/waf/mysql_default.pl /www/cloud_waf/nginx/conf.d/waf/mysql_default.pl
​
mv /root/cloud_waf/mysql /www/cloud_waf/mysql

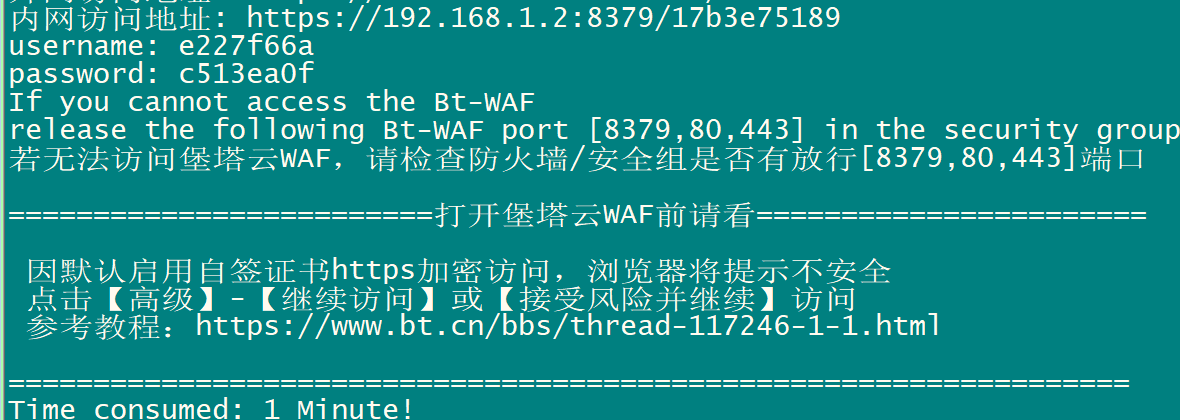

URL=https://download.bt.cn/cloudwaf/scripts/install_cloudwaf.sh && if [ -f /usr/bin/curl ];then curl -sSO "$URL" ;else wget -O install_cloudwaf.sh "$URL";fi;bash install_cloudwaf.sh

sleep 5 && btw stop

sleep 5 && \cp -arpf /root/cloud_waf/* /www/cloud_waf

btw start
​
显示：
btw start
Starting cloudwaf_nginx...  done
Starting cloudwaf_mysql...  done
Starting ipfilter...    done
Starting bt-cloudwaf... done

cd /www/cloud_waf
vi ./cloudwaf_check.sh
​
check_database=$(docker exec -i $MYSQL_NAME mysql -u root -p"$MYSQL_PASS" -e " SHOW DATABASES LIKE 'btwaf';" 2>&1 )
找到MYSQL_PASS的关键字
MYSQL_PASS="$PASS_config"

​
PASS_config=$(cat $setup_path/nginx/conf.d/waf/config/config.json | sed -nE 's/.*"password":\s*"([^"]*)".*/\1/p')
把  $setup_path 改成服务器路径：
​
PASS_config=$(cat /www/cloud_waf/nginx/conf.d/waf/config/config.json | sed -nE 's/.*"password":\s*"([^"]*)".*/\1/p')
​
[root@node2 cloud_waf]# echo $PASS_config
e7ddd5e2XXXXXXXXXXX (就是mysql的密码)
​

[root@node2 cloud_waf]# docker exec -it cloudwaf_mysql /bin/bash
bash-4.4#
bash-4.4#
bash-4.4# mysql -p
输入刚才的密码
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 389132
Server version: 8.1.0 MySQL Community Server - GPL
​
Copyright (c) 2000, 2023, Oracle and/or its affiliates.
​
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
​
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

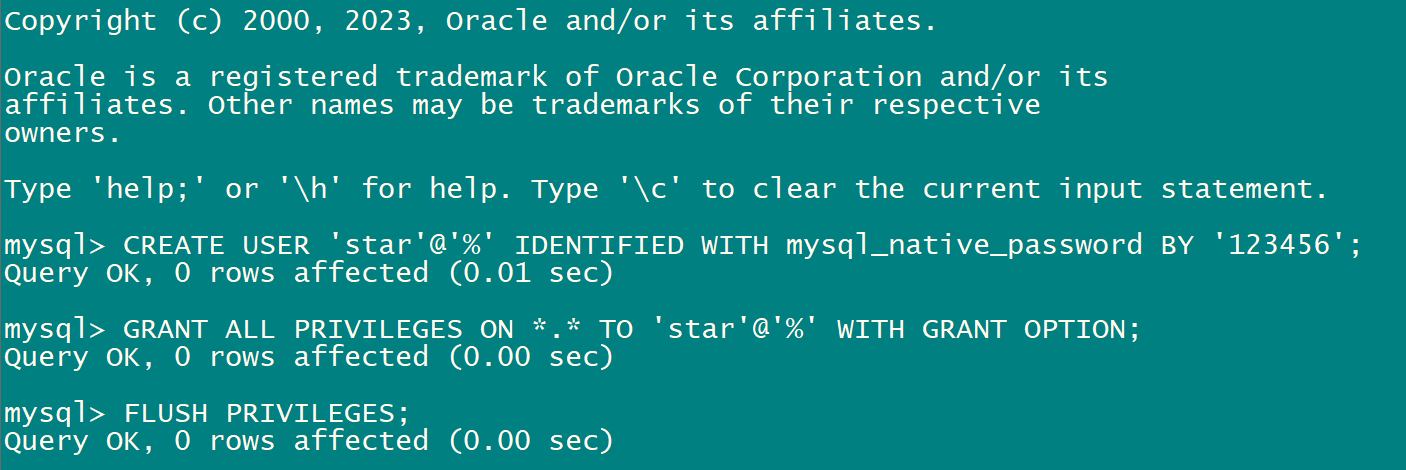

CREATE USER 'star'@'%' IDENTIFIED WITH mysql_native_password BY '123456';

GRANT ALL PRIVILEGES ON *.* TO 'star'@'%' WITH GRANT OPTION;

FLUSH PRIVILEGES;

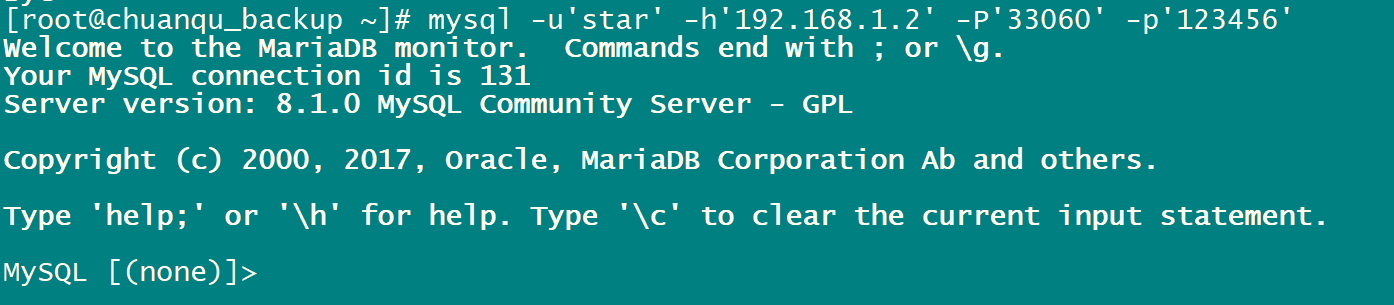

mysql -u'star' -h'192.168.1.2' -P'33060' -p'123456'
ERROR 2002 (HY000): Can't connect to MySQL server on '192.168.1.2' (115)

firewall-cmd --zone=public --add-port=33060/tcp --permanent
firewall-cmd --reload
​
[root@node2 cloud_waf]# iptables -L -n|grep 3306
ACCEPT     tcp  --  0.0.0.0/0            172.17.0.2           tcp dpt:3306
ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:33060 ctstate NEW,UNTRACKED

systemctl restart docker
