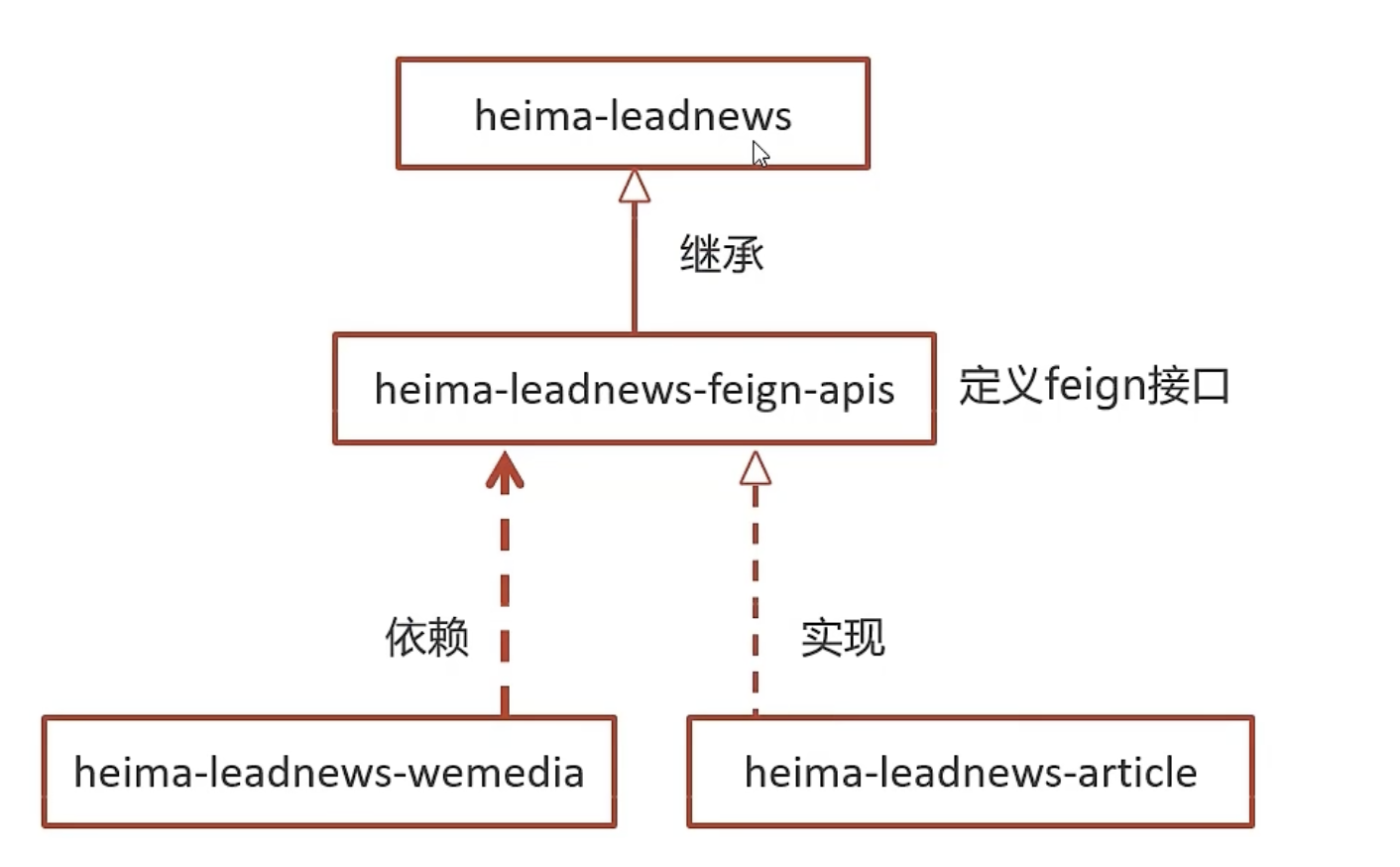

feign远程接口调用

流程：

添加依赖

在service父模块中添加common模块

<dependency>
    <groupId>com.heima</groupId>
    <artifactId>heima-leadnews-common</artifactId>
</dependency>

使用说明：
1. 1. 直接注入

@Autowired
private IArticleClient articleClient;

2. 在启动类中开启feign并添加扫描geign路径

package com.heima.wemedia;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;


@SpringBootApplication
@EnableDiscoveryClient
@MapperScan("com.heima.wemedia.mapper")
@EnableFeignClients(basePackages = "cn.varin.apis.article")
public class WemediaApplication {

    public static void main(String[] args) {
        SpringApplication.run(WemediaApplication.class,args);
    }

    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }
}

审核成功后将自媒体文章添加到app端中

文件：heima-leadnews-service/heima-leadnews-wemedia/src/main/java/com/heima/wemedia/service/impl/WmNewAutoScanServiceImpl.java 方法名：saveArticle

@Autowired
    private IArticleClient articleClient;
    @Autowired
    private WmChannelMapper wmChannelMapper;
    @Autowired
    private WmUserMapper wmUserMapper;

    // 保存app端文章
    private ResponseResult saveArticle(WmNews wmNews) {

        ArticleDto dto = new ArticleDto();
        // 复制属性
        BeanUtils.copyProperties(wmNews, dto);
        // 布局
        dto.setLayout(wmNews.getType());
        // 频道
        WmChannel wmChannel = wmChannelMapper.selectById(wmNews.getChannelId());

        if(wmChannel != null){
            dto.setChannelName(wmChannel.getName());
            dto.setChannelId(wmNews.getChannelId());
        }

        //作者
        dto.setAuthorId(wmNews.getUserId().longValue());
        WmUser wmUser = wmUserMapper.selectById(wmNews.getUserId());
        if(wmUser != null){
            dto.setAuthorName(wmUser.getName());
        }

        // 判断是否是已经审核过的app文章
        if (wmNews.getArticleId()!=null) {

            dto.setId(wmNews.getArticleId());
        }
        dto.setCreatedTime(new Date());
        ResponseResult save = articleClient.save(dto);
        return save;


    }

综合测试

测试类

package cn.varin;

import com.heima.wemedia.WemediaApplication;
import com.heima.wemedia.service.WmNewAutoScanService;
import com.tencentcloudapi.common.exception.TencentCloudSDKException;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.junit.runner.Runner;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

@SpringBootTest(classes = WemediaApplication.class)
@RunWith(SpringRunner.class)
public class handleScanTest {
    @Autowired
    private WmNewAutoScanService wmNewAutoScanService;
    @Test
    public void wmNewAutoScanTest() {
        wmNewAutoScanService.AutoScanWmNews(6232);
    }
}

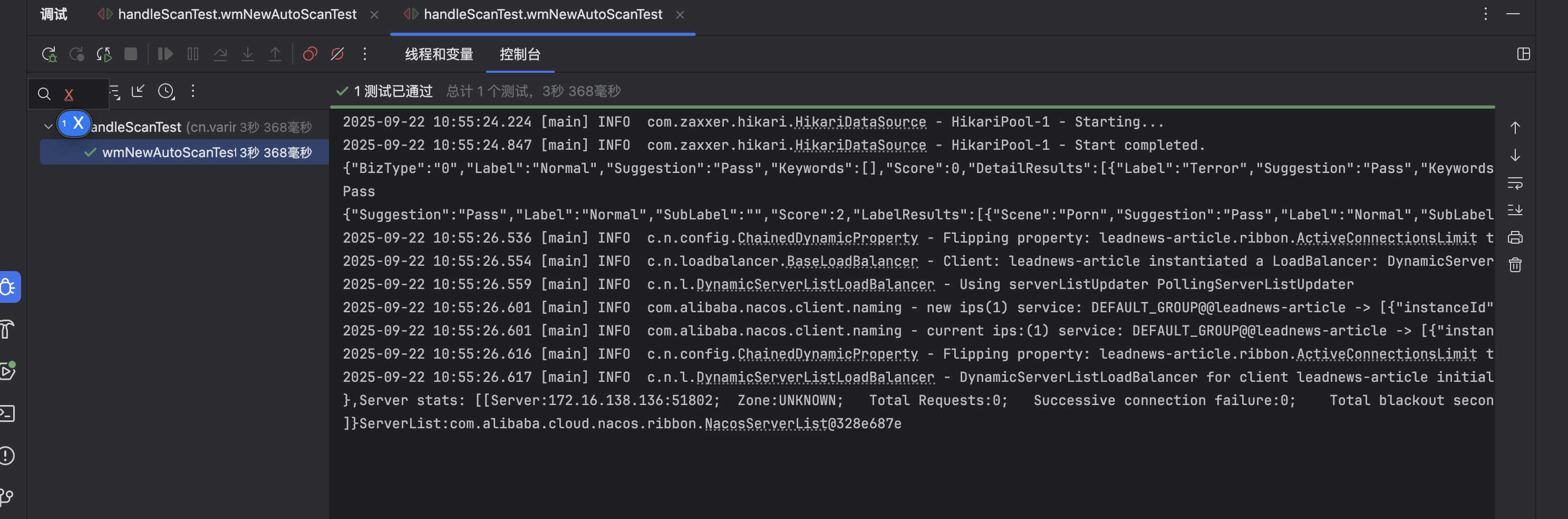

效果

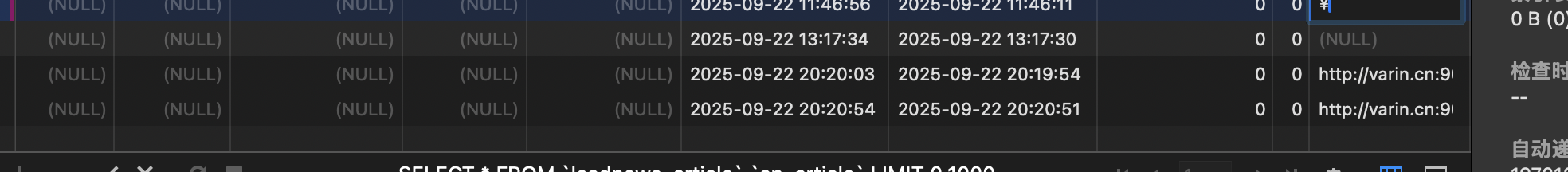

ap_article表：

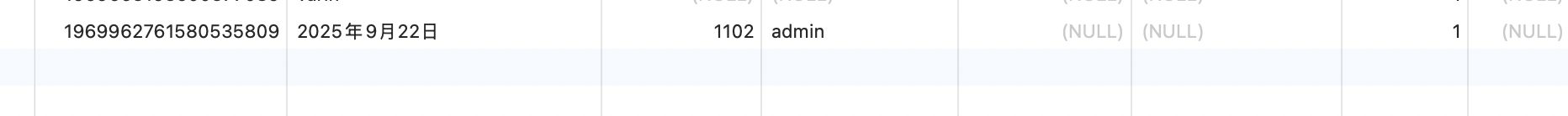

wm_news表：

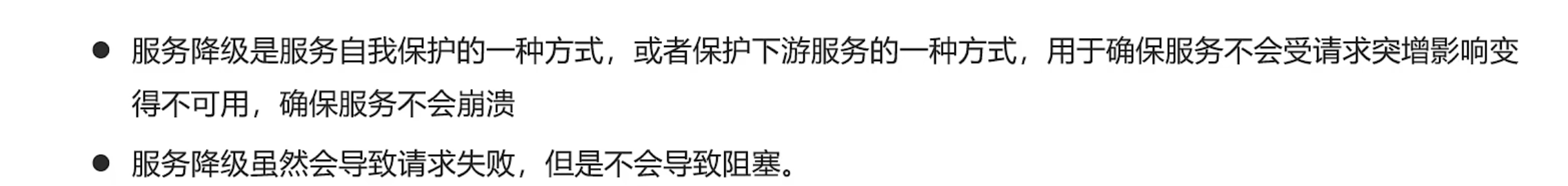

feign远程调用服务降级处理

具体实现

编写一个fallback类并实现IArticleClient接口

package cn.varin.apis.article.fallback;

import cn.varin.apis.article.IArticleClient;
import com.heima.model.article.dtos.ArticleDto;
import com.heima.model.common.dtos.ResponseResult;
import com.heima.model.common.enums.AppHttpCodeEnum;
import org.springframework.stereotype.Component;

import javax.xml.ws.Response;
import java.util.ResourceBundle;

@Component
public class IArticleClientFallback implements IArticleClient {
    @Override
    public ResponseResult save(ArticleDto dto) {
        return ResponseResult.errorResult(AppHttpCodeEnum.SERVER_ERROR,"请求错误，获取数据失败");
    }
}

载IArticleClient接口中添加fallback配置

package cn.varin.apis.article;


import cn.varin.apis.article.fallback.IArticleClientFallback;
import com.heima.model.article.dtos.ArticleDto;
import com.heima.model.article.pojos.ApArticleConfig;
import com.heima.model.common.dtos.ResponseResult;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;

@FeignClient(value = "leadnews-article",fallback = IArticleClientFallback.class)
public interface IArticleClient {
    @PostMapping("/api/v1/article/save")
    ResponseResult save(@RequestBody ArticleDto dto);
}

配置applicaiton.yml

feign:
  # 开启feign对hystrix熔断降级的支持
  hystrix:
    enabled: true
  # 修改调用超时时间
  client:
    config:
      default:
        connectTimeout: 5000
        readTimeout: 5000

模拟

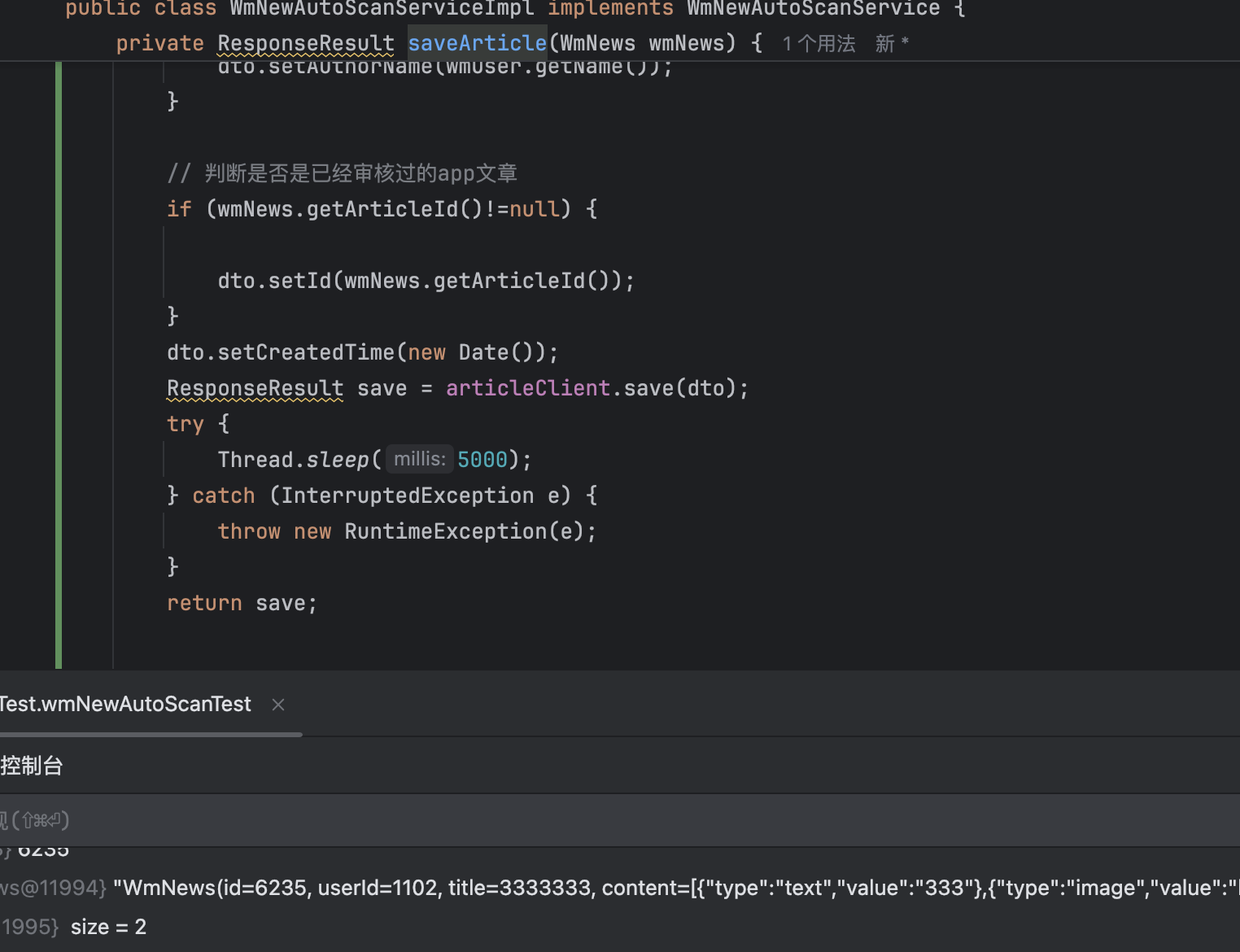

在调用IArticleClient中的save方法后，使用线程睡眠5秒。

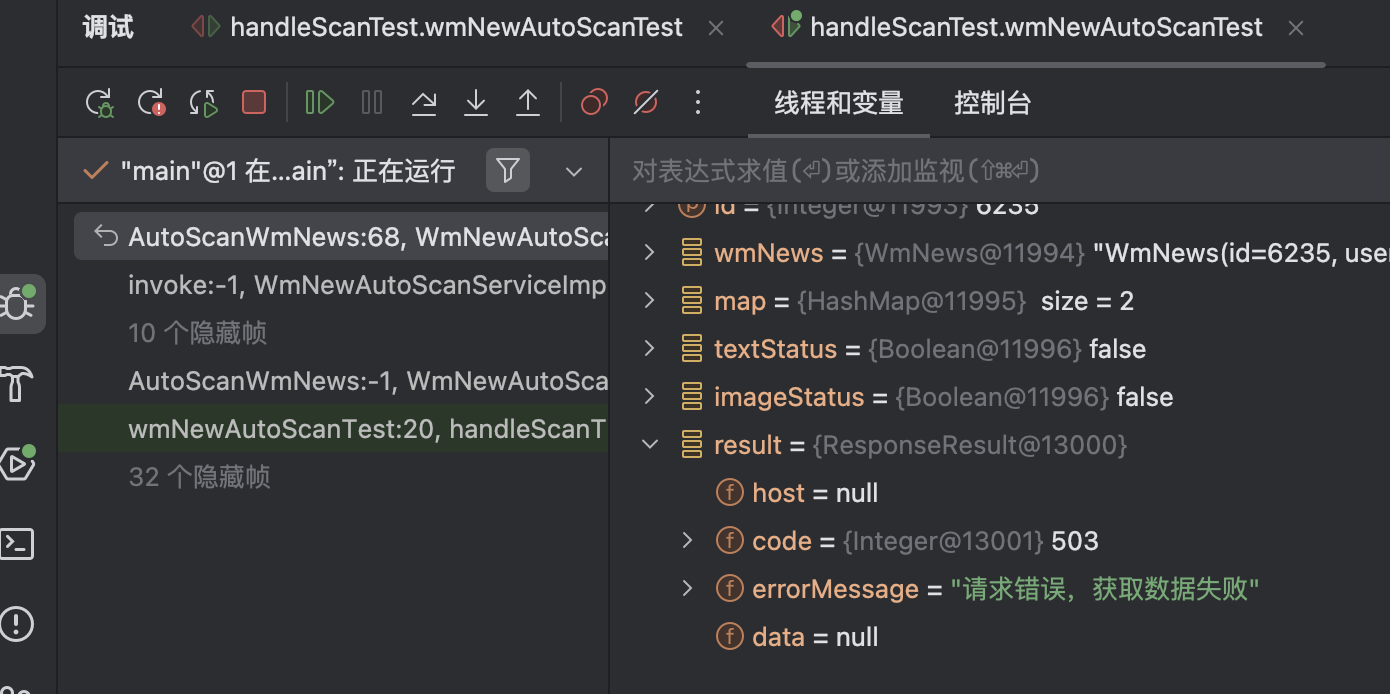

测试结果

异步任务审核文章

同步和异步概念

同步：就是在发出一个调用时，在没有得到结果之前，该调用就不返回（实时处理）异步：调用在发出之后，这个调用就直接返回了，没有返回结果（分时处理）

需求

当我们在自媒体端上发布文章后，并不是一定需要直接返回文章的审核结果，而是可以等待文章发布后，一段时间后再得到结果也是可以的。所有，根据以上需求，我们可以在文章发布后，将审核的操作该成异步的操作。

实现

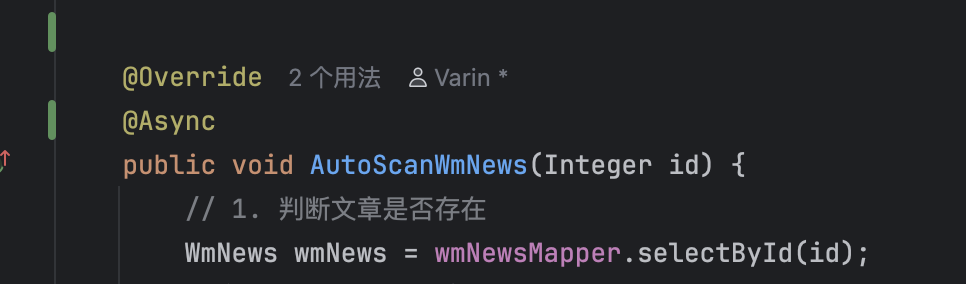

在审核方法上田间 @ Async注解

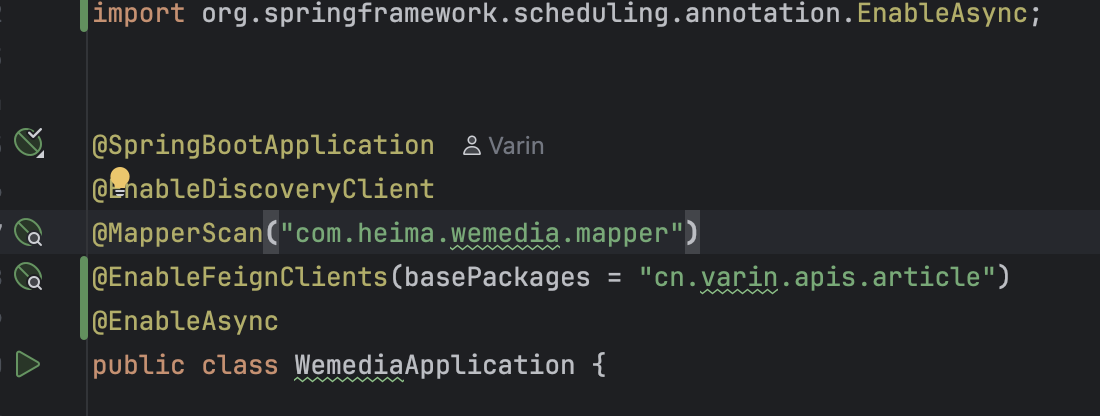

在多媒体类上启动异步注解@EnableAsync

自管理敏感词集成

新需求：

文章审核不能过滤一些敏感词：私人侦探、针孔摄象、信用卡提现、广告代理、代开发票、刻章办、出售答案、小额贷款…

使用技术：DFA算法

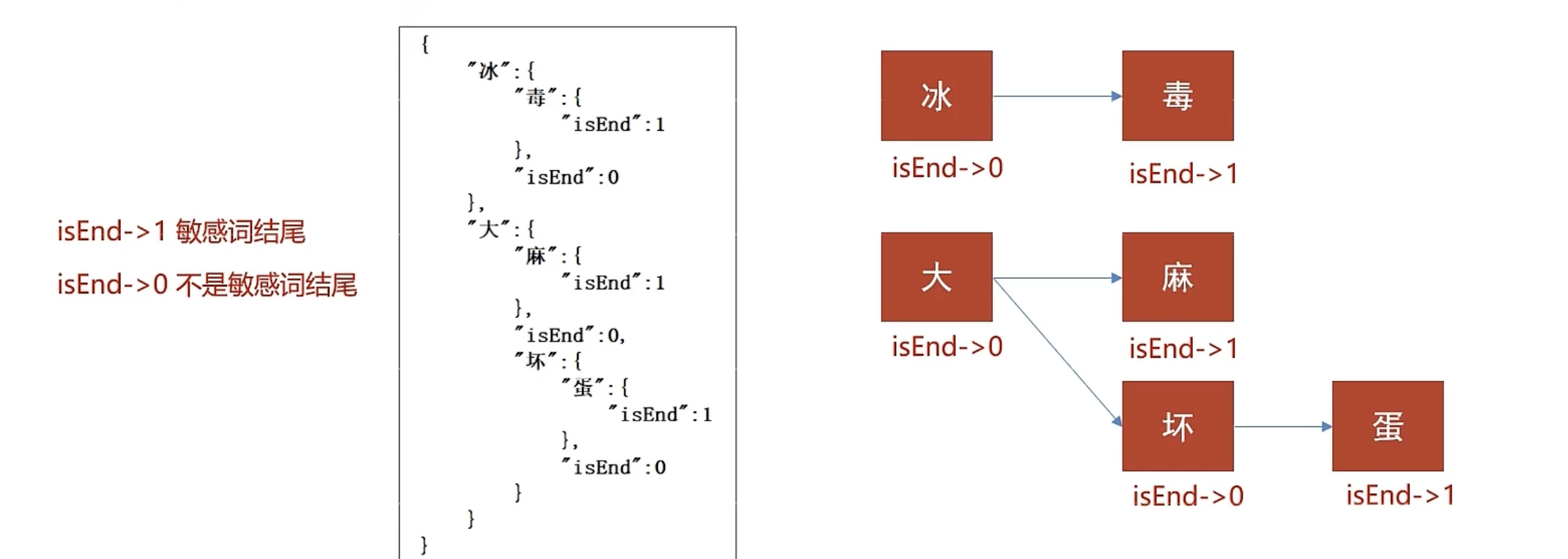

介绍：Deterministic Finite Automaton,即确定有穷自动机。存储：一次性的把所有的敏感词存储到了多个map中，就是下图表示这种结构敏感词：冰毒、大麻、大坏蛋

工具类和测试

package com.heima.utils.common;


import java.util.*;

public class SensitiveWordUtil {

    public static Map<String, Object> dictionaryMap = new HashMap<>();


    /**
     * 生成关键词字典库
     * @param words
     * @return
     */
    public static void initMap(Collection<String> words) {
        if (words == null) {
            System.out.println("敏感词列表不能为空");
            return ;
        }

        // map初始长度words.size()，整个字典库的入口字数(小于words.size()，因为不同的词可能会有相同的首字)
        Map<String, Object> map = new HashMap<>(words.size());
        // 遍历过程中当前层次的数据
        Map<String, Object> curMap = null;
        Iterator<String> iterator = words.iterator();

        while (iterator.hasNext()) {
            String word = iterator.next();
            curMap = map;
            int len = word.length();
            for (int i =0; i < len; i++) {
                // 遍历每个词的字
                String key = String.valueOf(word.charAt(i));
                // 当前字在当前层是否存在, 不存在则新建, 当前层数据指向下一个节点, 继续判断是否存在数据
                Map<String, Object> wordMap = (Map<String, Object>) curMap.get(key);
                if (wordMap == null) {
                    // 每个节点存在两个数据: 下一个节点和isEnd(是否结束标志)
                    wordMap = new HashMap<>(2);
                    wordMap.put("isEnd", "0");
                    curMap.put(key, wordMap);
                }
                curMap = wordMap;
                // 如果当前字是词的最后一个字，则将isEnd标志置1
                if (i == len -1) {
                    curMap.put("isEnd", "1");
                }
            }
        }

        dictionaryMap = map;
    }

    /**
     * 搜索文本中某个文字是否匹配关键词
     * @param text
     * @param beginIndex
     * @return
     */
    private static int checkWord(String text, int beginIndex) {
        if (dictionaryMap == null) {
            throw new RuntimeException("字典不能为空");
        }
        boolean isEnd = false;
        int wordLength = 0;
        Map<String, Object> curMap = dictionaryMap;
        int len = text.length();
        // 从文本的第beginIndex开始匹配
        for (int i = beginIndex; i < len; i++) {
            String key = String.valueOf(text.charAt(i));
            // 获取当前key的下一个节点
            curMap = (Map<String, Object>) curMap.get(key);
            if (curMap == null) {
                break;
            } else {
                wordLength ++;
                if ("1".equals(curMap.get("isEnd"))) {
                    isEnd = true;
                }
            }
        }
        if (!isEnd) {
            wordLength = 0;
        }
        return wordLength;
    }

    /**
     * 获取匹配的关键词和命中次数
     * @param text
     * @return
     */
    public static Map<String, Integer> matchWords(String text) {
        Map<String, Integer> wordMap = new HashMap<>();
        int len = text.length();
        for (int i = 0; i < len; i++) {
            int wordLength = checkWord(text, i);
            if (wordLength > 0) {
                String word = text.substring(i, i + wordLength);
                // 添加关键词匹配次数
                if (wordMap.containsKey(word)) {
                    wordMap.put(word, wordMap.get(word) + 1);
                } else {
                    wordMap.put(word, 1);
                }

                i += wordLength - 1;
            }
        }
        return wordMap;
    }


}

// 测试
public static void main(String[] args) {
        List<String> list = new ArrayList<>();
        list.add("法轮");
        list.add("法轮功");
        list.add("冰毒");
        initMap(list);
        String content="我是一个好人，并不会卖冰毒，也不操练法轮功,我真的不卖冰毒";
        Map<String, Integer> map = matchWords(content);
        System.out.println(map);
    }�

集成到文章审核中

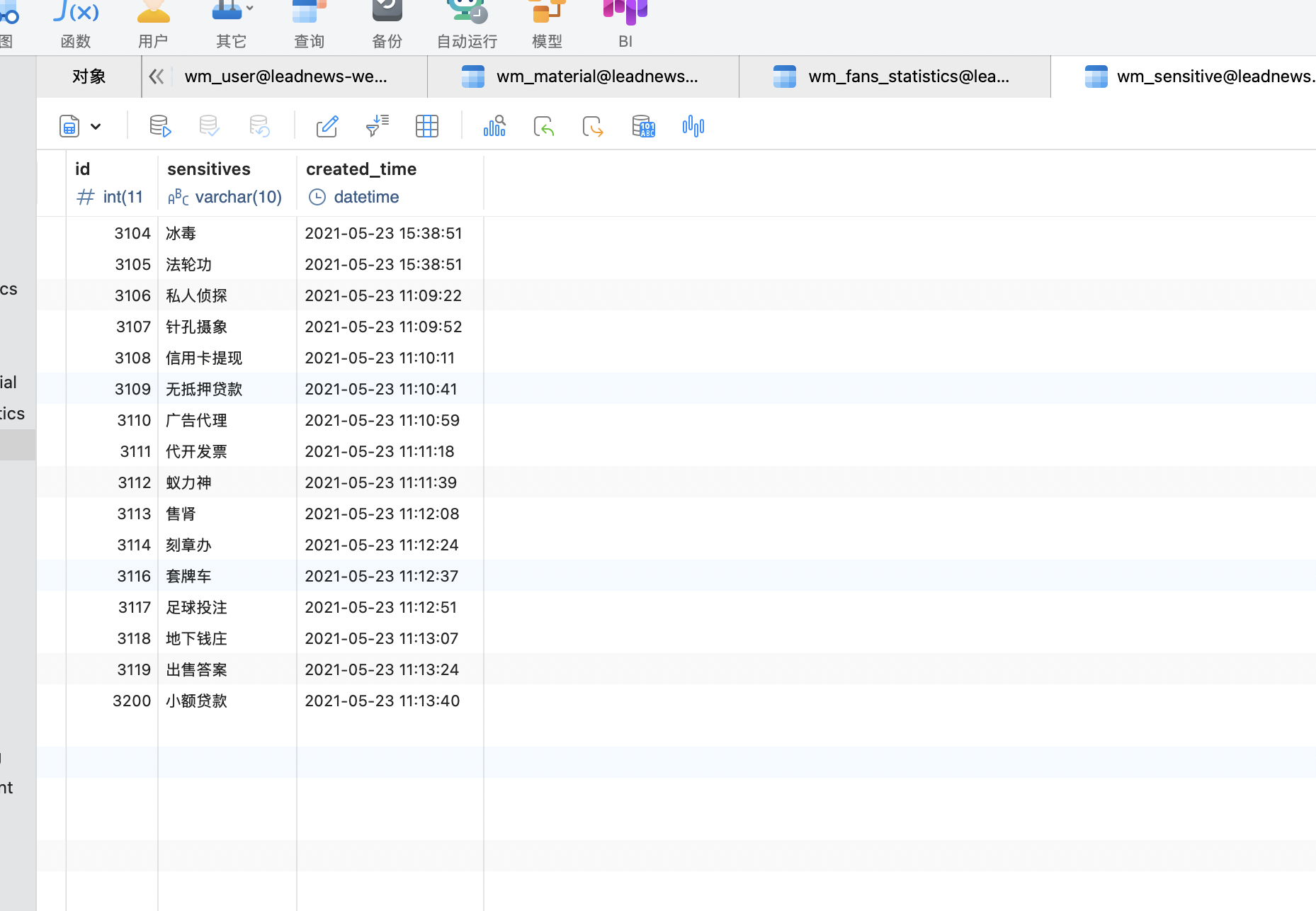

倒入数据库表

编写mapper

package com.heima.wemedia.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.heima.model.wemedia.pojos.WmSensitive;
import org.apache.ibatis.annotations.Mapper;
// 自管理敏感词
@Mapper
public interface WmSensitiveMapper extends BaseMapper<WmSensitive> {
}

在使用腾讯云文本内容安全服务前调用自管理的敏感词库

   @Autowired
    private WmSensitiveMapper wmSensitiveMapper;

    private Boolean handleSensitiveScan(Map<String, Object> map, WmNews wmNews) {

        Boolean flag = false;
        String content =map.get("text").toString();

        List<WmSensitive> wmSensitives = wmSensitiveMapper.selectList(Wrappers.<WmSensitive>lambdaQuery().select(WmSensitive::getSensitives));
        List<String> collect = wmSensitives.stream().map(WmSensitive::getSensitives).collect(Collectors.toList());
        SensitiveWordUtil.initMap(collect);
        Map<String, Integer> stringIntegerMap = SensitiveWordUtil.matchWords(content);
        if (stringIntegerMap.size() > 0) {flag=true;
            updataWmnews(wmNews,WmNews.Status.FAIL.getCode(),"文章出现违规信息，审核失败:"+stringIntegerMap.toString());

        }

结果：

图片识别文字审核敏感词

需求：

文章中包含的图片要识别文字，过滤掉图片文字的敏感词

导入依赖

<dependency>
    <groupId>net.sourceforge.tess4j</groupId>

    <artifactId>tess4j</artifactId>

    <version>4.1.1</version>

</dependency>

测试文件

package cn.varin.test4j.test;


import cn.varin.test.Test4jApplication;
import net.sourceforge.tess4j.Tesseract;
import net.sourceforge.tess4j.TesseractException;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.io.*;

@SpringBootTest(classes = Test4jApplication.class)
@RunWith(SpringRunner.class)

public class Test4jTest {

    @Test
    public void test(){
        // 1.获取图片
        File file = new File("src/main/resources/images/ImageScanText.jpg");
        // 2.创建test4j对象
        Tesseract tesseract = new Tesseract();
        //设置字库路径
        tesseract.setDatapath("src/main/resources/tessdata");
        // 设置为识别中文
        tesseract.setLanguage("chi_sim");
        //执行ocr
        String s = null;
        try {
            s = tesseract.doOCR(file);
            System.out.println(s);
        } catch (TesseractException e) {
            throw new RuntimeException(e);
        }
    }
}

异步调用freemarker生成html并存储Minio

涉及模块 heima-leadnews-article

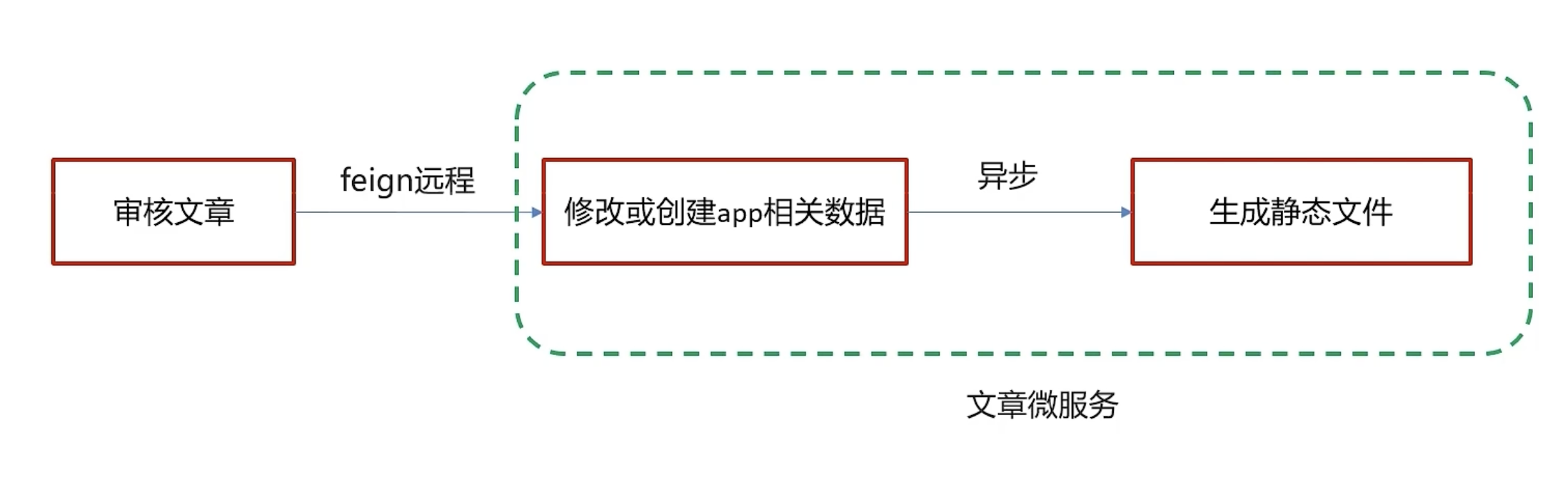

流程

service

package com.heima.article.service;


import com.heima.model.article.pojos.ApArticle;

public interface ArticleFreemarkerService {
    void buildArticletoMinIO(ApArticle article, String content);
}

serivceImpl

package com.heima.article.service.impl;


import com.alibaba.fastjson.JSONArray;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.heima.article.mapper.ApArticleContentMapper;
import com.heima.article.mapper.ApArticleMapper;
import com.heima.file.service.FileStorageService;
import com.heima.model.article.pojos.ApArticle;
import com.heima.model.article.pojos.ApArticleContent;
import freemarker.template.Configuration;
import freemarker.template.Template;
import lombok.Synchronized;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Async;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.StringWriter;
import java.util.HashMap;
import java.util.Map;

@Service
@Transactional
@Slf4j
public class ArticleFreemarkerServiceImpl implements com.heima.article.service.ArticleFreemarkerService {

    @Autowired
    Configuration configurable;
    @Autowired
    FileStorageService fileStorageService;

    @Autowired
    private ApArticleMapper apArticleMapper;

    @Override
    @Async
    public void buildArticletoMinIO(ApArticle article, String content) {
        // 第一步：获取到文章内容
        //判断是否有内容
        if (  StringUtils.isNotBlank(content)) {
            // 生成html文件

            Template template = null;
            StringWriter stringWriter = new StringWriter();
            try {
                template = configurable.getTemplate("article.ftl");
                Map<String, Object> map = new HashMap<>();
                map.put("content", JSONArray.parseArray(content));

                template.process(map,stringWriter);
            } catch (Exception e) {
                throw new RuntimeException(e);
            }

            // 上传
            InputStream byteArrayInputStream = new ByteArrayInputStream(stringWriter.toString().getBytes());
            String static_url = fileStorageService.uploadHtmlFile("", article.getId()+ ".html", byteArrayInputStream);
            System.out.println(static_url);
            // 修改 article表
            ApArticle apArticle = new ApArticle();
            apArticle.setId(article.getId());
            apArticle.setStaticUrl(static_url);
            apArticleMapper.updateById(apArticle);


        }

    }
}

开启异步

package com.heima.article;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.context.annotation.Bean;
import org.springframework.scheduling.annotation.EnableAsync;


@SpringBootApplication
@EnableDiscoveryClient
@MapperScan("com.heima.article.mapper")
@EnableAsync
public class ArticleApplication {

    public static void main(String[] args) {
        SpringApplication.run(ArticleApplication.class,args);
    }

    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }
}
