uvm中的tlm通信机制
原创
uvm中的tlm通信机制
原创
用户9546848
修改于 2025-10-12 16:57:23
修改于 2025-10-12 16:57:23
1. DUT示例代码
`timescale 1ns/1ns
/**********************************RAM************************************/
module dual_port_RAM #(parameter DEPTH = 16,
parameter WIDTH = 8)(
input wclk
,input wenc
,input [$clog2(DEPTH)-1:0] waddr
,input [WIDTH-1:0] wdata
,input rclk
,input renc
,input [$clog2(DEPTH)-1:0] raddr
,output reg [WIDTH-1:0] rdata
);
reg [WIDTH-1:0] RAM_MEM [0:DEPTH-1];
always @(posedge wclk) begin
if(wenc)
RAM_MEM[waddr] <= wdata;
end
always @(posedge rclk) begin
if(renc)
rdata <= RAM_MEM[raddr];
end
endmodule
/**********************************SFIFO************************************/
module sfifo#(
parameter WIDTH = 8,
parameter DEPTH = 16
)(
input clk ,
input rst_n ,
input winc ,
input rinc ,
input [WIDTH-1:0] wdata ,
output reg wfull ,
output reg rempty ,
output wire [WIDTH-1:0] rdata
);
endmodule2. 验证环境示例代码
2.1 in_utils组件
2.1.1 in_transaction.sv
class in_transaction#(parameter WIDTH=8,parameter DEPTH=16) extends uvm_sequence_item;
rand bit winc;
rand bit rinc;
rand bit[WIDTH-1:0] wdata;
`uvm_object_utils_begin(in_transaction)
`uvm_field_int(winc)
`uvm_field_int(rinc)
`uvm_field_queue(winc)
`uvm_object_utils_end
extern virtual function new(string name="in_transaction",uvm_component parent);
// constraint winc_rinc_con
extren virtual function void pack(input bit winc,input bit rinc, input bit[WIDTH-1:0] wdata);
endclass:in_transaction
function in_transaction::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
function in_transaction::pack(input bit winc,input bit rinc, input bit[WIDTH-1:0] wdata);
this.winc <= winc;
this.rinc <= rinc;
this.wdata <= wdata;
endfunction:pack2.1.2 in_sequence.sv
class in_sequence#(parameter WIDTH=8,parameter DEPTH=16) extends uvm_sequence#(in_transaction);
in_transaction req;
int seq_item_num;
`uvm_object_utils(in_sequence)
extern virtual function new(string name= "in_sequence",uvm_component parent);
extern virtual task body();
endclass:in_sequence
function in_sequence::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
task in_sequence::body();
in_transaction tmp_req;
if(!uvm_config_db#(int)::get(this,"","seq_item_num",this.seq_item_num))begin
`uvm_fatal("","")
end
repeat(this.seq_item_num)begin
uvm_create(tmp_req);
assert(req.randomize());
uvm_send(req);
end
endtask2.1.3 in_sequencer.sv
class in_sequencer#(parameter WIDTH=8,parameter DEPTH=16) extends uvm_sequencer#(in_transaction);
`uvm_component_utils(in_sequencer)
extern virtual function new(string name="in_sequencer",uvm_component parent);
extern virtual function void build_phase(uvm_phase phase);
endclass:in_transaction
function in_sequencer::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
function in_sequencer::build_phase(uvm_phase phase);
super.build_phase(phase);
endfunction:build_phase2.1.4 in_driver.sv
class in_driver#(parameter WIDTH=8,parameter DEPTH=16) extends uvm_driver#(in_transaction);
uvm_tlm_analysis_pull_port#(in_transaction) seq_item_port;
virtual in_interface in_bus;
`uvm_component_utils(in_driver)
extern virtual function new(string name="in_driver",uvm_component parent);
extern virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
endclass:in_driver
function in_driver::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
function in_driver::build_phase(uvm_phase phase);
super.build_phase(phase);
if(!uvm_config_db#(virtual in_interface)::get(this,"","in_bus",this,in_bus))begin
`uvm_fatal("the bus has not been set","check in_driver bus")
end
this.seq_item_port = new("seq_item_port",this);
endfunction:build_phase
task in_driver::main_phase(uvm_phase phase);
in_transaction req;
super.main_phase(phase);
while(1)begin
if(this.seq_item_port.has_do_available())begin
this.seq_item_port.get_next_item(req);
end
@this.in_bus.drv_cb;
this.in_bus.winc <= req.winc;
this.in_bus.rinc <= req.rinc;
this.in_bus.wdata <= req.wdata;
end
endtask:main_phase2.1.5 in_monitor.sv
class in_monitor#(parameter WIDTH=8,parameter DEPTH=16) extends uvm_monitor#(in_transaction);
in_interface in_bus;
logic winc;
logic ricn;
bit[WIDTH-1:0] wdata;
uvm_tlm_analysis_fifo#(in_transaction) in_mon2rm_fifo;
`uvm_component_utils(in_monitor)
extern virtual function new(string name = "in_monitor",uvm_component parent);
extern virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
endclass:in_monitor
function in_monitor::new(string name, uvm_component parent);
super.new(name,parent);
endfunction:new
function void in_monitor::build_phase(uvm_phase phase);
super.build_phase(phase);
if(!uvm_config_db#(virtual in_interface)::get(this,"","in_bus",this.in_bus))begin
`uvm_fatal("","")
end
endfunction:build_phase
task in_monitor::main_phase(uvm_phase phase);
automatic in_transaction req;
super.main_phase(phase);
while(1)begin
@this.in_bus.mon_cb;
this.winc <= this.in_bus.winc;
this.rinc <= this.in_bus.rinc;
this.wdata <= this.in_bus.wdata;
this.req = in_transaction::type_id::create("req",this);
this.req.winc = this.winc;
this.req.rinc = this.rinc;
this.req.wdata = this.wdata;
if(this.in_mon2rm_fifo != null)begin
this.in_mon2rm_fifo.write(this.req);
end
end
endtask:main_phase2.1.6 in_interface.sv
interface in_interface#(parameter WIDTH=8,parameter DEPTH=16)(input logic clk,input logic rst_n);
logic winc;
logic rinc;
bit[WIDTH-1:0] wdata;
clocking in_drv_cb@(clk);
output winc;
output rinc;
output wdata;
output rst_n;
endclocking:in_drv_cb
clocking in_mon_cb@(clk);
input winc;
input rinc;
input wdata;
input rst_n;
endclocking:in_mon_cb
endinterface:in_interface3. 接口自测试
3.1 in_utils组件自验证
3.1.1 unit_test_env
class unit_test_env extends uvm_env;
in_driver drv;
in_monitor in_mon;
in_monitor out_mon;
unit_test_rm rm;
in_sequencer seqr;
unit_test_scb scb;
`uvm_component_utils(unit_test_env)
extern virtual function new(string name="unit_test_env",uvm_component parent);
extren virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
extern virtual function void connect_phase(uvm_phase phase);
endclass:unit_test_env
function unit_test_env::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:unit_test_env
function void unit_test_env::build_phase(uvm_phase phase);
super.build_phase(phase);
this.drv = in_driver::type_id::create("drv",this);
this.mon = in_monitor::type_id::create("mon",this);
this.rm = unit_test_rm::type_id::create("rm",this);
this.seqr = in_sequencer::type_id::create("seqr",this);
this.scb = unit_test_scb::type_id::create("scb",this);
endfunction:build_phase
task unit_test_env::main_phase(uvm_phase phase);
super.main_phase(phase);
endtask:main_phase
function void unit_test_env::connect_phase(uvm_phase phase);
super.connect_phase(phase);
this.drv.seq_item_port.connect(this.seqr.seq_item_export);
this.rm.in_fifo = this.in_mon.in_mon2rm_fifo;
this.scb.from_rm_fifo = this.rm.out2scb_fifo;
this.scb.from_dut_fifo = this.out_mon.out_mon2scb_fifo;
endfunction:connect_phase3.1.2 unit_test_rm.sv
class unit_test_rm extends uvm_component;
uvm_tlm_analysis_fifo#(in_transaction) in_fifo;
uvm_tlm_analysis_fifo#(in_transaction) out2scb_fifo;
`uvm_component_utils(unit_test_rm)
extern virtual function new(string name="unit_test_rm",uvm_component parent);
extern virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
endclass:unit_test_rm
function unit_test_rm::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
function void unit_test_rm::build_phase(uvm_phase phase);
super.build_phase(phase);
this.in_fifo = new("in_fifo",this);
this.out_fifo = new("out_fifo",this);
endfunction:build_phase
task unit_test_rm::main_phase(uvm_phase phase);
in_transaction req;
super.main_phase(phase);
while(1)begin
if(this.in_fifo != null)begin
this.in_fifo.get(req);
end
if(this.out2scb_fifo != null)begin
this.out2scb_fifo.write(req);
end
end
endtask:main_phase3.1.3 unit_test_scb.sv
class unit_test_scb extends uvm_scoreboard;
uvm_tlm_analysis_fifo#(in_transaction) from_rm_fifo;
uvm_tlm_analysis_fifo#(in_transaction) from_dut_fifo;
`uvm_component_utils(unit_test_scb)
extern virtual function new(string name="unit_test_scb",uvm_component parent);
extren virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
endclass:unit_test_scb
function unit_test_scb::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
function void unit_test_scb::build_phase(uvm_phase phase);
super.build_phase(phase);
this.from_dut_fifo = new("from_dut_fifo",this);
this.from_rm_fifo = new("from_rm_fifo",this);
endfunction:build_phase
task unit_test_scb::main_phase(uvm_phase phase);
in_transaction req_rm;
in_transaction req_dut;
super.main_phase(phase);
while(1)begin
fork
begin
if(this.from_rm_fifo != null)begin
this.from_rm_fifo.get(req_rm);
this.rm_fifo.write(req_rm);
end
end
begin
if(this.from_dut_fifo != null)begin
this.from_dut_fifo.get(req_dut);
this.dut_fifo.write(req_dut);
end
end
begin
this.normal_check();
end
join
end
endtask:main_phase
function void unit_test_scb::normal_check();
in_transaction rm_tr;
in_transaction dut_tr;
if(this.dut_fifo.size()>0)begin
dut_tr = this.dut_fifo.pop_front();
if(this.rm_fifo.size()>0)begin
rm_tr = this.rm_fifo.pop_front();
end
result = dut_tr.compare(rm_tr);
if(result)begin
`uvm_info("","",UVM_LOW)
end
else begin
`uvm_error("","")
end
end
endfunction:normal_check3.1.4 out_monitor.sv
class in_monitor#(parameter WIDTH=8,parameter DEPTH=16) extends uvm_monitor#(in_transaction);
in_interface in_bus;
logic winc;
logic ricn;
bit[WIDTH-1:0] wdata;
uvm_tlm_analysis_fifo#(in_transaction) in_mon2rm_fifo;
`uvm_component_utils(in_monitor)
extern virtual function new(string name = "in_monitor",uvm_component parent);
extern virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
endclass:in_monitor
function in_monitor::new(string name, uvm_component parent);
super.new(name,parent);
endfunction:new
function void in_monitor::build_phase(uvm_phase phase);
super.build_phase(phase);
if(!uvm_config_db#(virtual in_interface)::get(this,"","in_bus",this.in_bus))begin
`uvm_fatal("","")
end
endfunction:build_phase
task in_monitor::main_phase(uvm_phase phase);
automatic in_transaction req;
super.main_phase(phase);
while(1)begin
@this.in_bus.mon_cb;
this.winc <= this.in_bus.winc;
this.rinc <= this.in_bus.rinc;
this.wdata <= this.in_bus.wdata;
this.req = in_transaction::type_id::create("req",this);
this.req.winc = this.winc;
this.req.rinc = this.rinc;
this.req.wdata = this.wdata;
if(this.in_mon2rm_fifo != null)begin
this.in_mon2rm_fifo.write(this.req);
end
end
endtask:main_phase3.1.5 base_test.sv
class base_test extends uvm_test;
unit_test_env env;
in_interface in_bus;
out_interface out_bus;
`uvm_component_utils(base_test)
extern virtual function new(string name= "base_test",uvm_component parent);
extern virtual function void build_phase(uvm_phase phase);
extern virtual task main_phase(uvm_phase phase);
endclass:base_test
function base_test::new(string name,uvm_component parent);
super.new(name,parent);
endfunction:new
function void base_test::build_phase(uvm_phase phase);
super.build_phase(phase);
this.env = unit_test_env::type_id::create("env",this);
if(!uvm_config_db#(virtual in_interface)::get(this,"","in_bus",this.in_bus))begin
`uvm_fatal("","")
end
uvm_config_db#(virtual in_interface)::set(this,"env.in_agt.drv","in_bus",this.in_bus);
uvm_config_db#(virtual in_interface)::set(this,"env.in_agt.mon","in_bus",this.in_bus);
endfunction:build_phase
task base_test::main_phase(uvm_phase phase);
super.main_phase(phase);
phase.raise_objection(this);
this.wait(5000);
phase.drop_objection(this);
endtask:main_phase
4. uvm中的tlm通信机制简介
uvm中的通信方式主要包含port、export、imp和analysis_port共四大类端口和fifo通信。
按照动作类型划分，在port、export、imp这四钟端口中还可以区分put、get、peek、get_peek和transport共五种动作，这五种动作又可以去区分为blocking、nonblocking和正常三种模式。
4. 1端口列表
4.1.1 port
#### put action
uvm_put_port#(req);
uvm_blocking_put_port#(req);
uvm_nonblocking_put_port#(req);
#### get action
uvm_get_port#(req);
uvm_blocking_get_port#(req);
uvm_nonblocking_get_port#(req);
#### peek action
uvm_peek_port#(req);
uvm_blocking_peek_port#(req);
uvm_nonblocking_peek_port#(req);
#### get_peek action
uvm_get_peek_port#(req);
uvm_blocking_get_peek_port#(req);
uvm_nonblocking_get_peek_port#(req);
#### transport action
uvm_transport_port#(req,rsp);
uvm_blocking_transport_port#(req,rsp);
uvm_nonblocking_transport_port#(req,rsp);4.1.2 export
#### put action
uvm_put_export#(req);
uvm_blocking_put_export#(req);
uvm_nonblocking_put_export#(req);
#### get action
uvm_get_export#(req);
uvm_blocking_get_export#(req);
uvm_nonblocking_get_export#(req);
#### peek action
uvm_peek_export#(req);
uvm_blocking_peek_export#(req);
uvm_nonblocking_peek_export#(req);
#### get_peek action
uvm_get_peek_export#(req);
uvm_blocking_get_peek_export#(req);
uvm_nonblocking_get_peek_export#(req);
#### transport action
uvm_transport_export#(req,rsp);
uvm_blocking_transport_export#(req,rsp);
uvm_nonblocking_transport_export#(req,rsp);4.1.3 imp
#### put action
uvm_put_imp#(req,T);
uvm_blocking_put_imp#(req,T);
uvm_nonblocking_put_imp#(req,T);
#### get action
uvm_get_imp#(req,T);
uvm_blocking_get_imp#(req,T);
uvm_nonblocking_get_imp#(req,T);
#### peek action
uvm_peek_imp#(req,T);
uvm_blocking_peek_imp#(req,T);
uvm_nonblocking_peek_imp#(req,T);
#### get_peek action
uvm_get_peek_imp#(req,T);
uvm_blocking_get_peek_imp#(req,T);
uvm_nonblocking_get_peek_imp#(req,T);
#### transport action
uvm_transport_imp#(req,rsp,T);
uvm_blocking_transport_imp#(req,rsp,T);
uvm_nonblocking_transport_imp#(req,rsp,T);4.1.4 analysis_port
uvm_tlm_analysis_port#(req);
uvm_tlm_analysis_export#(req);4.1.5 fifo
uvm_tlm_analysis_fifo#(req);
uvm_analysis_fifo#(req);4.2 端口之间的连接
4.2.1 端口之间的优先级
在port、export和imp之间是存在数据传输的优先级的，即优先级port>export>imp。端口之间的优先级限制了控制流的传输方向，即控制流只能由高优先级端口类型传向低优先级的端口，export不能向port提出控制流请求，但是可以向imp提出控制流请求。跨级之间的控制流请求是允许的，但是还是需要遵循优先级限制，即port直接向imp提出请求是允许的。
4.2.2 端口连接的数量和类型限制
默认情况下port、exporth和imp的连接是一对一的，除非在 初始化端口的时候去指定min_size和max_size。同时port、export和imp的put、get等类型需要保持一致，在imp所在的类中同时必须实现对应的方法，将在“端口连接的阻塞和非阻塞的约束”章节详细描述。
但是对于analysis_port则没有数量的限制，因为analysis_port的连接是广播的形式。因此，对analysis_port来说也没有阻塞和非阻塞的约束，uvm_tlm_analysis_port#(req)和uvm_tlm_analysis_export#(req)只有一个方法，即write(req)方法。
4.2.3 端口连接的阻塞和非阻塞的约束
通过上面的描述，port、export和imp类型的端口是由阻塞和非阻塞的区分的，*_blocking_*类型的端口是阻塞的，其对应的方法是put()、get()、peek()、get_peek()和transport。*_nonblocking_*是非阻塞的，对应的方法是try_put、can_put、try_get、can_get......等。
对于analysis_port来讲由于是广播，所以不存在阻塞和非阻塞的概念。
4.2.4 port和export、imp的连接
首先阻塞、动作类型需要保持一致；
class A extends uvm_component;
transaction tr;
uvm_blocking_put_port#(transaction) block_put_port;
uvm_blocking_get_port#(transaction) block_get_port;
uvm_nonblocking_put_port#(transaction) nonblock_put_port;
......
virtual task main_phase(uvm_phase phase);
.......
this.block_put_port.put(tr);
this.block_get_port.get(tr);
if(this.nonblock_put_port.can_put())begin
this.nonblock_put_port.try_put(tr);
end
endtask:main_phase
endclass:A
class B extends uvm_component;
uvm_blocking_put_port#(transaction) block_put_export;
uvm_blocking_get_port#(transaction) block_put_export;
uvm_nonblocking_put_port#(transaction) nonblock_put_export;
uvm_blocking_put_imp#(transaction,this) block_put_imp;
uvm_blocking_get_imp#(transaction,this) block_put_imp;
uvm_nonblocking_put_imp#(transaction,this) nonblock_put_imp;
......
virtual function void put(transaction tr);
.......
endfunction:put
virtual function void get(transaction tr);
.......
endfunction:put
virtual function void try_put(transaction tr);
.......
endfunction:put
virtual function void can_put(transaction tr);
.......
endfunction:put
virtual function void connect_phase(uvm_phase phase);
.......
this.block_put_export.connect(this.block_put_imp);
this.block_get_export.connect(this.block_get_imp);
this.nonblock_put_export.connect(this.nonblock_put_imp);
endfunction:connect_phase
endclass:B
class env extends uvm_env;
A A_inst;
B B_inst;
......
virtual function void connect_phase(uvm_phase phase);
A_inst.block_put_port.connect(B_inst.block_put_export);
A_inst.block_get_port.connect(B_inst.block_get_export);
A_inst.nonblock_put_port.connect(B_inst.nonblock_put_export);
endfunction:connect_phase
endclass:env4.2.5 port和imp的直接连接
首先阻塞、动作类型需要保持一致；
class A extends uvm_component;
transaction tr;
uvm_blocking_put_port#(transaction) block_put_port;
uvm_blocking_get_port#(transaction) block_get_port;
uvm_nonblocking_put_port#(transaction) nonblock_put_port;
......
virtual task main_phase(uvm_phase phase);
.......
this.block_put_port.put(tr);
this.block_get_port.get(tr);
if(this.nonblock_put_port.can_put())begin
this.nonblock_put_port.try_put(tr);
end
endtask:main_phase
endclass:A
class B extends uvm_component;
uvm_blocking_put_imp#(transaction,this) block_put_imp;
uvm_blocking_get_imp#(transaction,this) block_put_imp;
uvm_nonblocking_put_imp#(transaction,this) nonblock_put_imp;
......
virtual function void put(transaction tr);
.......
endfunction:put
virtual function void get(transaction tr);
.......
endfunction:put
virtual function void try_put(transaction tr);
.......
endfunction:put
virtual function void can_put(transaction tr);
.......
endfunction:put
virtual function void connect_phase(uvm_phase phase);
.......
endfunction:connect_phase
endclass:B
class env extends uvm_env;
A A_inst;
B B_inst;
......
virtual function void connect_phase(uvm_phase phase);
A_inst.block_put_port.connect(B_inst.block_put_imp);
A_inst.block_get_port.connect(B_inst.block_get_imp);
A_inst.nonblock_put_port.connect(B_inst.nonblock_put_imp);
endfunction:connect_phase
endclass:env4.2.6 analysis_port和imp的连接
首先阻塞、动作类型需要保持一致；
class A extends uvm_component;
transaction tr;
uvm_tlm_analysis_port#(transaction) A_ap_port;
......
virtual task main_phase(uvm_phase phase);
.......
this.A_ap_port.write(tr);
endtask:main_phase
endclass:A
class B extends uvm_component;
uvm_tlm_analysis_imp(transaction, B) B_imp;
......
virtual function void write(transaction tr);
.......
endfunction:write
endclass:B
class C extends uvm_component;
uvm_tlm_analysis_imp(transaction, C) C_imp;
......
virtual function void write(transaction tr);
.......
endfunction:write
endclass:C
class env extends uvm_env;
A A_inst;
B B_inst;
......
virtual function void connect_phase(uvm_phase phase);
A_inst.A_ap_port.connect(B_inst.B_imp);
A_inst.A_ap_port.connect(C_inst.C_imp);
endfunction:connect_phase
endclass:env4.2.7 fifo通信

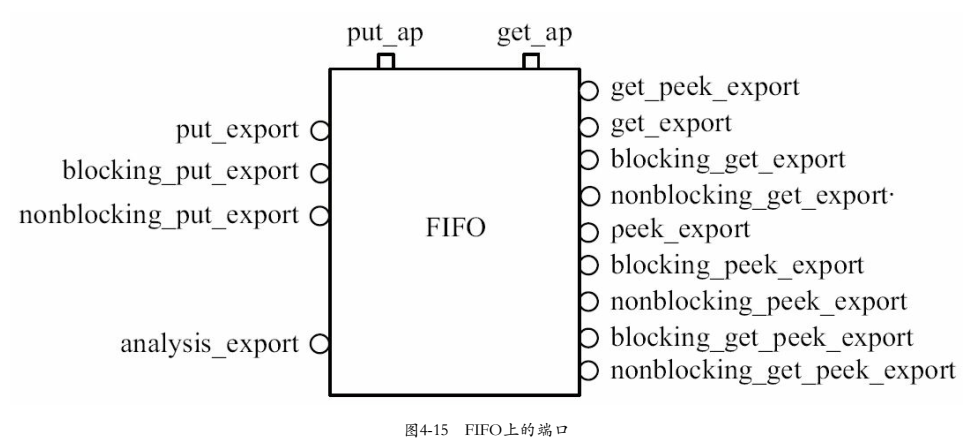

fifo简介：
本质上fifo是fifo加uvm_analysis_imp。fifo中包含许多端口，通过观察uvm中的tlm1.0代码可知大部分port本质上都是uvm_*_imp;
uvm源代码：
virtual class uvm_tlm_fifo_base #(type T=int) extends uvm_component;
typedef uvm_tlm_fifo_base #(T) this_type;
// Port: put_export
//
// The ~put_export~ provides both the blocking and non-blocking put interface
// methods to any attached port:
//
//| task put (input T t)
//| function bit can_put ()
//| function bit try_put (input T t)
//
// Any ~put~ port variant can connect and send transactions to the FIFO via this
// export, provided the transaction types match. See <uvm_tlm_if_base #(T1,T2)>
// for more information on each of the above interface methods.
uvm_put_imp #(T, this_type) put_export;
// Port: get_peek_export
//
// The ~get_peek_export~ provides all the blocking and non-blocking get and peek
// interface methods:
//
//| task get (output T t)
//| function bit can_get ()
//| function bit try_get (output T t)
//| task peek (output T t)
//| function bit can_peek ()
//| function bit try_peek (output T t)
//
// Any ~get~ or ~peek~ port variant can connect to and retrieve transactions from
// the FIFO via this export, provided the transaction types match. See
// <uvm_tlm_if_base #(T1,T2)> for more information on each of the above interface
// methods.
uvm_get_peek_imp #(T, this_type) get_peek_export;
// Port: put_ap
//
// Transactions passed via ~put~ or ~try_put~ (via any port connected to the
// <put_export>) are sent out this port via its ~write~ method.
//
//| function void write (T t)
//
// All connected analysis exports and imps will receive put transactions.
// See <uvm_tlm_if_base #(T1,T2)> for more information on the ~write~ interface
// method.
uvm_analysis_port #(T) put_ap;
// Port: get_ap
//
// Transactions passed via ~get~, ~try_get~, ~peek~, or ~try_peek~ (via any
// port connected to the <get_peek_export>) are sent out this port via its
// ~write~ method.
//
//| function void write (T t)
//
// All connected analysis exports and imps will receive get transactions.
// See <uvm_tlm_if_base #(T1,T2)> for more information on the ~write~ method.
uvm_analysis_port #(T) get_ap;
// The following are aliases to the above put_export.
uvm_put_imp #(T, this_type) blocking_put_export;
uvm_put_imp #(T, this_type) nonblocking_put_export;
// The following are all aliased to the above get_peek_export, which provides
// the superset of these interfaces.
uvm_get_peek_imp #(T, this_type) blocking_get_export;
uvm_get_peek_imp #(T, this_type) nonblocking_get_export;
uvm_get_peek_imp #(T, this_type) get_export;
uvm_get_peek_imp #(T, this_type) blocking_peek_export;
uvm_get_peek_imp #(T, this_type) nonblocking_peek_export;
uvm_get_peek_imp #(T, this_type) peek_export;
uvm_get_peek_imp #(T, this_type) blocking_get_peek_export;
uvm_get_peek_imp #(T, this_type) nonblocking_get_peek_export;
// Function: new
//
// The ~name~ and ~parent~ are the normal uvm_component constructor arguments.
// The ~parent~ should be ~null~ if the uvm_tlm_fifo is going to be used in a
// statically elaborated construct (e.g., a module). The ~size~ indicates the
// maximum size of the FIFO. A value of zero indicates no upper bound.
function new(string name, uvm_component parent = null);
super.new(name, parent);
put_export = new("put_export", this);
blocking_put_export = put_export;
nonblocking_put_export = put_export;
get_peek_export = new("get_peek_export", this);
blocking_get_peek_export = get_peek_export;
nonblocking_get_peek_export = get_peek_export;
blocking_get_export = get_peek_export;
nonblocking_get_export = get_peek_export;
get_export = get_peek_export;
blocking_peek_export = get_peek_export;
nonblocking_peek_export = get_peek_export;
peek_export = get_peek_export;
put_ap = new("put_ap", this);
get_ap = new("get_ap", this);
endfunction
//turn off auto config
function void build_phase(uvm_phase phase);
build(); //for backward compat, won't cause auto-config
return;
endfunction
virtual function void flush();
uvm_report_error("flush", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
endfunction
virtual function int size();
uvm_report_error("size", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual task put(T t);
uvm_report_error("put", `UVM_TLM_FIFO_TASK_ERROR, UVM_NONE);
endtask
virtual task get(output T t);
uvm_report_error("get", `UVM_TLM_FIFO_TASK_ERROR, UVM_NONE);
endtask
virtual task peek(output T t);
uvm_report_error("peek", `UVM_TLM_FIFO_TASK_ERROR, UVM_NONE);
endtask
virtual function bit try_put(T t);
uvm_report_error("try_put", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function bit try_get(output T t);
uvm_report_error("try_get", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function bit try_peek(output T t);
uvm_report_error("try_peek", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function bit can_put();
uvm_report_error("can_put", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function bit can_get();
uvm_report_error("can_get", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function bit can_peek();
uvm_report_error("can_peek", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function uvm_tlm_event ok_to_put();
uvm_report_error("ok_to_put", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return null;
endfunction
virtual function uvm_tlm_event ok_to_get();
uvm_report_error("ok_to_get", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return null;
endfunction
virtual function uvm_tlm_event ok_to_peek();
uvm_report_error("ok_to_peek", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return null;
endfunction
virtual function bit is_empty();
uvm_report_error("is_empty", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
virtual function bit is_full();
uvm_report_error("is_full", `UVM_TLM_FIFO_FUNCTION_ERROR);
return 0;
endfunction
virtual function int used();
uvm_report_error("used", `UVM_TLM_FIFO_FUNCTION_ERROR, UVM_NONE);
return 0;
endfunction
endclass原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。
如有侵权，请联系 cloudcommunity@tencent.com 删除。
原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。
如有侵权，请联系 cloudcommunity@tencent.com 删除。
评论
登录后参与评论
推荐阅读
目录
腾讯云开发者
Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有
深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059
粤公网安备44030502008569号
腾讯云计算（北京）有限责任公司 京ICP证150476号 | 京ICP备11018762号
