《构建高可靠文件处理服务：Flask+Celery+邮件通知全方案》

引言

在现代Web应用中，处理耗时任务（如大型Excel文件处理）是一个常见需求。本文将详细介绍如何构建一个完整的文件处理服务，包含以下核心技术点：

Flask框架搭建Web服务
Celery异步任务处理
邮件通知结果
前端进度展示
生产环境安全考量

一、系统架构设计

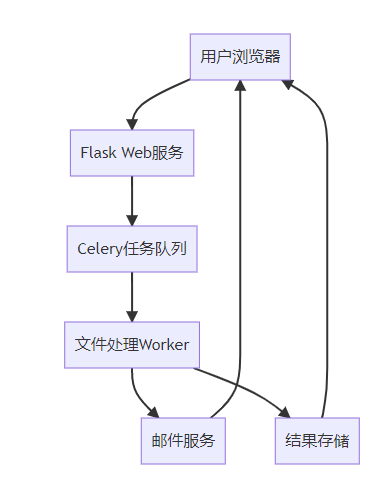

1.1 整体架构

1.2 技术选型

组件	技术	作用
Web框架	Flask	提供RESTful接口和页面渲染
异步任务	Celery+Redis	后台任务调度和状态跟踪
邮件服务	smtplib	发送处理结果通知
文件处理	openpyxl	Excel文件读写操作

二、核心实现代码

2.1 Flask应用初始化

# app.py
from flask import Flask
from celery import Celery
import os

app = Flask(__name__)
app.config.update(
    UPLOAD_FOLDER='uploads',
    ALLOWED_EXTENSIONS={'xlsx', 'xls'},
    CELERY_BROKER_URL='redis://localhost:6379/0'
)

# Celery配置
celery = Celery(app.name, broker=app.config['CELERY_BROKER_URL'])
celery.conf.update(app.config)

2.2 文件上传接口

@app.route('/upload', methods=['POST'])
def upload_file():
    file = request.files['file']
    if not allowed_file(file.filename):
        return jsonify(error="仅支持Excel文件"), 400

    filename = secure_filename(file.filename)
    input_path = os.path.join(app.config['UPLOAD_FOLDER'], filename)
    file.save(input_path)

    task = process_file.delay(input_path, request.form['email'])
    return jsonify(task_id=task.id), 202

2.3 Celery任务定义

@celery.task(bind=True)
def process_file(self, input_path, email):
    try:
        # 处理进度回调
        def progress_callback(pct):
            self.update_state(
                state='PROGRESS',
                meta={'progress': pct}
            )

        # 文件处理
        output_path = process_excel(input_path, progress_callback)

        # 发送邮件
        send_email_with_attachment(
            filepath=output_path,
            receiver_email=email
        )

        return {'result': output_path}
    except Exception as e:
        self.retry(exc=e, countdown=60)

三、关键技术实现

3.1 安全文件处理

def secure_processing(filepath):
    # 路径安全检查
    if not os.path.abspath(filepath).startswith(os.getcwd()):
        raise SecurityError("非法文件路径")

    # 文件类型验证
    with open(filepath, 'rb') as f:
        header = f.read(4)
        if not header.startswith(b'PK\x03\x04'):  # Excel文件魔数
            raise InvalidFileType()

3.2 邮件服务增强版

def send_email_with_attachment(filepath, receiver_email):
    msg = MIMEMultipart()
    msg['Subject'] = '文件处理完成通知'

    # 带样式的HTML正文
    html = f"""
    <html>
      <body>
        <p>您的文件已处理完成：</p>
        <table border="1">
          <tr><td>文件名</td><td>{os.path.basename(filepath)}</td></tr>
          <tr><td>处理时间</td><td>{datetime.now()}</td></tr>
        </table>
      </body>
    </html>
    """
    msg.attach(MIMEText(html, 'html'))

    # 加密附件
    with open(filepath, 'rb') as f:
        part = MIMEApplication(
            f.read(),
            _encoder=lambda x: x.decode('latin1')
        )
    part.add_header(
        'Content-Disposition',
        'attachment',
        filename=os.path.basename(filepath)
    msg.attach(part)

    # TLS安全连接
    with smtplib.SMTP_SSL('smtp.qq.com', 465) as server:
        server.login(os.getenv('SMTP_USER'), os.getenv('SMTP_PASS'))
        server.send_message(msg)

四、前端交互实现

4.1 进度展示组件

// progress.js
class ProgressManager {
  constructor(taskId) {
    this.taskId = taskId
    this.progressBar = document.getElementById('progress-bar')
    this.statusEl = document.getElementById('status-message')
  }

  startPolling() {
    this.interval = setInterval(() => {
      fetch(`/api/tasks/${this.taskId}/status`)
        .then(res => res.json())
        .then(data => {
          this.updateProgress(data)
          if (data.state === 'SUCCESS') this.onComplete(data)
        })
    }, 1000)
  }

  updateProgress(data) {
    const pct = data.progress || 0
    this.progressBar.style.width = `${pct}%`
    this.statusEl.textContent = this.getStatusText(data.state)
  }
}

4.2 文件上传组件

<!-- upload.html -->
<div class="upload-area" id="dropZone">
  <input type="file" id="fileInput" accept=".xlsx,.xls">
  <div class="progress-container">
    <div class="progress-bar" id="uploadProgress"></div>
  </div>
</div>

<script>
document.getElementById('fileInput').addEventListener('change', async (e) => {
  const file = e.target.files[0]
  const formData = new FormData()
  formData.append('file', file)

  const response = await fetch('/upload', {
    method: 'POST',
    body: formData
  })

  if (response.ok) {
    const { task_id } = await response.json()
    new ProgressManager(task_id).startPolling()
  }
})
</script>

五、生产环境部署建议

5.1 性能优化配置

# nginx.conf
server {
    listen 80;
    client_max_body_size 20M;
    proxy_read_timeout 300s;

    location / {
        proxy_pass http://flask_app:5000;
        proxy_set_header Upgrade $http_upgrade;
    }

    location /celery {
        proxy_pass http://celery_flower:5555;
    }
}

5.2 安全防护措施

敏感信息保护：

# .env 示例
SMTP_PASSWORD=your_encrypted_password
SECRET_KEY=your_flask_secret

定期清理策略：

# cleanup.py
def delete_old_files(dir_path, days=7):
    cutoff = time.time() - days * 86400
    for f in os.listdir(dir_path):
        path = os.path.join(dir_path, f)
        if os.stat(path).st_mtime < cutoff:
            os.remove(path)
