工程级实现！深度残差收缩网络的TensorFlow程序详解

"""
项目名称：
    基于深度残差收缩网络的凯斯西储大学轴承数据故障诊断程序
参考文献：
    Zhao M, Zhong S, Fu X, Tang B, Pecht M.
    Deep residual shrinkage networks for fault diagnosis.
    IEEE Transactions on Industrial Informatics, 2020, 16(7): 4681–4690.
"""

import os
import sys
import logging
import numpy as np
import scipy.io as sio
import tensorflow as tf
from tensorflow.keras import layers, models, regularizers
from sklearn.model_selection import train_test_split

# =============================================================================
# 运行环境配置模块
# =============================================================================

def configure_computational_resources():
    """
    配置底层计算资源与日志系统。
    包含硬件加速器的显存增长策略设置及环境依赖验证。
    """
    logging.basicConfig(level=logging.INFO, format='[%(levelname)s] %(message)s')

    # 屏蔽非关键的计算框架信息
    os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'

    physical_processors = tf.config.list_physical_devices('GPU')
    if physical_processors:
        try:
            for processor in physical_processors:
                tf.config.experimental.set_memory_growth(processor, True)
            logging.info("GPU 加速引擎初始化成功，已启用显存自适应分配。")
        except RuntimeError as error:
            logging.error("硬件资源重分配失败: %s", error)
    else:
        logging.info("未发现可用 GPU，系统切换至通用处理器计算模式。")

# 执行系统初始化
configure_computational_resources()

# =============================================================================
# 核心算法组件：深度残差收缩网络层定义
# =============================================================================

class SoftThresholding(layers.Layer):
    """
    软阈值化算子层。
    作为深度残差收缩网络的核心非线性映射，实现基于学习阈值的特征过滤：
    公式：Output = sign(Input) * max(|Input| - Threshold, 0)
    """
    def __init__(self, **kwargs):
        super(SoftThresholding, self).__init__(**kwargs)

    def call(self, inputs):
        x, threshold = inputs
        # 扩展维度以适配特征图通道 (Batch, 1, Channels)
        expanded_threshold = tf.expand_dims(threshold, axis=1)
        return tf.sign(x) * tf.maximum(tf.abs(x) - expanded_threshold, 0.0)

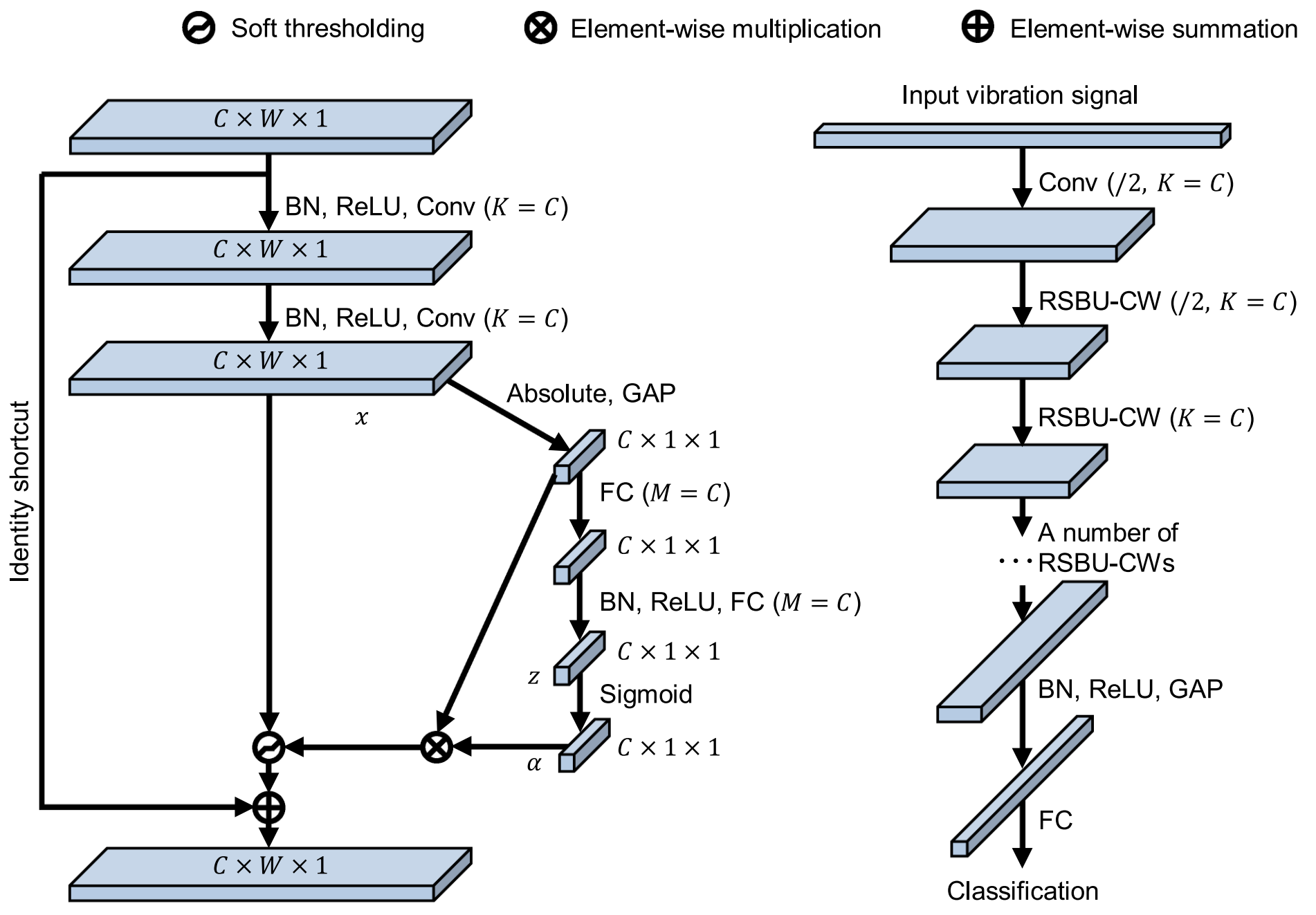

class RSBU_CW(layers.Layer):
    """
    深度残差收缩网络单元 (Residual Shrinkage Building Unit)。
    该模块通过注意力机制自适应学习通道级阈值，并结合残差连接增强特征传播。
    """
    def __init__(self, filters, kernel_size, strides=1, **kwargs):
        super(RSBU_CW, self).__init__(**kwargs)
        self.out_channels = filters
        self.stride = strides
        self.kernel_size = kernel_size
        self.weight_decay = regularizers.l2(1e-4)

        # 快捷路径分支 (Shortcut)
        self.shortcut = None

        # 特征映射分支
        self.norm_a = layers.BatchNormalization()
        self.relu_a = layers.Activation('relu')
        self.conv_a = layers.Conv1D(filters, kernel_size, strides=strides, padding='same',
                                   kernel_initializer='he_normal', kernel_regularizer=self.weight_decay)

        self.norm_b = layers.BatchNormalization()
        self.relu_b = layers.Activation('relu')
        self.conv_b = layers.Conv1D(filters, kernel_size, strides=1, padding='same',
                                   kernel_initializer='he_normal', kernel_regularizer=self.weight_decay)

        # 阈值学习子网络
        self.gap = layers.GlobalAveragePooling1D()
        self.fc1 = layers.Dense(filters, kernel_initializer='he_normal')
        self.norm_enc = layers.BatchNormalization()
        self.relu_enc = layers.Activation('relu')
        self.fc2 = layers.Dense(filters, activation='sigmoid')
        self.soft_thresholding = SoftThresholding()

    def build(self, input_shape):
        # 若步长不为1或通道数不匹配，则构建1x1卷积进行投影
        if self.stride != 1 or input_shape[-1] != self.out_channels:
            self.shortcut = layers.Conv1D(self.out_channels, 1, strides=self.stride, padding='same')
        super(RSBU_CW, self).build(input_shape)

    def call(self, inputs):
        identity = inputs
        if self.shortcut:
            identity = self.shortcut(inputs)

        # 基础卷积变换
        x = self.norm_a(inputs)
        x = self.relu_a(x)
        x = self.conv_a(x)
        x = self.norm_b(x)
        x = self.relu_b(x)
        x = self.conv_b(x)

        # 注意力引导的阈值生成
        abs_x = tf.abs(x)
        average_abs_x = self.gap(abs_x)

        alpha = self.fc1(average_abs_x)
        alpha = self.norm_enc(alpha)
        alpha = self.relu_enc(alpha)
        alpha = self.fc2(alpha)

        # 缩放因子计算与收缩操作
        threshold = tf.multiply(alpha, average_abs_x)
        refined_x = self.soft_thresholding([x, threshold])

        return layers.Add()([refined_x, identity])

class DRSN_CW(models.Model):
    """
    基于深度残差收缩网络的分类器。
    架构包含：
    1. 初始特征提取
    2. 深度堆叠的自适应残差收缩单元
    3. 决策输出层
    """
    def __init__(self, num_classes):
        super(DRSN_CW, self).__init__(name="DRSN_Diagnostic_Core")

        # 初始特征提取
        self.conv1 = layers.Conv1D(32, 15, strides=2, padding='same', kernel_initializer='he_normal')
        self.bn1 = layers.BatchNormalization()
        self.relu1 = layers.Activation('relu')

        # 深度收缩模块堆叠
        self.rsbu_stack = [
            RSBU_CW(32, 5, strides=2),
            RSBU_CW(32, 5, strides=1),
            RSBU_CW(64, 5, strides=2),
            RSBU_CW(64, 5, strides=1),
            RSBU_CW(128, 5, strides=2),
            RSBU_CW(128, 5, strides=1)
        ]

        # 决策输出层
        self.bn2 = layers.BatchNormalization()
        self.relu2 = layers.Activation('relu')
        self.gap = layers.GlobalAveragePooling1D()
        self.fc_out = layers.Dense(num_classes, activation='softmax')

    def call(self, inputs):
        x = self.conv1(inputs)
        x = self.bn1(x)
        x = self.relu1(x)

        for rsbu_unit in self.rsbu_stack:
            x = rsbu_unit(x)

        x = self.bn2(x)
        x = self.relu2(x)
        x = self.gap(x)
        return self.fc_out(x)

# =============================================================================
# 数据获取与信号增强模块
# =============================================================================

class CWRULoader:
    """
    振动信号加载与解析引擎。
    负责从数据文件中提取加速度序列并执行滑动窗口切割。
    """
    def __init__(self, base_directory, window_width=1024):
        self.data_root = os.path.abspath(base_directory)
        self.sequence_len = window_width

    def _read_mat(self, file_path):
        try:
            mat_container = sio.loadmat(file_path)
            for key_id in mat_container.keys():
                if 'DE_time' in key_id:
                    return mat_container[key_id].flatten()
        except Exception:
            return None
        return None

    def load_and_segment(self, metadata_cfg):
        feature_collection, label_collection = [], []
        is_path_valid = False

        for label_id, source_files in metadata_cfg.items():
            for filename in source_files:
                full_path = os.path.join(self.data_root, f"{filename}.mat")
                if not os.path.exists(full_path):
                    continue

                time_series = self._read_mat(full_path)
                if time_series is None:
                    continue

                is_path_valid = True
                # 执行固定步长的非重叠切片
                for pointer in range(0, len(time_series) - self.sequence_len + 1, self.sequence_len):
                    slice_data = time_series[pointer : pointer + self.sequence_len]
                    feature_collection.append(slice_data)
                    label_collection.append(label_id)

        if not is_path_valid:
            raise IOError("无法在指定目录中定位合法的 .mat 数据资源。")

        return np.array(feature_collection, dtype='float32'), np.array(label_collection, dtype='int32')

def apply_random_white_noise(input_batch, ratio_db):
    """
    向信号注入加性高斯白噪声。
    数学基准：P_noise = P_signal / (10^(SNR/10))
    """
    input_batch = np.array(input_batch)
    random_state = np.random.default_rng()

    current_snr = ratio_db if isinstance(ratio_db, (int, float)) else random_state.uniform(ratio_db[0], ratio_db[1])

    signal_intensity = np.mean(input_batch**2, axis=1, keepdims=True)
    noise_intensity = signal_intensity / (10**(current_snr / 10))
    noise_pattern = random_state.normal(0, np.sqrt(noise_intensity), input_batch.shape)

    return (input_batch + noise_pattern).astype('float32')

# =============================================================================
# 工作流管理与训练管线
# =============================================================================

def train_drsn(dataset_dir, input_dim=1024):
    """
    主控程序：执行深度残差收缩网络的完整训练与离线评估流程。
    """

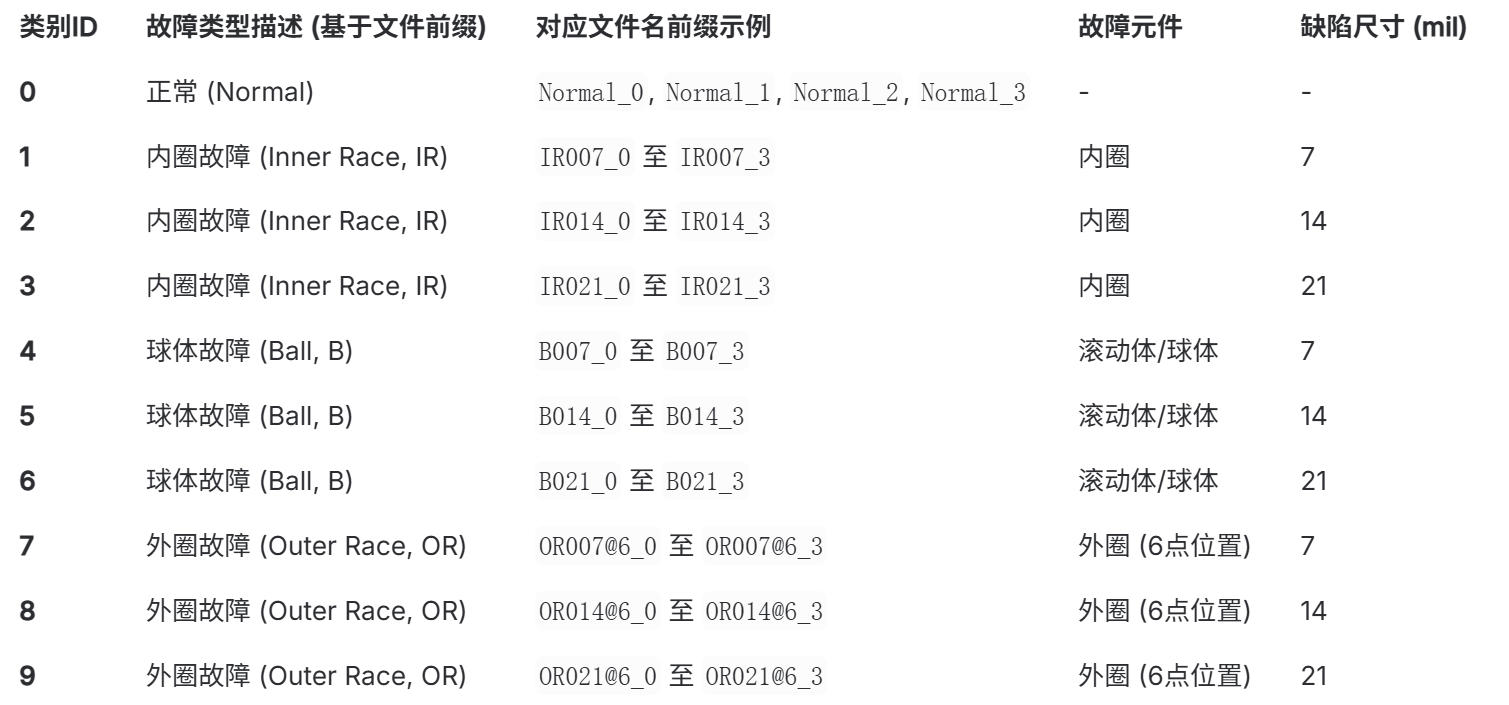

    # 类别定义
    category_registry = {
        0: ['Normal_0', 'Normal_1', 'Normal_2', 'Normal_3'],
        1: ['IR007_0', 'IR007_1', 'IR007_2', 'IR007_3'],
        2: ['IR014_0', 'IR014_1', 'IR014_2', 'IR014_3'],
        3: ['IR021_0', 'IR021_1', 'IR021_2', 'IR021_3'],
        4: ['B007_0', 'B007_1', 'B007_2', 'B007_3'],
        5: ['B014_0', 'B014_1', 'B014_2', 'B014_3'],
        6: ['B021_0', 'B021_1', 'B021_2', 'B021_3'],
        7: ['OR007@6_0', 'OR007@6_1', 'OR007@6_2', 'OR007@6_3'],
        8: ['OR014@6_0', 'OR014@6_1', 'OR014@6_2', 'OR014@6_3'],
        9: ['OR021@6_0', 'OR021@6_1', 'OR021@6_2', 'OR021@6_3']
    }

    # 实例化加载器并读取数据
    loader = CWRULoader(base_directory=dataset_dir, window_width=input_dim)
    try:
        x_all, y_all = loader.load_and_segment(category_registry)
    except Exception as failure:
        logging.error("数据集构建失败: %s", failure)
        return

    # 数据集分层抽样
    x_train_pre, x_holdout, y_train_pre, y_holdout = train_test_split(
        x_all, y_all, test_size=0.3, random_state=42
    )
    x_valid_pre, x_test_pre, y_valid_pre, y_test_pre = train_test_split(
        x_holdout, y_holdout, test_size=0.5, random_state=42
    )

    # 归一化统计量计算
    global_mean = np.mean(x_train_pre)
    global_std = np.std(x_train_pre)

    def normalize_and_reshape(raw_array):
        return ((raw_array - global_mean) / global_std).reshape(-1, input_dim, 1)

    train_tensor = normalize_and_reshape(x_train_pre)
    valid_tensor = normalize_and_reshape(x_valid_pre)
    test_tensor = normalize_and_reshape(x_test_pre)

    class_count = len(category_registry)
    train_labels = tf.keras.utils.to_categorical(y_train_pre, class_count).astype('float32')
    valid_labels = tf.keras.utils.to_categorical(y_valid_pre, class_count).astype('float32')
    test_labels = tf.keras.utils.to_categorical(y_test_pre, class_count).astype('float32')

    # 模拟极端噪声环境 (-8dB)
    noisy_valid_set = apply_random_white_noise(valid_tensor, ratio_db=-8)
    noisy_test_set = apply_random_white_noise(test_tensor, ratio_db=-8)

    def dynamic_augmentation_engine(feat_batch, label_batch):
        """
        在线数据增强：融合循环位移、脉冲干扰及随机信噪比噪声。
        """
        rng = np.random.default_rng()
        processed_feat = feat_batch.copy()
        m, n, _ = processed_feat.shape

        # 1. 随机域平移
        for idx in range(m):
            offset = rng.integers(0, n)
            processed_feat[idx, :, 0] = np.roll(processed_feat[idx, :, 0], offset)

        # 2. 模拟机械冲击噪声
        if rng.random() > 0.9:
            for idx in range(m):
                if rng.random() > 0.5:
                    spike_num = rng.integers(1, 3)
                    indices = rng.integers(0, n, spike_num)
                    impact_amp = np.std(processed_feat[idx]) * rng.uniform(1.5, 2.5)
                    processed_feat[idx, indices, 0] += impact_amp * rng.choice([-1, 1], size=spike_num)

        # 3. 动态噪声混合 (SNR 范围 -8dB 至 8dB)
        if rng.random() > 0.5:
            processed_feat = apply_random_white_noise(processed_feat, ratio_db=(-8, 8))

        return processed_feat.astype(np.float32), label_batch.astype(np.float32)

    def enforce_tensor_meta(f_tensor, l_tensor):
        f_tensor.set_shape([None, input_dim, 1])
        l_tensor.set_shape([None, class_count])
        return f_tensor, l_tensor

    # 构建数据供给管线
    ds_train = tf.data.Dataset.from_tensor_slices((train_tensor.astype('float32'), train_labels))
    ds_train = ds_train.shuffle(len(train_tensor)).batch(64)
    ds_train = ds_train.map(
        lambda x, y: tf.numpy_function(dynamic_augmentation_engine, [x, y], [tf.float32, tf.float32]),
        num_parallel_calls=tf.data.AUTOTUNE
    ).map(enforce_tensor_meta).prefetch(tf.data.AUTOTUNE)

    # 模型编译
    model = DRSN_CW(num_classes=class_count)
    model.compile(
        optimizer=tf.keras.optimizers.Adam(learning_rate=1e-3),
        loss='categorical_crossentropy',
        metrics=['accuracy']
    )

    logging.info("深度残差收缩网络架构编译完成，输入尺寸: %d", input_dim)

    # 训练监控回调
    monitors = [
        tf.keras.callbacks.ReduceLROnPlateau(monitor='val_loss', factor=0.5, patience=7, min_lr=1e-6, verbose=1),
        tf.keras.callbacks.EarlyStopping(monitor='val_loss', patience=20, restore_best_weights=True)
    ]

    # 模型拟合

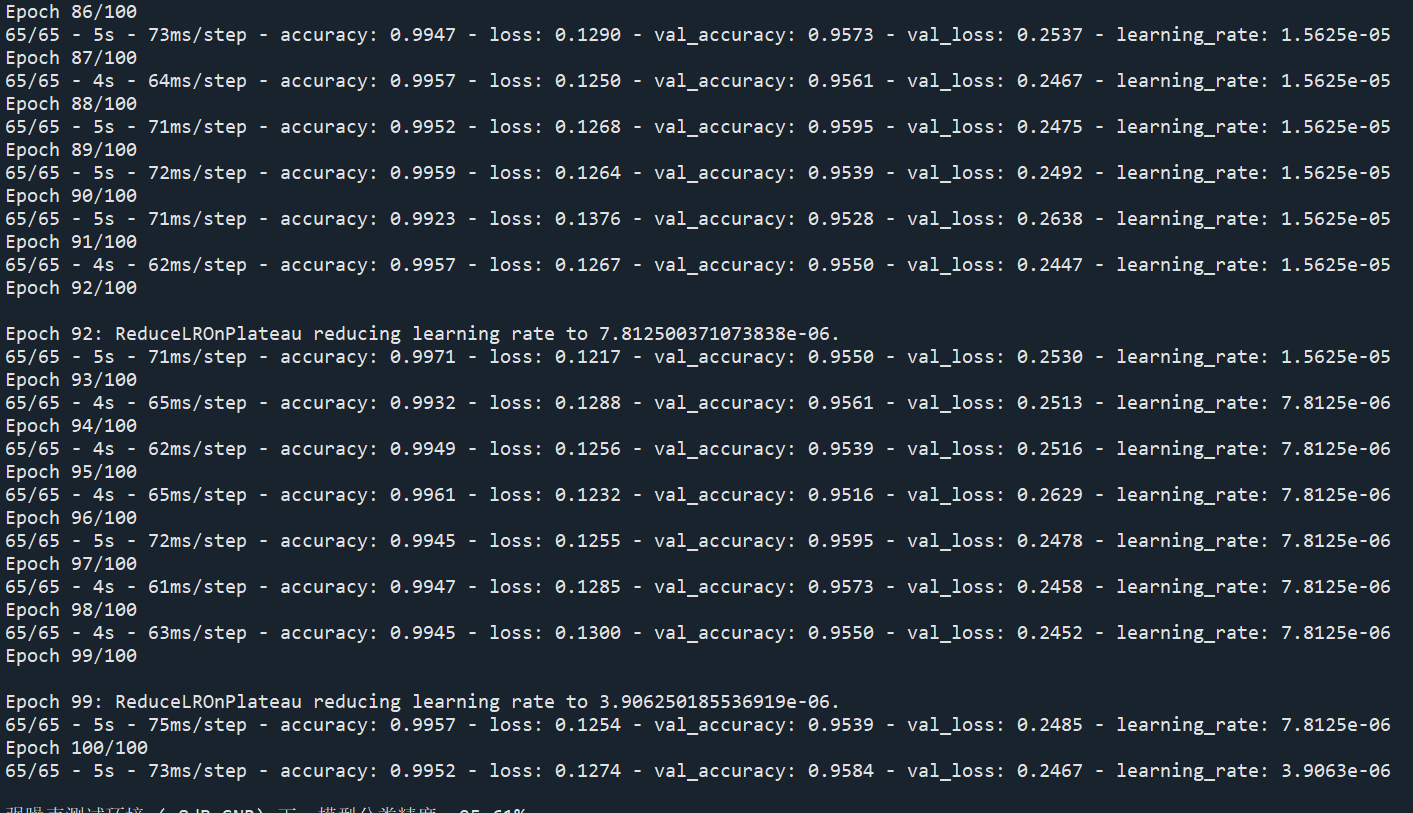

    model.fit(
        ds_train,
        epochs=100,
        validation_data=(noisy_valid_set, valid_labels),
        callbacks=monitors,
        verbose=2
    )

    # 测试集的分类精度
    final_loss, final_acc = model.evaluate(noisy_test_set, test_labels, verbose=0)
    print(f"\n强噪声测试环境 (-8dB SNR) 下，模型分类精度: {final_acc*100:.2f}%")

# =============================================================================
# 系统入口
# =============================================================================

if __name__ == "__main__":
    TARGET_DATA_PATH = os.path.join(os.getcwd(), 'data_path')

    if not os.path.exists(TARGET_DATA_PATH):
        logging.warning("默认数据路径未定位: %s", TARGET_DATA_PATH)
        user_input = input("请手动指定 CWRU 数据集所在的物理路径: ").strip()
        if user_input:
            TARGET_DATA_PATH = user_input
        else:
            logging.error("未获取有效路径，执行终止。")
            sys.exit(0)

    train_drsn(TARGET_DATA_PATH, input_dim=1024)
