awx详解

原创

q_7

修改于 2026-04-17 13:00:46

100

ansible的可视化的界面

k8s部署应用

资源清单,相当于在linux上编译安装软件包
helm用的特别多
kustmize
operator
awx的部署，

部署完awx的operator，就会出现一些一些资源对象,api-resources | grep awx

kubectl 部署即可

需要一个pv，pvc，动态制备的pv,使用的是nfs

awx-demo.yml文件

需要改变这个pvc，awx-demo这个文件yaml里面修改即可

awx

awx是什么

管理ansible的，一个web界面

1、部署awx

1、克隆仓库

[root@master01 ~]# git clone https://gitee.com/yftyxa/awx-operator.git

# 切换分支，这个是稳定版本的
[root@master01 awx-operator]# git checkout exam

[root@master01 awx-operator]# cd config/default/
[root@master01 default]# ls
awx-demo.yaml  kustomization.yaml  manager_auth_proxy_patch.yaml  manager_config_patch.yaml

这个yaml文件，跟我们之前写的yaml文件的格式不一样，现在需要通过命令来生成原始的yaml

2、生成yaml

kubectl kustomize 这个命令来生成yaml.但是需要注意的就是这个必须是一个目录，而不是一个文件

# 创建部署的目录，避免混杂在一起了
[root@master01 default]# mkdir deploy
[root@master01 default]# cd deploy/

# 将之前的好几个文件合并到同一个文件即可
[root@master01 deploy]# kubectl kustomize ../ > awx-operator.yml

3、部署operator

[root@master01 deploy]# kubectl apply -f awx-operator.yml
namespace/awx created
customresourcedefinition.apiextensions.k8s.io/awxbackups.awx.ansible.com created
customresourcedefinition.apiextensions.k8s.io/awxrestores.awx.ansible.com created
customresourcedefinition.apiextensions.k8s.io/awxs.awx.ansible.com created
serviceaccount/awx-operator-controller-manager created
role.rbac.authorization.k8s.io/awx-operator-awx-manager-role created
role.rbac.authorization.k8s.io/awx-operator-leader-election-role created
clusterrole.rbac.authorization.k8s.io/awx-operator-metrics-reader created
clusterrole.rbac.authorization.k8s.io/awx-operator-proxy-role created
rolebinding.rbac.authorization.k8s.io/awx-operator-awx-manager-rolebinding created
rolebinding.rbac.authorization.k8s.io/awx-operator-leader-election-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/awx-operator-proxy-rolebinding created
configmap/awx-operator-awx-manager-config created
service/awx-operator-controller-manager-metrics-service created
deployment.apps/awx-operator-controller-manager created
error: unable to recognize "awx-operator.yml": no matches for kind "AWX" in version "awx.ansible.com/v1beta1"

上面有一个报错，说不识别这个资源对象，不需要管这个，再次执行一遍这个文件

[root@master01 deploy]# kubectl apply -f awx-operator.yml
namespace/awx unchanged
customresourcedefinition.apiextensions.k8s.io/awxbackups.awx.ansible.com unchanged
customresourcedefinition.apiextensions.k8s.io/awxrestores.awx.ansible.com unchanged
customresourcedefinition.apiextensions.k8s.io/awxs.awx.ansible.com unchanged
serviceaccount/awx-operator-controller-manager unchanged
role.rbac.authorization.k8s.io/awx-operator-awx-manager-role configured
role.rbac.authorization.k8s.io/awx-operator-leader-election-role unchanged
clusterrole.rbac.authorization.k8s.io/awx-operator-metrics-reader unchanged
clusterrole.rbac.authorization.k8s.io/awx-operator-proxy-role unchanged
rolebinding.rbac.authorization.k8s.io/awx-operator-awx-manager-rolebinding unchanged
rolebinding.rbac.authorization.k8s.io/awx-operator-leader-election-rolebinding unchanged
clusterrolebinding.rbac.authorization.k8s.io/awx-operator-proxy-rolebinding unchanged
configmap/awx-operator-awx-manager-config unchanged
service/awx-operator-controller-manager-metrics-service unchanged
deployment.apps/awx-operator-controller-manager configured
awx.awx.ansible.com/awx-operator-awx-demo created

就没有保存了

发现创建了很多的资源对象

[root@master01 deploy]# kubectl api-resources | grep -i awx
awxbackups                                     awx.ansible.com/v1beta1                true         AWXBackup
awxrestores                                    awx.ansible.com/v1beta1                true         AWXRestore
awxs                                           awx.ansible.com/v1beta1                true         AWX

4、查看pod

让这个pod能够修改pv底层使用的目录所有者，允许客户端的root操作nfs共享出来的文件

# 允许客户端使用root对nfs目录操作的权限
[root@master01 ~]# cat /etc/exports
/nfsdata *(rw,no_root_squash)

这个awx中的数据库是需要使用存储的，pv,动态存储

# 存储类设置为默认的，添加注释修改为默认的动态存储，以后创建pvc就自动的去找这个动态存储类
storageclass.kubernetes.io/is-default-class: "true"

[root@master01 deploy]# cat awx-demo.yaml
---
apiVersion: awx.ansible.com/v1beta1
kind: AWX  # awx资源
metadata:
  name: awx-demo
  namespace: awx
spec:
  postgres_storage_class: "nfs-client"  # 使用这个nfs动态存储
  service_type: nodeport
  postgres_image: swr.cn-east-3.myhuaweicloud.com/hcie_openeuler/postgres  # 能够拉取到的镜像
  postgres_image_version: "13"
  redis_image: swr.cn-east-3.myhuaweicloud.com/hcie_openeuler/redis
  redis_image_version: "7"

kubectl apply -f awx-demo.yaml


# 查看awx资源
[root@master01 ~]# kubectl get awx -n awx
NAME                    AGE
awx-demo                88m  # 这个就是我们创建出来的，这个会自己做一些事情，创建后面的一些pod,awx资源
awx-operator-awx-demo   89m  # 删除这个旧的awx


# 应用这个文件，删除awx-operator-awx-demo-postgres-13-0  这个资源，不受控制的


root@master01 ~]# kubectl get pod -n awx
NAME                                               READY   STATUS             RESTARTS   AGE
awx-demo-postgres-13-0                             1/1     Running            1          83m
awx-demo-task-7f495655c6-vl9q7                     4/4     Running            4          81m
awx-demo-web-68c55fc6d6-hkg4k                      3/3     Running            3          81m
awx-operator-awx-demo-postgres-13-0                0/1     ImagePullBackOff   0          78m
awx-operator-controller-manager-85d95854c9-5zrk4   2/2     Running            3          84m

# 删除这个镜像拉取失败的，可以不用管他的

如果还有问题的话，就是查看这些pod的镜像，都弄成能下载的镜像即可

非常的折磨人，改了配置文件，还是原样的，我去了啊，特性

执行的动作是黑盒的，客户端不可控

查看访问端口

# 映射到主机上的30906端口
[root@master01 ~]# kubectl get svc -n awx
NAME                                              TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
awx-demo-postgres-13                              ClusterIP   None            <none>        5432/TCP       84m
awx-demo-service                                  NodePort    10.107.76.241   <none>        80:30906/TCP   82m
awx-operator-awx-demo-postgres-13                 ClusterIP   None            <none>        5432/TCP       85m
awx-operator-controller-manager-metrics-service   ClusterIP   10.109.37.178   <none>        8443/TCP       85m

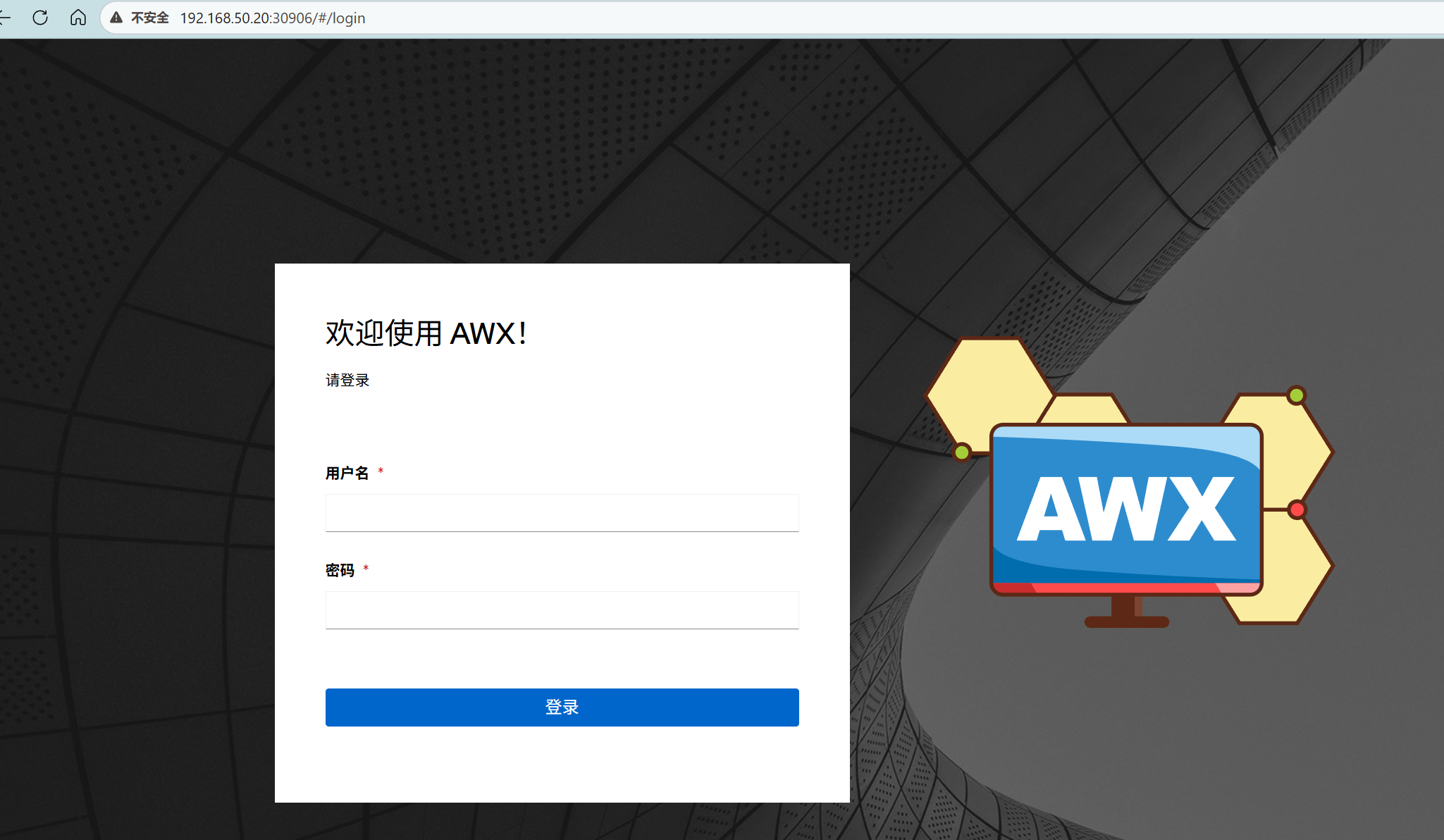

2、登录awx

上面我们查看了端口映射为30906，访问这个端口即可

1、查看默认密码

默认账号是admin

默认密码在awx空间下有一个secret

[root@master01 ~]# kubectl get secret -n awx  | grep admin
awx-demo-admin-password                        Opaque                                1      98m

# 以yaml文件展示出来即可
[root@master01 ~]# kubectl get secrets -n awx  awx-demo-admin-password  -o yaml

# 对这个密码进行解密
[root@master01 ~]# echo "aUtDZzQ0bDRMWFZtNnFCTkg4VDFCUnlpU2M1UHBWWEo=" | base64 -d
iKCg44l4LXVm6qBNH8T1BRyiSc5PpVXJ
