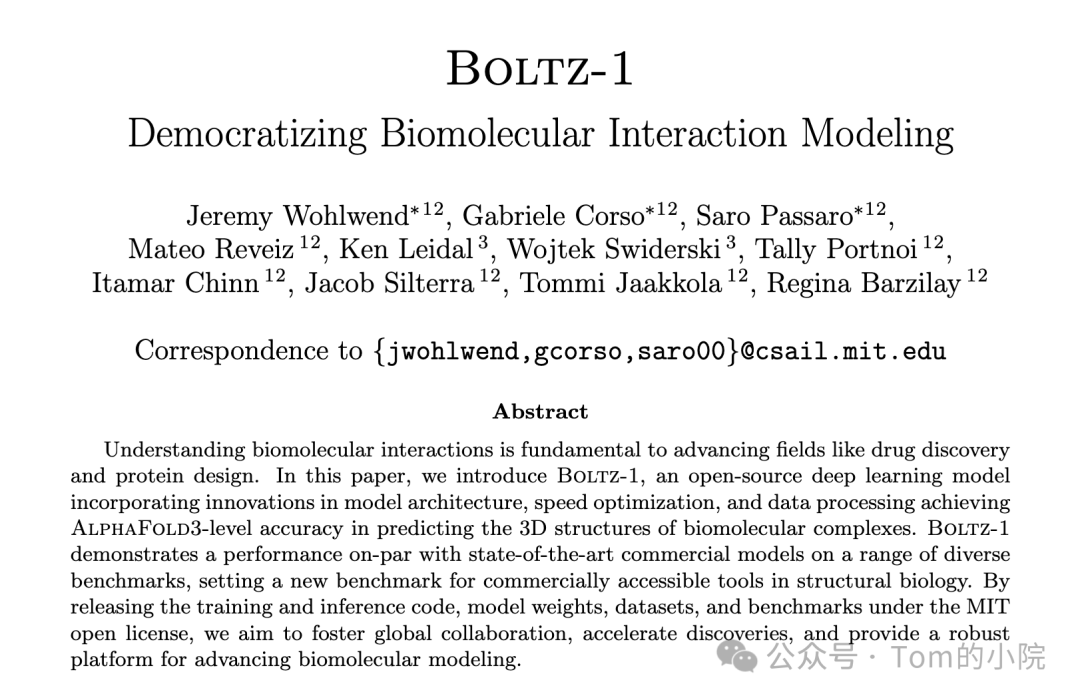

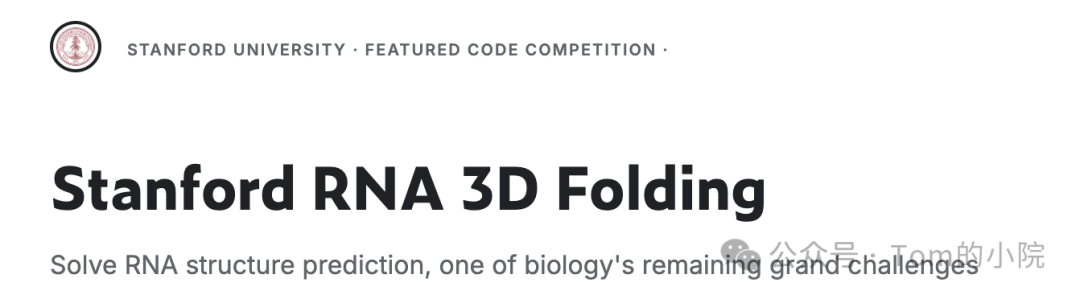

使用Boltz-1进行RNA结构预测

import numpy as np # linear algebra
import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv)

# Input data files are available in the read-only "../input/" directory
# For example, running this (by clicking run or pressing Shift+Enter) will list all files under the input directory

import os

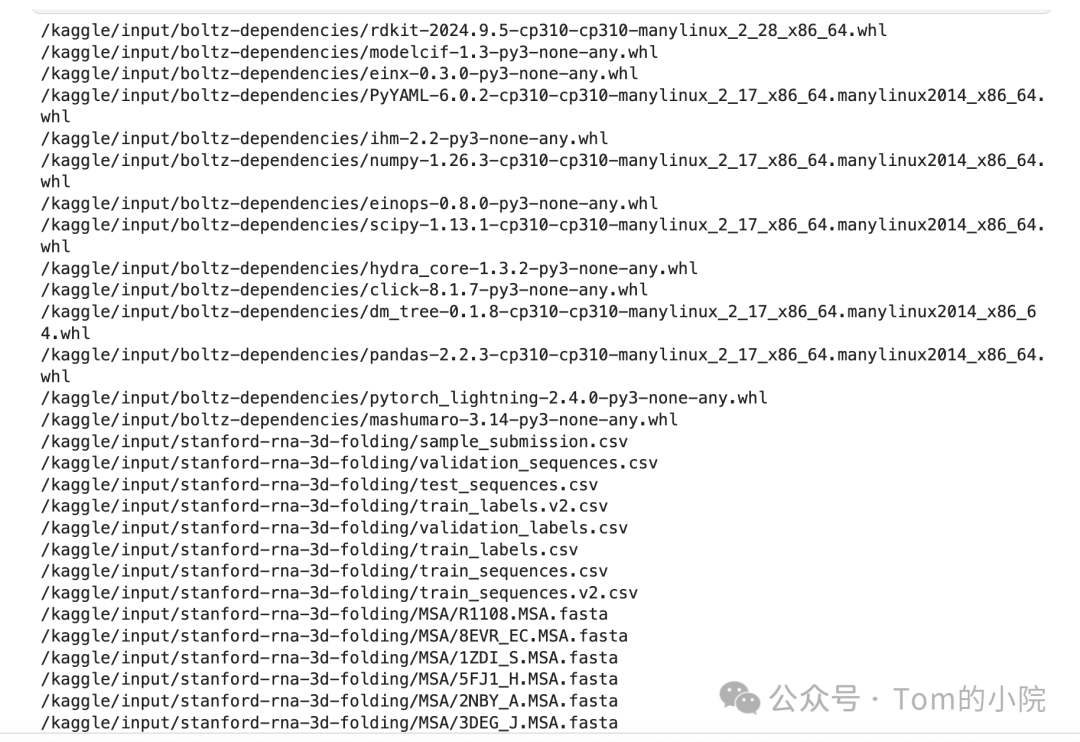

for dirname, _, filenames in os.walk('/kaggle/input'):
    for filename in filenames:
        print(os.path.join(dirname, filename))

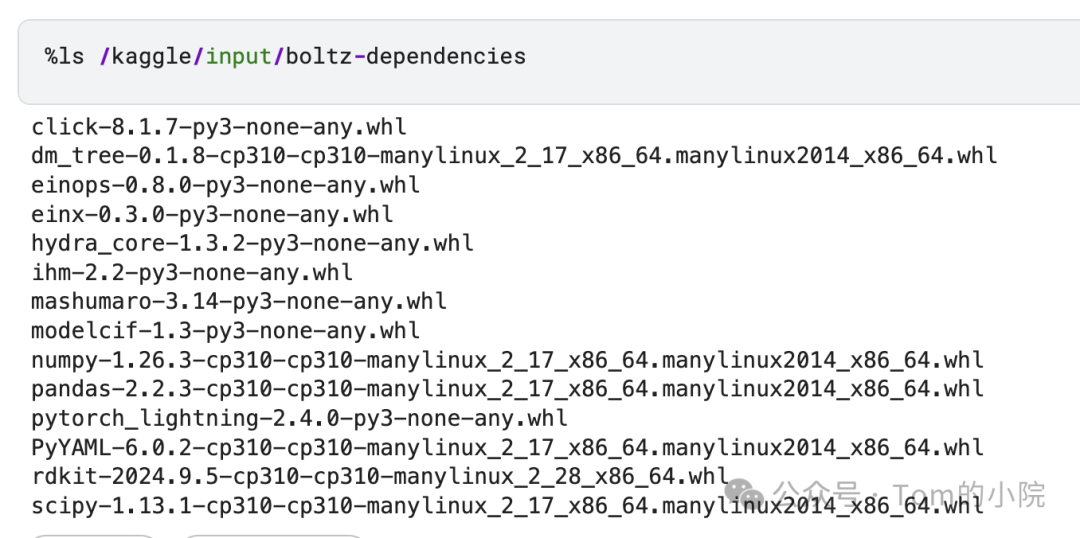

%ls /kaggle/input/boltz-dependencies

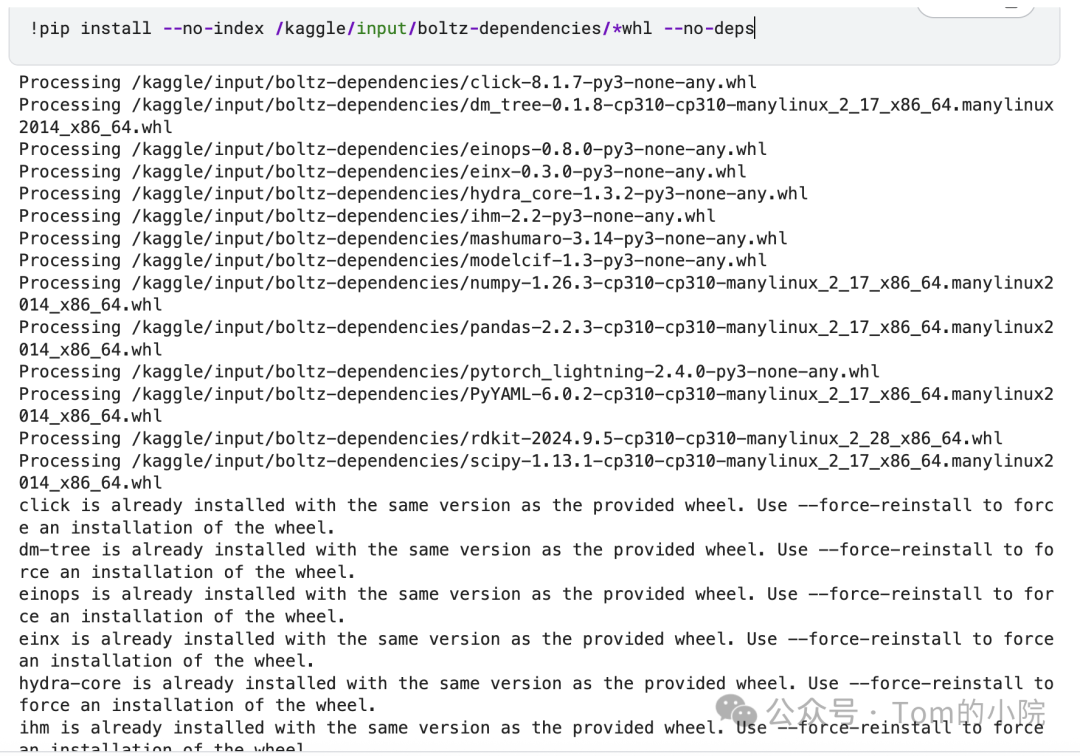

!pip install --no-index /kaggle/input/boltz-dependencies/*whl --no-deps

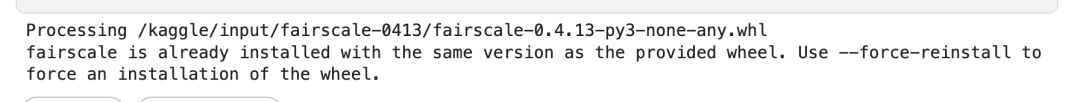

!pip install --no-index /kaggle/input/fairscale-0413/*whl --no-deps

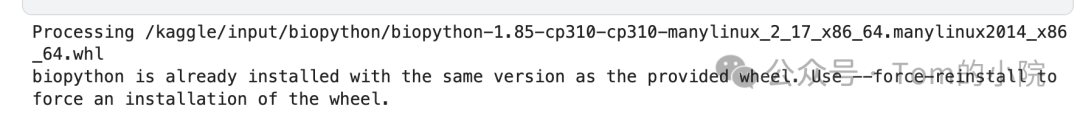

!pip install --no-index /kaggle/input/biopython/*whl --no-deps

%%writefile inference.py

import pickle
import urllib.request
from dataclasses import asdict, dataclass
from pathlib import Path
from typing import Literal, Optional

import click
import torch
from pytorch_lightning import Trainer, seed_everything
from pytorch_lightning.strategies import DDPStrategy
from pytorch_lightning.utilities import rank_zero_only
from tqdm import tqdm

from boltz.data import const
from boltz.data.module.inference import BoltzInferenceDataModule
from boltz.data.msa.mmseqs2 import run_mmseqs2
from boltz.data.parse.a3m import parse_a3m
from boltz.data.parse.csv import parse_csv
from boltz.data.parse.fasta import parse_fasta
from boltz.data.parse.yaml import parse_yaml
from boltz.data.types import MSA, Manifest, Record
from boltz.data.write.writer import BoltzWriter
from boltz.model.model import Boltz1

CCD_URL = "https://huggingface.co/boltz-community/boltz-1/resolve/main/ccd.pkl"
MODEL_URL = (
    "https://huggingface.co/boltz-community/boltz-1/resolve/main/boltz1_conf.ckpt"
)


@dataclass
class BoltzProcessedInput:
    """Processed input data."""

    manifest: Manifest
    targets_dir: Path
    msa_dir: Path


@dataclass
class BoltzDiffusionParams:
    """Diffusion process parameters."""

    gamma_0: float = 0.605
    gamma_min: float = 1.107
    noise_scale: float = 0.901
    rho: float = 8
    step_scale: float = 1.638
    sigma_min: float = 0.0004
    sigma_max: float = 160.0
    sigma_data: float = 16.0
    P_mean: float = -1.2
    P_std: float = 1.5
    coordinate_augmentation: bool = True
    alignment_reverse_diff: bool = True
    synchronize_sigmas: bool = True
    use_inference_model_cache: bool = True


@rank_zero_only
def download(cache: Path) -> None:
    """Download all the required data.

    Parameters
    ----------
    cache : Path
        The cache directory.

    """
    # Download CCD
    ccd = cache / "ccd.pkl"
    if not ccd.exists():
        click.echo(
            f"Downloading the CCD dictionary to {ccd}. You may "
            "change the cache directory with the --cache flag."
        )
        urllib.request.urlretrieve(CCD_URL, str(ccd))  # noqa: S310

    # Download model
    model = cache / "boltz1_conf.ckpt"
    if not model.exists():
        click.echo(
            f"Downloading the model weights to {model}. You may "
            "change the cache directory with the --cache flag."
        )
        urllib.request.urlretrieve(MODEL_URL, str(model))  # noqa: S310


def check_inputs(
    data: Path,
    outdir: Path,
    override: bool = False,
) -> list[Path]:
    """Check the input data and output directory.

    If the input data is a directory, it will be expanded
    to all files in this directory. Then, we check if there
    are any existing predictions and remove them from the
    list of input data, unless the override flag is set.

    Parameters
    ----------
    data : Path
        The input data.
    outdir : Path
        The output directory.
    override: bool
        Whether to override existing predictions.

    Returns
    -------
    list[Path]
        The list of input data.

    """
    click.echo("Checking input data.")

    # Check if data is a directory
    if data.is_dir():
        data: list[Path] = list(data.glob("*"))

        # Filter out non .fasta or .yaml files, raise
        # an error on directory and other file types
        filtered_data = []
        for d in data:
            if d.suffix in (".fa", ".fas", ".fasta", ".yml", ".yaml"):
                filtered_data.append(d)
            elif d.is_dir():
                msg = f"Found directory {d} instead of .fasta or .yaml."
                raise RuntimeError(msg)
            else:
                msg = (
                    f"Unable to parse filetype {d.suffix}, "
                    "please provide a .fasta or .yaml file."
                )
                raise RuntimeError(msg)

        data = filtered_data
    else:
        data = [data]

    # Check if existing predictions are found
    existing = (outdir / "predictions").rglob("*")
    existing = {e.name for e in existing if e.is_dir()}

    # Remove them from the input data
    if existing and not override:
        data = [d for d in data if d.stem not in existing]
        num_skipped = len(existing) - len(data)
        msg = (
            f"Found some existing predictions ({num_skipped}), "
            f"skipping and running only the missing ones, "
            "if any. If you wish to override these existing "
            "predictions, please set the --override flag."
        )
        click.echo(msg)
    elif existing and override:
        msg = "Found existing predictions, will override."
        click.echo(msg)

    return data


def compute_msa(
    data: dict[str, str],
    target_id: str,
    msa_dir: Path,
    msa_server_url: str,
    msa_pairing_strategy: str,
) -> None:
    """Compute the MSA for the input data.

    Parameters
    ----------
    data : dict[str, str]
        The input protein sequences.
    target_id : str
        The target id.
    msa_dir : Path
        The msa directory.
    msa_server_url : str
        The MSA server URL.
    msa_pairing_strategy : str
        The MSA pairing strategy.

    """
    if len(data) > 1:
        paired_msas = run_mmseqs2(
            list(data.values()),
            msa_dir / f"{target_id}_paired_tmp",
            use_env=True,
            use_pairing=True,
            host_url=msa_server_url,
            pairing_strategy=msa_pairing_strategy,
        )
    else:
        paired_msas = [""] * len(data)

    unpaired_msa = run_mmseqs2(
        list(data.values()),
        msa_dir / f"{target_id}_unpaired_tmp",
        use_env=True,
        use_pairing=False,
        host_url=msa_server_url,
        pairing_strategy=msa_pairing_strategy,
    )

    for idx, name in enumerate(data):
        # Get paired sequences
        paired = paired_msas[idx].strip().splitlines()
        paired = paired[1::2]  # ignore headers
        paired = paired[: const.max_paired_seqs]

        # Set key per row and remove empty sequences
        keys = [idx for idx, s in enumerate(paired) if s != "-" * len(s)]
        paired = [s for s in paired if s != "-" * len(s)]

        # Combine paired-unpaired sequences
        unpaired = unpaired_msa[idx].strip().splitlines()
        unpaired = unpaired[1::2]
        unpaired = unpaired[: (const.max_msa_seqs - len(paired))]
        if paired:
            unpaired = unpaired[1:]  # ignore query is already present

        # Combine
        seqs = paired + unpaired
        keys = keys + [-1] * len(unpaired)

        # Dump MSA
        csv_str = ["key,sequence"] + [f"{key},{seq}" for key, seq in zip(keys, seqs)]

        msa_path = msa_dir / f"{name}.csv"
        with msa_path.open("w") as f:
            f.write("\n".join(csv_str))


@rank_zero_only
def process_inputs(  # noqa: C901, PLR0912, PLR0915
    data: list[Path],
    out_dir: Path,
    ccd_path: Path,
    msa_server_url: str,
    msa_pairing_strategy: str,
    max_msa_seqs: int = 4096,
    use_msa_server: bool = False,
) -> None:
    """Process the input data and output directory.

    Parameters
    ----------
    data : list[Path]
        The input data.
    out_dir : Path
        The output directory.
    ccd_path : Path
        The path to the CCD dictionary.
    max_msa_seqs : int, optional
        Max number of MSA sequences, by default 4096.
    use_msa_server : bool, optional
        Whether to use the MMSeqs2 server for MSA generation, by default False.

    Returns
    -------
    BoltzProcessedInput
        The processed input data.

    """
    click.echo("Processing input data.")
    existing_records = None

    # Check if manifest exists at output path
    manifest_path = out_dir / "processed" / "manifest.json"
    if manifest_path.exists():
        click.echo(f"Found a manifest file at output directory: {out_dir}")

        manifest: Manifest = Manifest.load(manifest_path)
        input_ids = [d.stem for d in data]
        existing_records, processed_ids = zip(
            *[
                (record, record.id)
                for record in manifest.records
                if record.id in input_ids
            ]
        )

        if isinstance(existing_records, tuple):
            existing_records = list(existing_records)

        # Check how many examples need to be processed
        missing = len(input_ids) - len(processed_ids)
        if not missing:
            click.echo("All examples in data are processed. Updating the manifest")
            # Dump updated manifest
            updated_manifest = Manifest(existing_records)
            updated_manifest.dump(out_dir / "processed" / "manifest.json")
            return

        click.echo(f"{missing} missing ids. Preprocessing these ids")
        missing_ids = list(set(input_ids).difference(set(processed_ids)))
        data = [d for d in data if d.stem in missing_ids]
        assert len(data) == len(missing_ids)

    # Create output directories
    msa_dir = out_dir / "msa"
    structure_dir = out_dir / "processed" / "structures"
    processed_msa_dir = out_dir / "processed" / "msa"
    predictions_dir = out_dir / "predictions"

    out_dir.mkdir(parents=True, exist_ok=True)
    msa_dir.mkdir(parents=True, exist_ok=True)
    structure_dir.mkdir(parents=True, exist_ok=True)
    processed_msa_dir.mkdir(parents=True, exist_ok=True)
    predictions_dir.mkdir(parents=True, exist_ok=True)

    # Load CCD
    with ccd_path.open("rb") as file:
        ccd = pickle.load(file)  # noqa: S301

    if existing_records is not None:
        click.echo(f"Found {len(existing_records)} records. Adding them to records")

    # Parse input data
    records: list[Record] = existing_records if existing_records is not None else []
    for path in tqdm(data):
        try:
            # Parse data
            if path.suffix in (".fa", ".fas", ".fasta"):
                target = parse_fasta(path, ccd)
            elif path.suffix in (".yml", ".yaml"):
                target = parse_yaml(path, ccd)
            elif path.is_dir():
                msg = f"Found directory {path} instead of .fasta or .yaml, skipping."
                raise RuntimeError(msg)
            else:
                msg = (
                    f"Unable to parse filetype {path.suffix}, "
                    "please provide a .fasta or .yaml file."
                )
                raise RuntimeError(msg)

            # Get target id
            target_id = target.record.id

            # Get all MSA ids and decide whether to generate MSA
            to_generate = {}
            prot_id = const.chain_type_ids["PROTEIN"]
            for chain in target.record.chains:
                # Add to generate list, assigning entity id
                if (chain.mol_type == prot_id) and (chain.msa_id == 0):
                    entity_id = chain.entity_id
                    msa_id = f"{target_id}_{entity_id}"
                    to_generate[msa_id] = target.sequences[entity_id]
                    chain.msa_id = msa_dir / f"{msa_id}.csv"

                # We do not support msa generation for non-protein chains
                elif chain.msa_id == 0:
                    chain.msa_id = -1

            # Generate MSA
            if to_generate and not use_msa_server:
                msg = "Missing MSA's in input and --use_msa_server flag not set."
                raise RuntimeError(msg)

            if to_generate:
                msg = f"Generating MSA for {path} with {len(to_generate)} protein entities."
                click.echo(msg)
                compute_msa(
                    data=to_generate,
                    target_id=target_id,
                    msa_dir=msa_dir,
                    msa_server_url=msa_server_url,
                    msa_pairing_strategy=msa_pairing_strategy,
                )

            # Parse MSA data
            msas = sorted({c.msa_id for c in target.record.chains if c.msa_id != -1})
            msa_id_map = {}
            for msa_idx, msa_id in enumerate(msas):
                # Check that raw MSA exists
                msa_path = Path(msa_id)
                if not msa_path.exists():
                    msg = f"MSA file {msa_path} not found."
                    raise FileNotFoundError(msg)

                # Dump processed MSA
                processed = processed_msa_dir / f"{target_id}_{msa_idx}.npz"
                msa_id_map[msa_id] = f"{target_id}_{msa_idx}"
                if not processed.exists():
                    # Parse A3M
                    if msa_path.suffix == ".a3m":
                        msa: MSA = parse_a3m(
                            msa_path,
                            taxonomy=None,
                            max_seqs=max_msa_seqs,
                        )
                    elif msa_path.suffix == ".csv":
                        msa: MSA = parse_csv(msa_path, max_seqs=max_msa_seqs)
                    else:
                        msg = f"MSA file {msa_path} not supported, only a3m or csv."
                        raise RuntimeError(msg)

                    msa.dump(processed)

            # Modify records to point to processed MSA
            for c in target.record.chains:
                if (c.msa_id != -1) and (c.msa_id in msa_id_map):
                    c.msa_id = msa_id_map[c.msa_id]

            # Keep record
            records.append(target.record)

            # Dump structure
            struct_path = structure_dir / f"{target.record.id}.npz"
            target.structure.dump(struct_path)

        except Exception as e:
            if len(data) > 1:
                print(f"Failed to process {path}. Skipping. Error: {e}.")
            else:
                raise e

    # Dump manifest
    manifest = Manifest(records)
    manifest.dump(out_dir / "processed" / "manifest.json")

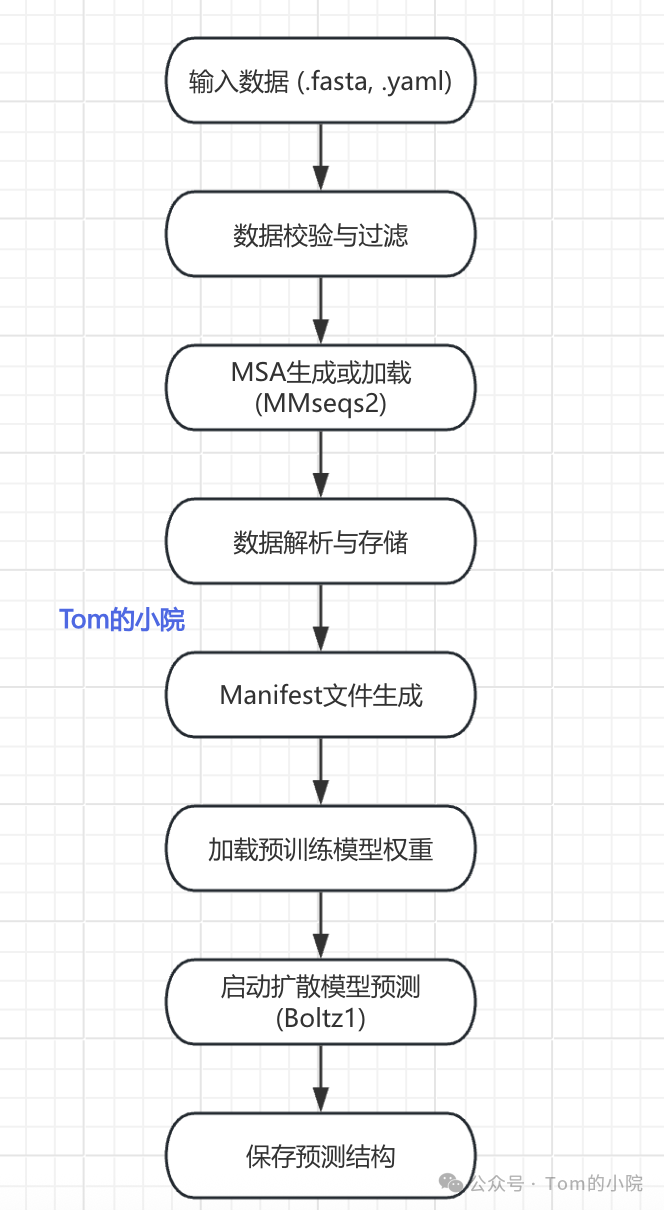

def predict(
    data: str,
    out_dir: str,
    cache: str = "~/.boltz",
    checkpoint: Optional[str] = None,
    devices: int = 1,
    accelerator: str = "gpu",
    recycling_steps: int = 3,
    sampling_steps: int = 200,
    diffusion_samples: int = 1,
    step_scale: float = 1.638,
    write_full_pae: bool = False,
    write_full_pde: bool = False,
    output_format: Literal["pdb", "mmcif"] = "mmcif",
    num_workers: int = 2,
    override: bool = False,
    seed: Optional[int] = None,
    use_msa_server: bool = False,
    msa_server_url: str = "https://api.colabfold.com",
    msa_pairing_strategy: str = "greedy",
) -> None:
    """Run predictions with Boltz-1."""
    # If cpu, write a friendly warning
    if accelerator == "cpu":
        msg = "Running on CPU, this will be slow. Consider using a GPU."
        click.echo(msg)

    # Set no grad
    torch.set_grad_enabled(False)

    # Ignore matmul precision warning
    torch.set_float32_matmul_precision("highest")

    # Set seed if desired
    if seed is not None:
        seed_everything(int(seed))

    # Set cache path
    cache = Path(cache).expanduser()
    cache.mkdir(parents=True, exist_ok=True)

    # Create output directories
    data = Path(data).expanduser()
    out_dir = Path(out_dir).expanduser()
    out_dir = out_dir / f"boltz_results_{data.stem}"
    out_dir.mkdir(parents=True, exist_ok=True)

    # Download necessary data and model
    download(cache)

    # Validate inputs
    data = check_inputs(data, out_dir, override)
    if not data:
        click.echo("No predictions to run, exiting.")
        return

    # Set up trainer
    strategy = "auto"
    if (isinstance(devices, int) and devices > 1) or (
        isinstance(devices, list) and len(devices) > 1
    ):
        strategy = DDPStrategy()
        if len(data) < devices:
            msg = (
                "Number of requested devices is greater "
                "than the number of predictions."
            )
            raise ValueError(msg)

    msg = f"Running predictions for {len(data)} structure"
    msg += "s" if len(data) > 1 else ""
    click.echo(msg)

    # Process inputs
    ccd_path = cache / "ccd.pkl"
    process_inputs(
        data=data,
        out_dir=out_dir,
        ccd_path=ccd_path,
        use_msa_server=use_msa_server,
        msa_server_url=msa_server_url,
        msa_pairing_strategy=msa_pairing_strategy,
    )

    # Load processed data
    processed_dir = out_dir / "processed"
    processed = BoltzProcessedInput(
        manifest=Manifest.load(processed_dir / "manifest.json"),
        targets_dir=processed_dir / "structures",
        msa_dir=processed_dir / "msa",
    )

    # Create data module
    data_module = BoltzInferenceDataModule(
        manifest=processed.manifest,
        target_dir=processed.targets_dir,
        msa_dir=processed.msa_dir,
        num_workers=num_workers,
    )

    # Load model
    if checkpoint is None:
        checkpoint = cache / "boltz1_conf.ckpt"

    predict_args = {
        "recycling_steps": recycling_steps,
        "sampling_steps": sampling_steps,
        "diffusion_samples": diffusion_samples,
        "write_confidence_summary": True,
        "write_full_pae": write_full_pae,
        "write_full_pde": write_full_pde,
    }
    diffusion_params = BoltzDiffusionParams()
    diffusion_params.step_scale = step_scale
    model_module: Boltz1 = Boltz1.load_from_checkpoint(
        checkpoint,
        strict=True,
        predict_args=predict_args,
        map_location="cpu",
        diffusion_process_args=asdict(diffusion_params),
        ema=False,
    )
    model_module.eval()

    # Create prediction writer
    pred_writer = BoltzWriter(
        data_dir=processed.targets_dir,
        output_dir=out_dir / "predictions",
        output_format=output_format,
    )

    trainer = Trainer(
        default_root_dir=out_dir,
        strategy=strategy,
        callbacks=[pred_writer],
        accelerator=accelerator,
        devices=devices,
        precision=32,
    )

    # Compute predictions
    trainer.predict(
        model_module,
        datamodule=data_module,
        return_predictions=False,
    )


if __name__ == "__main__":
    predict(data="./inputs_prediction",
            out_dir="./outputs_prediction",
            cache="/kaggle/input/rna-prediction-boltz/",
            diffusion_samples=5,
            seed=42,
            override=True)

key,sequence
0,MSA序列1
-1,MSA序列2

predict(
    data="./inputs_prediction",
    out_dir="./outputs_prediction",
    cache="/kaggle/input/rna-prediction-boltz/",
    diffusion_samples=5,
    seed=42,
    override=True
)

outputs_prediction
├── msa                    # MSA中间数据（CSV）
├── processed
│   ├── structures         # 处理后的结构文件（npz）
│   ├── msa                # 处理后的MSA（npz）
│   └── manifest.json      # 数据处理记录
└── predictions            # 最终预测结构（PDB或mmCIF）

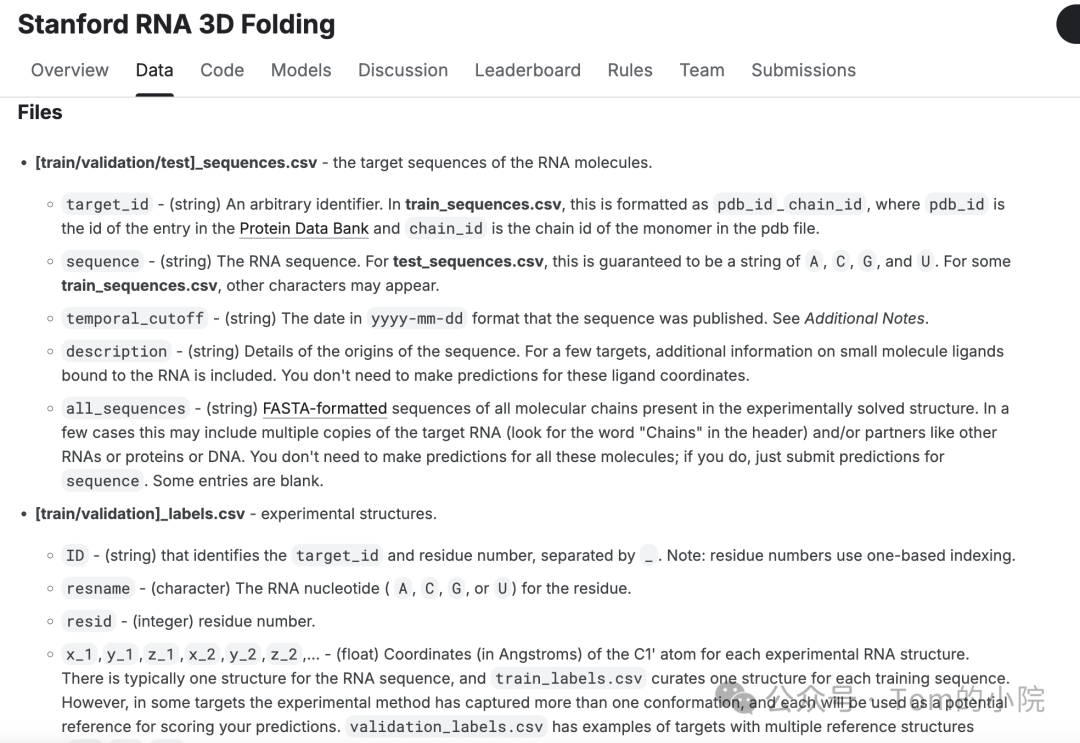

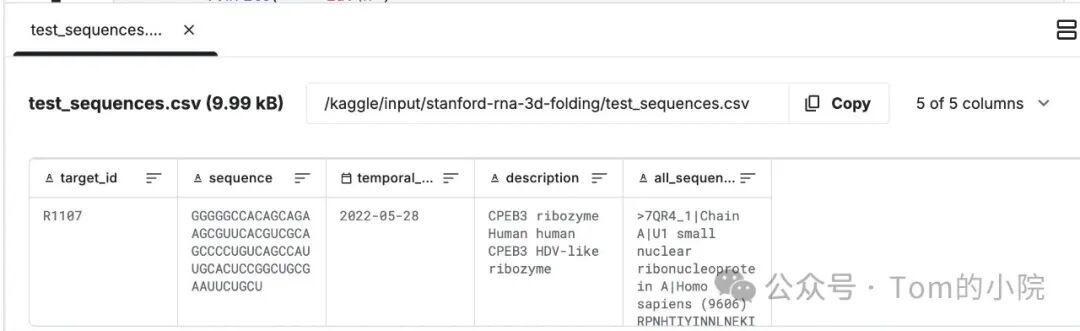

sub_file = pd.read_csv('/kaggle/input/stanford-rna-3d-folding/test_sequences.csv')

sub_file.head()

names = sub_file['target_id'].tolist()
sequences = sub_file['sequence'].tolist()

# Inference

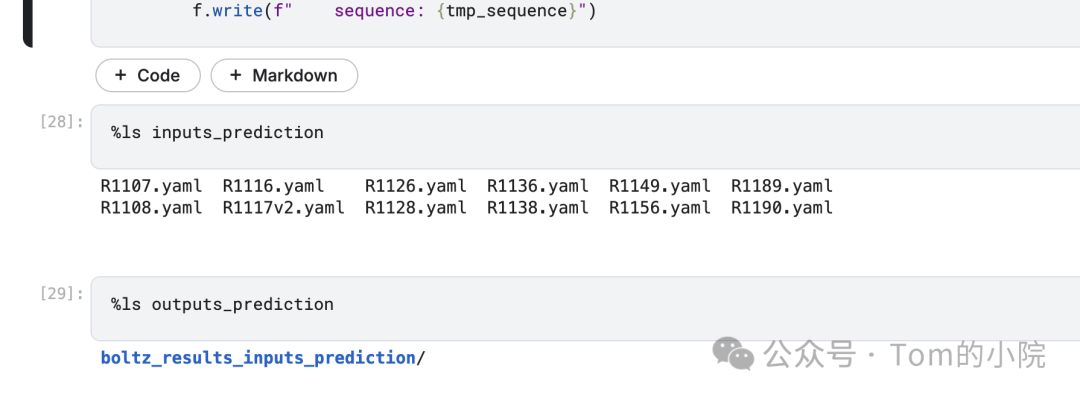

idx = 0
for tmp_id, tmp_sequence in zip(names, sequences):
    with open(f'/kaggle/working/inputs_prediction/{tmp_id}.yaml', 'w') as f:
        f.write("constraints: []\n")
        f.write("sequences:\n")
        f.write("- rna:\n")
        f.write("    id:\n")
        f.write("    - A1\n")
        f.write(f"    sequence: {tmp_sequence}")

from Bio.PDB.MMCIF2Dict import MMCIF2Dict

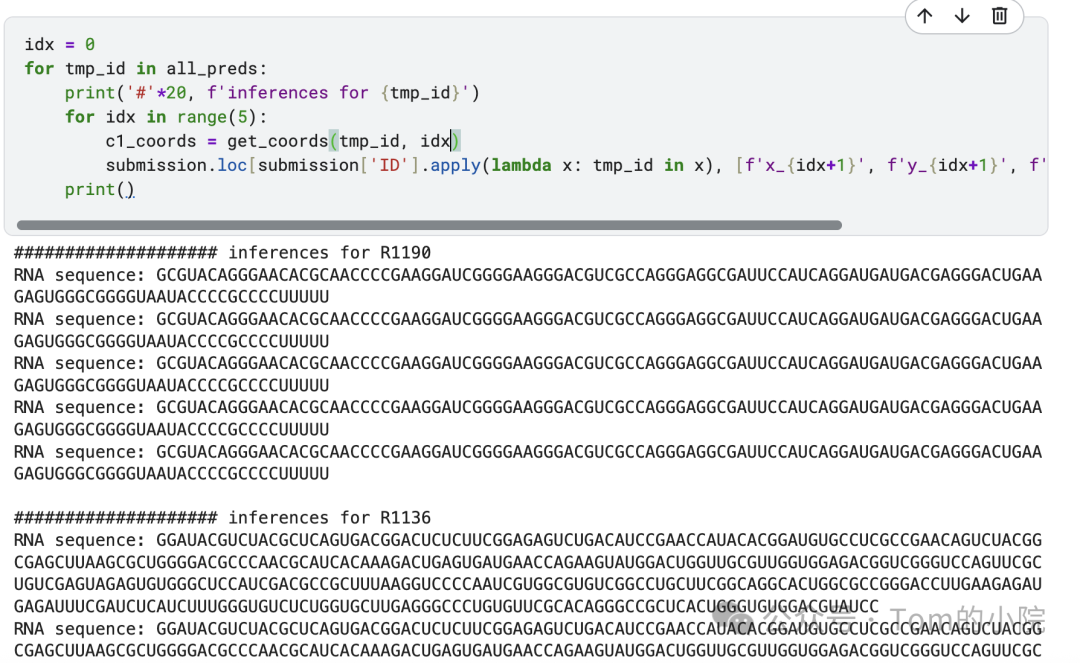

def get_coords(tmp_id, idx):
    cif_file = f"outputs_prediction/boltz_results_inputs_prediction/predictions/{tmp_id}/{tmp_id}_model_{idx}.cif"

    mmcif_dict = MMCIF2Dict(cif_file)

    entity_poly_seq = mmcif_dict.get("_entity_poly_seq.mon_id", [])
    sequence = "".join(entity_poly_seq)
    print("RNA sequence:", sequence)

    x_coords = mmcif_dict["_atom_site.Cartn_x"]
    y_coords = mmcif_dict["_atom_site.Cartn_y"]
    z_coords = mmcif_dict["_atom_site.Cartn_z"]
    atom_names = mmcif_dict["_atom_site.label_atom_id"]

    c1_coords = []
    for i, atom in enumerate(atom_names):
        if atom == "C1'":
            c1_coords.append((float(x_coords[i]), float(y_coords[i]), float(z_coords[i])))
    return c1_coords

all_preds = os.listdir('outputs_prediction/boltz_results_inputs_prediction/predictions')

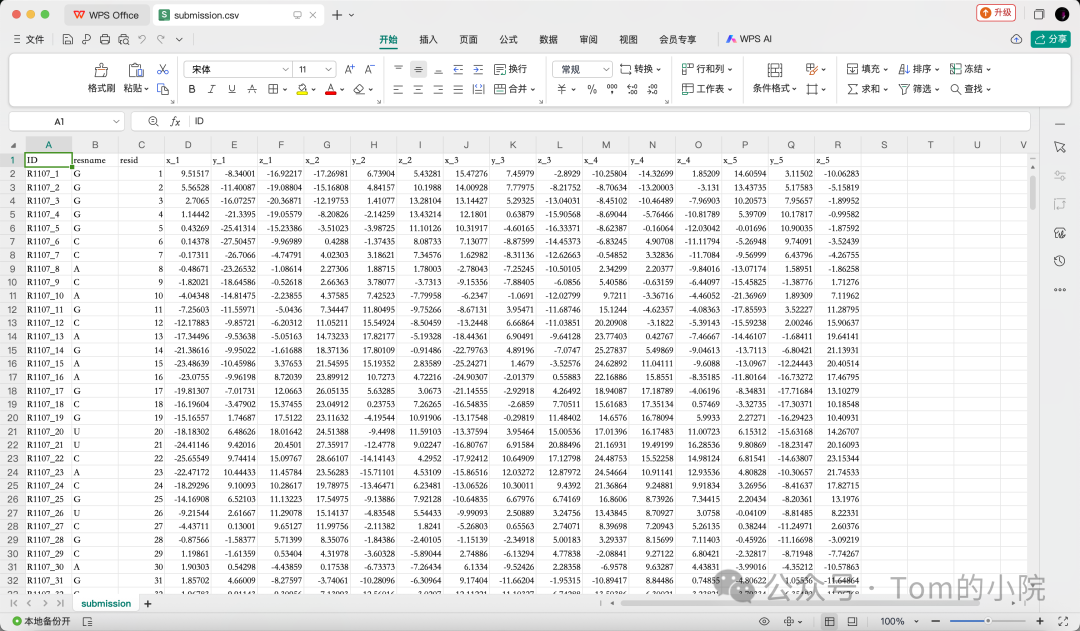

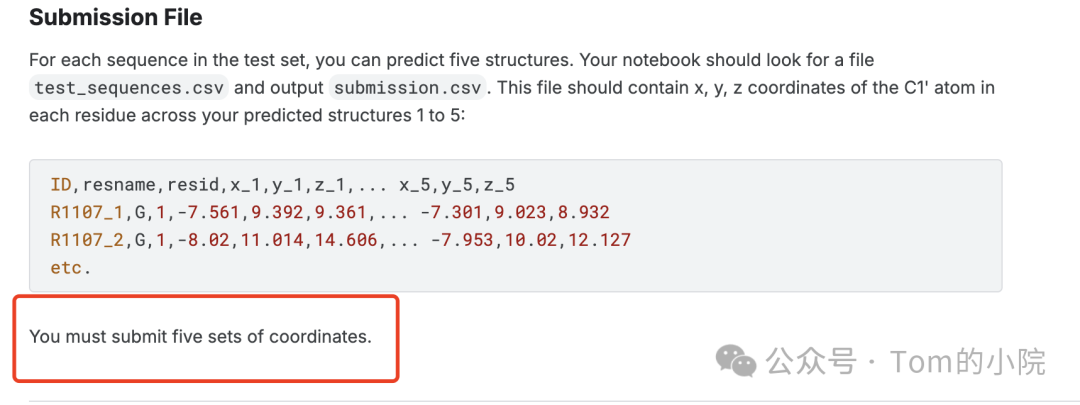

submission = pd.read_csv('/kaggle/input/stanford-rna-3d-folding/sample_submission.csv')
