直接上干货! 说明: 如果第一次注册失败, 建议删除重建, 例如我第一次注册失败runner是#9 (8GqnDO1_)

第一步删除 #9 (8GqnDO1_) 然后再创建

进入gitlab cicd界面, 点击 runner 部分

点击 #9 (8GqnDO1_) 进入编辑页面删除，重建runner, 复制 Runner authentication token，格式是 glrt-xxxxxxxxxxxx。

第二步：创建 Runner 配置

mkdir -p /root/yaml/gitlab-runner
cd /root/yaml/gitlab-runner

创建 gitlab-runner-rbac.yaml：

apiVersion: v1
kind: ServiceAccount
metadata:
  name: gitlab-runner
  namespace: infra
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: gitlab-runner
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: gitlab-runner
  namespace: infra

创建 gitlab-runner-configmap.yaml（把 glrt-xxxxxxxxxxxx 替换成你gitlab实际 token）：

apiVersion: v1
kind: ConfigMap
metadata:
  name: gitlab-runner-config
  namespace: infra
data:
  config.toml: |
    concurrent = 10
    check_interval = 3
    log_level = "info"

    [[runners]]
      name = "k8s-runner"
      url = "https://gitlab.philentso.com"
      token = "glrt-xxxxxxxxxxxx"
      executor = "kubernetes"
      [runners.kubernetes]
        namespace = "infra"
        image = "alpine:latest"
        privileged = true
        pull_policy = ["if-not-present", "always"]
        [runners.kubernetes.affinity]
        [runners.kubernetes.node_selector]
        [runners.kubernetes.volumes]
          [[runners.kubernetes.volumes.host_path]]
            name = "docker-sock"
            mount_path = "/var/run/docker.sock"
            host_path = "/var/run/docker.sock"

创建 gitlab-runner-deployment.yaml：

apiVersion: apps/v1
kind: Deployment
metadata:
  name: gitlab-runner
  namespace: infra
spec:
  replicas: 1
  selector:
    matchLabels:
      app: gitlab-runner
  template:
    metadata:
      labels:
        app: gitlab-runner
    spec:
      serviceAccountName: gitlab-runner
      containers:
      - name: gitlab-runner
        image: gitlab/gitlab-runner:v17.11.1
        imagePullPolicy: IfNotPresent
        command: ["/bin/sh", "-c"]
        args:
        - |
          cp /config/config.toml /etc/gitlab-runner/config.toml
          gitlab-runner run --user=gitlab-runner --working-directory=/home/gitlab-runner
        volumeMounts:
        - name: config
          mountPath: /config
          readOnly: true
        - name: runner-home
          mountPath: /home/gitlab-runner
        resources:
          requests:
            cpu: "100m"
            memory: "128Mi"
          limits:
            cpu: "500m"
            memory: "512Mi"
      volumes:
      - name: config
        configMap:
          name: gitlab-runner-config
      - name: runner-home
        emptyDir: {}

第三步：部署

kubectl apply -f gitlab-runner-rbac.yaml
kubectl apply -f gitlab-runner-configmap.yaml
kubectl apply -f gitlab-runner-deployment.yaml

# 查看 runner pod 状态
kubectl get pod -n infra -l app=gitlab-runner

# 查看日志确认注册成功
kubectl logs -n infra -l app=gitlab-runner -f

日志里看到类似下面说明注册成功：

Configuration loaded                    builds=0 max_builds=10
Checking for jobs... nothing            runner=8GqnDO1_

第四步：回到 GitLab 确认 Runner 上线

刷新 https://gitlab.philentso.com/admin/runners，状态从 Never contacted 变成 Online 即成功。

检验

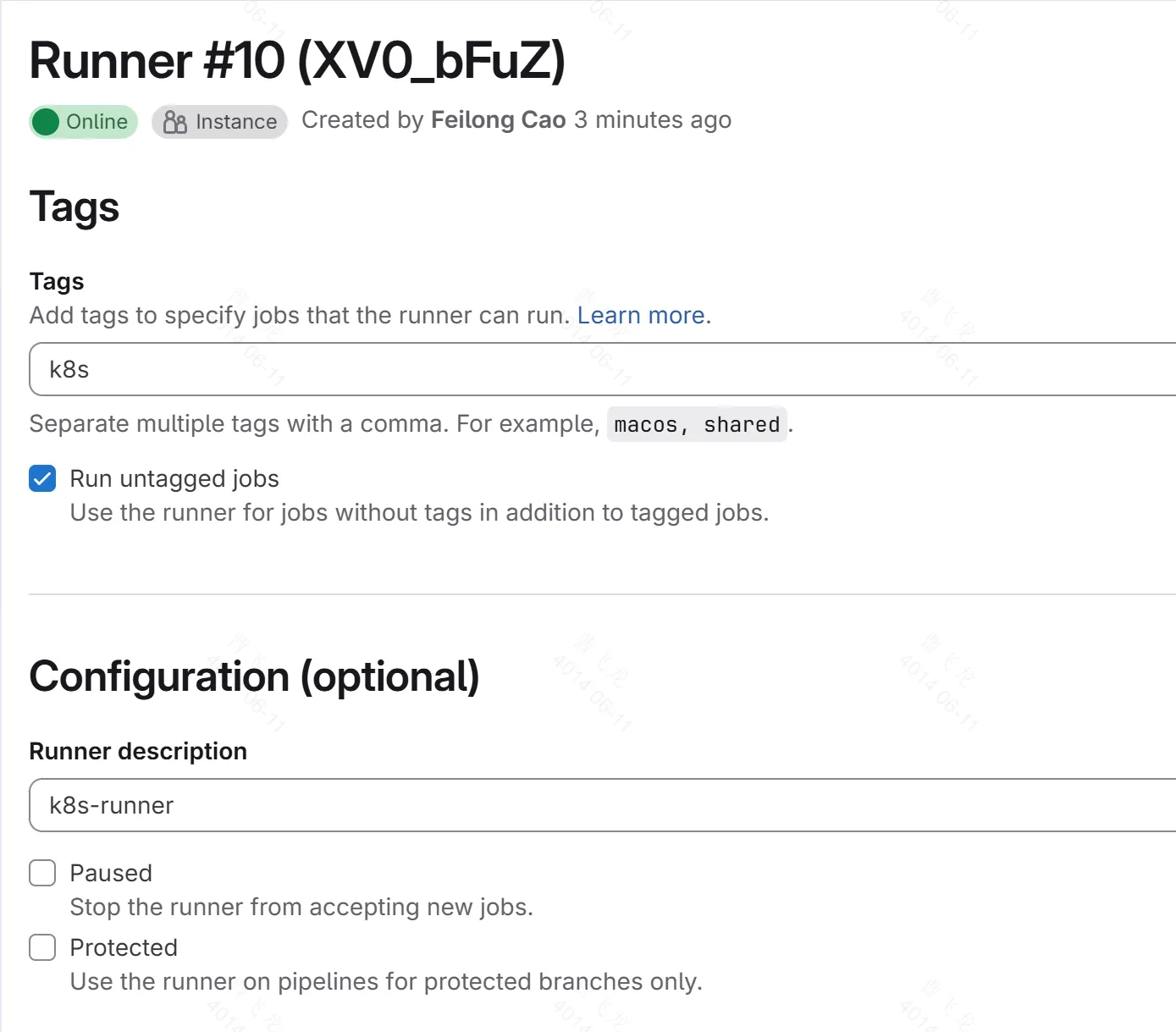

最后gitlab界面成功注册展示
