uniapp+vue3最新HQChart接入东方财富网数据源k线图教程

作者头像
代码简单说
发布于 2026-06-16 14:11:04
发布于 2026-06-16 14:11:04
960
举报
文章被收录于专栏：代码简单说代码简单说
HQChart接入东方财富网数据源，简单高效教程！

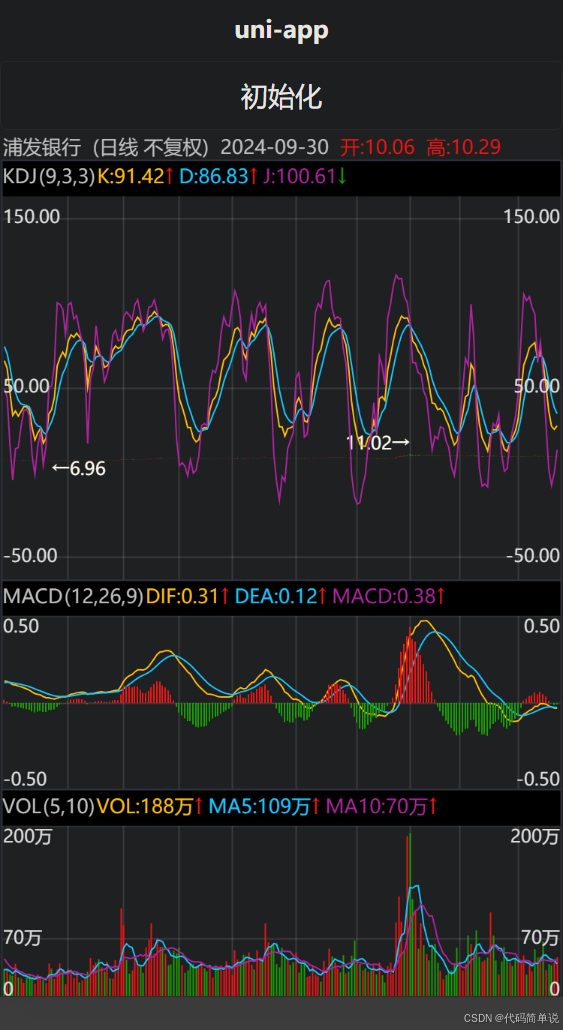

在这里插入图片描述
在这里插入图片描述
被接口数据折磨的一天

由于 hqchart官方数据接口好像不再开放了 只能自己摸索调用东财的网页接口尝试！结果一动手发现，事情没那么简单。几个坑接踵而至，整得我脑袋嗡嗡的。熬了几杯咖啡后，终于搞定！赶紧写个教程，省点后面人的时间。

第一步：创建 HQData.js 文件

先把数据源的逻辑独立出来，这样结构清晰，还能随时调整数据接口。文件内容如下：

代码语言：javascript
复制
// HQData.js
/*
   Copyright (c) 2018 jones

    http://www.apache.org/licenses/LICENSE-2.0

   开源项目 https://github.com/jones2000/HQChart

   jones_2000@163.com

   行情数据对接,使用东方财富网页数据做为案例的测试数据源
   教程中所有的实例中使用的数据都来自互联网,或测试数据。仅用于学习HQChart图形使用. 教程禁止用于商业产品
*/

//import H5_HQChart from '@/uni_modules/jones-hqchart2/js_sdk/umychart.uniapp.h5.js'

// #ifdef H5
import HQChart from '@/uni_modules/jones-hqchart2/js_sdk/umychart.uniapp.h5.js'

var MARKET_SUFFIX_NAME=HQChart.MARKET_SUFFIX_NAME;
var JSChart=HQChart.JSChart;
// #endif


// #ifndef H5
import { JSCommon } from "@/uni_modules/jones-hqchart2/js_sdk/umychart.wechat.3.0.js";
import { MARKET_SUFFIX_NAME } from '@/uni_modules/jones-hqchart2/js_sdk/umychart.coordinatedata.wechat.js'
import { JSCommonHQStyle} from '@/uni_modules/jones-hqchart2/js_sdk/umychart.style.wechat.js'

var JSChart=JSCommon.JSChart;
// #endif

function HQData()  { }

HQData.Explain="东财财富网接口";


HQData.ChangeStyle=function()
{
	// #ifdef H5
	var blackStyle=HQChart.HQChartStyle.GetStyleConfig(HQChart.STYLE_TYPE_ID.BLACK_ID);
	HQChart.JSChart.SetStyle(blackStyle);
	// #endif

	// #ifndef H5
	var blackStyle=JSCommonHQStyle.GetStyleConfig(JSCommonHQStyle.STYLE_TYPE_ID.BLACK_ID);
	JSCommon.JSChart.SetStyle(blackStyle);
	// #endif
}

HQData.SetMinuteChartCoordinate=function()
{
    MARKET_SUFFIX_NAME.IsShowAvPrice=(upperSymbol)=>{ return HQData.IsShowAvPrice(upperSymbol); }
    MARKET_SUFFIX_NAME.IsEnableRight=(period, symbol)=> { return HQData.IsEnableRight(period, symbol); }

    //美股分时图坐标
    JSChart.GetMinuteTimeStringData().CreateUSAData=()=>{ return HQData.CreateUSAData(JSChart.GetMinuteTimeStringData()); }  //替换交易时间段
    JSChart.GetMinuteCoordinateData().GetUSAData=(upperSymbol,width)=> { return HQData.GetUSAData(upperSymbol,width); }    	//替换X轴刻度信息

    //A股分时图坐标
    JSChart.GetMinuteTimeStringData().CreateSHSZData=()=>{ return HQData.CreateSHSZData(JSChart.GetMinuteTimeStringData()); }  //替换交易时间段
    JSChart.GetMinuteCoordinateData().GetSHSZData=(upperSymbol,width)=> { return HQData.GetSHSZData(upperSymbol,width); }    	//替换X轴刻度信息

	//北交所分时图坐标
	JSChart.GetMinuteTimeStringData().CreateBJData=()=>{ return HQData.CreateSHSZData(JSChart.GetMinuteTimeStringData()); }  //替换交易时间段
	JSChart.GetMinuteCoordinateData().GetBJData=(upperSymbol,width)=> { return HQData.GetSHSZData(upperSymbol,width); }    	//替换X轴刻度信息

    //港股分时图坐标
    JSChart.GetMinuteTimeStringData().CreateHKData=()=>{ return HQData.CreateHKData(JSChart.GetMinuteTimeStringData()); }   //替换交易时间段
    JSChart.GetMinuteCoordinateData().GetHKData=(upperSymbol,width)=> { return HQData.GetHKData(upperSymbol,width); }    	//替换X轴刻度信息

    //外汇分时图坐标
    JSChart.GetMinuteTimeStringData().CreateForeignExchangeData=()=>{ return HQData.CreateForeignExchangeData(JSChart.GetMinuteTimeStringData()); }  //替换交易时间段
    JSChart.GetMinuteCoordinateData().GetForeignExchangeData=(upperSymbol,width)=> { return HQData.GetForeignExchangeData(upperSymbol,width); }    	//替换X轴刻度信息

    //期货
    var chinaFutrues=JSChart.GetChinaFuturesTimeData();
    chinaFutrues.AddNewFutures({ Suffix:'.SHF', Symbol:"WR", Time:9, Decimal:2, Name:'线材' }); //obj= { Suffix:后缀, Symbol:品种代码, Time:交易时间段, Decimal:小数位数, Name:名字 }
    chinaFutrues.AddNewFutures({ Suffix:'.DCE', Symbol:"BB", Time:9, Decimal:2, Name:'胶合板' });
    chinaFutrues.AddNewFutures({ Suffix:'.DCE', Symbol:"JD", Time:9, Decimal:2, Name:'鸡蛋' });
    chinaFutrues.AddNewFutures({ Suffix:'.DCE', Symbol:"LH", Time:9, Decimal:2, Name:'生猪' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"WH", Time:9, Decimal:0, Name:'强麦' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"PM", Time:9, Decimal:0, Name:'普麦' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"RI", Time:9, Decimal:0, Name:'早籼稻' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"RS", Time:9, Decimal:0, Name:'菜籽' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"JR", Time:9, Decimal:0, Name:'粳稻' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"LR", Time:9, Decimal:0, Name:'晚籼稻' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"LR", Time:9, Decimal:0, Name:'晚籼稻' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"SM", Time:9, Decimal:0, Name:'锰硅' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"SF", Time:9, Decimal:0, Name:'硅铁' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"AP", Time:9, Decimal:0, Name:'苹果' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"CJ", Time:9, Decimal:0, Name:'红枣' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"UR", Time:9, Decimal:0, Name:'尿素' });
    chinaFutrues.AddNewFutures({ Suffix:'.CZC', Symbol:"PK", Time:9, Decimal:0, Name:'花生' });

    //芝加哥期货交易所
    var futrues=JSChart.GetInternalTimeData("CBOTTimeData");
    futrues.AddNewFutures({Symbol:"ZW", Time:3, Decimal:2, Name:'小麦' });
    futrues.AddNewFutures({Symbol:"XW", Time:4, Decimal:2, Name:'迷你小麦' });
    futrues.AddNewFutures({Symbol:"ZC", Time:3, Decimal:2, Name:'玉米' });
    futrues.AddNewFutures({Symbol:"XC", Time:4, Decimal:2, Name:'迷你玉米' });
    futrues.AddNewFutures({Symbol:"ZS", Time:3, Decimal:2, Name:'大豆' });
    futrues.AddNewFutures({Symbol:"XK", Time:4, Decimal:2, Name:'迷你大豆' });
    futrues.AddNewFutures({Symbol:"ZL", Time:3, Decimal:2, Name:'豆油' });
    futrues.AddNewFutures({Symbol:"ZM", Time:3, Decimal:2, Name:'豆粕' });
    futrues.AddNewFutures({Symbol:"ZO", Time:3, Decimal:2, Name:'燕麦' });
    futrues.AddNewFutures({Symbol:"ZR", Time:3, Decimal:2, Name:'稻谷' });
    futrues.AddNewFutures({Symbol:"ZL", Time:3, Decimal:2, Name:'豆油' });
    futrues.AddNewFutures({Symbol:"NQ", Time:5, Decimal:2, Name:'小型纳指' });
    futrues.AddNewFutures({Symbol:"ES", Time:5, Decimal:2, Name:'小型标普' });
    futrues.AddNewFutures({Symbol:"YM", Time:5, Decimal:0, Name:'小型道指' });

    //美国洲际交易所
    var futrues=JSChart.GetInternalTimeData("IPETimeData");
    var lIndex=futrues.TIME_SPLIT.length;
    futrues.TIME_SPLIT[lIndex]=HQData.GetCustomTradeTimeData("IPE_G");
    futrues.TIME_SPLIT2[lIndex]=HQData.GetCustomTradeTimeData("IPE_G_2");
    futrues.AddNewFutures({Symbol:"G", Time:lIndex, Decimal:0, Name:'低硫柴油' });

    //自定义类型
    JSChart.GetMinuteTimeStringData().GetET=(upperSymbol)=>{ return HQData.GetETTimeData(upperSymbol,JSChart.GetMinuteTimeStringData()); }              //当天所有的交易时间点
    JSChart.GetMinuteCoordinateData().GetETData=(upperSymbol)=> { return HQData.GetETData(upperSymbol); }   //X轴刻度设置
    MARKET_SUFFIX_NAME.GetETDecimal = (symbol)=> { return HQData.GetETDecimal(symbol); } // 不同品种，使用不同小数位数
    MARKET_SUFFIX_NAME.IsETShowAvPrice=(symbol)=> {return false; }   //提示信息是否显示均线数值
    MARKET_SUFFIX_NAME.GetETMarketStatus=(symbol)=> { return 2; }   //获取市场状态 0=闭市 1=盘前 2=盘中 3=盘后
}


HQData.NetworkFilter=function(data, callback)
{
    console.log(`[HQData::NetworkFilter] ${HQData.Explain}`, data);

    switch(data.Name)
    {
        case 'MinuteChartContainer::RequestMinuteData': //分时图数据对接
            HQData.RequestMinuteData(data, callback);
            break;
        case "MinuteChartContainer::RequestHistoryMinuteData":
            HQData.RequestMinuteDaysData(data, callback);
            break;

        case 'KLineChartContainer::RequestHistoryData':                 //日线全量数据下载
            HQData.RequestHistoryData(data,callback);
            break;
        case 'KLineChartContainer::RequestRealtimeData':                //日线实时数据更新
            HQData.RequestRealtimeData(data,callback);
            break;
        case 'KLineChartContainer::RequestFlowCapitalData':             //流通股本
            HQData.RequestFlowCapitalData(data,callback);
            break;

        case 'KLineChartContainer::ReqeustHistoryMinuteData':           //分钟全量数据下载
            HQData.RequestHistoryMinuteData(data, callback);
            break;
        case 'KLineChartContainer::RequestMinuteRealtimeData':          //分钟增量数据更新
            HQData.RequestMinuteRealtimeData(data,callback);
            break;

		case "JSSymbolData::GetSymbolData":				//无图形指标计算 全量K线数据
			HQData.RequestSymbolData(data,callback);
			break;
    }
}

HQData.StringToDateTime=function(strTime)
{
    //2021-08-16 10:00 => { Date:20210816， Time:1000 }
    var aryData=strTime.split(' ');
    var aryValue=aryData[0].split('-');
    var date=parseInt(aryValue[0])*10000+parseInt(aryValue[1])*100+parseInt(aryValue[2]);

    aryValue=aryData[1].split(':');
    var time=parseInt(aryValue[0])*100+parseInt(aryValue[1]);

    return { Date:date, Time:time };
}

HQData.InvokeCallback=function(hqChartData, callback )
{
	// #ifdef H5
	callback(hqChartData);
	// #endif

	// #ifndef H5
	callback({data:hqChartData});
	// #endif
}

HQData.RequestMinuteData=function(data, callback)
{
    data.PreventDefault=true;
    var symbol=data.Request.Data.symbol[0]; //请求的股票代码
    var dayCount=data.Request.Data.daycount;
    console.log(`[HQData::RequestMinuteData] Symbol=${symbol}`);
    var obj=HQData.GetMinuteApiUrl(symbol,1);

    wx.request(
    {
        url: obj.Url,
        type: "GET",
        success:function(recvData)
        {

            HQData.RecvMinuteData(recvData.data, callback, { Data:data, Obj:obj });
        }
    });

}

HQData.RecvMinuteData=function(recvData, callback, option)
{
    var data=recvData.data;

    var stock={symbol:option.Obj.Symbol, minute:[] };
    stock.name=data.name;
    stock.yclose=data.preClose;

    var symbol=option.Obj.Symbol;
    var symbolUpper=symbol.toUpperCase();
    var isStockA=MARKET_SUFFIX_NAME.IsSHSZ(symbolUpper);
    var isChinaFutrues=MARKET_SUFFIX_NAME.IsChinaFutures(symbolUpper);
    var isLME=MARKET_SUFFIX_NAME.IsLME(symbolUpper);  //伦敦金属交易所
    if (isChinaFutrues) stock.yclearing=data.preSettlement; //期货昨结算价

    for(var i=0;i<data.trends.length; ++i)
    {
        var strItem=data.trends[i];
        var item=strItem.split(',');
        var today = HQData.StringToDateTime(item[0]);
        var date=today.Date;
        var time=today.Time;
        var stockItem=
        {
            date:date,
            time:time,
            open:parseFloat(item[1]),
            high:parseFloat(item[2]),
            low:parseFloat(item[3]),
            price:parseFloat(item[4]),
            vol:parseFloat(item[5]),
            amount:parseFloat(item[6]),
            avprice:parseFloat(item[7]),
        }

        if (isStockA) stockItem.vol*=100;
        if (isLME) stockItem.avprice=null;

        stock.date=date;
        stock.minute.push(stockItem);
    }

    var hqchartData={stock:[stock], code:0 };

    if (option.Data.Self.IsDestroy==false)
	{
        //console.log("[HQData.RecvMinuteDaysData] hqchartData ", hqchartData);
		HQData.InvokeCallback(hqchartData, callback);
    }
}

HQData.RequestMinuteDaysData=function(data, callback)
{
    data.PreventDefault=true;
    var symbol=data.Request.Data.symbol; //请求的股票代码
    var dayCount=data.Request.Data.daycount;
    var symbolUpper=symbol.toUpperCase();
    console.log(`[HQData::RequestMinuteDaysData] Symbol=${symbol}`);
    var obj=HQData.GetMinuteApiUrl(symbol,dayCount);

    wx.request(
    {
        url: obj.Url,
        type: "GET",
        success:function(recvData)
        {
            if (MARKET_SUFFIX_NAME.IsSHFE(symbolUpper) || MARKET_SUFFIX_NAME.IsDCE(symbolUpper) ||
                MARKET_SUFFIX_NAME.IsCZCE(symbolUpper) || MARKET_SUFFIX_NAME.IsCFFEX(symbolUpper))
                HQData.RecvMinuteDaysDataV2(recvData.data, callback, { Data:data, Obj:obj });
            else
                HQData.RecvMinuteDaysData(recvData.data, callback, { Data:data, Obj:obj });
        }
    });
}

HQData.RecvMinuteDaysData=function(recvData, callback, option)
{
    var data=recvData.data;
    var aryDayData=[];
    var itemDay=null;
    var yClose=data.preClose;
    var symbol=option.Obj.Symbol;
    var symbolUpper=symbol.toUpperCase();
    var isStockA=MARKET_SUFFIX_NAME.IsSHSZ(symbolUpper);

    var xDatetime=JSChart.GetMinuteTimeStringData().GetTimeData(symbol);
    var firstTime=xDatetime[0]; //第1个数据的时间
    var minuteCount=xDatetime.length;
    var i=0;
    for(i=0;i<data.trends.length;++i)
    {
        var strItem=data.trends[i];
        var item=strItem.split(',');
        var today = HQData.StringToDateTime(item[0]);
        var date=today.Date;
        var time=today.Time;
        if (time==firstTime) break;
    }

    for(var j=0;i<data.trends.length; ++i, ++j)
    {
        var strItem=data.trends[i];
        var item=strItem.split(',');
        var today = HQData.StringToDateTime(item[0]);
        var date=today.Date;
        var time=today.Time;

        if (j%minuteCount==0)
        {
            if (itemDay && itemDay.minute.length>0) aryDayData.push(itemDay);
            itemDay={ minute:[], date:date, yclose: yClose };
        }

        var price=parseFloat(item[4]);
        var stockItem=
        {
            date:date,
            time:time,
            open:price,
            high:price,
            low:price,
            price:price,
            amount:parseFloat(item[6]),
            vol:parseFloat(item[5]),
            avprice:parseFloat(item[7]),
        }

        if (isStockA) stockItem.vol*=100;

        itemDay.minute.push([stockItem.time, stockItem.open, stockItem.high, stockItem.low, stockItem.price, stockItem.vol, stockItem.amount, stockItem.avprice, stockItem.date]);
    }

    if (itemDay && itemDay.minute.length>0) aryDayData.push(itemDay);

    aryDayData=aryDayData.reverse();

    var hqchartData={ symbol:option.Obj.Symbol, name:data.name, data:aryDayData, code:0 };

    if (option.Data.Self.IsDestroy==false)
	{
        //console.log("[HQData.RecvMinuteDaysData] hqchartData ", hqchartData);
		HQData.InvokeCallback(hqchartData, callback);
    }
}

//期货模式
HQData.RecvMinuteDaysDataV2=function(recvData, callback, option)
{
    var data=recvData.data;
    var aryDayData=[];
    var yClose=data.preClose;
    var symbol=option.Obj.Symbol;
    var symbolUpper=symbol.toUpperCase();
    var yClearing=data.preSettlement; //期货昨结算价

    var xDatetime=JSChart.GetMinuteTimeStringData().GetTimeData(symbol);
    var endTime=xDatetime[xDatetime.length-1]; //最后个数据的时间
    var minuteCount=xDatetime.length;

    var itemDay={ minute:[], date:null, yclose: yClose, yclearing:yClearing };
    for(var i=0;i<data.trends.length; ++i)
    {
        var strItem=data.trends[i];
        var item=strItem.split(',');
        var today = new Date(Date.parse(item[0]));
        var date=today.getFullYear()*10000+(today.getMonth()+1)*100+today.getDate();
        var time=today.getHours()*100+today.getMinutes();

        var price=parseFloat(item[4]);
        var stockItem=
        {
            date:date,
            time:time,
            open:price,
            high:price,
            low:price,
            price:price,
            amount:parseFloat(item[6]),
            vol:parseFloat(item[5]),
            avprice:parseFloat(item[7]),
        }

        itemDay.date=date;
        itemDay.minute.push([stockItem.time, stockItem.open, stockItem.high, stockItem.low, stockItem.price, stockItem.vol, stockItem.amount, stockItem.avprice, stockItem.date]);

        if (time==endTime)
        {
            if (itemDay && itemDay.minute.length>0) aryDayData.push(itemDay);
            itemDay={ minute:[], date:null, yclose: yClose, yclearing:yClearing };
        }
    }

    if (itemDay && itemDay.minute.length>0) aryDayData.push(itemDay);

    var preClose=null, preAvprice=null, preDate=null;
    for(var i=0;i<aryDayData.length-1;++i)
    {
        var itemDay=aryDayData[i];
        var newMinuteData=HQData.CorrectMinuteData(itemDay.minute, xDatetime);
        if (newMinuteData)
        {
            for(var j=0;j<newMinuteData.length;++j)
            {
                var item=newMinuteData[j];
                if (item.length==1)
                {
                    item[1]= item[2]= item[3]=item[4]=preClose;
                    item[5]=item[6]=0;
                    item[7]=preAvprice;
                    item[8]=preDate;
                }
                else
                {
                    preClose=item[4];
                    preAvprice=item[7];
                    preDate=item[8];
                }
            }
            itemDay.minute=newMinuteData;
        }
        else
        {
            var item=itemDay.minute[itemDay.minute.length-1];
            preClose=item[4];
            preAvprice=item[7];
            preDate=item[8];
        }
    }

    aryDayData=aryDayData.reverse();

    var hqchartData={ symbol:option.Obj.Symbol, name:data.name, data:aryDayData, code:0 };

    if (option.Data.Self.IsDestroy==false)
	{
        console.log("[HQData.RecvMinuteDaysDataV2] hqchartData ", hqchartData);
		HQData.InvokeCallback(hqchartData, callback);
    }
}

HQData.CorrectMinuteData=function(minuteData, xDatetime)
{
    if (minuteData.length==xDatetime.length) return null;

    var mapData=new Map();
    for(var i=0;i<xDatetime.length; ++i)
    {
        var item=xDatetime[i];
        mapData.set(item, { Index:i, Time:item, Data:null });
    }

    for(var i=0;i<minuteData.length;++i)
    {
        var item=minuteData[i];
        var time=item[0];

        var findItem=mapData.get(time);
        findItem.Data=item;
    }

    var newMinuteData=[];
    for(var item of mapData)
    {
        var value=item[1];

        if (value.Data) newMinuteData[value.Index]=value.Data;
        else newMinuteData[value.Index]=[value.Time];
    }

    return newMinuteData;
}


HQData.GetInternalSymbol=function(symbol)   //HQChart内置代码转成东方财富代码
{
    var aryData=symbol.split(".");
    var symbolUpper=symbol.toUpperCase();
    var arySymbol=aryData[0].split('_');
    var market=parseInt(arySymbol[1]);
    var internalSymbol=arySymbol[0] ;

    if (internalSymbol.indexOf("-")>0)
    {
        var aryValue=internalSymbol.split('-');
        internalSymbol=aryValue[1];
    }

    return { Market:market, Symbol:internalSymbol };
    /*

    if (HQChart.Chart.MARKET_SUFFIX_NAME.IsUSA(symbolUpper))    //美股
    {
        var market= 105;
        var set106Market=new Set(
            ["RENN", "DIDI","BABA","ZH"]
        );

        var set100Market=new Set
        (
            ["DJIA", "SPX", "NDX"]
        )

        if (set106Market.has(aryData[0])) market=106;
        else if (set100Market.has(aryData[0])) market=100;

        return { Market:market, Symbol:aryData[0].toUpperCase() };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsSZ(symbolUpper))
    {
        return { Market:0, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsSH(symbolUpper))
    {
        return { Market:1, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsHK(symbolUpper))    //港股
    {
        var market=116;

        var set100Market=new Set
        (
            ["HSI"]
        );
        if (set100Market.has(aryData[0])) market=100;

        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsForeignExchange(symbolUpper))   //外汇
    {
        var market=119;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsSHFE(symbolUpper))
    {
        var market=113;

        //上期能源
        if (symbolUpper.indexOf("SC")==0 || symbolUpper.indexOf("NR")==0 ||
            symbolUpper.indexOf("LU")==0 ||symbolUpper.indexOf("BC")==0)
            market=142;

        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsDCE(symbolUpper))
    {
        var market=114;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsCZCE(symbolUpper))
    {
        var market=115;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsCFFEX(symbolUpper))
    {
        var market=8;
        var arySymbol=aryData[0].split('_');
        return { Market:market, Symbol:arySymbol[1] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsCBOT(symbolUpper))
    {
        var market=103;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsNYMEX(symbolUpper))
    {
        var market=102;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsCOMEX(symbolUpper))
    {
        var market=101;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsNYBOT(symbolUpper))
    {
        var market=108;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsLME(symbolUpper))
    {
        var market=109;
        var arySymbol=aryData[0].split('_');
        return { Market:market, Symbol:arySymbol[1] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsTOCOM(symbolUpper))
    {
        var market=111;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsIPE(symbolUpper))
    {
        var market=112;
        return { Market:market, Symbol:aryData[0] };
    }
    else if (HQChart.Chart.MARKET_SUFFIX_NAME.IsET(symbolUpper))
    {
        var market=100;
        var set100Market=new Set
        (
            ["UDI"]
        );
        if (set100Market.has(aryData[0])) market=100;

        return { Market:market, Symbol:aryData[0] };
    }
    */
}

HQData.GetMinuteApiUrl=function(symbol, dayCount)
{
    var internalSymbol=HQData.GetInternalSymbol(symbol);
    //var url=`http://push2his.eastmoney.com/api/qt/stock/trends2/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58&secid=${internalSymbol.Market}.${internalSymbol.Symbol}&ndays=1&iscr=0&iscca=0`
    var url=`https://push2his.eastmoney.com/api/qt/stock/trends2/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58&secid=${internalSymbol.Market}.${internalSymbol.Symbol}&ndays=${dayCount}&iscr=0&iscca=0`

    return { Url:url, Symbol:symbol, InternalSymbol:internalSymbol, DayCount:dayCount };
}

HQData.IsShowAvPrice=function(upperSymbol)   //是否显示均价
{
    if (MARKET_SUFFIX_NAME.IsLME(upperSymbol)) return false;
    if (upperSymbol=="UDI_100.ET") return false;

    return true;
}

HQData.IsShowVolChart=function(upperSymbol) //是否显示第2个成交量图
{
    if (MARKET_SUFFIX_NAME.IsForeignExchange(upperSymbol)) return false;
    if (upperSymbol=="UDI_100.ET") return false;

    return true;
}


///////////////////////////////////////////////////////////////////////////////////////////
//
//  美国洲际交易所 重柴油
//
HQData.GetCustomTradeTimeData=function(key)
{
    if (key=="IPE_G")   //美国洲际交易所 重柴油 数据从7：50开始,是盘前数据吗????
    {
        //7:50-6:00
        var data=
        {
            Name:'7:50-6:00',
            Data:
            [
                { Start: 750, End: 2359 },
                { Start: 0, End: 600 },
            ],
            Coordinate:
            {
                Full://完整模式
                [
                    { Value: 800, Text: '8:00' },
                    { Value: 1000, Text: '10:00' },
                    { Value: 1200, Text: '12:00' },
                    { Value: 1400, Text: '14:00' },
                    { Value: 1600, Text: '16:00' },
                    { Value: 1800, Text: '18:00' },
                    { Value: 2000, Text: '20:00' },
                    { Value: 2200, Text: '22:00' },
                    { Value: 0, Text: '0:00' },
                    { Value: 200, Text: '2:00' },
                    { Value: 400, Text: '4:00' },
                    { Value: 600, Text: '6:00' },
                ],
                Simple: //简洁模式
                [
                    { Value: 800, Text: '8:00' },
                    { Value: 1200, Text: '12:00' },
                    { Value: 1600, Text: '16:00' },
                    { Value: 2000, Text: '20:00' },
                    { Value: 0, Text: '0:00' },
                    { Value: 400, Text: '4:00' },
                    { Value: 600, Text: '6:00' },
                ],
                Min:   //最小模式
                [
                    { Value: 800, Text: '8:00' },
                    { Value: 2000, Text: '20:00' },
                    { Value: 600, Text: '6:00' }
                ]
            }
        };

        return data;
    }
    else if (key=="IPE_G_2")
    {
        var data=//ID=0 08:50-07:00
        {
            Name:'08:50-07:00',
            Data:
            [
                { Start: 850, End: 2359 },
                { Start: 0, End: 700 },
            ],
            Coordinate:
            {
                Full://完整模式
                [
                    { Value: 900, Text: '9:00' },
                    { Value: 1100, Text: '11:00' },
                    { Value: 1300, Text: '13:00' },
                    { Value: 1500, Text: '15:00' },
                    { Value: 1700, Text: '17:00' },
                    { Value: 1900, Text: '19:00' },
                    { Value: 2100, Text: '21:00' },
                    { Value: 2300, Text: '23:00' },
                    { Value: 1, Text: '1:00' },
                    { Value: 300, Text: '3:00' },
                    { Value: 500, Text: '5:00' },
                    { Value: 700, Text: '7:00' }
                ],
                Simple: //简洁模式
                [
                    { Value: 900, Text: '9:00' },
                    { Value: 1300, Text: '13:00' },
                    { Value: 1700, Text: '17:00' },
                    { Value: 2100, Text: '21:00' },
                    { Value: 1, Text: '1:00' },
                    { Value: 500, Text: '5:00' },
                    { Value: 700, Text: '7:00' }
                ],
                Min:   //最小模式
                [
                    { Value: 900, Text: '9:00' },
                    { Value: 2100, Text: '21:00' },
                    { Value: 700, Text: '7:00' }
                ]
            }
        };

        return data;
    }
}



////////////////////////////////////////////////////////////////////////////
// 美股走势图X轴坐标
//
////////////////////////////////////////////////////////////////////////////
HQData.CreateUSAData=function(minuteStringData)
{
	/*
	//夏令时
    const TIME_SPLIT =
    [
        { Start: 2130, End: 2359 },
        { Start: 0, End: 400 }
    ];
	*/

	//非夏令时
	const TIME_SPLIT =
	[
		{ Start: 2230, End: 2359 },
		{ Start: 0, End: 500 }
	];


    return minuteStringData.CreateTimeData(TIME_SPLIT);
}

HQData.GetUSAData=function(upperSymbol,width)
{
    const SHZE_MINUTE_X_COORDINATE =
    {
        Full:   //完整模式
        [
            [0, 0, "rgb(200,200,200)", "21:30"],
            [90, 1, "RGB(200,200,200)", "23:00"],
            [150, 1, "RGB(200,200,200)", "00:00"],
            [210, 1, "RGB(200,200,200)", "01:00"],
            [270, 1, "RGB(200,200,200)", "02:00"],
            [330, 1, "RGB(200,200,200)", "03:00"],
            [390, 1, "RGB(200,200,200)", "04:00"],
        ],
        Simple: //简洁模式
        [
            [0, 0, "rgb(200,200,200)", "21:30"],
            [90, 1, "RGB(200,200,200)", "23:00"],
            [150, 1, "RGB(200,200,200)", "00:00"],
            [270, 1, "RGB(200,200,200)", "02:00"],
            [390, 1, "RGB(200,200,200)", "04:00"],
        ],
        Min:   //最小模式
        [
            [0, 0, "rgb(200,200,200)", "21:30"],
            [210, 1, "RGB(200,200,200)", "01:00"],
            [390, 1, "RGB(200,200,200)", "04:00"],
        ],

        Count: 391,         //!! 一共的分钟数据个数，不要填错了
        MiddleCount: 195,   // Count/2 就可以。

        GetData: function (width)
        {
            if (width < 200) return this.Min;
            else if (width < 400) return this.Simple;

            return this.Full;
        }
    };

    return SHZE_MINUTE_X_COORDINATE;
}


////////////////////////////////////////////////////////////////////////////
// A股走势图X轴坐标
//
///////////////////////////////////////////////////////////////////////////
HQData.CreateSHSZData=function(minuteStringData)
{
    const TIME_SPLIT =
    [
        { Start: 930, End: 1130 },
        { Start: 1301, End: 1500 }
    ];

    return minuteStringData.CreateTimeData(TIME_SPLIT);
}


HQData.GetSHSZData=function(upperSymbol,width)
{
    const SHZE_MINUTE_X_COORDINATE =
    {
        Full:   //完整模式
        [
            [0, 0, "rgb(200,200,200)", "09:30"],
            [31, 0, "RGB(200,200,200)", "10:00"],
            [61, 0, "RGB(200,200,200)", "10:30"],
            [91, 0, "RGB(200,200,200)", "11:00"],
            [120, 1, "RGB(200,200,200)", "11:30"],
            [150, 0, "RGB(200,200,200)", "13:30"],
            [180, 0, "RGB(200,200,200)", "14:00"],
            [210, 0, "RGB(200,200,200)", "14:30"],
            [240, 1, "RGB(200,200,200)", "15:00"], // 15:00
        ],
        Simple: //简洁模式
        [
            [0, 0, "rgb(200,200,200)", "09:30"],
            [61, 0, "RGB(200,200,200)", "10:30"],
            [120, 1, "RGB(200,200,200)", "11:30"],
            [180, 0, "RGB(200,200,200)", "14:00"],
            [240, 1, "RGB(200,200,200)", "15:00"]
        ],
        Min:   //最小模式
        [
            [0, 0, "rgb(200,200,200)", "09:30"],
            [120, 1, "RGB(200,200,200)", "11:30"],
            [240, 1, "RGB(200,200,200)", "15:00"]
        ],

        Count: 241,         //!! 一共的分钟数据个数，不要填错了
        MiddleCount: 121,   // Count/2 就可以。

        GetData: function (width)
        {
            if (width < 200) return this.Min;
            else if (width < 400) return this.Simple;

            return this.Full;
        }
    };

    return SHZE_MINUTE_X_COORDINATE;
}

///////////////////////////////////////////////////////////////////////////////////////
// 港股走势图X轴坐标
//
///////////////////////////////////////////////////////////////////////////////////////
HQData.CreateHKData=function(minuteStringData)
{
    const TIME_SPLIT =
    [
        { Start: 930, End: 1200 },
        { Start: 1301, End: 1600 }
    ];

    return minuteStringData.CreateTimeData(TIME_SPLIT);
}

HQData.GetHKData=function(upperSymbol,width)
{
    const HK_MINUTE_X_COORDINATE =
    {
        Full:   //完整模式
        [
            [0, 1, "RGB(200,200,200)", "09:30"],
            [30, 0, "RGB(200,200,200)", "10:00"],
            [60, 1, "RGB(200,200,200)", "10:30"],
            [90, 0, "RGB(200,200,200)", "11:00"],
            [120, 1, "RGB(200,200,200)", "11:30"],
            [151, 0, "RGB(200,200,200)", "13:00"],
            [181, 1, "RGB(200,200,200)", "13:30"],
            [211, 0, "RGB(200,200,200)", "14:00"],
            [241, 1, "RGB(200,200,200)", "14:30"],
            [271, 0, "RGB(200,200,200)", "15:00"],
            [301, 1, "RGB(200,200,200)", "15:30"],
            [331, 1, "RGB(200,200,200)", "16:00"]
        ],
        Simple: //简洁模式
        [
            [0, 1, "RGB(200,200,200)", "09:30"],
            [60, 1, "RGB(200,200,200)", "10:30"],
            [120, 1, "RGB(200,200,200)", "11:30"],
            [211, 0, "RGB(200,200,200)", "14:00"],
            [271, 0, "RGB(200,200,200)", "15:00"],
            [331, 1, "RGB(200,200,200)", "16:00"]
        ],
        Min:   //最小模式
        [
            [0, 1, "RGB(200,200,200)", "09:30"],
            [151, 0, "RGB(200,200,200)", "13:00"],
            [331, 1, "RGB(200,200,200)", "16:00"]
        ],

        Count: 331,
        MiddleCount: 150,

        GetData: function (width)
        {
            if (width < 200) return this.Min;
            else if (width < 450) return this.Simple;

            return this.Full;
        }
    };
    return HK_MINUTE_X_COORDINATE;
}

////////////////////////////////////////////////////////////////////////////////////////
//  外汇走势图X轴坐标
//
////////////////////////////////////////////////////////////////////////////////////////
HQData.CreateForeignExchangeData=function(minuteStringData)
{
    //外汇 5:00 - 4:59
    const TIME_SPLIT=
    [
        { Start:500, End:2359 },
        { Start:0,  End:459 },
    ];

    return minuteStringData.CreateTimeData(TIME_SPLIT);
}

HQData.GetForeignExchangeData=function(upperSymbol,width)
{
    const FOREX_MINUTE_X_COORDINATE=
    {
        Full:   //完整模式
        [
            [0, 1, "RGB(200,200,200)", "05:00"],
            [120, 1, "RGB(200,200,200)", "07:00"],
            [240, 1, "RGB(200,200,200)", "09:00"],
            [360, 1, "RGB(200,200,200)", "11:00"],
            [480, 0, "RGB(200,200,200)", "13:00"],
            [600, 1, "RGB(200,200,200)", "15:00"],
            [720, 1, "RGB(200,200,200)", "17:00"],
            [840, 1, "RGB(200,200,200)", "19:00"],
            [960, 1, "RGB(200,200,200)", "21:00"],
            [1080, 1, "RGB(200,200,200)", "23:00"],
            [1200, 1, "RGB(200,200,200)", "01:00"],
            [1320, 1, "RGB(200,200,200)", "03:00"],
            [1439, 1, "RGB(200,200,200)", "04:59"],
        ],
        Simple: //简洁模式
        [
            [0, 1, "RGB(200,200,200)", "06:00"],
            [240, 1, "RGB(200,200,200)", "10:00"],
            [480, 0, "RGB(200,200,200)", "14:00"],
            [720, 1, "RGB(200,200,200)", "18:00"],
            [960, 1, "RGB(200,200,200)", "22:00"],
            [1200, 1, "RGB(200,200,200)", "02:00"],
        ],
        Min:   //最小模式
        [
            [0, 1, "RGB(200,200,200)", "06:00"],
            [480, 0, "RGB(200,200,200)", "14:00"],
            [960, 1, "RGB(200,200,200)", "22:00"],
        ],

        Count: 1440,
        MiddleCount: 600,

        GetData: function (width)
        {
            if (width < 200) return this.Min;
            else if (width < 450) return this.Simple;

            return this.Full;
        }
    }

    return FOREX_MINUTE_X_COORDINATE;
}


////////////////////////////////////////////////////////////////////////
//  美元指数
//
///////////////////////////////////////////////////////////////////////
HQData.GetETTimeData=function(upperSymbol,minuteStringData)
{
    if (upperSymbol=="UDI_100.ET")
    {
        //美元指数 6:00 - 5:59
        const TIME_SPLIT=
        [
            { Start:600, End:2359 },
            { Start:0,  End:559 },
        ];

        return minuteStringData.CreateTimeData(TIME_SPLIT);
    }
}

HQData.GetETData=function(upperSymbol)
{
    if (upperSymbol=="UDI_100.ET")
    {
        const data=
        {
            Full:   //完整模式
            [
                [0, 1, "RGB(200,200,200)", "06:00"],
                [120, 1, "RGB(200,200,200)", "08:00"],
                [240, 1, "RGB(200,200,200)", "10:00"],
                [360, 1, "RGB(200,200,200)", "12:00"],
                [480, 0, "RGB(200,200,200)", "14:00"],
                [600, 1, "RGB(200,200,200)", "16:00"],
                [720, 1, "RGB(200,200,200)", "18:00"],
                [840, 1, "RGB(200,200,200)", "20:00"],
                [960, 1, "RGB(200,200,200)", "22:00"],
                [1080, 1, "RGB(200,200,200)", "0:00"],
                [1200, 1, "RGB(200,200,200)", "02:00"],
                [1320, 1, "RGB(200,200,200)", "04:00"],
                [1439, 1, "RGB(200,200,200)", "05:59"],
            ],
            Simple: //简洁模式
            [
                [0, 1, "RGB(200,200,200)", "06:00"],
                [240, 1, "RGB(200,200,200)", "10:00"],
                [480, 0, "RGB(200,200,200)", "14:00"],
                [720, 1, "RGB(200,200,200)", "18:00"],
                [960, 1, "RGB(200,200,200)", "22:00"],
                [1200, 1, "RGB(200,200,200)", "02:00"],
                [1439, 1, "RGB(200,200,200)", "05:59"],
            ],
            Min:   //最小模式
            [
                [0, 1, "RGB(200,200,200)", "06:00"],
                [720, 1, "RGB(200,200,200)", "18:00"],
                [1439, 1, "RGB(200,200,200)", "05:59"],
            ],

            Count: 1440,
            MiddleCount: 600,

            GetData: function (width)
            {
                if (width < 200) return this.Min;
                else if (width < 450) return this.Simple;

                return this.Full;
            }
        }

        return data;
    }
}

HQData.GetETDecimal=function(symbol)
{
    var upperSymbol=symbol.toUpperCase();
    if (upperSymbol=="UDI.ET") return 2;

    return 2;
}



///////////////////////////////////////////////////////////////////////////////////
//K线数据对接
//
/////////////////////////////////////////////////////////////////////////////////
HQData.GetKLineApiUrl=function(symbol, period, right, option)
{
    //https://push2his.eastmoney.com/api/qt/stock/kline/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58,f59,f60,f61&beg=0&end=20500101&ut=fa5fd1943c7b386f172d6893dbfba10b&rtntype=6&secid=0.300059&klt=101&fqt=0

    var internalSymbol=HQData.GetInternalSymbol(symbol);
    var internalPeriod=HQData.GetInternalPeriod(period);
    var internalRight=HQData.GetInternalRight(right);
    if (option && option.Update==true)
    {
        var beginDate=option.End;
        var url=`https://push2his.eastmoney.com/api/qt/stock/kline/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58,f59,f60,f61&beg=${beginDate}&end=20500101&ut=fa5fd1943c7b386f172d6893dbfba10b&rtntype=6&secid=${internalSymbol.Market}.${internalSymbol.Symbol}&klt=${internalPeriod}&fqt=${internalRight}`;
    }
    else
    {
        var url=`https://push2his.eastmoney.com/api/qt/stock/kline/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58,f59,f60,f61&beg=0&end=20500101&ut=fa5fd1943c7b386f172d6893dbfba10b&rtntype=6&secid=${internalSymbol.Market}.${internalSymbol.Symbol}&klt=${internalPeriod}&fqt=${internalRight}`;
    }

    return { Url:url, Symbol:symbol, InternalSymbol:internalSymbol, Period:period, Right:right };
}

HQData.GetMinuteKLineApiUrl=function(symbol, period, right, option)
{
    //https://push2his.eastmoney.com/api/qt/stock/kline/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58,f59,f60,f61&beg=0&end=20500101&ut=fa5fd1943c7b386f172d6893dbfba10b&rtntype=6&secid=0.300059&klt=101&fqt=0

    var internalSymbol=HQData.GetInternalSymbol(symbol);
    var internalPeriod=HQData.GetInternalPeriod(period);
    var internalRight=HQData.GetInternalRight(right);

    if (option && option.Update==true)
    {
        var beginDate=option.End;
        var url=`https://push2his.eastmoney.com/api/qt/stock/kline/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58,f59,f60,f61&beg=${beginDate}&end=20500101&ut=fa5fd1943c7b386f172d6893dbfba10b&rtntype=6&secid=${internalSymbol.Market}.${internalSymbol.Symbol}&klt=${internalPeriod}&fqt=${internalRight}`;
    }
    else
    {
        var url=`https://push2his.eastmoney.com/api/qt/stock/kline/get?fields1=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f11,f12,f13&fields2=f51,f52,f53,f54,f55,f56,f57,f58,f59,f60,f61&beg=0&end=20500101&ut=fa5fd1943c7b386f172d6893dbfba10b&rtntype=6&secid=${internalSymbol.Market}.${internalSymbol.Symbol}&klt=${internalPeriod}&fqt=${internalRight}`;
    }

    return { Url:url, Symbol:symbol, InternalSymbol:internalSymbol, Period:period, Right:right };
}

HQData.GetInternalPeriod=function(periodID)
{
    var MAP_PERIOD=new Map(
        [
            [0, 101],   //day
            [1, 102],   //week
            [2, 103],   //month

            [4, 1],    //1min
            [5, 5],    //5min
            [6, 15],   //15min
            [7, 30],   //30min
            [8, 60],   //60min
        ]
    );

    return MAP_PERIOD.get(periodID);
}

HQData.GetInternalRight=function(right)
{
    if (right==0) return 0;
    else if (right==1) return 1;
    else return 2;
}

HQData.IsEnableRight=function(period, symbol)   //是否支持复权
{
    var symbolUpper=symbol.toUpperCase();
    if (MARKET_SUFFIX_NAME.IsSHSZStockA(symbolUpper)) return true;
	if (MARKET_SUFFIX_NAME.IsBJStock(symbolUpper)) return true;

    var aryData=symbol.split(".");
    var symbolUpper=symbol.toUpperCase();
    var arySymbol=aryData[0].split('_');
    var market=parseInt(arySymbol[1]);

    if (MARKET_SUFFIX_NAME.IsHK(symbolUpper))
    {
        if (market==100) return false; //指数不支持复权
        return true;
    }

    if (MARKET_SUFFIX_NAME.IsUSA(symbolUpper))
    {
        if (market==100) return false; //指数不支持复权
        return true;
    }

    return false;
}

HQData.RequestFlowCapitalData=function(data,callback)
{
    data.PreventDefault=true;
    var hqChartData={code:0, stock:[]}; //如果没有数据就填空

	if (data.Self.IsDestroy==false)
	{
		callback(hqChartData);
	}
}

HQData.RequestHistoryData=function(data, callback)
{
    data.PreventDefault=true;
    var symbol=data.Request.Data.symbol; //请求的股票代码
    var period=data.Self.Period;    //周期
    var right=data.Self.Right;      //复权

    console.log(`[HQData::RequestHistoryData] Symbol=${symbol}`);
    var obj=HQData.GetKLineApiUrl(symbol,period, right, null);

    wx.request(
    {
        url: obj.Url,
        type: "GET",
        success:function(recvData)
        {
            HQData.RecvHistoryData(recvData.data, callback, { Data:data, Obj:obj });
        }
    });

}

HQData.RecvHistoryData=function(recvData, callback, option)
{
    var data=recvData.data;

    var hqChartData={code:0, data:[]};
    hqChartData.symbol=option.Obj.Symbol;
    hqChartData.name=data.name;

    var yClose=data.preKPrice;;
    for(var i=0;i<data.klines.length; ++i)
    {
        var strItem=data.klines[i];
        var item=strItem.split(',');
        var today = new Date(Date.parse(item[0]));
        var date=today.getFullYear()*10000+(today.getMonth()+1)*100+today.getDate();

        var open=parseFloat(item[1]);
        var close=parseFloat(item[2]);
        var high=parseFloat(item[3]);
        var low=parseFloat(item[4]);
        var vol=parseFloat(item[5])*100;
        var amount=parseFloat(item[6]);

        var newItem=[ date, yClose, open, high, low, close, vol, amount];
        hqChartData.data.push(newItem);

        yClose=close;
    }


    if (option.Data.Self.IsDestroy==false)
	{
        //console.log("[HQData.RecvHistoryData] hqchartData ", hqChartData);

		HQData.InvokeCallback(hqChartData, callback);
    }
}

HQData.RequestRealtimeData=function(data, callback)
{
    data.PreventDefault=true;
    var symbol=data.Request.Data.symbol[0];     //请求的股票代码
    var period=data.Self.Period;    //周期
    var right=data.Self.Right;      //复权
    var dateRange=data.Self.ChartPaint[0].Data.GetDateRange();

    var option={ Update:true };
    if (dateRange && dateRange.End && dateRange.End.Date>0) option.End=dateRange.End.Date;

    console.log(`[HQData::RequestRealtimeData] Symbol=${symbol}`);
    var obj=HQData.GetKLineApiUrl(symbol,period, right, option);

    wx.request(
    {
        url: obj.Url,
        type: "GET",
        success:function(recvData)
        {
            HQData.RecvRealtimeData(recvData.data, callback, { Data:data, Obj:obj });
        }
    });
}

HQData.RecvRealtimeData=function(recvData, callback, option)
{
    var data=recvData.data;
    var stock={symbol:option.Obj.Symbol, name:data.name };

    var yClose=data.preKPrice;
    for(var i=0;i<data.klines.length; ++i)
    {
        var strItem=data.klines[i];
        var item=strItem.split(',');
        var today = new Date(Date.parse(item[0]));
        var date=today.getFullYear()*10000+(today.getMonth()+1)*100+today.getDate();

        var open=parseFloat(item[1]);
        var close=parseFloat(item[2]);
        var high=parseFloat(item[3]);
        var low=parseFloat(item[4]);
        var vol=parseFloat(item[5])*100;
        var amount=parseFloat(item[6]);

        stock.yclose=yClose;
        stock.open=open;
        stock.high=high;
        stock.low=low;
        stock.price=close;
        stock.vol=vol;
        stock.amount=amount;
        stock.date=date;

        yClose=close;
    }

    var hqchartData={code:0, stock:[stock] };

    if (option.Data.Self.IsDestroy==false)
	{
        console.log("[HQData.RecvRealtimeData] hqchartData ", hqchartData);
		HQData.InvokeCallback(hqchartData, callback);
    }
}

HQData.RequestHistoryMinuteData=function(data, callback)
{
    data.PreventDefault=true;
    var symbol=data.Request.Data.symbol; //请求的股票代码
    var period=data.Self.Period;    //周期
    var right=data.Self.Right;      //复权

    console.log(`[HQData::RequestHistoryMinuteData] Symbol=${symbol}`);
    var obj=HQData.GetMinuteKLineApiUrl(symbol,period, right, null);

    wx.request(
    {
        url: obj.Url,
        type: "GET",
        success:function(recvData)
        {
            HQData.RecvHistoryMinuteData(recvData.data, callback, { Data:data, Obj:obj });
        }
    });

}

HQData.RecvHistoryMinuteData=function(recvData, callback, option)
{
    var data=recvData.data;

    var hqChartData={code:0, data:[]};
    hqChartData.symbol=option.Obj.Symbol;
    hqChartData.name=data.name;

    var yClose=data.preKPrice;;
    for(var i=0;i<data.klines.length; ++i)
    {
        var strItem=data.klines[i];
        var item=strItem.split(',');
        var today = HQData.StringToDateTime(item[0]);
        var date=today.Date;
        var time=today.Time;

        var open=parseFloat(item[1]);
        var close=parseFloat(item[2]);
        var high=parseFloat(item[3]);
        var low=parseFloat(item[4]);
        var vol=parseFloat(item[5])*100;
        var amount=parseFloat(item[6]);

        var newItem=[ date, yClose, open, high, low, close, vol, amount, time];
        hqChartData.data.push(newItem);

        yClose=close;
    }


    if (option.Data.Self.IsDestroy==false)
	{
        console.log("[HQData.RecvHistoryMinuteData] hqchartData ", hqChartData);
		HQData.InvokeCallback(hqChartData, callback);
    }
}

HQData.RequestMinuteRealtimeData=function(data, callback)
{
    data.PreventDefault=true;
    var symbol=data.Request.Data.symbol[0];     //请求的股票代码
    var period=data.Self.Period;    //周期
    var right=data.Self.Right;      //复权
    var dateRange=data.Self.ChartPaint[0].Data.GetDateRange();

    var option={ Update:true };
    if (dateRange && dateRange.End && dateRange.End.Date>0) option.End=dateRange.End.Date;

    console.log(`[HQData::RequestMinuteRealtimeData] Symbol=${symbol}`);
    var obj=HQData.GetMinuteKLineApiUrl(symbol,period, right, option);

    wx.request(
    {
        url: obj.Url,
        type: "GET",
        success:function(recvData)
        {
            HQData.RecvMinuteRealtimeData(recvData.data, callback, { Data:data, Obj:obj });
        }
    });
}

HQData.RecvMinuteRealtimeData=function(recvData, callback, option)
{
    var data=recvData.data;
    var hqChartData={code:0, data:[], ver:2.0, symbol:option.Obj.Symbol, name:data.name}; //更新数据使用2.0版本格式

    var yClose=data.preKPrice;
    for(var i=0;i<data.klines.length; ++i)
    {
        var strItem=data.klines[i];
        var item=strItem.split(',');
        var today = HQData.StringToDateTime(item[0]);
        var date=today.Date;
        var time=today.Time;

        var open=parseFloat(item[1]);
        var close=parseFloat(item[2]);
        var high=parseFloat(item[3]);
        var low=parseFloat(item[4]);
        var vol=parseFloat(item[5])*100;
        var amount=parseFloat(item[6]);

        var newItem=[ date, yClose, open, high, low, close, vol, amount, time];
        hqChartData.data.push(newItem);

        yClose=close;
    }

    if (option.Data.Self.IsDestroy==false)
	{
		HQData.InvokeCallback(hqChartData, callback);
    }
}


HQData.RequestSymbolData=function(data, callback)
{
	data.PreventDefault=true;
	var symbol=data.Request.Data.symbol;
	var period=data.Self.Period;    //周期
	var right=data.Self.Right;      //复权

	console.log(`[HQData::RequestSymbolData] Symbol=${symbol} Period=${period} Right=${right}`);

	if (H5_HQChart.ChartData.IsDayPeriod(period, true))	//日K
	{
		var obj=HQData.GetKLineApiUrl(symbol,period, right, null);

		wx.request(
		{
		    url: obj.Url,
		    type: "GET",
		    success:function(recvData)
		    {
		        HQData.RecvSymbolData_Day(recvData.data, callback, { Data:data, Obj:obj });
		    }
		});
	}
	else if (H5_HQChart.ChartData.IsMinutePeriod(period, true))	//分钟K
	{
		var obj=HQData.GetMinuteKLineApiUrl(symbol,period, right, null);

		wx.request(
		{
		    url: obj.Url,
		    type: "GET",
		    success:function(recvData)
		    {
		        HQData.RecvSymbolData_Minute(recvData.data, callback, { Data:data, Obj:obj });
		    }
		});
	}
}

HQData.RecvSymbolData_Day=function(recvData, callback, option)	//日K
{
	var data=recvData.data;

	var hqChartData={code:0, data:[]};
	hqChartData.symbol=option.Obj.Symbol;
	hqChartData.name=data.name;

	var yClose=data.preKPrice;;
	for(var i=0;i<data.klines.length; ++i)
	{
	    var strItem=data.klines[i];
	    var item=strItem.split(',');
	    var today = new Date(Date.parse(item[0]));
	    var date=today.getFullYear()*10000+(today.getMonth()+1)*100+today.getDate();

	    var open=parseFloat(item[1]);
	    var close=parseFloat(item[2]);
	    var high=parseFloat(item[3]);
	    var low=parseFloat(item[4]);
	    var vol=parseFloat(item[5])*100;
	    var amount=parseFloat(item[6]);

	    var newItem=[ date, yClose, open, high, low, close, vol, amount];
	    hqChartData.data.push(newItem);

	    yClose=close;
	}

	HQData.InvokeCallback(hqChartData, callback);
}

HQData.RecvSymbolData_Minute=function(recvData, callback, option) //分钟K
{
	var data=recvData.data;

	var hqChartData={code:0, data:[]};
	hqChartData.symbol=option.Obj.Symbol;
	hqChartData.name=data.name;

	var yClose=data.preKPrice;;
	for(var i=0;i<data.klines.length; ++i)
	{
	    var strItem=data.klines[i];
	    var item=strItem.split(',');
	    var today = HQData.StringToDateTime(item[0]);
	    var date=today.Date;
	    var time=today.Time;

	    var open=parseFloat(item[1]);
	    var close=parseFloat(item[2]);
	    var high=parseFloat(item[3]);
	    var low=parseFloat(item[4]);
	    var vol=parseFloat(item[5])*100;
	    var amount=parseFloat(item[6]);
	    var newItem=[ date, yClose, open, high, low, close, vol, amount, time];
	    hqChartData.data.push(newItem);

	    yClose=close;
	}

	HQData.InvokeCallback(hqChartData, callback);
}
export default HQData

将这个文件保存好，后面组件会直接用到它。

第二步：组件中引入并使用

接下来就是在 Vue 组件里调用刚写好的数据源逻辑，把数据传给 HQChart。代码如下：

代码语言：javascript
复制
<template>
  <div id="chart-container">
    <canvas id="hqchart"></canvas> <!-- 图表渲染的地方 -->
  </div>
</template>

<script>
import HQChart from "hqchart"; // 引入HQChart库
import HQData from "./HQData"; // 引入刚创建的HQData.js

export default {
  name: "HQChartComponent",
  data() {
    return {
      chart: null,
    };
  },
  async mounted() {
    const hqData = new HQData();
    const symbol = "600519"; // 示例股票代码
    const data = await hqData.getData(symbol);

    if (data) {
      this.chart = new HQChart({
        container: "hqchart", // 渲染的目标DOM
        symbol: symbol,
        data: data,
      });
    } else {
      console.error("数据加载失败，无法渲染HQChart");
    }
  },
};
</script>

<style scoped>
#chart-container {
  width: 100%;
  height: 400px;
}
</style>
核心总结

整套流程拆解成两部分：

  1. 数据源独立文件：通过接口获取并格式化数据。
  2. 组件加载与渲染：在 Vue 组件里调用数据源，将数据传递给 HQChart。

这样写的好处是逻辑清晰、扩展方便。如果后续需要换数据源或者调整接口，只需要修改 HQData.js 文件，组件代码完全不用动。

完整代码下载

https://wlor.lanzoum.com/i3qcp2srwzwh

小吐槽

说实话，HQChart 接入东方财富网接口的过程中，我最头疼的是数据格式转换。每次接口返回的数据结构都得一层层解析，改来改去，差点怀疑人生。不过最后能搞定，心里还是很爽的。如果你也遇到类似的问题，按照这个教程操作就行了，基本稳妥！

SEO友好关键词

#HQChart接入 #东方财富网接口 #前端图表教程 #Vue与HQChart结合 #金融数据可视化

如果你有更优雅的解决办法，欢迎留言交流，我超想学的！

本文参与 腾讯云自媒体同步曝光计划，分享自作者个人站点/博客。
原始发表：2025-06-06，如有侵权请联系 cloudcommunity@tencent.com 删除
数据
data
var
vue3
教程

本文分享自 作者个人站点/博客 前往查看

如有侵权，请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ，欢迎热爱写作的你一起参与！

数据
data
var
vue3
教程
评论
登录后参与评论
0 条评论
热度
最新
登录 后参与评论
推荐阅读
目录
  • HQChart接入东方财富网数据源，简单高效教程！
    • 被接口数据折磨的一天
    • 第一步：创建 HQData.js 文件
    • 第二步：组件中引入并使用
    • 核心总结
  • 完整代码下载
    • 小吐槽
    • SEO友好关键词
领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档

Copyright © 2013 - 2026 Tencent Cloud.

All Rights Reserved. 腾讯云 版权所有

登录 后参与评论
