如何在实际中突出显示某些表行？
如何在实际中突出显示某些表行？
提问于 2022-11-02 10:55:48

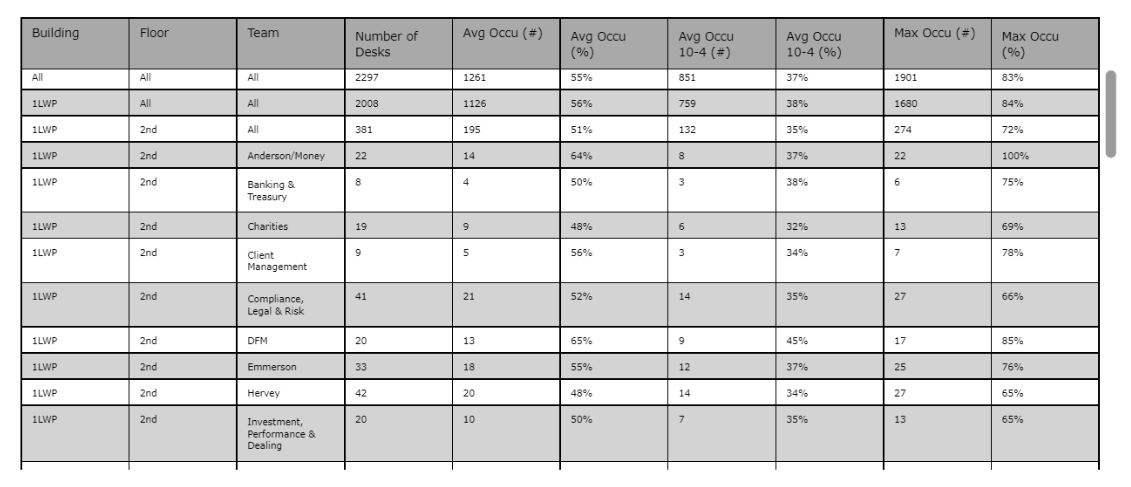

在数据集中的表中，我需要高亮显示列Building、Floor或Teams中包含"All“的行。
我的代码：
headerColor = 'darkgrey'
rowEvenColor = 'lightgrey'
rowOddColor = 'white'
fig_occ_fl_team = go.Figure(data=[go.Table(
header=dict(
values=list(final_table_occ_fl_team.columns),
line_color='black',
fill_color=headerColor,
align=['left','left','left','left','left','left','left','left','left','left'],
font=dict(color='black', size=9)
),
cells=dict(
values=[final_table_occ_fl_team['Building'],
final_table_occ_fl_team['Floor'],
final_table_occ_fl_team['Team'],
final_table_occ_fl_team['Number of Desks'],
final_table_occ_fl_team['Avg Occu (#)'],
final_table_occ_fl_team['Avg Occu (%)'],
final_table_occ_fl_team['Avg Occu 10-4 (#)'],
final_table_occ_fl_team['Avg Occu 10-4 (%)'],
final_table_occ_fl_team['Max Occu (#)'],
final_table_occ_fl_team['Max Occu (%)'],
],
line_color='black',
# 2-D list of colors for alternating rows
fill_color = [[rowOddColor,rowEvenColor]*56],
align = ['left','left','left','left','left','left','left','left','left','left'],
font = dict(color = 'black', size = 7)
))
])
fig_occ_fl_team.show()数据集头：
data = {'Building': {0: 'All',
1: '1LWP',
2: '1LWP',
3: '1LWP',
4: '1LWP',
5: '1LWP',
6: '1LWP',
7: '1LWP',
8: '1LWP',
9: '1LWP'},
'Floor': {0: 'All',
1: 'All',
2: '2nd',
3: '2nd',
4: '2nd',
5: '2nd',
6: '2nd',
7: '2nd',
8: '2nd',
9: '2nd'},
'Team': {0: 'All',
1: 'All',
2: 'All',
3: 'Anderson/Money',
4: 'Banking & Treasury',
5: 'Charities',
6: 'Client Management',
7: 'Compliance, Legal & Risk',
8: 'DFM',
9: 'Emmerson'},
'Number of Desks': {0: 2297,
1: 2008,
2: 381,
3: 22,
4: 8,
5: 19,
6: 9,
7: 41,
8: 20,
9: 33},
'Avg Occu (#)': {0: 1261,
1: 1126,
2: 195,
3: 14,
4: 4,
5: 9,
6: 5,
7: 21,
8: 13,
9: 18},
'Avg Occu (%)': {0: '55%',
1: '56%',
2: '51%',
3: '64%',
4: '50%',
5: '48%',
6: '56%',
7: '52%',
8: '65%',
9: '55%'},
'Avg Occu 10-4 (#)': {0: 851,
1: 759,
2: 132,
3: 8,
4: 3,
5: 6,
6: 3,
7: 14,
8: 9,
9: 12},
'Avg Occu 10-4 (%)': {0: '37%',
1: '38%',
2: '35%',
3: '37%',
4: '38%',
5: '32%',
6: '34%',
7: '35%',
8: '45%',
9: '37%'},
'Max Occu (#)': {0: 1901,
1: 1680,
2: 274,
3: 22,
4: 6,
5: 13,
6: 7,
7: 27,
8: 17,
9: 25},
'Max Occu (%)': {0: '83%',
1: '84%',
2: '72%',
3: '100%',
4: '75%',
5: '69%',
6: '78%',
7: '66%',
8: '85%',
9: '76%'}}回答 1
Stack Overflow用户
发布于 2022-11-02 16:48:53
在创建表之前，可以将粗体样式添加到dataframe中，如下所示：
import pandas as pd
df = pd.DataFrame().from_dict(data)
indices = df.index[(df[["Building","Floor","Team"]] == "All").all(1)]
for i in indices:
for j in range(len(df.columns)):
df.iloc[i,j] = "<b>{}</b>".format(df.iloc[i,j])现在可以创建表，我将字体的大小增加到12：
import plotly.graph_objects as go
headerColor = 'darkgrey'
rowEvenColor = 'lightgrey'
rowOddColor = 'white'
fig_occ_fl_team = go.Figure(data=[go.Table(
header=dict(
values=list(df.columns),
line_color='black',
fill_color=headerColor,
align=['left','left','left','left','left','left','left','left','left','left'],
font=dict(color='black', size=9)
),
cells=dict(
values=[df['Building'],
df['Floor'],
df['Team'],
df['Number of Desks'],
df['Avg Occu (#)'],
df['Avg Occu (%)'],
df['Avg Occu 10-4 (#)'],
df['Avg Occu 10-4 (%)'],
df['Max Occu (#)'],
df['Max Occu (%)'],
],
line_color='black',
# 2-D list of colors for alternating rows
fill_color = [[rowOddColor,rowEvenColor]*56],
align = ['left','left','left','left','left','left','left','left','left','left'],
font = dict(color = 'black', size = 12)
))
])

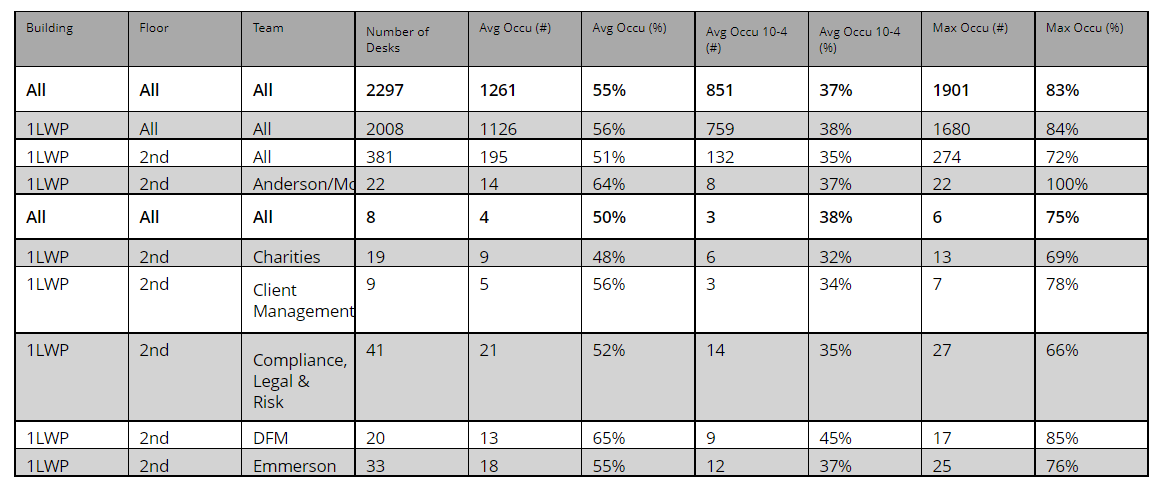

fig_occ_fl_team.show()输出：
您将注意到第一列和第四列都是粗体。如果要保持原始数据不变，可以使用这样的df2 = df1.copy()。
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/74288062
