如何以正确的高度在SwiftUI列表中呈现多行文本?
EN

Stack Overflow用户
提问于 2020-05-03 19:59:47
回答 2查看 4.7K关注 0票数 8

我希望有一个SwiftUI视图,该视图显示多行文本,并具有以下要求:

  • 同时工作于macOS和iOS。
  • 显示了大量的字符串(每个字符串都由一个单独的模型对象支持)。
  • I可以对多行文本进行任意样式化。
  • 每个文本字符串可以具有任意长度,可能跨越多行,并且每个文本字符串的最大宽度固定在容器的宽度上。高度根据文本的实际长度而变化。
  • 没有对每个单独的文本进行滚动,只有列表。文本中的
  • 链接必须是只读的,不需要进行编辑。

似乎最合适的解决方案是有一个列表视图,包装本机UITextView/NSTextView。

到目前为止我的情况是这样的。它实现了除行的正确高度之外的大多数要求。

代码语言:javascript
复制
//
//  ListWithNativeTexts.swift
//  SUIToy
//
//  Created by Jaanus Kase on 03.05.2020.
//  Copyright © 2020 Jaanus Kase. All rights reserved.
//

import SwiftUI

let number = 20

struct ListWithNativeTexts: View {
    var body: some View {
        List(texts(count: number), id: \.self) { text in
            NativeTextView(string: text)
        }
    }
}

struct ListWithNativeTexts_Previews: PreviewProvider {
    static var previews: some View {
        ListWithNativeTexts()
    }
}

func texts(count: Int) -> [String] {
    return (1...count).map {
        (1...$0).reduce("Hello https://example.com:", { $0 + " " + String($1) })
    }
}

#if os(iOS)
typealias NativeFont = UIFont
typealias NativeColor = UIColor

struct NativeTextView: UIViewRepresentable {

    var string: String

    func makeUIView(context: Context) -> UITextView {
        let textView = UITextView()

        textView.isEditable = false
        textView.isScrollEnabled = false
        textView.dataDetectorTypes = .link
        textView.textContainerInset = UIEdgeInsets(top: 0, left: 0, bottom: 0, right: 0)
        textView.setContentCompressionResistancePriority(.defaultLow, for: .horizontal)
        textView.textContainer.lineFragmentPadding = 0

        let attributed = attributedString(for: string)
        textView.attributedText = attributed

        return textView
    }

    func updateUIView(_ textView: UITextView, context: Context) {
    }

}
#else
typealias NativeFont = NSFont
typealias NativeColor = NSColor

struct NativeTextView: NSViewRepresentable {

    var string: String

    func makeNSView(context: Context) -> NSTextView {
        let textView = NSTextView()
        textView.isEditable = false
        textView.isAutomaticLinkDetectionEnabled = true
        textView.isAutomaticDataDetectionEnabled = true
        textView.textContainer?.lineFragmentPadding = 0
        textView.backgroundColor = NSColor.clear

        textView.textStorage?.append(attributedString(for: string))
        textView.isEditable = true
        textView.checkTextInDocument(nil) // make links clickable
        textView.isEditable = false

        return textView
    }

    func updateNSView(_ textView: NSTextView, context: Context) {

    }

}
#endif

func attributedString(for string: String) -> NSAttributedString {
    let attributedString = NSMutableAttributedString(string: string)
    let paragraphStyle = NSMutableParagraphStyle()
    paragraphStyle.lineSpacing = 4
    let range = NSMakeRange(0, (string as NSString).length)

    attributedString.addAttribute(.font, value: NativeFont.systemFont(ofSize: 24, weight: .regular), range: range)
    attributedString.addAttribute(.foregroundColor, value: NativeColor.red, range: range)
    attributedString.addAttribute(.backgroundColor, value: NativeColor.yellow, range: range)
    attributedString.addAttribute(.paragraphStyle, value: paragraphStyle, range: range)
    return attributedString
}

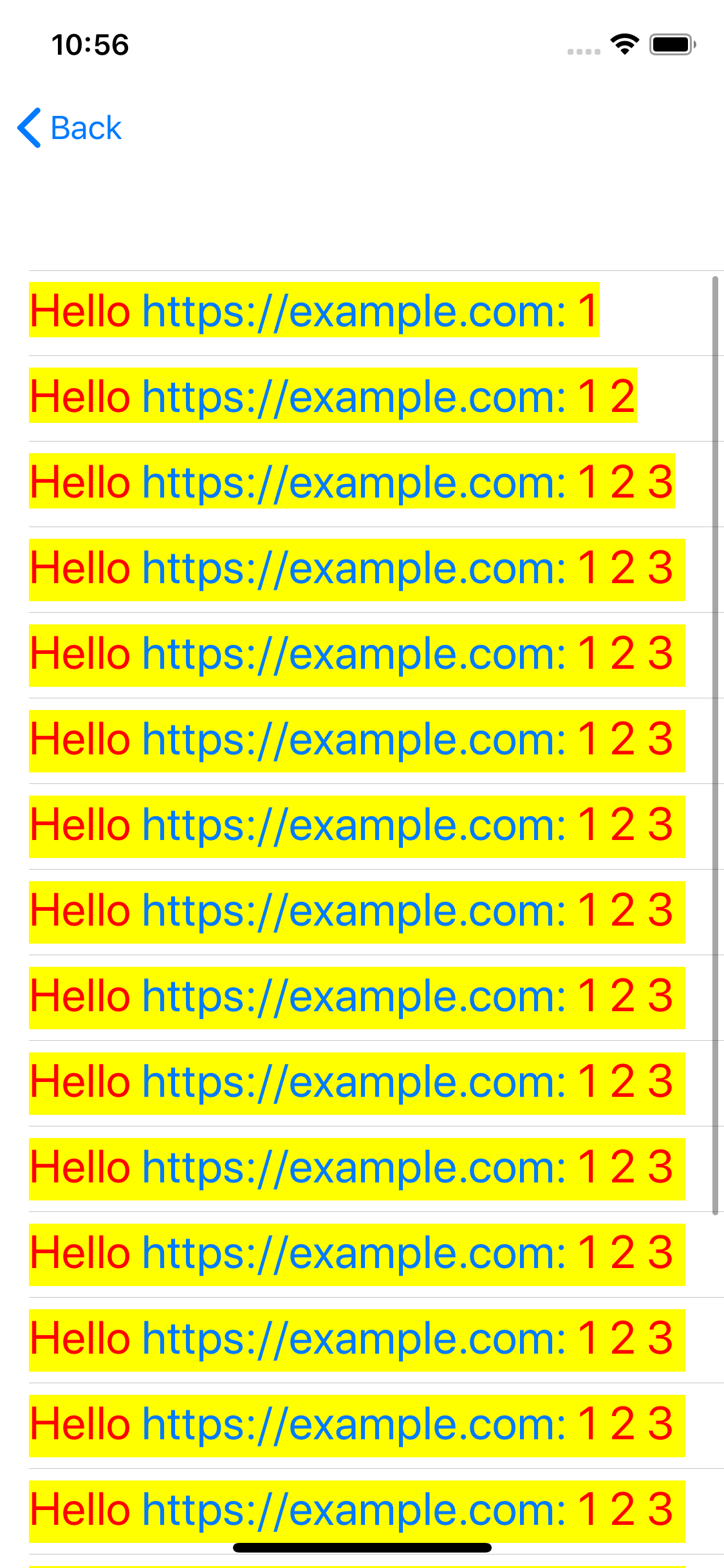

下面是它在iOS上输出的内容。macOS输出类似。

如何获得此解决方案以使文本视图具有正确的高度?

我尝试过的一种方法,但在这里没有显示,是给出的高度“从外部”-指定高度在列表行本身与框架。当我知道宽度时,我可以计算NSAttributedString的高度,这是我可以用geoReader获得的。这几乎是可行的,但是错误的,感觉不对,所以我没有在这里展示它。

EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2020-05-10 22:34:17

调整列表行的大小不适合SwiftUI。

但是,我已经解决了如何在堆栈中显示本机UITextViews的滚动,其中每个项都根据其attributedText的高度动态大小。

我在每个项目之间放置了两个点间距,并使用文本生成器测试了80个项目。

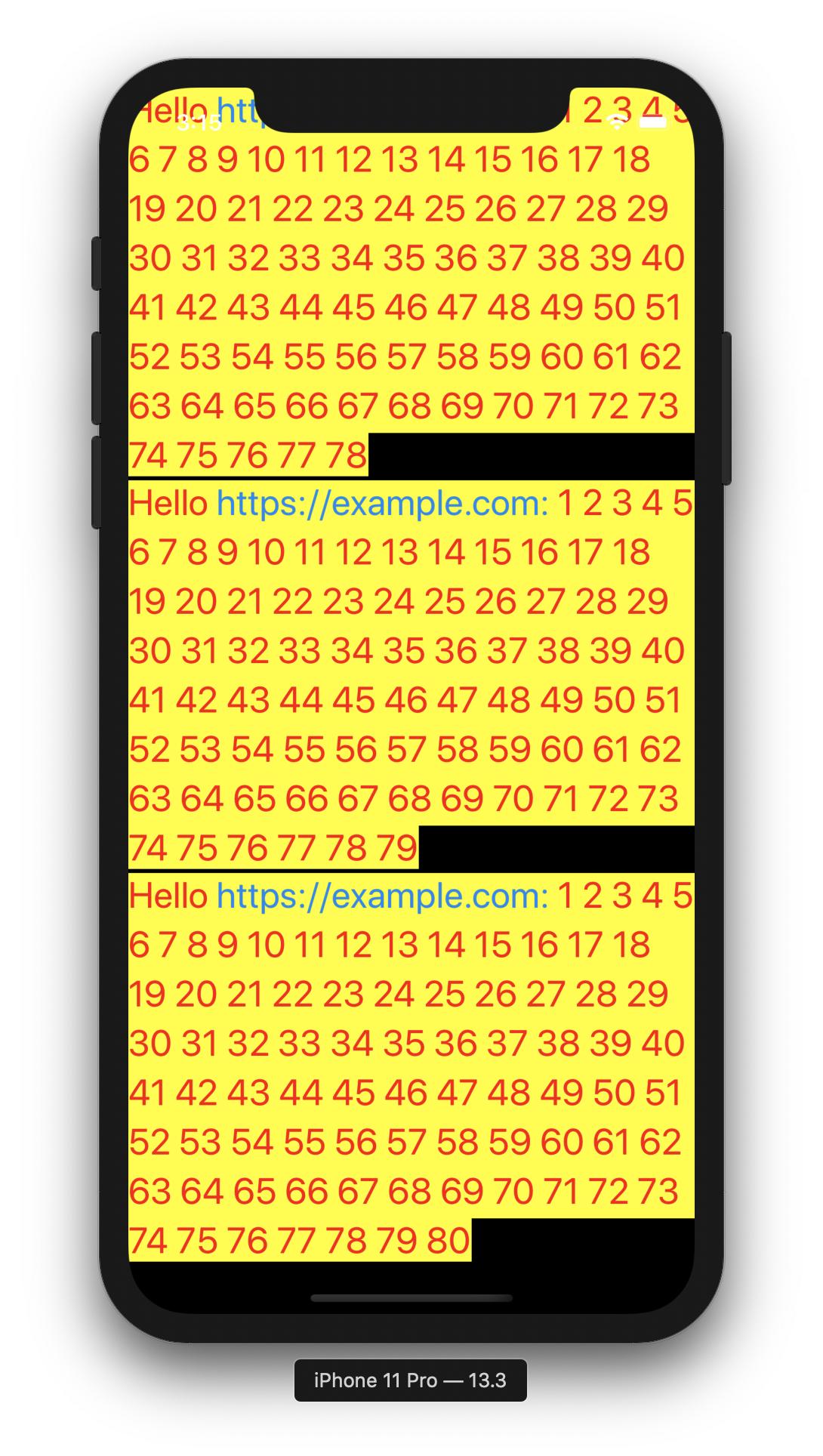

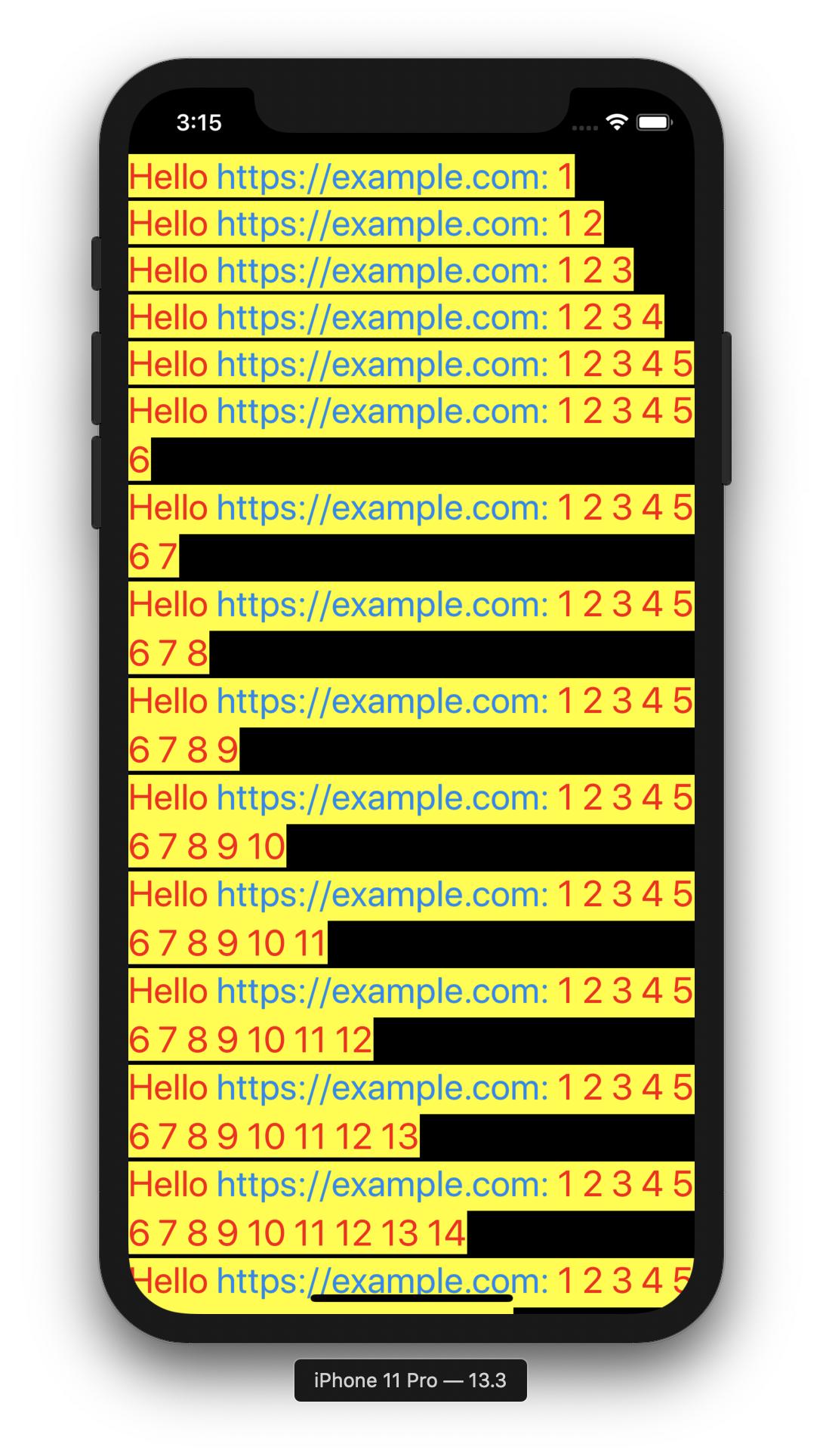

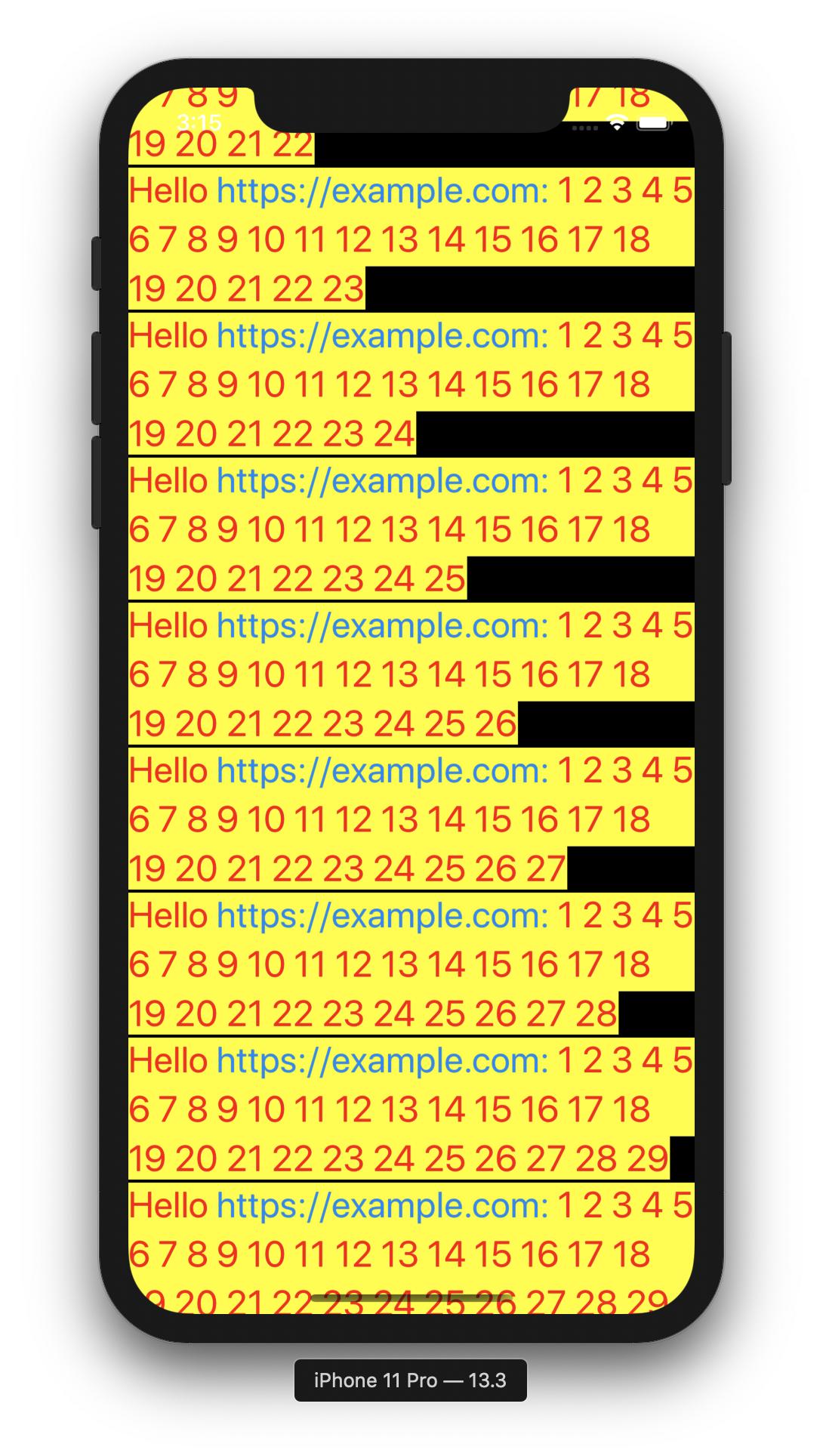

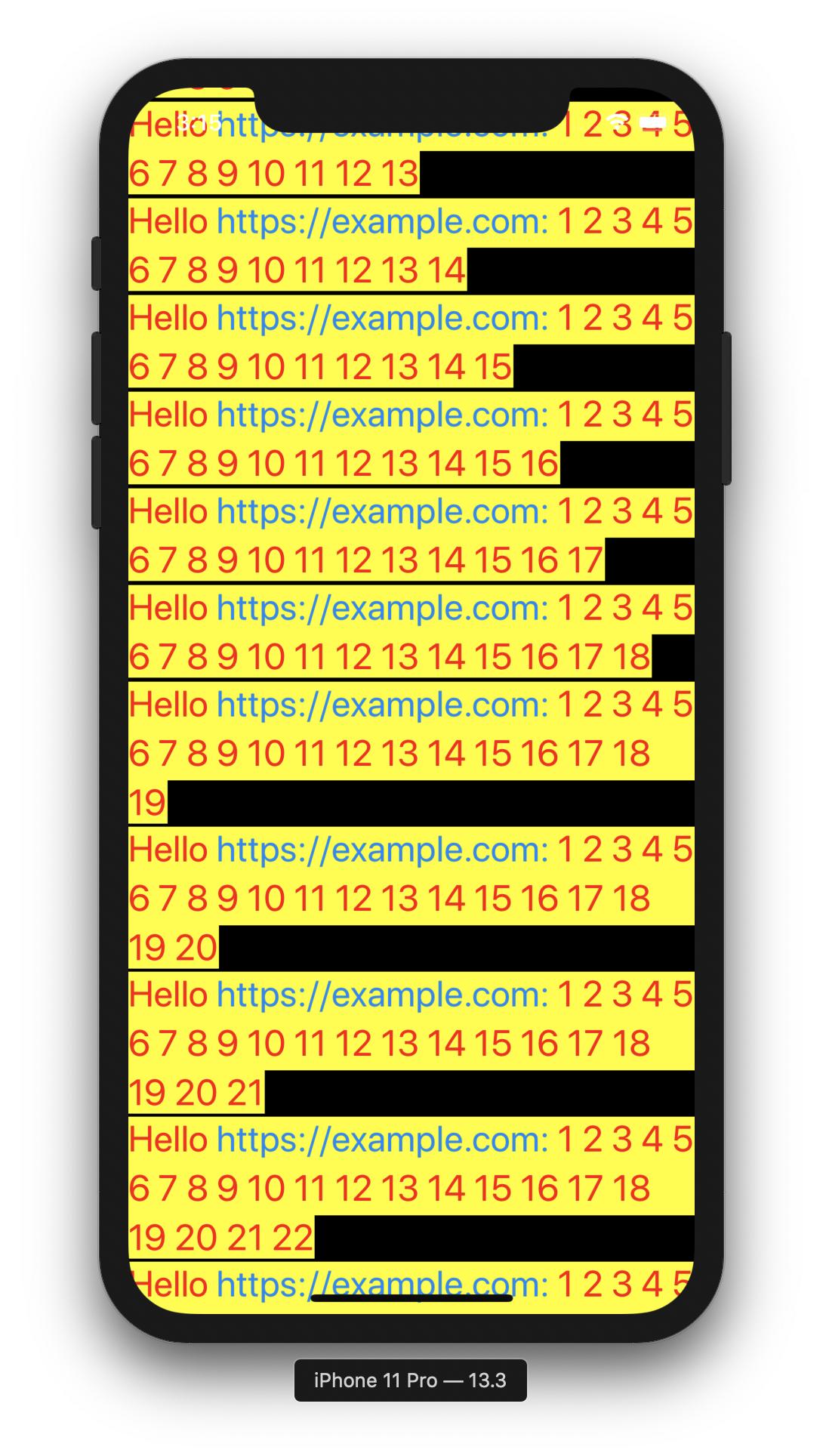

以下是滚动的前三张截图,以及另一张显示卷轴末尾的截图。

下面是包含attributedText高度和常规字符串大小扩展的完整类。

代码语言:javascript
复制
import SwiftUI

let number = 80

struct ListWithNativeTexts: View {
    let rows = texts(count:number)
    var body: some View {
        GeometryReader { geometry in
            ScrollView {
                VStack(spacing: 2) {
                    ForEach(0..<self.rows.count, id: \.self) { i in
                        self.makeView(geometry, text: self.rows[i])
                    }
                }
            }
        }
    }
    func makeView(_ geometry: GeometryProxy, text: String) -> some View {
        print(geometry.size.width, geometry.size.height)

        // for a regular string size (not attributed text)
//        let textSize = text.size(width: geometry.size.width, font: UIFont.systemFont(ofSize: 17.0, weight: .regular), padding: UIEdgeInsets.init(top: 0, left: 0, bottom: 0, right: 0))
//        print("textSize: \(textSize)")
//        return NativeTextView(string: text).frame(width: geometry.size.width, height: textSize.height)
        let attributed = attributedString(for: text)
        let height = attributed.height(containerWidth: geometry.size.width)
        print("height: \(height)")
        return NativeTextView(string: text).frame(width: geometry.size.width, height: height)
    }
}

struct ListWithNativeTexts_Previews: PreviewProvider {
    static var previews: some View {
        ListWithNativeTexts()
    }
}

func texts(count: Int) -> [String] {
    return (1...count).map {
        (1...$0).reduce("Hello https://example.com:", { $0 + " " + String($1) })
    }
}

#if os(iOS)
typealias NativeFont = UIFont
typealias NativeColor = UIColor

struct NativeTextView: UIViewRepresentable {

    var string: String

    func makeUIView(context: Context) -> UITextView {
        let textView = UITextView()

        textView.isEditable = false
        textView.isScrollEnabled = false
        textView.dataDetectorTypes = .link
        textView.textContainerInset = UIEdgeInsets(top: 0, left: 0, bottom: 0, right: 0)
         textView.setContentCompressionResistancePriority(.defaultLow, for: .horizontal)
        textView.textContainer.lineFragmentPadding = 0

        let attributed = attributedString(for: string)
        textView.attributedText = attributed

        // for a regular string size (not attributed text)
//        textView.font = UIFont.systemFont(ofSize: 17.0, weight: .regular)
//        textView.text = string

        return textView
    }

    func updateUIView(_ textView: UITextView, context: Context) {
    }

}
#else
typealias NativeFont = NSFont
typealias NativeColor = NSColor

struct NativeTextView: NSViewRepresentable {

    var string: String

    func makeNSView(context: Context) -> NSTextView {
        let textView = NSTextView()
        textView.isEditable = false
        textView.isAutomaticLinkDetectionEnabled = true
        textView.isAutomaticDataDetectionEnabled = true
        textView.textContainer?.lineFragmentPadding = 0
        textView.backgroundColor = NSColor.clear

        textView.textStorage?.append(attributedString(for: string))
        textView.isEditable = true
        textView.checkTextInDocument(nil) // make links clickable
        textView.isEditable = false

        return textView
    }

    func updateNSView(_ textView: NSTextView, context: Context) {

    }

}
#endif

func attributedString(for string: String) -> NSAttributedString {
    let attributedString = NSMutableAttributedString(string: string)
    let paragraphStyle = NSMutableParagraphStyle()
    paragraphStyle.lineSpacing = 4
    let range = NSMakeRange(0, (string as NSString).length)

    attributedString.addAttribute(.font, value: NativeFont.systemFont(ofSize: 24, weight: .regular), range: range)
    attributedString.addAttribute(.foregroundColor, value: NativeColor.red, range: range)
    attributedString.addAttribute(.backgroundColor, value: NativeColor.yellow, range: range)
    attributedString.addAttribute(.paragraphStyle, value: paragraphStyle, range: range)
    return attributedString
}

extension String {
    func size(width:CGFloat = 220.0, font: UIFont = UIFont.systemFont(ofSize: 17.0, weight: .regular), padding: UIEdgeInsets? = nil) -> CGSize {
        let label:UILabel = UILabel(frame: CGRect(x: 0, y: 0, width: width, height: CGFloat.greatestFiniteMagnitude))
        label.numberOfLines = 0
        label.lineBreakMode = NSLineBreakMode.byWordWrapping
        label.font = font
        label.text = self

        label.sizeToFit()

        if let pad = padding{
         // add padding
            return CGSize(width: label.frame.width + pad.left + pad.right, height: label.frame.height + pad.top + pad.bottom)
        } else {
        return CGSize(width: label.frame.width, height: label.frame.height)
        }
    }
}

extension NSAttributedString {

    func height(containerWidth: CGFloat) -> CGFloat {

        let rect = self.boundingRect(with: CGSize.init(width: containerWidth, height: CGFloat.greatestFiniteMagnitude),
                                     options: [.usesLineFragmentOrigin, .usesFontLeading],
                                     context: nil)
        return ceil(rect.size.height)
    }

    func width(containerHeight: CGFloat) -> CGFloat {

        let rect = self.boundingRect(with: CGSize.init(width: CGFloat.greatestFiniteMagnitude, height: containerHeight),
                                     options: [.usesLineFragmentOrigin, .usesFontLeading],
                                     context: nil)
        return ceil(rect.size.width)
    }
}
票数 3
EN

Stack Overflow用户

发布于 2020-05-04 06:18:39

杰努斯

我不确定我完全理解您的问题,但是有几个环境变量和附件可以添加到更改SwiftUI列表视图的间隔中。这里是我所说的例子。

注意,重要的是将它们添加到正确的视图中,listRowInsets在ForEach上,环境在List视图上。

代码语言:javascript
复制
    List {
      ForEach((0 ..< self.selections.count), id: \.self) { column in
        HStack(spacing:0) {
          Spacer()
            Text(self.selections[column].name)
            .font(Fonts.avenirNextCondensedBold(size: 22))
          Spacer()
        }
      }.listRowInsets(EdgeInsets(top: 0, leading: 0, bottom: 0, trailing: 0))
    }.environment(\.defaultMinListRowHeight, 20)
      .environment(\.defaultMinListHeaderHeight, 0)
      .frame(width: UIScreen.main.bounds.size.width, height: 180.5, alignment: .center)
      .offset(x: 0, y: -64)

标记

票数 0
EN
