让PySide2 QCharts在使用Qt设计器时显示出来
让PySide2 QCharts在使用Qt设计器时显示出来
提问于 2020-01-20 21:48:30
我有一个类似的问题在这里：How to insert QChartView in form with Qt Designer?
因此，我在Qt设计器中创建了UI的MainWindow，并试图在窗口的一个选项卡中显示一个QtChart。我将.ui文件导入到python程序中，到目前为止，我可以让主窗口显示得很好，但不能显示图表。我花了一天的大部分时间试图遵循上面的答案中列出的说明，但到目前为止，我还没有能够将我的推广小部件正确地导入到我的主程序中。我一直在想，部分原因是否是我试图在python版本的Qt (即PySide2)中这样做，而不是C++版本，这个答案可能是为这个版本编写的。
我尝试使用QWidget和推荐的QGraphicsView作为我的QChartView的基础，但是到目前为止，每一次尝试都给我一个错误："QFormBuilder was unable to create a custom widget of the class 'QChartView'; defaulting to base class 'QWidget'."，我做错了什么？
与链接的问答语句一样，我用QChartView的“提升类名”和QtCHarts的“头文件”设置了升级小部件。下面是我的Python程序的基本代码(一开始忽略我奇怪的导入，因为这是我正在处理的另一个问题，在那里，我的程序将找不到类导入，除非我用这种方式格式化它们)。
任何帮助都将不胜感激！谢谢!
import sys
import PySide2.QtCore as Qt_Core
import PySide2.QtGui as Qt_Gui
import PySide2.QtWidgets as Qt_Widgets
import PySide2.QtUiTools as Qt_UiTools
import PySide2.QtCharts as Qt_Chart
from PySide2.QtCharts import QtCharts
import Pico_Image_Resources
import Chart_UI
# Having import issues with submodules.
# Need to explicitly import submodules.
QMainWindow = Qt_Widgets.QMainWindow
QApplication = Qt_Widgets.QApplication
QGraphicsView = Qt_Widgets.QGraphicsView
QUiLoader = Qt_UiTools.QUiLoader
QFile = Qt_Core.QFile
QStyleFactory = Qt_Widgets.QStyleFactory
QtCharts = Qt_Chart.QtCharts
QChartView = QtCharts.QChartView
QPainter = Qt_Gui.QPainter
#-----------------------------------------
class MainWindow(QMainWindow):
def __init__(self, ui_file, parent=None):
super(MainWindow, self).__init__(parent)
ui_file = QFile(ui_file)
ui_file.open(QFile.ReadOnly)
chartUI = Chart_UI.generateChart()
self.chart = QtCharts.QChart()
"""
Code that defines my chart setup is here
"""
loader = QUiLoader()
self.window = loader.load(ui_file)
QApplication.setStyle(QStyleFactory.create('Fusion'))
ui_file.close()
#Normal Way to set up 'ChartView'
# self.chartView = QChartView(self.chart)
self.chartView = self.window.findChild(QChartView, 'calibrationChart')
self.chartView.setChart(self.chart)
self.chartView.setRenderHint(QPainter.Antialiasing)
self.window.show()
if __name__ == '__main__':
app = QApplication(sys.argv)
window = MainWindow('My_Main_Window.ui')
sys.exit(app.exec_())编辑:这是我按要求加载的.ui文件代码。这不是完整的文件，因为原始文件太长，无法发布，但它应该足够得到这样的想法：
<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<author></author>
<class>MainWindow</class>
<widget class="QMainWindow" name="MainWindow">
<property name="enabled">
<bool>true</bool>
</property>
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>1280</width>
<height>720</height>
</rect>
</property>
<property name="minimumSize">
<size>
<width>1280</width>
<height>720</height>
</size>
</property>
<property name="windowTitle">
<string>MainWindow</string>
</property>
<property name="styleSheet">
<string notr="true"/>
</property>
<property name="toolButtonStyle">
<enum>Qt::ToolButtonFollowStyle</enum>
</property>
<widget class="QWidget" name="centralwidget">
<property name="styleSheet">
<string notr="true"/>
</property>
<widget class="QTabWidget" name="tabWidget">
<property name="geometry">
<rect>
<x>400</x>
<y>10</y>
<width>871</width>
<height>641</height>
</rect>
</property>
<property name="font">
<font>
<pointsize>10</pointsize>
<weight>75</weight>
<bold>true</bold>
</font>
</property>
<property name="focusPolicy">
<enum>Qt::TabFocus</enum>
</property>
<property name="currentIndex">
<number>0</number>
</property>
<widget class="QWidget" name="tabCalib">
<property name="enabled">
<bool>true</bool>
</property>
<attribute name="title">
<string>Chart 1</string>
</attribute>
<widget class="QChartView" name="calibrationChart" native="true">
<property name="geometry">
<rect>
<x>19</x>
<y>19</y>
<width>821</width>
<height>571</height>
</rect>
</property>
</widget>
</widget>
<widget class="QWidget" name="tabDynamic">
<attribute name="title">
<string>Chart 2</string>
</attribute>
<widget class="QGraphicsView" name="graphicsView_2">
<property name="geometry">
<rect>
<x>10</x>
<y>10</y>
<width>861</width>
<height>591</height>
</rect>
</property>
<property name="frameShape">
<enum>QFrame::StyledPanel</enum>
</property>
<property name="frameShadow">
<enum>QFrame::Sunken</enum>
</property>
<property name="renderHints">
<set>QPainter::Antialiasing|QPainter::TextAntialiasing</set>
</property>
</widget>
</widget>
</widget>
<widget class="QWidget" name="verticalLayoutWidget">
<property name="geometry">
<rect>
<x>20</x>
<y>10</y>
<width>361</width>
<height>451</height>
</rect>
</property>
<layout class="QVBoxLayout" name="verticalLayout">
<property name="spacing">
<number>10</number>
</property>
<property name="sizeConstraint">
<enum>QLayout::SetDefaultConstraint</enum>
</property>
<property name="leftMargin">
<number>0</number>
</property>
<item>
<widget class="QLabel" name="label_20">
<property name="minimumSize">
<size>
<width>0</width>
<height>32</height>
</size>
</property>
<property name="maximumSize">
<size>
<width>16777215</width>
<height>32</height>
</size>
</property>
<property name="font">
<font>
<family>Calibri</family>
<pointsize>11</pointsize>
<weight>75</weight>
<bold>true</bold>
<strikeout>false</strikeout>
</font>
</property>
<property name="frameShape">
<enum>QFrame::StyledPanel</enum>
</property>
<property name="frameShadow">
<enum>QFrame::Plain</enum>
</property>
<property name="text">
<string>Test Title Here</string>
</property>
<property name="alignment">
<set>Qt::AlignCenter</set>
</property>
<property name="wordWrap">
<bool>false</bool>
</property>
</widget>
</item>
<item>
<widget class="QGroupBox" name="groupBox">
<property name="title">
<string>Please fill in the following data boxes:</string>
</property>
<widget class="QWidget" name="layoutWidget">
<property name="geometry">
<rect>
<x>10</x>
<y>40</y>
<width>341</width>
<height>271</height>
</rect>
</property>
<layout class="QFormLayout" name="formLayout">
<property name="labelAlignment">
<set>Qt::AlignRight|Qt::AlignTrailing|Qt::AlignVCenter</set>
</property>
<property name="horizontalSpacing">
<number>10</number>
</property>
<property name="verticalSpacing">
<number>10</number>
</property>
<item row="0" column="0">
<widget class="QLabel" name="label_2">
<property name="text">
<string>Field One:</string>
</property>
</widget>
</item>
<item row="0" column="1">
<widget class="QLineEdit" name="lineEdit_8"/>
</item>
<item row="1" column="0">
<widget class="QLabel" name="label_3">
<property name="text">
<string>Field Two:</string>
</property>
</widget>
</item>
<item row="1" column="1">
<widget class="QLineEdit" name="lineEdit"/>
</item>
<item row="2" column="0">
<widget class="QLabel" name="label_4">
<property name="text">
<string>Field Three:</string>
</property>
</widget>
</item>
<item row="2" column="1">
<widget class="QLineEdit" name="lineEdit_2"/>
</item>
<item row="4" column="0">
<widget class="QLabel" name="label_5">
<property name="text">
<string>Field Five:</string>
</property>
</widget>
</item>
<item row="4" column="1">
<widget class="QLineEdit" name="lineEdit_3"/>
</item>
<item row="5" column="0">
<widget class="QLabel" name="label_6">
<property name="text">
<string>Field Six:</string>
</property>
</widget>
</item>
<item row="5" column="1">
<widget class="QLineEdit" name="lineEdit_4"/>
</item>
<item row="6" column="0">
<widget class="QLabel" name="label_7">
<property name="text">
<string>Selection One:</string>
</property>
</widget>
</item>
<item row="6" column="1">
<widget class="QComboBox" name="comboBox">
<property name="currentIndex">
<number>3</number>
</property>
<item>
<property name="text">
<string>123</string>
</property>
</item>
<item>
<property name="text">
<string>456</string>
</property>
</item>
<item>
<property name="text">
<string>789</string>
</property>
</item>
</widget>
</item>
<item row="7" column="0">
<widget class="QLabel" name="label_8">
<property name="text">
<string>Selection Two:</string>
</property>
</widget>
</item>
<item row="7" column="1">
<widget class="QComboBox" name="comboBox_2">
<property name="currentIndex">
<number>3</number>
</property>
<item>
<property name="text">
<string>123</string>
</property>
</item>
<item>
<property name="text">
<string>456</string>
</property>
</item>
<item>
<property name="text">
<string>789</string>
</property>
</item>
</widget>
</item>
<item row="8" column="0">
<widget class="QLabel" name="label_9">
<property name="text">
<string>Output:</string>
</property>
</widget>
</item>
<item row="8" column="1">
<widget class="QLineEdit" name="lineEdit_7">
<property name="enabled">
<bool>false</bool>
</property>
</widget>
</item>
<item row="3" column="0">
<widget class="QLabel" name="label_21">
<property name="text">
<string>Field Four:</string>
</property>
</widget>
</item>
<item row="3" column="1">
<widget class="QLineEdit" name="lineEdit_5">
<property name="enabled">
<bool>false</bool>
</property>
<property name="readOnly">
<bool>true</bool>
</property>
<property name="clearButtonEnabled">
<bool>false</bool>
</property>
</widget>
</item>
</layout>
</widget>
</widget>
</item>
</layout>
</widget>
<widget class="Line" name="line">
<property name="geometry">
<rect>
<x>20</x>
<y>470</y>
<width>361</width>
<height>21</height>
</rect>
</property>
<property name="orientation">
<enum>Qt::Horizontal</enum>
</property>
</widget>
<widget class="QPushButton" name="pushButton">
<property name="geometry">
<rect>
<x>140</x>
<y>500</y>
<width>111</width>
<height>41</height>
</rect>
</property>
<property name="font">
<font>
<family>Calibri</family>
<pointsize>14</pointsize>
<weight>75</weight>
<bold>true</bold>
</font>
</property>
<property name="styleSheet">
<string notr="true">background-color: rgb(85, 255, 0)</string>
</property>
<property name="text">
<string>START TEST</string>
</property>
<property name="checkable">
<bool>false</bool>
</property>
<property name="checked">
<bool>false</bool>
</property>
<property name="default">
<bool>false</bool>
</property>
<property name="flat">
<bool>false</bool>
</property>
</widget>
</widget>
<widget class="QMenuBar" name="menubar">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>1280</width>
<height>21</height>
</rect>
</property>
<widget class="QMenu" name="menuFile">
<property name="title">
<string>File</string>
</property>
<addaction name="actionSettings"/>
<addaction name="separator"/>
<addaction name="actionClose"/>
</widget>
<widget class="QMenu" name="menuAbout">
<property name="title">
<string>About</string>
</property>
</widget>
<addaction name="menuFile"/>
<addaction name="menuAbout"/>
</widget>
<widget class="QStatusBar" name="statusbar">
<property name="enabled">
<bool>true</bool>
</property>
<property name="autoFillBackground">
<bool>false</bool>
</property>
<property name="styleSheet">
<string notr="true">background-color: rgb(0, 132, 203);</string>
</property>
<property name="sizeGripEnabled">
<bool>true</bool>
</property>
</widget>
<action name="actionSettings">
<property name="text">
<string>Settings</string>
</property>
</action>
<action name="actionClose">
<property name="text">
<string>Close</string>
</property>
</action>
</widget>
<customwidgets>
<customwidget>
<class>QChartView</class>
<extends>QWidget</extends>
<header>QtCharts</header>
<container>1</container>
</customwidget>
</customwidgets>
<resources>
</resources>
<connections/>
</ui>回答 1
Stack Overflow用户
回答已采纳
发布于 2020-01-20 22:47:01
QWidget作为容器：
在这种情况下，我不建议应用升级，因为它会使任务非常复杂，但我将展示如何应用my other answer中显示的解决方案:使用QWidget作为.ui中的容器。

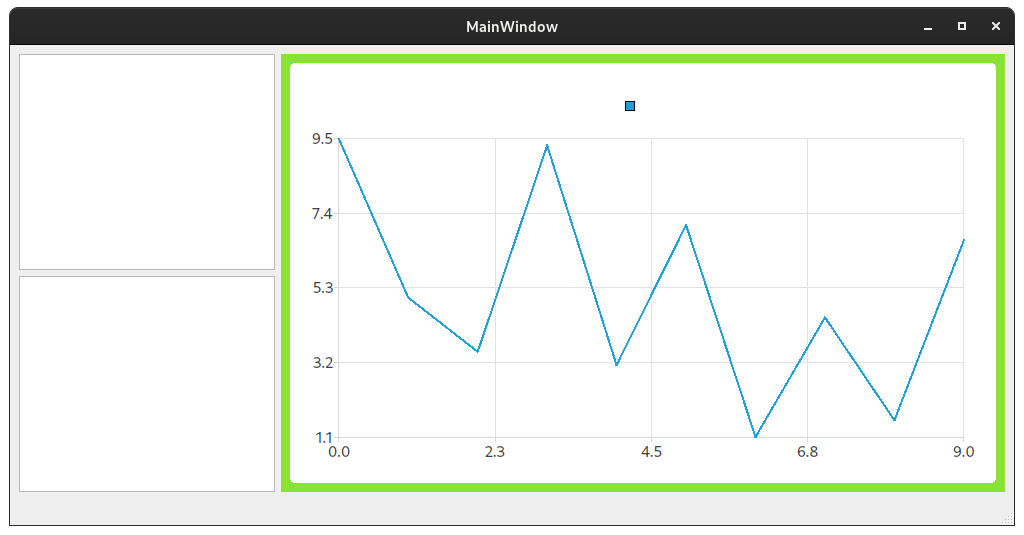

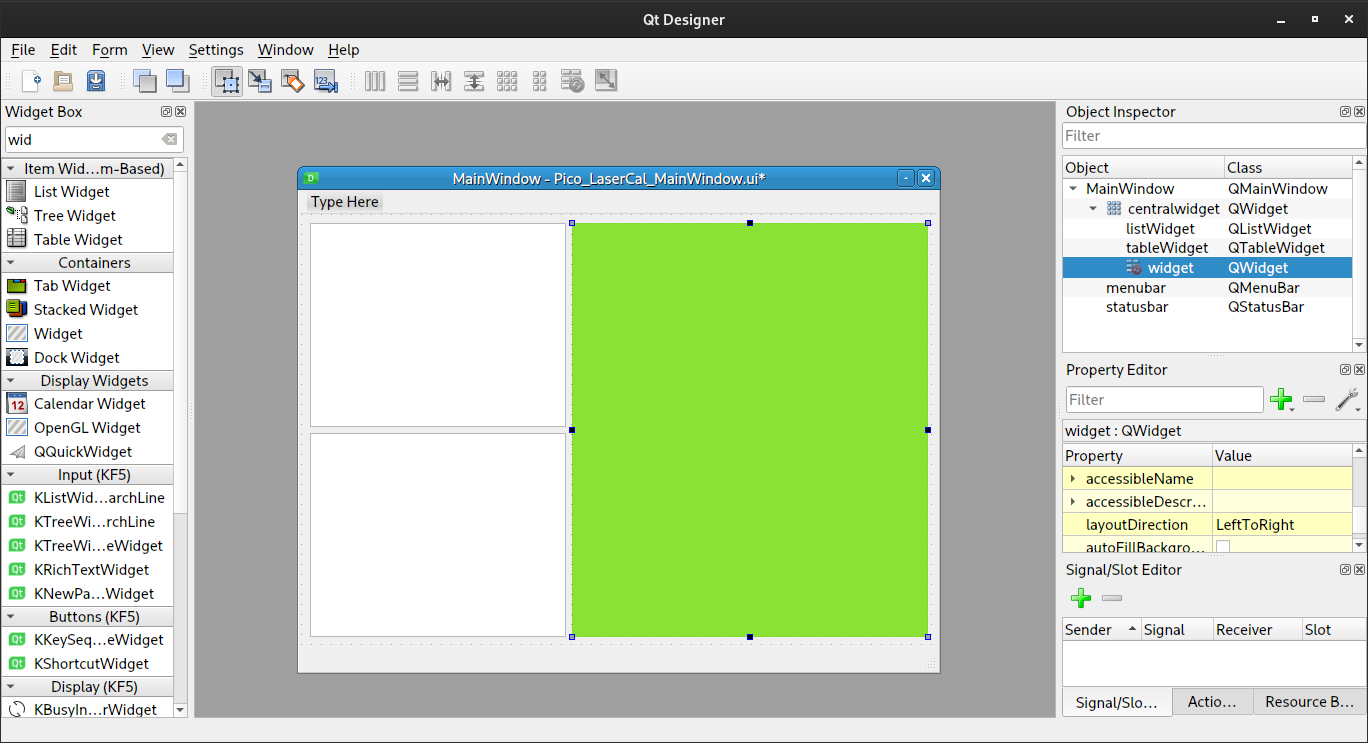

例如，我创建了一个包含多个组件的.ui，在您希望放置QChartView的地方放置一个QWidget (为了使其可见，我设置了绿色背景色)：
design.ui
<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<class>MainWindow</class>
<widget class="QMainWindow" name="MainWindow">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>636</width>
<height>480</height>
</rect>
</property>
<property name="windowTitle">
<string>MainWindow</string>
</property>
<widget class="QWidget" name="centralwidget">
<layout class="QGridLayout" name="gridLayout" columnstretch="0,1">
<item row="0" column="0">
<widget class="QListWidget" name="listWidget"/>
</item>
<item row="1" column="0">
<widget class="QTableWidget" name="tableWidget"/>
</item>
<item row="0" column="1" rowspan="2">
<widget class="QWidget" name="widget" native="true">
<property name="styleSheet">
<string notr="true">background-color: rgb(138, 226, 52);</string>
</property>
</widget>
</item>
</layout>
</widget>
<widget class="QMenuBar" name="menubar">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>636</width>
<height>24</height>
</rect>
</property>
</widget>
<widget class="QStatusBar" name="statusbar"/>
</widget>
<resources/>
<connections/>
</ui>然后，逻辑很简单:通过QWidget (在本例中为“小部件”)获取objectName，然后在该小部件中放置布局，然后通过布局将QChartView放置在小部件中。
import random
import sys
from PySide2 import QtCore, QtGui, QtUiTools, QtWidgets
from PySide2.QtCharts import QtCharts
def ui_to_window(filename, parent=None):
file = QtCore.QFile(filename)
if not file.open(QtCore.QFile.ReadOnly):
return
loader = QtUiTools.QUiLoader()
window = loader.load(file, parent)
return window
if __name__ == "__main__":
app = QtWidgets.QApplication(sys.argv)
window = ui_to_window("design.ui")
window.widget.setContentsMargins(0, 0, 0, 0)
lay = QtWidgets.QVBoxLayout(window.widget)
lay.setContentsMargins(0, 0, 0, 0)
chartview = QtCharts.QChartView()
chartview.setContentsMargins(0, 0, 0, 0)
lay.addWidget(chartview)
series = QtCharts.QLineSeries()
for i in range(10):
series << QtCore.QPointF(i, random.uniform(0, 10))
# Create Chart and set General Chart setting
chart = QtCharts.QChart()
chart.addSeries(series)
chart.setAnimationOptions(QtCharts.QChart.SeriesAnimations)
# X Axis Settings
axisX = QtCharts.QValueAxis()
chart.addAxis(axisX, QtCore.Qt.AlignBottom)
series.attachAxis(axisX)
# Y Axis Settings
axisY = QtCharts.QValueAxis()
chart.addAxis(axisY, QtCore.Qt.AlignLeft)
series.attachAxis(axisY)
chartview.setChart(chart)
window.show()
sys.exit(app.exec_())
QChartView推广：
如果仍然希望使用升级方法，则必须实现自定义QUiLoader覆盖createWidget方法，如果className是QChartView，则返回QChartView：
import random
import sys
from PySide2 import QtCore, QtGui, QtUiTools, QtWidgets
from PySide2.QtCharts import QtCharts
class UiLoader(QtUiTools.QUiLoader):
def createWidget(self, className, parent=None, name=""):
if className == "QChartView":
return QtCharts.QChartView(parent)
return super().createWidget(className, parent, name)
def ui_to_window(filename, parent=None):
file = QtCore.QFile(filename)
if not file.open(QtCore.QFile.ReadOnly):
return
loader = UiLoader()
window = loader.load(file, parent)
return window
if __name__ == "__main__":
app = QtWidgets.QApplication(sys.argv)
window = ui_to_window("Pico_LaserCal_MainWindow.ui")
series = QtCharts.QLineSeries()
for i in range(10):
series << QtCore.QPointF(i, random.uniform(0, 10))
# Create Chart and set General Chart setting
chart = QtCharts.QChart()
chart.addSeries(series)
chart.setAnimationOptions(QtCharts.QChart.SeriesAnimations)
# X Axis Settings
axisX = QtCharts.QValueAxis()
chart.addAxis(axisX, QtCore.Qt.AlignBottom)
series.attachAxis(axisX)
# Y Axis Settings
axisY = QtCharts.QValueAxis()
chart.addAxis(axisY, QtCore.Qt.AlignLeft)
series.attachAxis(axisY)
window.calibrationChart.setChart(chart)
window.show()
sys.exit(app.exec_())页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/59831326
复制相关文章
相似问题
腾讯云开发者
