带有R库的三键图networkD3不显示颜色
我使用R的networkD3库来创建Sankey网络。虽然这对我来说很好，但我现在遇到了一个问题:将属性"NoteID“和/或"NoteGroup”分配给组和分配颜色，如https://christophergandrud.github.io/networkD3/#sankey中所示。
下面的代码显示了创建Sankey图的4个示例，只有"Sankey4“按设计的方式工作，即没有颜色：
library(networkD3)
#Unique list of nodes
my_nodes = structure(list(name = c("HawaiTEST", "AMSVOASMPP01", "App1",
"Transfer", "Transferred_tel__63null_",
"Transferred_tel__631100107_",
"AMSVOASMPP02",
"Transferred_tel__631100108_",
"Transferred_tel__631100106_",
"Transferred_tel__631100104_",
"Transferred_tel__631100105_",
"FarEndDisconnect",
"FarEndDisconnect_Hangup", "DutchAOS",
"SwedenAOS",
"Transferred_tel__63000_")), class =
c("tbl_df", "tbl", "data.frame"
), row.names = c(NA, -16L), .Names = "name")
# Network
my_links = structure(list(key = c("0_1", "0_6", "1_13", "1_14", "1_2", "11_12",
"13_11", "13_3", "14_11", "14_3", "2_11",
"2_3", "3_10", "3_15",
"3_4", "3_5", "3_7", "3_8", "3_9", "6_13",
"6_2"), source = c(0L,
0L, 1L, 1L, 1L, 11L, 13L, 13L, 14L, 14L, 2L,
2L, 3L, 3L, 3L,
3L, 3L, 3L, 3L, 6L, 6L), target = c(1L, 6L,
13L, 14L, 2L, 12L,
11L, 3L, 11L, 3L, 11L, 3L, 10L, 15L, 4L, 5L,
7L, 8L, 9L, 13L,
2L), total = c(38L, 36L, 4L, 3L, 31L, 6L, 2L,
5L, 1L, 2L, 3L,
61L, 11L, 1L, 12L, 11L, 11L, 11L, 11L, 3L,
33L)), class = c("tbl_df",
"tbl", "data.frame"), row.names = c(NA, -21L), .Names
= c("key",
"source", "target", "total"))
# NOT WORKING using "NodeID", or "NodeGroup"
sankey1 = sankeyNetwork(Links =my_links, Nodes = my_nodes, Source =
"source", Target = "target", Value = "total", units =
"calls", NodeID = "name")
sankey2 = sankeyNetwork(Links =my_links, Nodes = my_nodes, Source =
"source", Target = "target", Value = "total", units =
"calls", NodeGroup = "name")
sankey2
# NOT WORKING using ColourScale (diagram is displayed, grey scale though)
ColourScale <- 'd3.scale.ordinal()
.domain(["lions", "tigers"])
.range(["#FF6900", "#694489"]);'
sankey3 = sankeyNetwork(Links =my_links, Nodes = my_nodes, Source =
"source", Target = "target", Value = "total", units =
"calls", colourScale = JS(ColourScale))
sankey3
# WORKING!
sankey4 = sankeyNetwork(Links =my_links, Nodes = my_nodes, Source =
"source", Target = "target", Value = "total", units =
"calls")
sankey4"Sankey1“尝试使用"NoteID”，就像在上面引用的web示例中使用的那样，但是，这样做会导致图表完全不显示；"Sankey2“的效果也是一样的。无论配色方案的定义如何，"Sankey4“都以灰色显示。
我还查看了这两种代码生成的html代码，生成"Sankey1“的R代码以及https://christophergandrud.github.io/networkD3/#sankey上使用的代码。显然，对于该小组，存在着不同之处：
来自“Sankey1”的HTML：
"group":{"name":["HawaiTEST", ...
...
"options":{"NodeID":1,"NodeGroup":"name","LinkGroup":null,HTML摘录自web示例：
"group":["Agricultural 'waste'","Bio-conversion", ...
...
"options":{"NodeID":"name","NodeGroup":"name","LinkGroup":null为"Sankey1“更改输出html以反映来自web示例的输出解决了问题，使用默认的颜色模式显示"Sankey1”。
目前，我正试图了解我正在使用的数据的行为。sankey函数不依赖强制性列表输入；实际上，我已经将示例数据集从网站分割为两个数据框架(节点、链接)，这确实产生了与web示例中相同颜色的sankey图。因此，我的示例中的输入数据一定有问题.我猜..。任何帮助都将不胜感激！谢谢奥利
Stack Overflow用户
发布于 2016-08-03 11:14:14

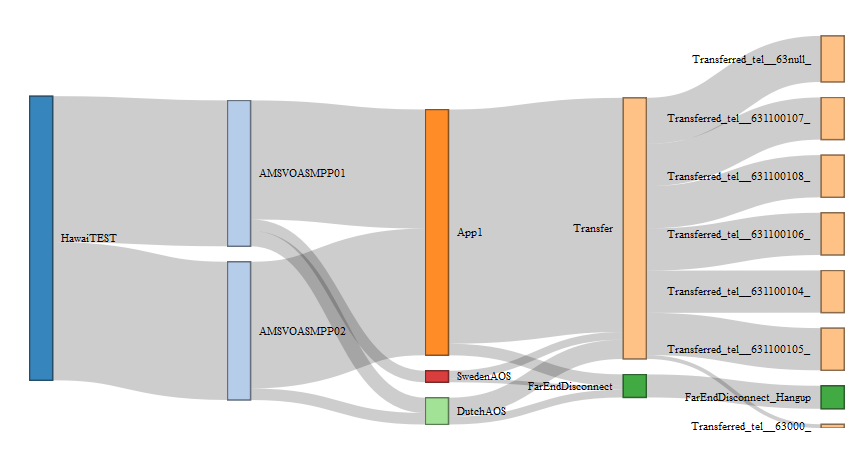

也许，我误解了，但是使用CRAN或Github版本，sankey1会为我生成以下内容，节点的颜色与它们的名称相同。

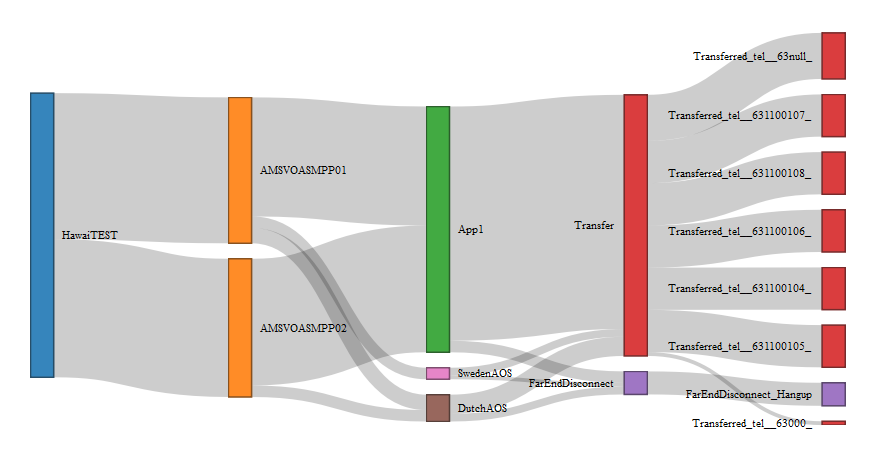

如果我们想使用NodeGroup，我们可以这样做。
# make up a group based on the first two characters
# of node name
my_nodes$group <- substr(my_nodes$name,1,2)
# now use our new group for group colors
sankeyNetwork(
Links =my_links, Nodes = my_nodes, Source = "source",
Target = "target", Value = "total", NodeID = "name",
units = "calls",
NodeGroup = "group"
)
如果我们想提供一个定制的色标，我们可以这样做。
sankeyNetwork(
Links =my_links, Nodes = my_nodes, Source = "source",
Target = "target", Value = "total", NodeID = "name",
units = "calls",
NodeGroup = "group",
colourScale = "d3.scale.category10()"
)

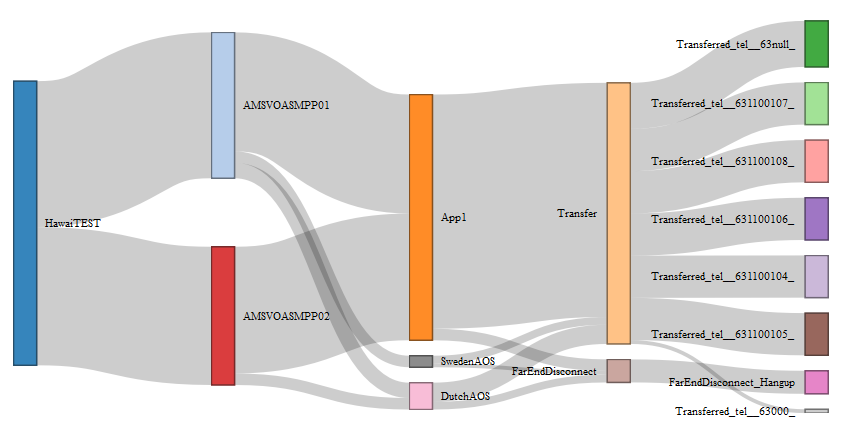

对于颜色的自定义分配，我们可以扩展前面的示例并关闭d3.scale.category*函数。
sankeyNetwork(
Links =my_links, Nodes = my_nodes, Source = "source",
Target = "target", Value = "total", NodeID = "name",
units = "calls",
NodeGroup = "group",
colourScale = sprintf(
"d3.scale.category10().range(%s).domain(%s)",
jsonlite::toJSON(substr(topo.colors(length(unique(my_nodes$group))),1,7)),
jsonlite::toJSON(unique(my_nodes$group))
)
)
