操作场景

本文以 Spring Boot Starter 接入为例介绍实现消息收发的操作过程,帮助您更好地理解消息收发的完整过程。

前提条件

操作步骤

步骤1:添加依赖

在项目中引入 Pulsar Starter 相关依赖。
<dependency>
<groupId>io.github.majusko</groupId>
<artifactId>pulsar-java-spring-boot-starter</artifactId>
<version>1.0.7</version>
</dependency>
<!-- https://mvnrepository.com/artifact/io.projectreactor/reactor-core -->
<dependency>
<groupId>io.projectreactor</groupId>
<artifactId>reactor-core</artifactId>
<version>3.4.11</version>
</dependency>

步骤2:准备配置

在配置文件 application.yml 中添加 Pulsar 相关配置信息。
server:
port: 8081
pulsar:
# 命名空间名称
namespace: namespace_java
# 服务接入地址
service-url: http://pulsar-w7eognxxx.tdmq.ap-gz.public.tencenttdmq.com:8080
# 授权角色密钥
token-auth-value: eyJrZXlJZC......
# 集群id
tenant: pulsar-w7eognxxx
参数
说明
namespace
命名空间名称,在控制台 命名空间 管理页面中复制。
service-url
集群接入地址,可以在控制台 集群管理 页面查看并复制。


token-auth-value
角色密钥,在 角色管理 页面复制密钥列复制。


tenant
集群 ID,在控制台 集群管理 页面中获取。

步骤3:生产消息

在 ProducerConfiguration.java 中配置生产者
package com.tencent.cloud.tdmq.pulsar.config;

import io.github.majusko.pulsar.producer.ProducerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


/**
* 生产者相关配置
* 1.topic要提前在控制台中完成创建
* 2.消息类型需要实现Serializable接口
* 3.如果一个topic不能绑定不同的数据类型
*/
@Configuration
public class ProducerConfiguration {

@Bean
public ProducerFactory producerFactory() {
return new ProducerFactory()
// topic1 生产者
.addProducer("topic1")
// topic2 生产者
.addProducer("topic2");
编译并运行生产消息程序 MyProducer.java。
package com.tencent.cloud.tdmq.pulsar.service;

import io.github.majusko.pulsar.producer.PulsarTemplate;
import org.apache.pulsar.client.api.MessageId;
import org.apache.pulsar.client.api.PulsarClientException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.nio.charset.StandardCharsets;
import java.util.concurrent.CompletableFuture;

@Service
public class MyProducer {

/**
* 1.发送消息的topic是在生产者配置中已经声明的topic
* 2.PulsarTemplate类型应于发送消息的类型一致
* 3.发送消息到指定topic时,消息类型需要与生产者工厂配置中的topic绑定的消息类型对应
*/

@Autowired
private PulsarTemplate<byte[]> defaultProducer;

public void syncSendMessage() throws PulsarClientException {
defaultProducer.send("topic1", "Hello pulsar client.".getBytes(StandardCharsets.UTF_8));
}

public void asyncSendMessage() {
String msg = "Hello pulsar client.";
CompletableFuture<MessageId> completableFuture = defaultProducer.sendAsync("topic1", msg.getBytes(StandardCharsets.UTF_8));
// 通过异步回调得知消息发送成功与否
completableFuture.whenComplete(((messageId, throwable) -> {
if( null != throwable ) {
System.out.println("delivery failed, value: " + msg );
// 此处可以添加延时重试的逻辑
} else {
System.out.println("delivered msg " + messageId + ", value:" + msg);
}
}));
}

/**
* 顺序消息需要使用顺序类型topic来完成,顺序类型的topic支撑全局顺序和局部顺序两种类型,根据实际情况选择合适的类型即可
*/
public void sendOrderMessage() throws PulsarClientException {
for (int i = 0; i < 5; i++) {
defaultProducer.send("topic2", ("Hello pulsar client, this is a order message" + i + ".").getBytes(StandardCharsets.UTF_8));
}
}
}

注意
发送消息的 Topic 是在生产者配置中已经声明的 Topic。
PulsarTemplate 类型应与发送消息的类型一致。
发送消息到指定 Topic 时,消息类型需要与生产者工厂配置中的 Topic 绑定的消息类型对应。

步骤4:消费消息

编译并运行消费消息程序 MyConsumer.java。
package com.tencent.cloud.tdmq.pulsar.service;

import io.github.majusko.pulsar.annotation.PulsarConsumer;
import io.github.majusko.pulsar.constant.Serialization;
import org.apache.pulsar.client.api.SubscriptionType;
import org.springframework.stereotype.Service;

/**
* 消费者配置
*/
@Service
public class MyConsumer {

@PulsarConsumer(topic = "topic1", // 订阅topic名称
subscriptionName = "sub_topic1", // 订阅名称
serialization = Serialization.JSON, // 序列化方式
subscriptionType = SubscriptionType.Shared, // 订阅模式,默认为独占模式
consumerName = "firstTopicConsumer", // 消费者名称
maxRedeliverCount = 3, // 最大重试次数
deadLetterTopic = "sub_topic1-DLQ" // 死信topic名称
)
public void firstTopicConsume(byte[] msg) {
// TODO process your message
System.out.println("Received a new message. content: [" + new String(msg) + "]");
// 如果消费失败,请抛出异常,这样消息会进入重试队列,之后可以重新消费,直到达到最大重试次数之后,进入死信队列。前提是要创建重试和死信topic
}


/**
* 顺序类型的消息可借助顺序类型的topic来完成,支持全局顺序和局部顺序两种类型
*/
@PulsarConsumer(topic = "topic2", subscriptionName = "sub_topic2")
public void orderTopicConsumer(byte[] msg) {
// TODO process your message
System.out.println("Received a order message. content: [" + new String(msg) + "]");
}


/**
* 监听死信topic,处理死信消息
*/
@PulsarConsumer(topic = "sub_topic1-DLQ", subscriptionName = "dead_sub")
public void deadTopicConsumer(byte[] msg) {
// TODO process your message
System.out.println("Received a dead message. content: [" + new String(msg) + "]");
}
}
说明:
以上是基于 Springboot Starter 方式对 Pulsar 简单使用的配置。详细使用可参见 DemoStarter GithubStarter Gitee

步骤5:查询消息

登录控制台,进入 消息查询 页面,可查看 Demo 运行后的消息轨迹。

消息轨迹如下:


说明
以上是基于 Springboot Starter 方式对 Pulsar 简单使用的配置。详细使用可参见 DemoStarter 文档

步骤5:查看消费情况

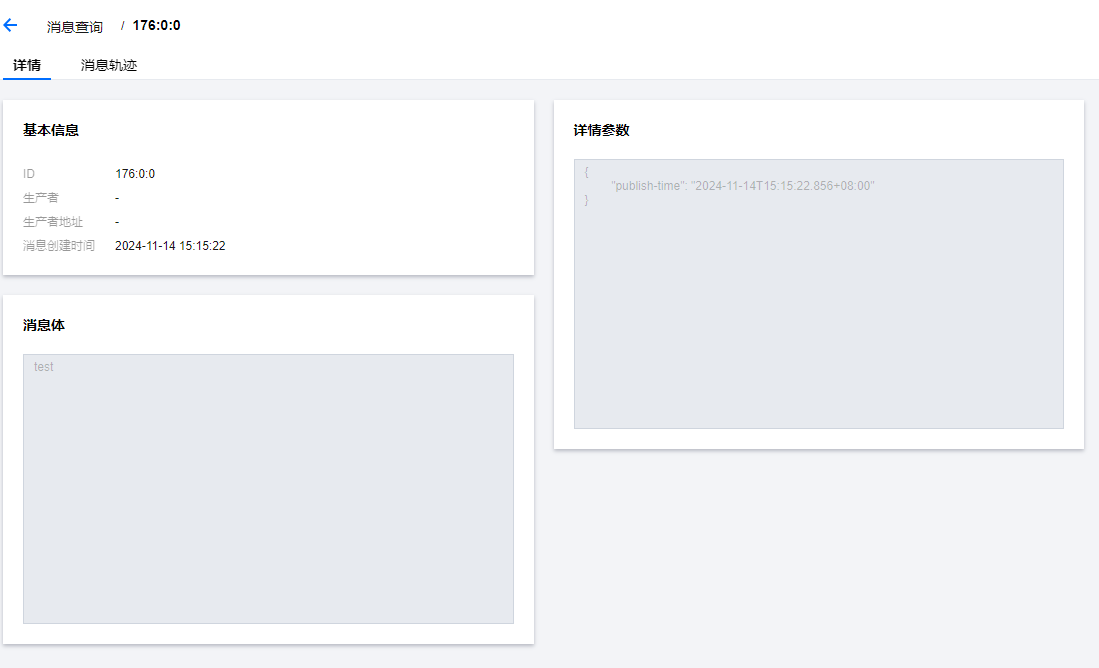

进入 消息查询 页面,可查看消息详情。



消息轨迹如下:
