Scenario
This document guides you on deploying an SSL certificate to Cloud Load Balance.
Preparations
You have logged in to the Certificate Management console and successfully obtained a certificate (refer to How to Apply for a Free Domain Certificate).
Instructions
Note:
Before proceeding, please ensure that you have instances in your Cloud Load Balance console. If not, create an instance first.
1. On the My Certificates > All page, click the Issued tab, select the certificate you want to deploy, and click the Certificate ID in the Certificate Information column.
2. Navigate to the Certificate Details management page, and in the One-Click Certificate Deployment section, click Cloud Load Balance.
Note:
Currently, the South China (Shenzhen Finance) region is not supported.
3. In the pop-up Deploy Certificate window, select Deployment Type as Cloud Load Balance, and choose the resource instance and listener resource.
Note:
If you have not created a listener for your Cloud Load Balance (CLB) instance, you can follow the instructions in Adding a Listener.
4. Click OK to complete the operation successfully, as shown below:
Adding a Listener
1. Log in to the Cloud Load Balance console, select the listener you need to configure, and click Configure Listener.
2. Navigate to the Basic Information page of the instance and select the Listener Management tab.
3. In the HTTP/HTTPS listener section, click Create to open the Create Listener pop-up window.

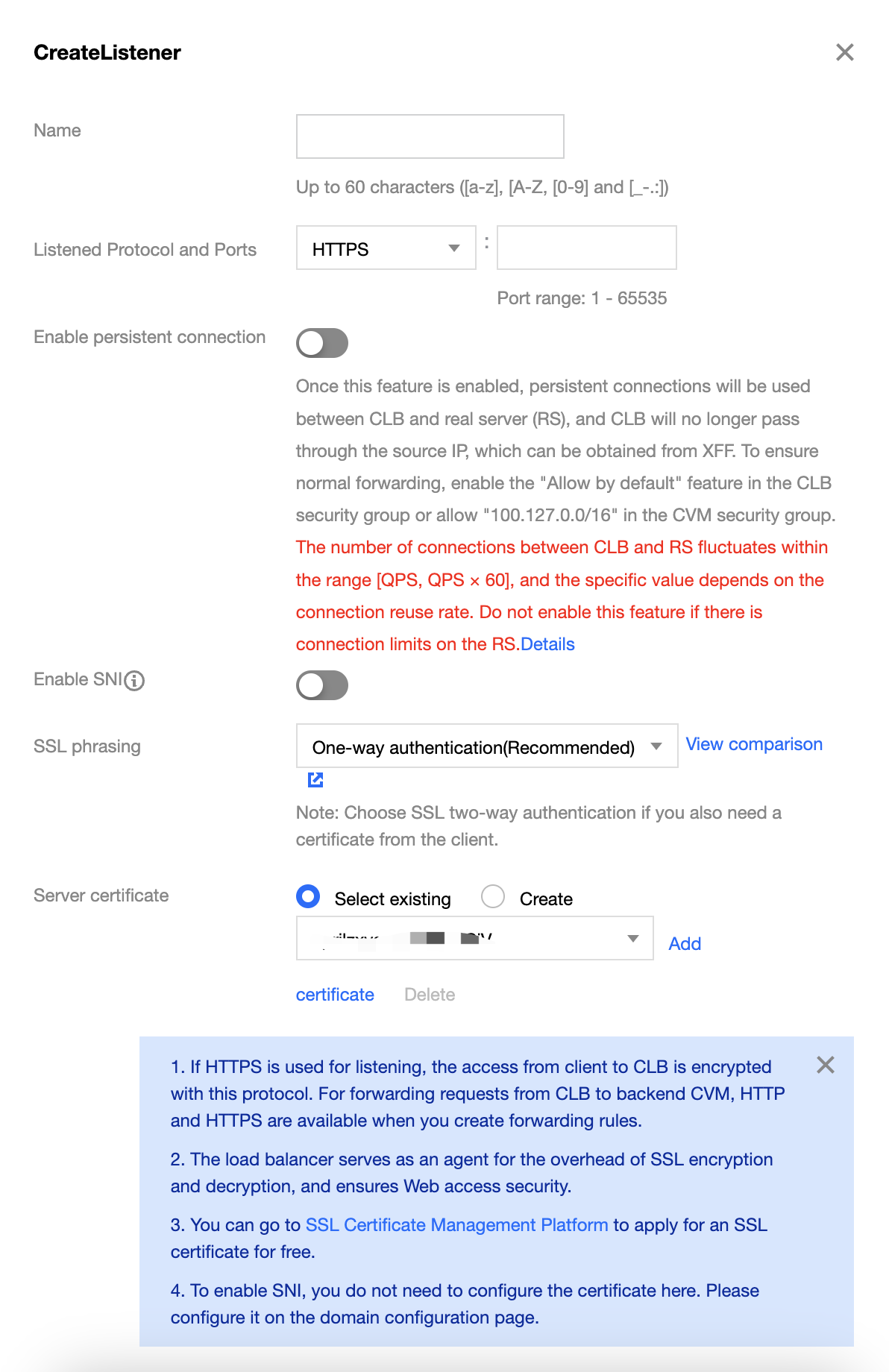

4. Switch the listening protocol port to HTTPS, and you can select an existing server certificate, as shown in the image below:
Note
If the server certificate selected here is the one to be deployed to the Cloud Load Balance instance, there is no need to perform the deployment to Cloud Load Balance operation.
5. Click Submit to successfully configure the listener.
