To prevent high traffic caused by URL resource abuse, use hotlink protection to encrypt resources and prevent abuse.
Specific Requirements
Test URL: http://www.qcdntest.cn/test.jpg.
Hotlink protection allowlist: test.qcdntest.cn.
Empty referer option: Do not allow empty referer access;
Configuration Steps

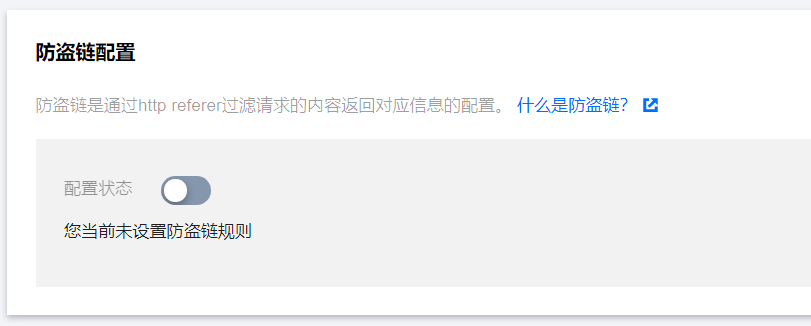

1. In the console menu bar, select Domain Management, click Management on the right side of the domain to enter the domain configuration page, and find hotlink protection configuration in Access Control. By default, the authentication configuration is disabled:

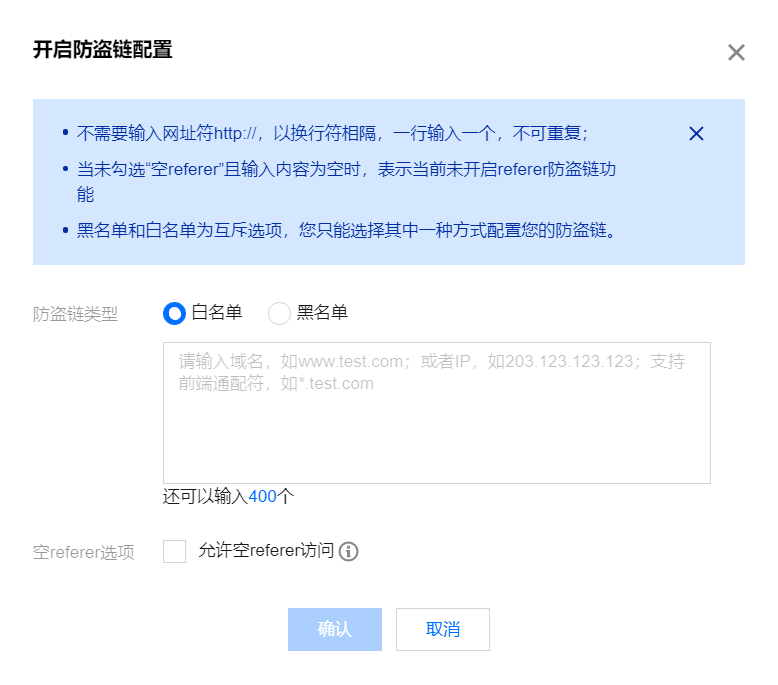

2. Turn on the configuration status, and a configuration box will pop up to enter the configuration items.
3. Configure hotlink protection blocklist or allowlist
For example, add test.qcdntest.cn to the allowlist.
Test Verification
This test uses the hotlink protection allowlist mode for verification. For tests in other modes, refer to the above steps for configuration.
Test URL: http://www.qcdntest.cn/test.jpg
Hotlink protection allowlist: test.qcdntest.cn
Empty referer option: Do not allow empty referer access.
Verification Scenario One

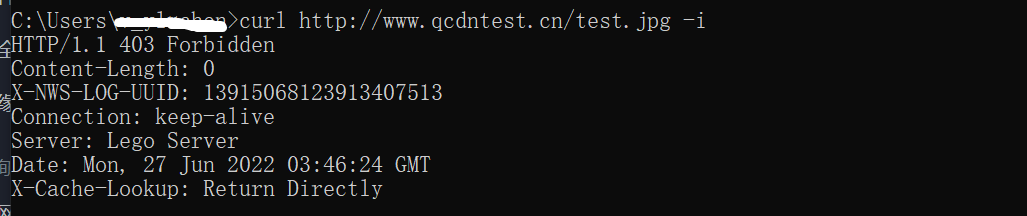

Test empty referer access and verify the returned result.
Execute command:
curl http://www.qcdntest.cn/test.jpg -i
Return 403 status code, the configuration of not allowing empty referer access takes effect.
Verifying Scenario Two

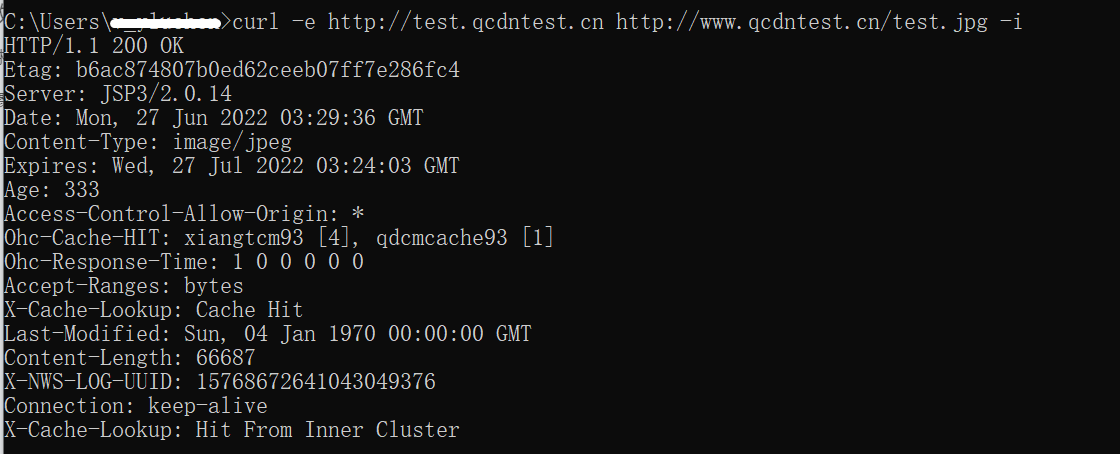

Access with allowlist referer and verify the returned result.
Execute command:
