Managing Classiclink

Last updated: 2024-01-12 14:36:40

On this page:

Creating a classiclink

A classiclink associates classic network-based a CVM with a VPC to enable interconnection between the VPC and the classic network. This allows classic network-based CVMs to communicate with VPC resources.
Notes
The private IPs of the associated classic network-based CVMs will be automatically added to the local policy of the VPC's route table. This allows interconnection, without the need to manually modify the routing policy of the VPC.
After a classic network-based CVM is associated with a VPC, their security group and network ACL settings will remain effective.

Instructions

1. Log in to the VPC console.
2. Select the region, and click the ID of the VPC TomVPC that needs a classiclink to access the details page.
Notes
In this scenario, the VPC network is TomVPC.

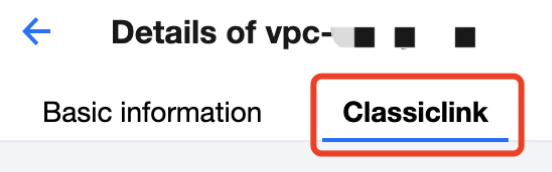

3. Click the Classiclink tab, and then click Associate with CVM.

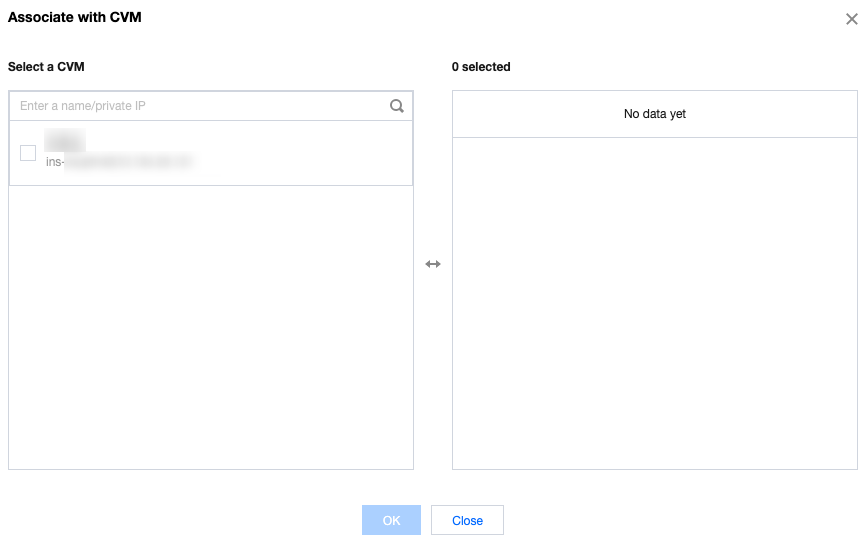

4. In the pop-up window, select the classic network-based CVM that needs to be associated with this VPC, such as TomCVM, and click OK.


Viewing classiclinks

You can view the list of classic network-based CVMs that interconnect with a VPC.

Instructions

1. Log in to the VPC console.
2. Select the region, and click the ID of the VPC you want to view to access the details page.
3. Click the Classiclink tab to view the list of classic network-based CVMs associated with the VPC.

4. Enter a private IP in the top-right corner search box to quickly locate the CVM.

Deleting a classiclink

This action disassociates a classic network-based CVM from a VPC and terminates their interconnection.

Instructions

1. Log in to the VPC console.
2. Click the ID of the VPC for which you want to remove a classiclink to access the details page.

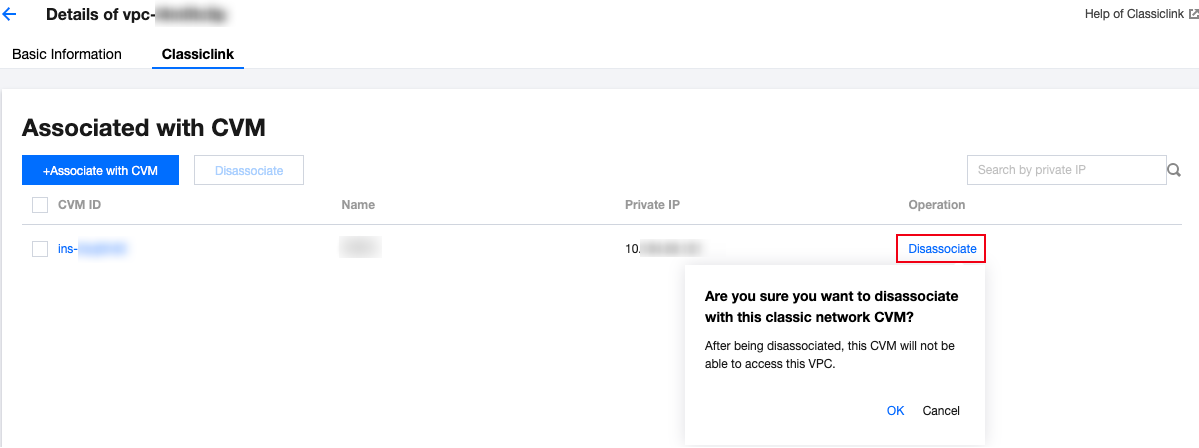

3. Click the Classiclink tab, locate the CVM to be dissociated in the classic network-based CVM list, and click Dissociate in the operation column.

4. Carefully read the notes and click OK.
5. To disassociate multiple CVMs, you can select the CVMs to be disassociated and click Disassociate above the list.
