本文只是简单的参考vpp文件实现基本memif 接口实现vpp之间的通信。

memif介绍

memif是一种性能非常高的直接内存接口类型，可以在Vpp程序之间使用。它使用文件套接字作为控制通道来设置共享内存。

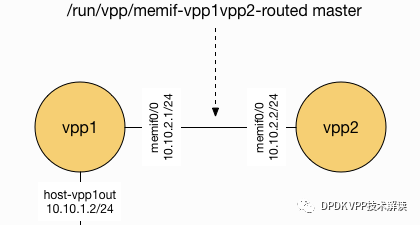

基于memif 实现两个vpp的通信

分别设置vpp1 和vpp2的启动配置文件： startup1.conf 文件内容如下 startup2.conf 中的 cli-listen修改为cli-vpp2.sock

##cat startup1.conf
unix {
  nodaemon
  log /var/log/vpp/vpp.log
  full-coredump
  cli-listen /run/vpp/cli-vpp1.sock
  gid vpp
}

api-trace {
  on
}

api-segment {
  gid vpp
}

socksvr {
  default
}

cpu {
}

这样我们就可以在一个环境上分别启动vpp1和vpp2。

vpp1 配置如下：

vppctl -s /run/vpp/cli-vpp1.sock create interface memif id 0 master
vppctl -s /run/vpp/cli-vpp1.sock set interface state memif0/0 up
vppctl -s /run/vpp/cli-vpp1.sock set interface ip addr memif0/0 192.168.1.1/24

vpp2配置如下：

vppctl -s /run/vpp/cli-vpp2.sock create interface memif id 0 slave
vppctl -s /run/vpp/cli-vpp2.sock set interface state memif0/0 up
vppctl -s /run/vpp/cli-vpp2.sock set interface ip addr memif0/0 192.168.1.2/24

这样就vpp1和vpp2 就通过memif方式搭建OK了，可以在互相ping对方都是可以ping通的。

DBGvpp# ping 192.168.1.1
116 bytes from 192.168.1.1: icmp_seq=2 ttl=64 time=32.0338 ms
116 bytes from 192.168.1.1: icmp_seq=3 ttl=64 time=32.0211 ms
116 bytes from 192.168.1.1: icmp_seq=4 ttl=64 time=24.6519 ms
116 bytes from 192.168.1.1: icmp_seq=5 ttl=64 time=17.2863 ms

Statistics: 5 sent, 4 received, 20% packet loss

下面是通过设置trace抓取的对方收包信息.主要这里不是dpdk-input而是memif-input。

DBGvpp# clear trace
DBGvpp# trace add memif-input 10
DBGvpp# show trace
------------------- Start of thread 0 vpp_main -------------------
Packet 1

04:00:50:799459: memif-input
  memif: hw_if_index 3 next-index 4
    slot: ring 0
04:00:50:799468: ethernet-input
  frame: flags 0x1, hw-if-index 3, sw-if-index 3
  IP4: 02:fe:a1:90:12:a0 -> 02:fe:73:bf:65:8b
04:00:50:799473: ip4-input
  ICMP: 192.168.1.2 -> 192.168.1.1
    tos 0x00, ttl 254, length 96, checksum 0x3949
    fragment id 0x0000
  ICMP echo_request checksum 0x3551

使用VPP extras目录libmemif 来测试一下

 ######编译
 cd vpp/extras/libmemif
 mkdir build
 cd build
  cmake ..
  make install
  #运行
  [14:38:16]root:memif$ ./icmp_responder-epoll
LIBMEMIF EXAMPLE APP: ICMP_Responder
==============================
libmemif version: 3.1
memif version: 512
commands:
        help - prints this help
        exit - exit app
        conn <index> <mode> [<interrupt-desc>] - create memif. index is also used as interface id, mode 0 = slave 1 = master, interrupt-desc none = default 0 = if ring is full wait 1 = handle only ARP requests
        del  <index> - delete memif
        show - show connection details
        ip-set <index> <ip-addr> - set interface ip address
        rx-mode <index> <qid> <polling|interrupt> - set queue rx mode
        sh-count - print counters
        cl-count - clear counters
        send <index> <tx> <ip> <mac> - send icmp
conn 0 0 #启动了解
INFO: memif connected!
show #查看的当前接口配置的
MEMIF DETAILS
==============================
interface index: 0
        interface ip: 192.168.1.2
        interface name: memif_connection
        app name: ICMP_Responder
        remote interface name: memif0/0
        remote app name: VPP 19.08.1-304~g7984cd97b-dirt
        id: 0
        secret: (null)
        role: slave
        mode: ethernet
        socket filename: /run/vpp/memif.sock
        rx queues:
                queue id: 0
                ring size: 2048
                ring rx mode: interrupt
                ring head: 2070
                ring tail: 22
                buffer size: 2048
        tx queues:
                queue id: 0
                ring size: 2048
                ring rx mode: polling
                ring head: 22
                ring tail: 22
                buffer size: 2048
        link: up

这样我们在vpp1上来ping 192.168.1.2 也能ping通。

总结：

本文只是简单地学习了基于memif的搭建vpp之间的通信配置。以及使用libmemif 和vpp之间进行建联。具体底层实现细节还需要深入研究。

参考链接：

https://fd.io/docs/vpp/master/gettingstarted/progressivevpp/twovppinstances.html
https://docs.fd.io/vpp/17.10/libmemif_example_setup_doc.html
https://doc.dpdk.org/guides/nics/memif.html
