【DIY】用安信可WiFi+蓝牙模组Ai-WB2-32S-Kit实现安防检测

以下作品由安信可社区用户

ch999制作

前言：

笔者这次决定使用AI-WB2-32s-Kit＋雷达模块制+蓝牙信标作安防检测，灵感来源是想着马上毕业要外出租房，担心陌生人进入房间。

制作这个项目，目的是实现当有人进入房间时起到提示作用。但如果仅用雷达检查，每次自己回家都也会触发报告，那样就太烦了，所以决定通过蓝牙信标来过滤指定目标。

01

材料

●Ai-WB2-32S-Kit

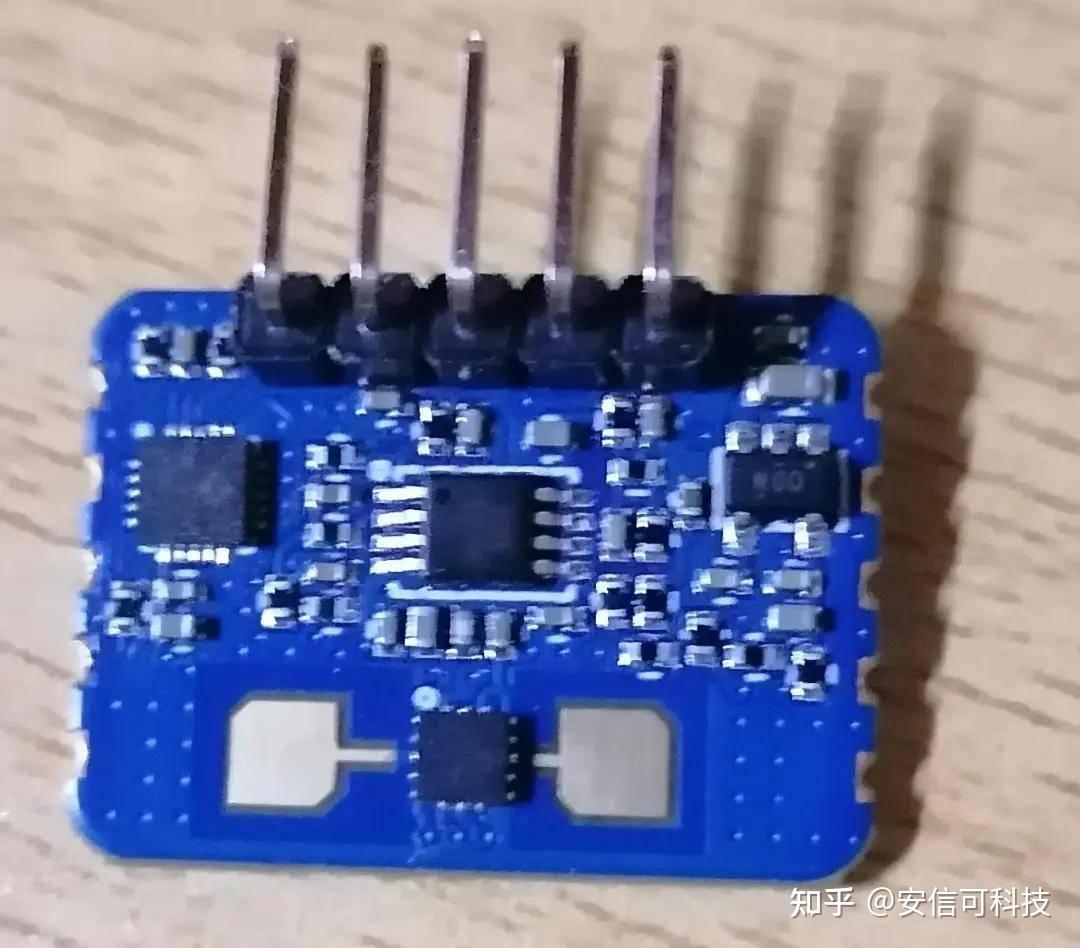

●雷达模块（自带uart串口，通过串口输出数据）

●蓝牙模块

●服务器，用来做中转发送消息

雷达部分的代码

#include <stdio.h> #include <string.h> #include <FreeRTOS.h> #include <task.h> #include <blog.h> #include "bl_sys.h" #include <stdio.h> #include <cli.h> #include <hosal_uart.h> #include <bl_gpio.h> #include "bl_uart.h" #define TAG "uart_demo" #define GPIO_LED_PIN 3 hosal_uart_dev_t uart_dev_log = { .config = { .uart_id = 0, .tx_pin = 16, // TXD GPIO .rx_pin = 7, // RXD GPIO .cts_pin = 255, .rts_pin = 255, .baud_rate = 115200, .data_width = HOSAL_DATA_WIDTH_8BIT, .parity = HOSAL_NO_PARITY, .stop_bits = HOSAL_STOP_BITS_1, .mode = HOSAL_UART_MODE_POLL, }, }; //UART radar void uart_radar_data(void *param) { char data[64]; int ret; while (1) { /* UART receive poll */ ret = hosal_uart_receive(&uart_dev_log, data, sizeof(data)-1); if (ret > 0) { bl_gpio_output_set(GPIO_LED_PIN, 1);//set led } else{ bl_gpio_output_set(GPIO_LED_PIN, 0);//set led } /* sscanf 是 C 语言标准库中的一个函数， * 用于从字符串中按照指定的格式读取数据， * 并将数据存储到指定的变量中123。 * 它的原型定义在 <stdio.h> 头文件中 */ //雷达串口输出数据的格式: v=-0.6 km/h, str=208 float velocity; int str_value; if (2 == sscanf(data, "v=%f km/h, str=%d", &velocity, &str_value)) { printf("Parsed: v=%.1f, str=%d\r\n", velocity, str_value); } vTaskDelay(200); } } void main(void) { /* UART InIt device */ hosal_uart_init(&uart_dev_log); /*LED*/ bl_gpio_enable_output(GPIO_LED_PIN, 0, 0); xTaskCreate(uart_radar_data, "radar", 1024, NULL, 15, NULL); }

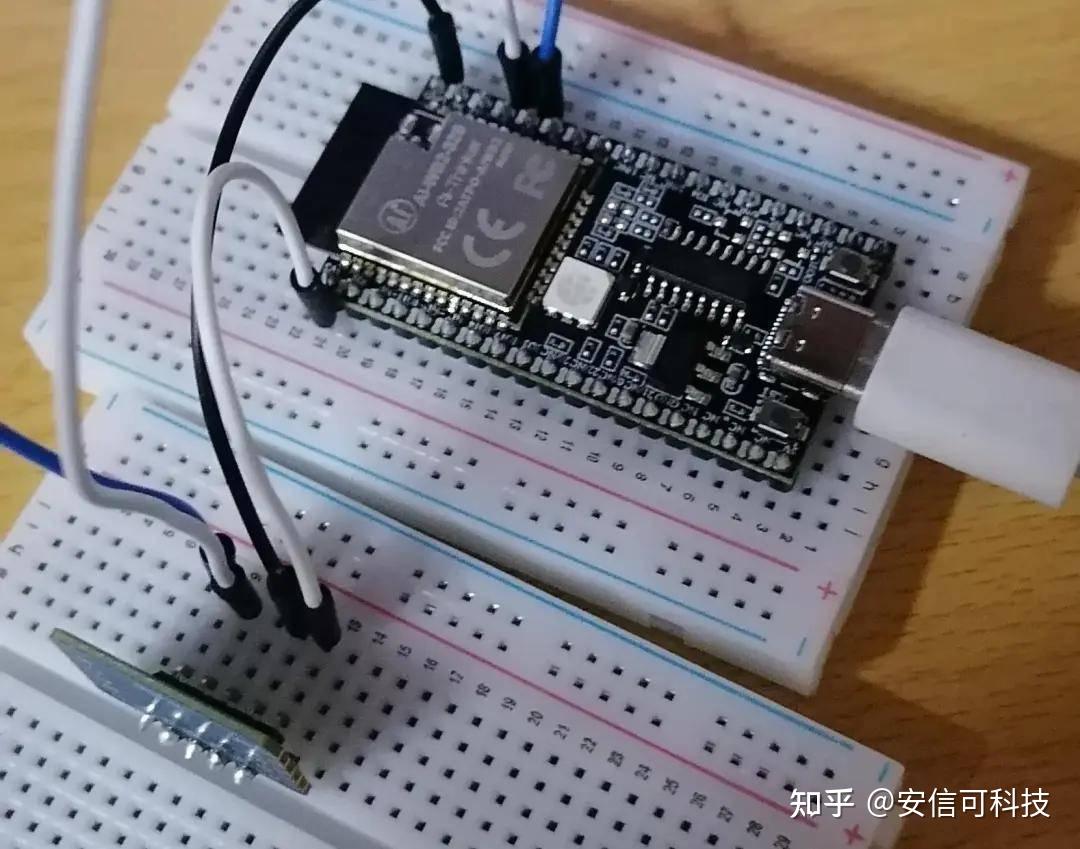

第一阶段先通过这个小项目，测试了点灯和串口，以及结合外设实现安防功能。

接下来要做的：蓝牙信标（该部分以完成）

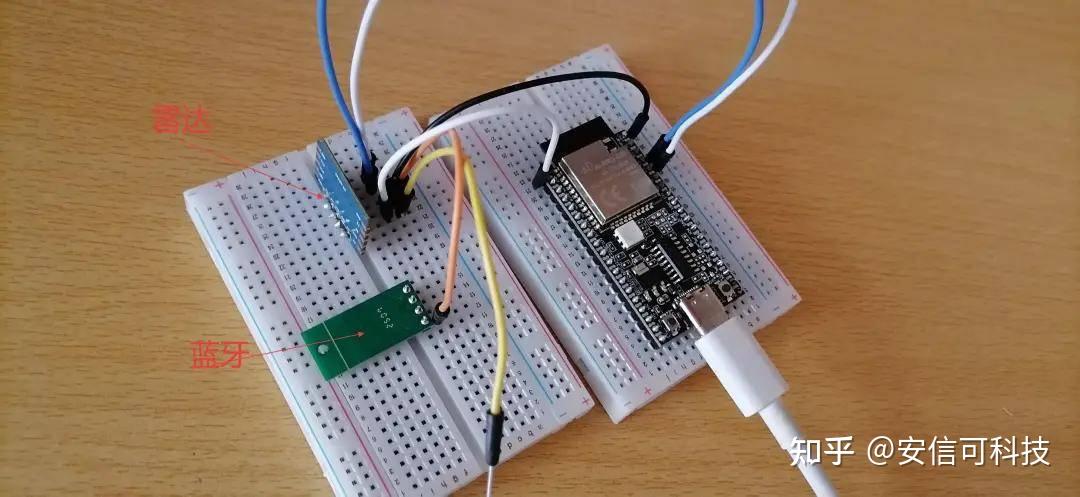

开发板以主机模式扫描设备，雷达发现有人进屋且扫描到指定MAC设备，表示是自己回家，否则就是陌生人闯入。

蓝牙部分代码

在bl_interface.c库文件里添加如下代码实现mac比对和rssi。

// int ble_master_get_rssi_by_mac(uint8_t *target_mac){ if(target_mac==NULL)return -127; int ret=0; int rssi=0; int retry=3; struct bt_le_scan_param scan_param; char scan_data[250]; scan_param.type = BT_LE_SCAN_TYPE_ACTIVE; scan_param.filter_dup = BT_LE_SCAN_FILTER_DUPLICATE; scan_param.interval = 320; scan_param.window = 48; master_current_scan = 0; memset(scan_le_addr, 0, sizeof(scan_le_addr)); memset(master_scan_tbl, 0, sizeof(master_scan_tbl)); //scan ret = bt_le_scan_start(&scan_param, scan_device_found); if(ret!=0){rssi=-127;} vTaskDelay(800 / portTICK_PERIOD_MS);//持续扫描的时间 for (int i = 0; i < master_current_scan; i++) { ble_reverse_byte(master_scan_tbl[i].mac, 6); if(memcmp(target_mac,master_scan_tbl[i].mac, 6)==0){ sprintf(scan_data,"My BLE MAC:%02X%02X%02X%02X%02X%02X RSSI:%i name:%s\r\n", master_scan_tbl[i].mac[0],master_scan_tbl[i].mac[1],master_scan_tbl[i].mac[2], master_scan_tbl[i].mac[3],master_scan_tbl[i].mac[4],master_scan_tbl[i].mac[5], master_scan_tbl[i].rssi, master_scan_tbl[i].name); bleuart_printf(scan_data); rssi=master_scan_tbl[i].rssi; break; } else{ //bleuart_printf("Not Found MAC Device\r\n"); rssi= -127; } } return rssi; }

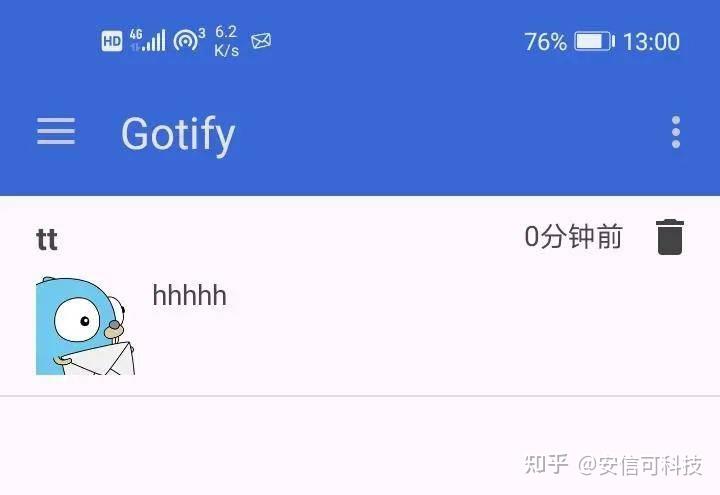

再部署完服务器后，进行一下简单测试。

完成雷达扫描和蓝牙信标后，现在来完成信息发送功能，参照安信可社区这位大佬的做法 ：用AI-WB2消息推送到个人通知https://bbs.ai-thinker.com/forum.php?mod=viewthread&tid=45846&highlight=wb2&_dsign=04722896

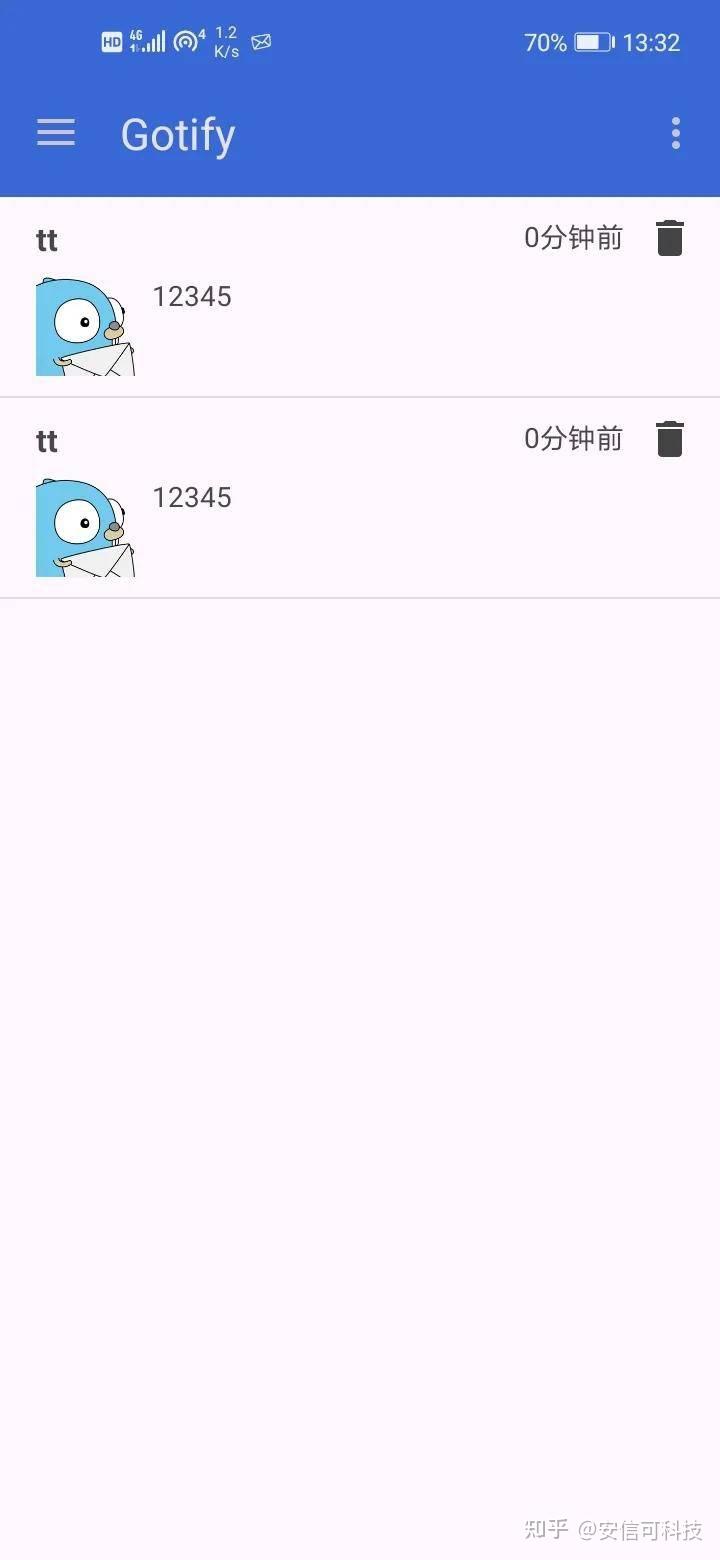

可以看到手机可以正常接收消息。

接下来是开发板代码,notify部分的代码参考原文链接，记得添加必要的network库到MAKEFILE以及修改pro_config.mk

notify.h

#ifndef __NOTIFY_H__ #define __NOTIFY_H__ #define WEB_SERVER "192.168.43.218" //这里改成你搭建的gotify服务器地址 #define WEB_PORT "8000" //默认地址是80 我改为了8000,dokcer部署时选到什么端口这里填什么端口，最好避开80，怕运营商屏蔽 #define WEB_PATH_BASE "/message" #define QUERY_STRING "?token=AQSv2fQhrE.8_Fq" //token替换为你的通道token，token加到token=Axxxxxx后面 void notify_task(void *pvParameters); #endif

notify.c

这里的Wi-Fi是从sdk里的Wi-Fi demo修改过来的。

#include "notify.h" #include <FreeRTOS.h> #include <blog.h> #include <cli.h> #include <http_client.h> #include <lwip/err.h> #include <lwip/netdb.h> #include <lwip/sockets.h> #include <lwip/tcp.h> #include <stdio.h> #include <task.h> #define BOUNDARY "---" static char REQUEST[512]; typedef struct { const char *title; const char *message; const char *priority; } Message; void notify_task(void *pvParameters) { Message *params = (Message *)pvParameters; // 接收参数 // // // printf("title=%s \r\nmessage=%s\r\npriority=%s\r\n", params->title, params->message, params->priority); // const struct addrinfo hints = { .ai_family = AF_INET, .ai_socktype = SOCK_STREAM, }; struct addrinfo *res; struct in_addr *addr; int s, r; char recv_buf[4096]; while (1) { int err = getaddrinfo(WEB_SERVER, WEB_PORT, &hints, &res); if (err != 0 || res == NULL) { blog_error("DNS lookup failed err=%d res=%p", err, res); vTaskDelay(1000 / portTICK_PERIOD_MS); continue; } /* Code to print the resolved IP. Note: inet_ntoa is non-reentrant, look at ipaddr_ntoa_r for "real" code */ addr = &((struct sockaddr_in *)res->ai_addr)->sin_addr; blog_info("DNS lookup succeeded. IP=%s", inet_ntoa(*addr)); s = socket(res->ai_family, res->ai_socktype, 0); if (s < 0) { blog_error("... Failed to allocate socket."); freeaddrinfo(res); vTaskDelay(1000 / portTICK_PERIOD_MS); continue; } blog_info("... allocated socket"); if (connect(s, res->ai_addr, res->ai_addrlen) != 0) { blog_error("... socket connect failed errno=%d", errno); close(s); freeaddrinfo(res); vTaskDelay(4000 / portTICK_PERIOD_MS); continue; } blog_info("... connected"); freeaddrinfo(res); // 构造请求体 char body[1024]; snprintf(body, sizeof(body), "--%s\r\n" "Content-Disposition: form-data; name=\"title\"\r\n\r\n" "%s\r\n" "--%s\r\n" "Content-Disposition: form-data; name=\"message\"\r\n\r\n" "%s\r\n" "--%s\r\n" "Content-Disposition: form-data; name=\"priority\"\r\n\r\n" "%s\r\n" "--%s--\r\n", BOUNDARY, params->title, BOUNDARY, params->message, BOUNDARY, params->priority, BOUNDARY); snprintf(REQUEST, sizeof(REQUEST), "POST %s%s HTTP/1.0\r\n" "Host: %s:%s\r\n" "User-Agent: aithinker wb2\r\n" "Content-Type: multipart/form-data; boundary=%s\r\n" "Content-Length: %d\r\n" "\r\n" "%s", WEB_PATH_BASE, QUERY_STRING, WEB_SERVER, WEB_PORT, BOUNDARY, strlen(body), body); if (write(s, REQUEST, strlen(REQUEST)) < 0) { blog_error("... socket send failed"); close(s); vTaskDelay(4000 / portTICK_PERIOD_MS); continue; } blog_info("... socket send success"); struct timeval receiving_timeout; receiving_timeout.tv_sec = 5; receiving_timeout.tv_usec = 0; if (setsockopt(s, SOL_SOCKET, SO_RCVTIMEO, &receiving_timeout, sizeof(receiving_timeout)) < 0) { blog_error("... failed to set socket receiving timeout"); close(s); vTaskDelay(4000 / portTICK_PERIOD_MS); continue; } blog_info("... set socket receiving timeout success"); // FIXME fix putchar extern int bl_putchar(int c); /* Read HTTP response */ do { bzero(recv_buf, sizeof(recv_buf)); r = read(s, recv_buf, sizeof(recv_buf) - 1); for (int i = 0; i < r; i++) { bl_putchar(recv_buf[i]); } } while (r > 0); blog_info("... done reading from socket. Last read return=%d " "errno=%d\r\n", r, errno); close(s); for (int countdown = 10; countdown >= 0; countdown--) { blog_info("%d... ", countdown); vTaskDelay(1000 / portTICK_PERIOD_MS); } blog_info("Starting again!"); } } #include <stdio.h> #include <string.h> #include <FreeRTOS.h> #include <task.h> #include <timers.h> #include <stdint.h> #include <vfs.h> #include <aos/kernel.h> #include <aos/yloop.h> #include <event_device.h> #include <cli.h> #include <lwip/tcpip.h> #include <lwip/sockets.h> #include <lwip/netdb.h> #include <lwip/tcp.h> #include <lwip/err.h> #include <netutils/netutils.h> #include <bl602_glb.h> #include <bl602_hbn.h> #include <bl60x_fw_api.h> #include <bl_uart.h> #include <bl_chip.h> #include <bl_sec.h> #include <bl_cks.h> #include <bl_irq.h> #include <bl_dma.h> #include <bl_adc.h> #include <bl_timer.h> #include <bl_gpio_cli.h> #include <bl_wdt_cli.h> #include <bl_gpio.h> #include <hal_sys.h> #include <hal_gpio.h> #include <hal_boot2.h> #include <hal_board.h> #include <looprt.h> #include <loopset.h> #include <bl_sys_time.h> #include <bl_sys_ota.h> #include <bl_romfs.h> #include <fdt.h> #include <bl_timer.h> #include <easyflash.h> #include <utils_log.h> #include <libfdt.h> #include <blog.h> #include <hosal_uart.h> #include "bluetooth.h" #include "ble_interface.h" #include <bl_sys.h> #include "notify.h" #include <wifi_mgmr_ext.h> #include <http_client.h> #include <hal_wifi.h> #include <event_groups.h> #define ROUTER_SSID "Play4T" #define ROUTER_PWD "qq123456" typedef struct { const char *title; const char *message; const char *priority; } Message; hosal_uart_dev_t ble_uart_dev = { .config = { .uart_id = 0, .tx_pin = 16, // TXD GPIO .rx_pin = 7, // RXD GPIO .cts_pin = 255, .rts_pin = 255, .baud_rate = 115200, .data_width = HOSAL_DATA_WIDTH_8BIT, .parity = HOSAL_NO_PARITY, .stop_bits = HOSAL_STOP_BITS_1, .mode = HOSAL_UART_MODE_POLL, }, }; static wifi_conf_t conf = { .country_code = "CN", }; // bool is_Send=false; uint32_t last_send_time=0; int rssi; // 构建消息内容结构体 static const char title[] = "tt"; static const char message[] = "12345"; static const char priority[] = "0"; static uint8_t target_mac[6] ={0xD1,0x10,0x91,0x29,0x8F,0xF5}; // 目标设备MAC地址，请改为实际MAC static Message msg = {title, message, priority}; extern uint8_t axk_HalBleInit(); /** * @brief wifi_sta_connect * wifi station mode connect start * @param ssid * @param password */ static void wifi_sta_connect(char *ssid, char *password) { wifi_interface_t wifi_interface; wifi_interface = wifi_mgmr_sta_enable(); wifi_mgmr_sta_connect(wifi_interface, ssid, password, NULL, NULL, 0, 0); } // WiFi事件处理 static void event_cb_wifi_event(input_event_t *event, void *private_data) { static char *ssid; static char *password; switch (event->code) { case CODE_WIFI_ON_INIT_DONE: { printf("[APP] [EVT] INIT DONE %lld\r\n", aos_now_ms()); wifi_mgmr_start_background(&conf); } break; case CODE_WIFI_ON_MGMR_DONE: { printf("[APP] [EVT] MGMR DONE %lld\r\n", aos_now_ms()); //_connect_wifi(); wifi_sta_connect(ROUTER_SSID, ROUTER_PWD); } break; case CODE_WIFI_ON_SCAN_DONE: { printf("[APP] [EVT] SCAN Done %lld\r\n", aos_now_ms()); // wifi_mgmr_cli_scanlist(); } break; case CODE_WIFI_ON_DISCONNECT: { printf("[APP] [EVT] disconnect %lld\r\n", aos_now_ms()); } break; case CODE_WIFI_ON_CONNECTING: { printf("[APP] [EVT] Connecting %lld\r\n", aos_now_ms()); } break; case CODE_WIFI_CMD_RECONNECT: { printf("[APP] [EVT] Reconnect %lld\r\n", aos_now_ms()); } break; case CODE_WIFI_ON_CONNECTED: { printf("[APP] [EVT] connected %lld\r\n", aos_now_ms()); } break; case CODE_WIFI_ON_PRE_GOT_IP: { printf("[APP] [EVT] connected %lld\r\n", aos_now_ms()); } break; case CODE_WIFI_ON_GOT_IP: { printf("[APP] [EVT] GOT IP %lld\r\n", aos_now_ms()); printf("[SYS] Memory left is %d Bytes\r\n", xPortGetFreeHeapSize()); } break; case CODE_WIFI_ON_PROV_SSID: { printf("[APP] [EVT] [PROV] [SSID] %lld: %s\r\n", aos_now_ms(), event->value ? (const char *)event->value : "UNKNOWN"); if (ssid) { vPortFree(ssid); ssid = NULL; } ssid = (char *)event->value; } break; case CODE_WIFI_ON_PROV_BSSID: { printf("[APP] [EVT] [PROV] [BSSID] %lld: %s\r\n", aos_now_ms(), event->value ? (const char *)event->value : "UNKNOWN"); if (event->value) { vPortFree((void *)event->value); } } break; case CODE_WIFI_ON_PROV_PASSWD: { printf("[APP] [EVT] [PROV] [PASSWD] %lld: %s\r\n", aos_now_ms(), event->value ? (const char *)event->value : "UNKNOWN"); if (password) { vPortFree(password); password = NULL; } password = (char *)event->value; } break; case CODE_WIFI_ON_PROV_CONNECT: { printf("[APP] [EVT] [PROV] [CONNECT] %lld\r\n", aos_now_ms()); printf("connecting to %s:%s...\r\n", ssid, password); wifi_sta_connect(ssid, password); } break; case CODE_WIFI_ON_PROV_DISCONNECT: { printf("[APP] [EVT] [PROV] [DISCONNECT] %lld\r\n", aos_now_ms()); } break; default: { printf("[APP] [EVT] Unknown code %u, %lld\r\n", event->code, aos_now_ms()); /*nothing*/ } } } //开启蓝牙扫描必须要声明bleuart_printf这个函数，不知道为什么，这个函数在ble_interface.c中要用到 //注释掉ble_interface.c会报错，实再没看懂，留着吧 void bleuart_printf(char *buf) { hosal_uart_send(&ble_uart_dev, buf, strlen(buf)); } // UART InIt device static void uart_init(void) { hosal_uart_init(&ble_uart_dev); } //UART radar static void radar_detection(void *param) { char data[64]; while (1) { //接收到数据data hosal_uart_receive(&ble_uart_dev, data, sizeof(data)-1); /*data: v=-0.6 km/h, str=208 * sscanf 是 C 语言标准库中的一个函数， * 用于从字符串中按照指定的格式读取数据， * 并将数据存储到指定的变量中123。 * 它的原型定义在 <stdio.h> 头文件中 */ //解析data float velocity; int str_value; if (2 == sscanf(data, "v=%f km/h, str=%d", &velocity, &str_value)) { //printf("radar data: v=%.1f, str=%d\r\n", velocity, str_value); } if(str_value>1000 && rssi==-127){ xTaskCreate(¬ify_task, "notify_task", 2048, &msg, 5, NULL); printf("There are strangers entering the house\r\n"); } vTaskDelay(200); } } //BLE static void ble_loop_proc(void *pvParameters) { char data[250]; while (1) { rssi=ble_master_get_rssi_by_mac(target_mac); // 扫描指定MAC的蓝牙设备 if(rssi>-80){ bl_gpio_output_set(3, 1); } else{ bl_gpio_output_set(3, 0); } hosal_uart_receive(&ble_uart_dev, data, sizeof(data)); vTaskDelay(100/portTICK_PERIOD_MS); } } ////发送消息 //static void send_message(void *param){ // while(1){ // if(is_BreakIn){ //printf("is_BreakIn"); // //uint32_t current_time=aos_now_ms(); // //if((current_time-last_send_time)>10){ // xTaskCreate(¬ify_task, "notify_task", 1024, &msg, 5, NULL); // //last_send_time=current_time; // is_BreakIn=false; // printf("There are strangers entering the house\r\n"); // //} // // } // } // //} void main() { uart_init(); bl_sys_init(); // if use BLE ,must InIt axk_HalBleInit(); //printf("BLE MASTER InIt\r\n"); tcpip_init(NULL, NULL); aos_register_event_filter(EV_WIFI, event_cb_wifi_event, NULL); hal_wifi_start_firmware_task(); aos_post_event(EV_WIFI, CODE_WIFI_ON_INIT_DONE, 0); bl_gpio_enable_output(3, 0, 0);//GPIO xTaskCreate(ble_loop_proc, "ble master", 1024, NULL, 15, NULL); xTaskCreate(radar_detection, "radar", 1024, NULL, 15, NULL); // xTaskCreate(send_message, "send_message", 1024, NULL, 15, NULL); }

雷达扫描到有人时，如果开发板同时扫描到指定MAC地址的蓝牙，则表示自己回家，否则就发送消息到服务器，接下来只需要把服务器放公网上或者用内网穿透，即可实现公网通知了，当然用其他的消息通知也是一样的，看个人喜好。
