C++项目-高性能C++调度器设计与实现

struct JobSpec {
    std::string cmd;          // 要执行的命令字符串
    int cpu_cores{1};         // 需要的 CPU 核数
    size_t memory_mb{256};    // 需要的内存 MB
    int timeout_sec{0};       // 超时秒数，0 表示不限制
    int priority{0};          // 优先级，数值越大优先级越高
};

struct ResourceQuota {
    int total_cpu{4};           // 可用 CPU 总核数
    size_t total_mem_mb{2048};  // 可用内存总量 MB
};

enum class JobStatus {
    Pending,     // 已提交但尚未调度
    Running,     // 正在运行
    Succeeded,   // 成功结束（exit 0）
    Failed,      // 失败结束（非零退出码）
    Timeout,     // 超时被终止
    Cancelled    // 被取消
};

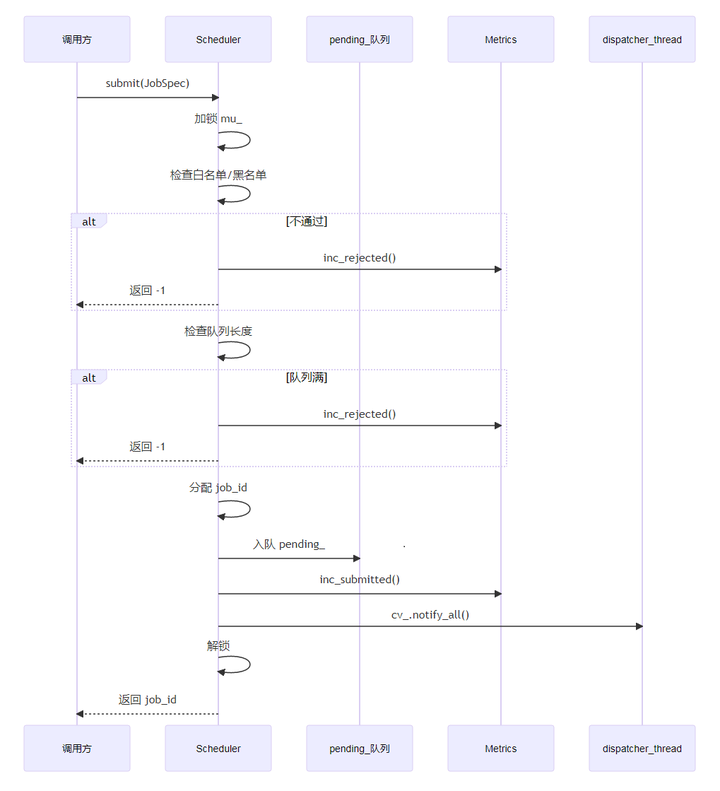

submit() → 校验白/黑名单 → 检查队列上限 → pending_.push_back()
  → inc_submitted() → cv_.notify_all()

dispatcher_loop() → pick_next_job() → rm_.reserve()
  → launch_job() → fork/exec → running_[id] = job

reaper_loop() → waitpid(WNOHANG) → 更新 exit_code/status
  → rm_.release() → cleanup_cgroup() → running_.erase(id)

class Scheduler {
public:
    explicit Scheduler(SchedulerOptions opts);
​
    // 提交任务，返回 job id 或 -1
    int submit(const JobSpec& spec);
​
    // 启动后台线程
    void start();
​
    // 停止调度器并等待线程退出
    void stop();
​
    // 判断是否空闲（无待处理和运行中任务）
    bool idle() const;
​
    // 获取指标快照
    Metrics::Snapshot metrics() const;
​
private:
    void dispatcher_loop();  // 调度循环
    void reaper_loop();      // 回收循环
    void psi_loop();         // PSI 监测循环
    void cron_loop();        // Cron 触发循环
    bool launch_job(Job& job);  // 启动任务进程
    bool pick_next_job(Job& out);  // 出队任务
    void restore_from_store();  // 持久化恢复
};

private:
    SchedulerOptions opts_;                    // 配置
    ResourceManager rm_;                       // 资源管理器
    std::vector<Job> pending_;                 // 待调度队列
    std::unordered_map<int, Job> running_;     // 运行中任务表
    mutable std::mutex mu_;                    // 互斥锁
    std::condition_variable cv_;               // 条件变量
    std::atomic<bool> shutting_down_{false};   // 关闭标志
    std::atomic<bool> psi_backpressure_{false}; // 背压标志
    Metrics metrics_;                          // 指标收集器
    std::unique_ptr<JobStore> store_;          // 持久化存储
    std::unique_ptr<CronScheduler> cron_sched_; // Cron 调度器
    std::unique_ptr<MetricsHttpServer> metrics_server_; // HTTP 服务

class ResourceManager {
public:
    explicit ResourceManager(ResourceQuota quota);
​
    // 尝试预留资源，成功返回 true
    bool reserve(int cpu, size_t mem_mb);
​
    // 释放资源（必须与 reserve 配对调用）
    void release(int cpu, size_t mem_mb);
​
    // 查询当前使用情况
    std::pair<int, size_t> used() const;
​
private:
    ResourceQuota quota_;
    int used_cpu_{0};
    size_t used_mem_mb_{0};
    mutable std::mutex mu_;
};

bool ResourceManager::reserve(int cpu, size_t mem_mb) {
    std::lock_guard lk(mu_);
    // 不做部分分配：要么全部满足要么拒绝
    if (used_cpu_ + cpu > quota_.total_cpu ||
        used_mem_mb_ + mem_mb > quota_.total_mem_mb) {
        return false;
    }
    used_cpu_ += cpu;
    used_mem_mb_ += mem_mb;
    return true;
}

# TYPE tasks_total counter
tasks_total{status="submitted"} 100
tasks_total{status="rejected"} 5
tasks_total{status="succeeded"} 80
tasks_total{status="failed"} 10
tasks_total{status="timeout"} 5
​
# TYPE tasks_running_current gauge
tasks_running_current 3
​
# TYPE tasks_pending_current gauge
tasks_pending_current 5

// 创建任务 cgroup 并设置 CPU/内存限制
std::string create_cgroup_for_job(int job_id, int cpu_cores,
                                   size_t mem_mb, const CgroupConfig& cfg);
​
// 将 pid 加入 cgroup
bool attach_pid_to_cgroup(pid_t pid, const std::string& cg_path);
​
// 清理 cgroup 目录
void cleanup_cgroup(const std::string& cg_path);

CREATE TABLE jobs (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    cmd TEXT NOT NULL,
    cpu_cores INTEGER,
    memory_mb INTEGER,
    timeout_sec INTEGER,
    priority INTEGER,
    status TEXT,           -- queued/running/succeeded/failed/timeout/launch_failed
    submit_ms INTEGER,
    start_ms INTEGER,
    end_ms INTEGER,
    exit_code INTEGER
);

class JobStore {
public:
    bool init(const std::string& path);
​
    // 插入任务
    int insert_job(const JobSpec& spec, PersistStatus status,
                   int64_t submit_ms, ...);
​
    // 更新状态
    void update_status(int id, PersistStatus status, ...);
​
    // 加载未完成任务
    std::vector<PersistedJob> load_unfinished();
};

void Scheduler::restore_from_store() {
    if (!store_) return;
​
    auto jobs = store_->load_unfinished();
    for (auto& pj : jobs) {
        Job job;
        job.id = next_id_++;
        job.spec = pj.spec;
        job.status = JobStatus::Pending;
        job.enqueue_time = std::chrono::steady_clock::now();
        pending_.push_back(job);
    }
    cv_.notify_all();
}

void CronScheduler::tick(SubmitCallback submit_cb) {
    auto now = std::chrono::system_clock::now();
    for (auto& tpl : templates_) {
        if (!tpl.enabled) continue;
        if (now >= tpl.next_run) {
            submit_cb(tpl.spec);  // 提交任务实例
            tpl.next_run = tpl.cron.next_run(now);  // 计算下次触发时间
        }
    }
}

class MetricsHttpServer {
public:
    using MetricsHandler = std::function<std::string()>;
​
    bool start(int port, MetricsHandler handler);
    void stop();
​
private:
    void accept_loop();
    void worker_loop();
    // ...
};

bool Scheduler::launch_job(Job& job) {
    // 创建 cgroup
    std::string cg_path;
    if (opts_.cgroup.enabled) {
        cg_path = create_cgroup_for_job(job.id, job.spec.cpu_cores,
                                        job.spec.memory_mb, opts_.cgroup);
    }
​
    pid_t pid = fork();
    if (pid == 0) {
        // 子进程
        setpgid(0, 0);  // 建立独立进程组
​
        if (!cg_path.empty()) {
            attach_pid_to_cgroup(getpid(), cg_path);
        }
​
        // 设置 rlimit
        if (opts_.rlimit_nofile >= 0) {
            struct rlimit rl;
            rl.rlim_cur = rl.rlim_max = opts_.rlimit_nofile;
            setrlimit(RLIMIT_NOFILE, &rl);
        }
​
        if (opts_.disable_core_dump) {
            struct rlimit rl;
            rl.rlim_cur = rl.rlim_max = 0;
            setrlimit(RLIMIT_CORE, &rl);
        }
​
        // 切换工作目录
        if (!opts_.workdir.empty()) {
            chdir(opts_.workdir.c_str());
        }
​
        // 执行命令
        execl("/bin/sh", "sh", "-c", job.spec.cmd.c_str(), nullptr);
        _exit(127);
    }
​
    // 父进程
    job.pid = pid;
    job.pgid = pid;
    job.start_time = std::chrono::steady_clock::now();
    job.status = JobStatus::Running;
    return true;
}

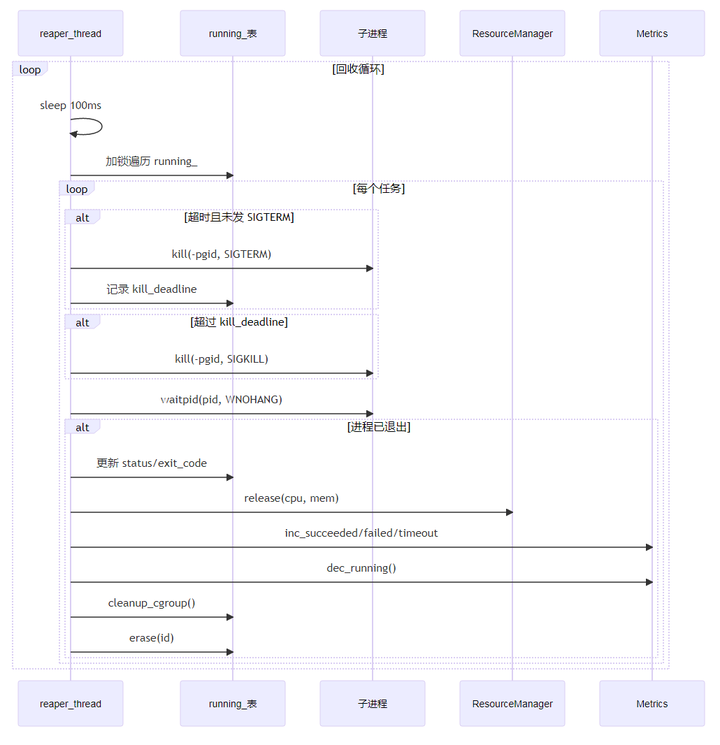

void Scheduler::reaper_loop() {
    while (!shutting_down_.load()) {
        std::this_thread::sleep_for(std::chrono::milliseconds(100));
​
        std::lock_guard lk(mu_);
        auto now = std::chrono::steady_clock::now();
​
        for (auto it = running_.begin(); it != running_.end(); ) {
            Job& job = it->second;
​
            // 检查超时
            if (job.spec.timeout_sec > 0) {
                auto elapsed = std::chrono::duration_cast<std::chrono::seconds>(
                    now - job.start_time).count();
​
                if (elapsed >= job.spec.timeout_sec) {
                    if (!job.sigterm_sent) {
                        // 发送 SIGTERM
                        kill(-job.pgid, SIGTERM);
                        job.sigterm_sent = true;
                        job.kill_deadline = now +
                            std::chrono::seconds(opts_.kill_grace_sec);
                    } else if (now >= *job.kill_deadline) {
                        // 发送 SIGKILL
                        kill(-job.pgid, SIGKILL);
                    }
                }
            }
​
            // 尝试回收
            int status;
            pid_t ret = waitpid(job.pid, &status, WNOHANG);
            if (ret > 0) {
                // 进程已退出
                job.exit_code = status;
                job.end_time = now;
​
                if (job.sigterm_sent) {
                    job.status = JobStatus::Timeout;
                    metrics_.inc_timeout();
                } else if (WIFEXITED(status) && WEXITSTATUS(status) == 0) {
                    job.status = JobStatus::Succeeded;
                    metrics_.inc_succeeded();
                } else {
                    job.status = JobStatus::Failed;
                    metrics_.inc_failed();
                }
​
                // 释放资源
                rm_.release(job.spec.cpu_cores, job.spec.memory_mb);
                metrics_.dec_running();
​
                // 清理 cgroup
                if (opts_.cgroup.enabled) {
                    std::string cg_path = opts_.cgroup.base_path +
                                          "/job_" + std::to_string(job.id);
                    cleanup_cgroup(cg_path);
                }
​
                it = running_.erase(it);
            } else {
                ++it;
            }
        }
    }
}

void Scheduler::psi_loop() {
    const double threshold = 50.0;  // 背压阈值
​
    while (!shutting_down_.load()) {
        std::this_thread::sleep_for(std::chrono::seconds(1));
​
        // 读取 memory.pressure
        std::string mem_pressure_file = opts_.cgroup.base_path + "/memory.pressure";
        std::ifstream ifs(mem_pressure_file);
        // 格式：some avg10=12.34 avg60=... total=...
​
        double avg10 = parse_psi_avg10(ifs);
        bool pressure = (avg10 > threshold);
​
        if (pressure != psi_backpressure_.load()) {
            psi_backpressure_.store(pressure);
            metrics_.set_pressure_active(pressure);
            Logger::instance().log(Logger::Level::Info,
                pressure ? "PSI backpressure activated" : "PSI backpressure cleared");
        }
    }
}

struct SchedulerOptions {
    ResourceQuota quota;                      // 资源配额
    CgroupConfig cgroup;                      // cgroup 配置
    int max_queue_size{1000};                 // 最大队列长度
    int kill_grace_sec{2};                    // SIGTERM 宽限期
    bool enable_priority{false};              // 是否启用优先级调度
    bool enable_psi_monitor{false};           // 是否启用 PSI 背压监测
    std::vector<std::string> cmd_whitelist;   // 命令白名单
    std::vector<std::string> cmd_blacklist;   // 命令黑名单
    std::string workdir;                      // 工作目录
    int metrics_http_port{-1};                // HTTP 指标端口
    int rlimit_nofile{-1};                    // 文件句柄限制
    bool disable_core_dump{true};             // 禁用 core dump
    bool enable_persistence{false};           // 启用持久化
    std::string db_path{"state/tasks.db"};    // 持久化路径
    bool enable_cron{false};                  // 启用 cron
    int cron_tick_ms{1000};                   // cron 检查间隔
};

./scheduler \
    --cmd "echo hello" \          # 任务命令
    --cpu 1 \                     # CPU 核数
    --mem 256 \                   # 内存 MB
    --timeout 5 \                 # 超时秒数
    --priority 10 \               # 优先级
    --total-cpu 4 \               # 总 CPU
    --total-mem 2048 \            # 总内存
    --cgroup \                    # 启用 cgroup
    --enable-priority \           # 启用优先级
    --metrics-port 8080 \         # HTTP 端口
    --whitelist ls,echo \         # 白名单
    --blacklist rm,shutdown \     # 黑名单
    --workdir /tmp                # 工作目录

$ curl http://localhost:8080/health
ok

$ curl http://localhost:8080/metrics
# TYPE tasks_total counter
tasks_total{status="submitted"} 100
tasks_total{status="rejected"} 5
tasks_total{status="succeeded"} 80
...
