问SimpleGUI在画布中显示mpf.plot

EN

    import PySimpleGUI as sg
    import numpy as np
    import pandas as pd
    import mplfinance as mpf
    import numpy as np
    import json
    import requests


    '''
        Embedding the Matplotlib toolbar into your application

    '''

    import matplotlib.pyplot as plt
    from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg, NavigationToolbar2Tk


    def draw_figure_w_toolbar(canvas, fig, canvas_toolbar):
        if canvas.children:
            for child in canvas.winfo_children():
                child.destroy()
        if canvas_toolbar.children:
            for child in canvas_toolbar.winfo_children():
                child.destroy()
        figure_canvas_agg = FigureCanvasTkAgg(fig, master=canvas)
        figure_canvas_agg.draw()
        toolbar = Toolbar(figure_canvas_agg, canvas_toolbar)
        toolbar.update()
        figure_canvas_agg.get_tk_widget().pack(side='right', fill='both', expand=1)


    class Toolbar(NavigationToolbar2Tk):
        def __init__(self, *args, **kwargs):
            super(Toolbar, self).__init__(*args, **kwargs)




    layout = [
        [sg.T('Graph: y=sin(x)')],
        [sg.B('Plot'), sg.B('Exit')],
        [sg.T('Controls:')],
        [sg.Canvas(key='controls_cv')],
        [sg.T('Figure:')],
        [sg.Column(
            layout=[
                [sg.Canvas(key='fig_cv',
                           # it's important that you set this size
                           size=(400 * 2, 400)
                           )]
            ],
            background_color='#DAE0E6',
            pad=(0, 0)
        )],
        [sg.B('Alive?')]

    ]

    window = sg.Window('Graph with controls', layout)

    while True:
        event, values = window.read()
        print(event, values)
        if event in (sg.WIN_CLOSED, 'Exit'):  # always,  always give a way out!
            break
        elif event == 'Plot':


        string = 'https://api.binance.com/api/v1/klines?symbol=BTCUSDT&interval=15m'
        URL = string
        response = requests.get(url = URL)
        response = response.json()
        df = pd.DataFrame(response)
        df[0] = pd.to_datetime((df[0]), unit='ms')

        df.drop([5,6,7,8,9,10,11], axis=1, inplace=True)
        df.rename(columns={0: 'Date',1: 'Open', 2:'High', 3:'Low', 4: 'Close'}, inplace=True)
        df.index = pd.DatetimeIndex(df['Date'])
        df['Open'] = df['Open'].astype(float)
        df['High'] = df['High'].astype(float)
        df['Low'] = df['Low'].astype(float)
        df['Close'] = df['Close'].astype(float)
        df.shape
        df.head(3)
        df.tail(3)

        colors = [
        'blueskies',
         'brasil',
         'charles',
         'checkers',
         'classic',
         'default',
         'mike',
         'nightclouds',
         'sas',
         'starsandstripes',
         'yahoo'
         ]

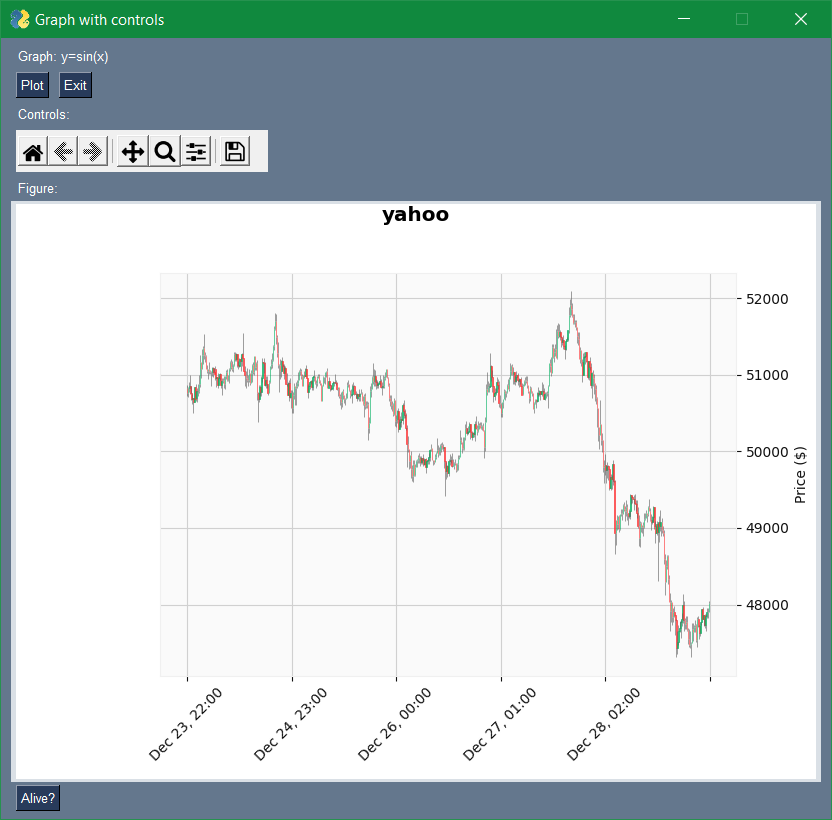

        mpf.plot(
            df,
            type='candle',
            style= colors[10],
            title= colors[10],
            ylabel='Price ($)',
        )


        plt.figure(1)
        fig = plt.gcf()
        DPI = fig.get_dpi()

        fig.set_size_inches(404 * 2 / float(DPI), 404 / float(DPI))
        # -------------------------------
        x = np.linspace(0, 2 * np.pi)
        y = np.sin(x)
        plt.plot(x, y)
        plt.title('y=sin(x)')
        plt.xlabel('X')
        plt.ylabel('Y')
        plt.grid()

        # ------------------------------- Instead of plt.show()
        draw_figure_w_toolbar(window['fig_cv'].TKCanvas, fig, window['controls_cv'].TKCanvas)

    window.close()
