Android - MaterialCardView角半径没有出现在片段中
Android - MaterialCardView角半径没有出现在片段中
提问于 2022-01-09 04:59:48
我创建了一个cornerRadius卡视图，我的代码在活动中工作得很好，但现在的问题是，卡纸视图没有在片段中显示圆角和高度，而是显示在设计代码和活动中。我的代码显示为blow: raounded_corners.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:focusable="true"
android:clickable="true"
android:background="@color/white"
android:layout_height="match_parent">
<com.google.android.material.card.MaterialCardView
android:id="@+id/text_bg"
android:layout_width="110dp"
android:layout_height="110dp"
app:cardBackgroundColor="@color/green_500"
app:cardCornerRadius="50dp"
app:cardElevation="5dp"
android:layout_gravity="center"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent">
<ImageView
android:id="@+id/image_session"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:background="@android:color/transparent"
android:src="@drawable/photo_male_7" />
</com.google.android.material.card.MaterialCardView>
</RelativeLayout>In片段
public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.raounded_corners,container,false);
return v;
}raounded_corners.xml布局cornerRadius显示在活动中，但不显示在片段中
如何解决这个问题。

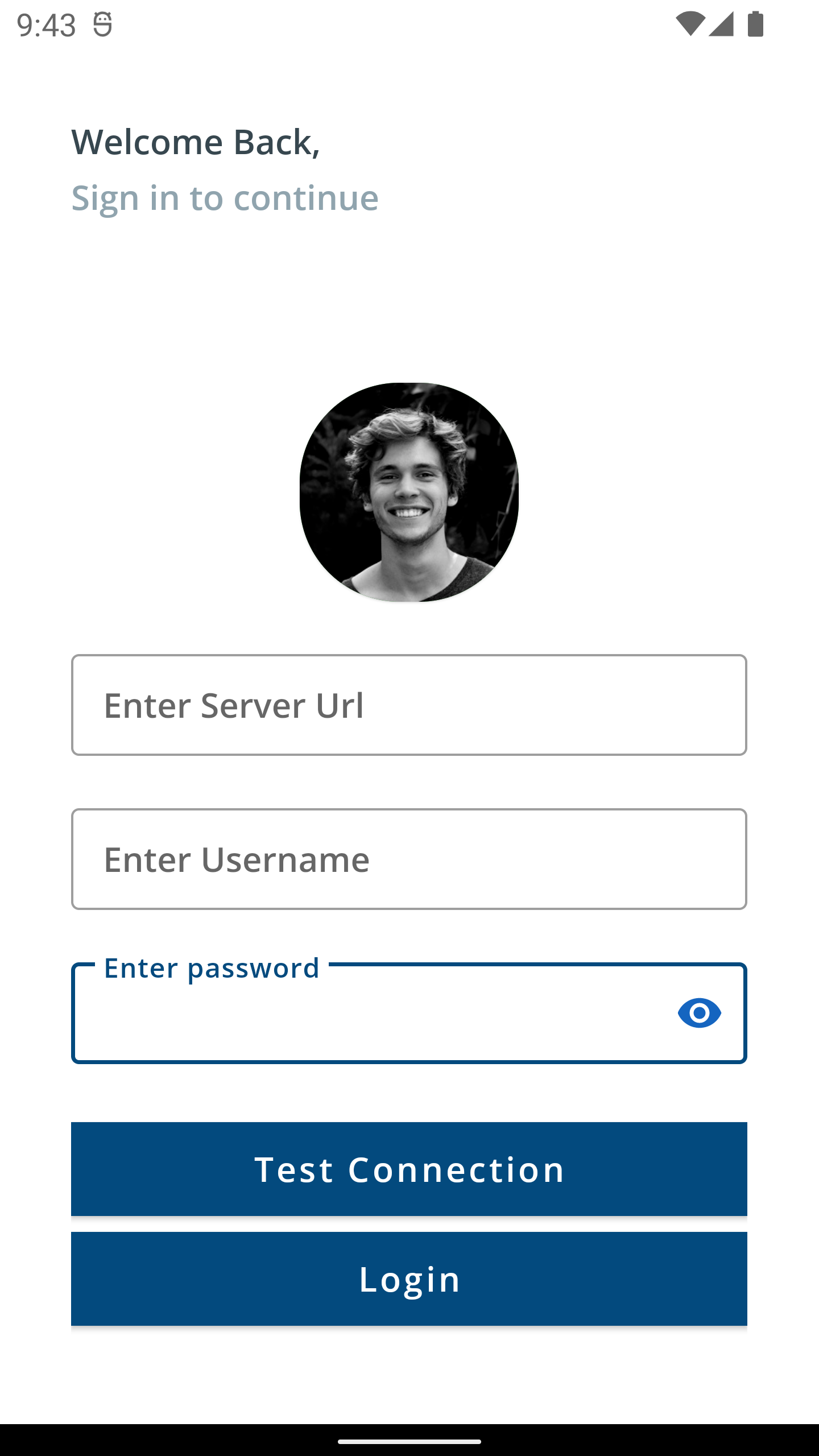

在活动中
in片段
回答 1
Stack Overflow用户
发布于 2022-01-09 06:45:13
如果您试图创建imageview循环，我建议将这个approach.Create作为自定义视图，并在您的xml中设置它。它工作得很完美。如果这对您有帮助的话，我们将非常感谢您的支持。
创建一个自定义循环视图，如下所示。CircleImageView.java
package com.fishpott.fishpott5.Views;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Bitmap;
import android.graphics.BitmapShader;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.ColorFilter;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.graphics.RectF;
import android.graphics.Shader;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.ColorDrawable;
import android.graphics.drawable.Drawable;
import android.net.Uri;
import android.support.annotation.ColorInt;
import android.support.annotation.ColorRes;
import android.support.annotation.DrawableRes;
import android.support.v7.widget.AppCompatImageView;
import android.util.AttributeSet;
import android.widget.ImageView;
import com.fishpott.fishpott5.R;
public class CircleImageView extends AppCompatImageView {
private static final ImageView.ScaleType SCALE_TYPE = ImageView.ScaleType.CENTER_CROP;
private static final Bitmap.Config BITMAP_CONFIG = Bitmap.Config.ARGB_8888;
private static final int COLORDRAWABLE_DIMENSION = 2;
private static final int DEFAULT_BORDER_WIDTH = 0;
private static final int DEFAULT_BORDER_COLOR = Color.BLACK;
private static final int DEFAULT_FILL_COLOR = Color.TRANSPARENT;
private static final boolean DEFAULT_BORDER_OVERLAY = false;
private final RectF mDrawableRect = new RectF();
private final RectF mBorderRect = new RectF();
private final Matrix mShaderMatrix = new Matrix();
private final Paint mBitmapPaint = new Paint();
private final Paint mBorderPaint = new Paint();
private final Paint mFillPaint = new Paint();
private int mBorderColor = DEFAULT_BORDER_COLOR;
private int mBorderWidth = DEFAULT_BORDER_WIDTH;
private int mFillColor = DEFAULT_FILL_COLOR;
private Bitmap mBitmap;
private BitmapShader mBitmapShader;
private int mBitmapWidth;
private int mBitmapHeight;
private float mDrawableRadius;
private float mBorderRadius;
private ColorFilter mColorFilter;
private boolean mReady;
private boolean mSetupPending;
private boolean mBorderOverlay;
private boolean mDisableCircularTransformation;
public CircleImageView(Context context) {
super(context);
init();
}
public CircleImageView(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public CircleImageView(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.CircleImageView, defStyle, 0);
mBorderWidth = a.getDimensionPixelSize(R.styleable.CircleImageView_civ_border_width, DEFAULT_BORDER_WIDTH);
mBorderColor = a.getColor(R.styleable.CircleImageView_civ_border_color, DEFAULT_BORDER_COLOR);
mBorderOverlay = a.getBoolean(R.styleable.CircleImageView_civ_border_overlay, DEFAULT_BORDER_OVERLAY);
mFillColor = a.getColor(R.styleable.CircleImageView_civ_fill_color, DEFAULT_FILL_COLOR);
a.recycle();
init();
}
private void init() {
super.setScaleType(SCALE_TYPE);
mReady = true;
if (mSetupPending) {
setup();
mSetupPending = false;
}
}
@Override
public ImageView.ScaleType getScaleType() {
return SCALE_TYPE;
}
@Override
public void setScaleType(ImageView.ScaleType scaleType) {
if (scaleType != SCALE_TYPE) {
throw new IllegalArgumentException(String.format("ScaleType %s not supported.", scaleType));
}
}
@Override
public void setAdjustViewBounds(boolean adjustViewBounds) {
if (adjustViewBounds) {
throw new IllegalArgumentException("adjustViewBounds not supported.");
}
}
@Override
protected void onDraw(Canvas canvas) {
if (mDisableCircularTransformation) {
super.onDraw(canvas);
return;
}
if (mBitmap == null) {
return;
}
if (mFillColor != Color.TRANSPARENT) {
canvas.drawCircle(mDrawableRect.centerX(), mDrawableRect.centerY(), mDrawableRadius, mFillPaint);
}
canvas.drawCircle(mDrawableRect.centerX(), mDrawableRect.centerY(), mDrawableRadius, mBitmapPaint);
if (mBorderWidth > 0) {
canvas.drawCircle(mBorderRect.centerX(), mBorderRect.centerY(), mBorderRadius, mBorderPaint);
}
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
setup();
}
@Override
public void setPadding(int left, int top, int right, int bottom) {
super.setPadding(left, top, right, bottom);
setup();
}
@Override
public void setPaddingRelative(int start, int top, int end, int bottom) {
super.setPaddingRelative(start, top, end, bottom);
setup();
}
public int getBorderColor() {
return mBorderColor;
}
public void setBorderColor(@ColorInt int borderColor) {
if (borderColor == mBorderColor) {
return;
}
mBorderColor = borderColor;
mBorderPaint.setColor(mBorderColor);
invalidate();
}
/**
* @deprecated Use {@link #setBorderColor(int)} instead
*/
@Deprecated
public void setBorderColorResource(@ColorRes int borderColorRes) {
setBorderColor(getContext().getResources().getColor(borderColorRes));
}
/**
* Return the color drawn behind the circle-shaped drawable.
*
* @return The color drawn behind the drawable
*
* @deprecated Fill color support is going to be removed in the future
*/
@Deprecated
public int getFillColor() {
return mFillColor;
}
/**
* Set a color to be drawn behind the circle-shaped drawable. Note that
* this has no effect if the drawable is opaque or no drawable is set.
*
* @param fillColor The color to be drawn behind the drawable
*
* @deprecated Fill color support is going to be removed in the future
*/
@Deprecated
public void setFillColor(@ColorInt int fillColor) {
if (fillColor == mFillColor) {
return;
}
mFillColor = fillColor;
mFillPaint.setColor(fillColor);
invalidate();
}
/**
* Set a color to be drawn behind the circle-shaped drawable. Note that
* this has no effect if the drawable is opaque or no drawable is set.
*
* @param fillColorRes The color resource to be resolved to a color and
* drawn behind the drawable
*
* @deprecated Fill color support is going to be removed in the future
*/
@Deprecated
public void setFillColorResource(@ColorRes int fillColorRes) {
setFillColor(getContext().getResources().getColor(fillColorRes));
}
public int getBorderWidth() {
return mBorderWidth;
}
public void setBorderWidth(int borderWidth) {
if (borderWidth == mBorderWidth) {
return;
}
mBorderWidth = borderWidth;
setup();
}
public boolean isBorderOverlay() {
return mBorderOverlay;
}
public void setBorderOverlay(boolean borderOverlay) {
if (borderOverlay == mBorderOverlay) {
return;
}
mBorderOverlay = borderOverlay;
setup();
}
public boolean isDisableCircularTransformation() {
return mDisableCircularTransformation;
}
public void setDisableCircularTransformation(boolean disableCircularTransformation) {
if (mDisableCircularTransformation == disableCircularTransformation) {
return;
}
mDisableCircularTransformation = disableCircularTransformation;
initializeBitmap();
}
@Override
public void setImageBitmap(Bitmap bm) {
super.setImageBitmap(bm);
initializeBitmap();
}
@Override
public void setImageDrawable(Drawable drawable) {
super.setImageDrawable(drawable);
initializeBitmap();
}
@Override
public void setImageResource(@DrawableRes int resId) {
super.setImageResource(resId);
initializeBitmap();
}
@Override
public void setImageURI(Uri uri) {
super.setImageURI(uri);
initializeBitmap();
}
@Override
public void setColorFilter(ColorFilter cf) {
if (cf == mColorFilter) {
return;
}
mColorFilter = cf;
applyColorFilter();
invalidate();
}
@Override
public ColorFilter getColorFilter() {
return mColorFilter;
}
private void applyColorFilter() {
if (mBitmapPaint != null) {
mBitmapPaint.setColorFilter(mColorFilter);
}
}
private Bitmap getBitmapFromDrawable(Drawable drawable) {
if (drawable == null) {
return null;
}
if (drawable instanceof BitmapDrawable) {
return ((BitmapDrawable) drawable).getBitmap();
}
try {
Bitmap bitmap;
if (drawable instanceof ColorDrawable) {
bitmap = Bitmap.createBitmap(COLORDRAWABLE_DIMENSION, COLORDRAWABLE_DIMENSION, BITMAP_CONFIG);
} else {
bitmap = Bitmap.createBitmap(drawable.getIntrinsicWidth(), drawable.getIntrinsicHeight(), BITMAP_CONFIG);
}
Canvas canvas = new Canvas(bitmap);
drawable.setBounds(0, 0, canvas.getWidth(), canvas.getHeight());
drawable.draw(canvas);
return bitmap;
} catch (Exception e) {
e.printStackTrace();
return null;
}
}
private void initializeBitmap() {
if (mDisableCircularTransformation) {
mBitmap = null;
} else {
mBitmap = getBitmapFromDrawable(getDrawable());
}
setup();
}
private void setup() {
if (!mReady) {
mSetupPending = true;
return;
}
if (getWidth() == 0 && getHeight() == 0) {
return;
}
if (mBitmap == null) {
invalidate();
return;
}
mBitmapShader = new BitmapShader(mBitmap, Shader.TileMode.CLAMP, Shader.TileMode.CLAMP);
mBitmapPaint.setAntiAlias(true);
mBitmapPaint.setShader(mBitmapShader);
mBorderPaint.setStyle(Paint.Style.STROKE);
mBorderPaint.setAntiAlias(true);
mBorderPaint.setColor(mBorderColor);
mBorderPaint.setStrokeWidth(mBorderWidth);
mFillPaint.setStyle(Paint.Style.FILL);
mFillPaint.setAntiAlias(true);
mFillPaint.setColor(mFillColor);
mBitmapHeight = mBitmap.getHeight();
mBitmapWidth = mBitmap.getWidth();
mBorderRect.set(calculateBounds());
mBorderRadius = Math.min((mBorderRect.height() - mBorderWidth) / 2.0f, (mBorderRect.width() - mBorderWidth) / 2.0f);
mDrawableRect.set(mBorderRect);
if (!mBorderOverlay && mBorderWidth > 0) {
mDrawableRect.inset(mBorderWidth - 1.0f, mBorderWidth - 1.0f);
}
mDrawableRadius = Math.min(mDrawableRect.height() / 2.0f, mDrawableRect.width() / 2.0f);
applyColorFilter();
updateShaderMatrix();
invalidate();
}
private RectF calculateBounds() {
int availableWidth = getWidth() - getPaddingLeft() - getPaddingRight();
int availableHeight = getHeight() - getPaddingTop() - getPaddingBottom();
int sideLength = Math.min(availableWidth, availableHeight);
float left = getPaddingLeft() + (availableWidth - sideLength) / 2f;
float top = getPaddingTop() + (availableHeight - sideLength) / 2f;
return new RectF(left, top, left + sideLength, top + sideLength);
}
private void updateShaderMatrix() {
float scale;
float dx = 0;
float dy = 0;
mShaderMatrix.set(null);
if (mBitmapWidth * mDrawableRect.height() > mDrawableRect.width() * mBitmapHeight) {
scale = mDrawableRect.height() / (float) mBitmapHeight;
dx = (mDrawableRect.width() - mBitmapWidth * scale) * 0.5f;
} else {
scale = mDrawableRect.width() / (float) mBitmapWidth;
dy = (mDrawableRect.height() - mBitmapHeight * scale) * 0.5f;
}
mShaderMatrix.setScale(scale, scale);
mShaderMatrix.postTranslate((int) (dx + 0.5f) + mDrawableRect.left, (int) (dy + 0.5f) + mDrawableRect.top);
mBitmapShader.setLocalMatrix(mShaderMatrix);
}
}在xml中设置视图
<com.fishpott.fishpott5.Views.CircleImageView
android:id="@+id/activity_setprofilepicture_profilepicture_imageview"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:contentDescription="@string/none"
android:src="@drawable/setprofilepicture_activity_imageholder_default_image"
app:civ_border_color="@android:color/transparent"
app:civ_border_width="0dp" />在CircleImageView的xml调用中看到“视图”是因为我的CircleImageView.java位于“视图”文件夹/包中。
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/70638575
复制相关文章
相似问题
腾讯云开发者
