在Xamarin.Forms上将背景图像显示为tiles
在Xamarin.Forms上将背景图像显示为tiles
提问于 2022-02-06 08:51:38
我正在使用Xamarin.Forms为Android开发一个应用程序。我用的是扎马林。我想以瓷砖的形式显示背景。我准备了一张100×100像素的图像。\Android\MyApp\MyApp.Android\Resources\drawable\background.jpg
<?xml version="1.0" encoding="utf-8" ? >
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
xmlns:d="http://xamarin.com/schemas/2014/forms/design"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:viewmodels="clr-namespace:MyApp.ViewModels"
x:DataType="viewmodels:LoginViewModel"
mc:Ignorable="d"
x:Class="MyApp.Views.LoginPage"
Shell.NavBarIsVisible="False"
BackgroundImage="background.jpg"
>这样，background.jpg就会被放大和显示。我想在瓷砖中反复显示它。
回答 1
Stack Overflow用户
回答已采纳
发布于 2022-02-07 08:22:45
You can display it repeatedly in tiles through below steps.
1.Create a drawable xml file on your Android project:
<?xml version="1.0" encoding="utf-8" ?>
<bitmap xmlns:android="http://schemas.android.com/apk/res/android"
android:tileMode="repeat"
android:src="@drawable/clock" >
</bitmap>
2.After that create below two effect classes on your shared project:
//base class
namespace AppTiles
{
public class BaseEffect : RoutingEffect
{
public const string EffectNamespace = "AppTiles";
public BaseEffect(String effectId) : base($"{EffectNamespace}.
{effectId}")
{
}
}
}
//effect class
namespace AppTiles
{
public class CoverEffect : BaseEffect
{
public CoverEffect() : base(nameof(CoverEffect))
{
}
}
}
3.Create a effect class in your Android project
[assembly: ResolutionGroupName("AppTiles") ]
[assembly: ExportEffect(typeof(AppTiles.Droid.CoverEffect),
nameof(CoverEffect))]
namespace AppTiles.Droid
{
public class CoverEffect : PlatformEffect
{
protected override void OnAttached()
{
UpdateBackground();
}
protected override void OnDetached()
{
}
private void UpdateBackground()
{
Android.Views.View mView = Container as Android.Views.View;
if (mView != null)
{
mView.Background = ContextCompat.GetDrawable(mView.Context, Resource.Drawable.XMLFile1);
}
}
}
}
4.Add below xmal in shared main page code behind:
<StackLayout Orientation="Vertical" Spacing="0">
<StackLayout.Effects>
<effects:CoverEffect/>
</StackLayout.Effects>
</StackLayout>

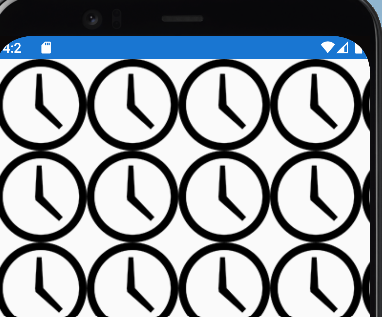

Below is the screenshot:
