three.js BufferGeometry blob代码更新错误
three.js BufferGeometry blob代码更新错误
提问于 2022-03-03 01:14:43
我目前正在学习三个js，并且我正在跟踪本教程，但是我注意到，对于当前版本的三个js，代码是无效的，您可以看到下面的主要更改。通过这个文档，我更新了代码，以便：
var k = 1;
const positions = sphere.geometry.attributes.position.array;
for (var i = 0; i < positions.length - 2; i++) {
const v = new THREE.Vector3(
positions[i],
positions[i + 1],
positions[i + 2]
).normalize()
.multiplyScalar(
1 + 0.3 * noise.perlin3(
positions[i] * k + time,
positions[i + 1] * k,
positions[i + 2] * k));
positions[i] = v.x;
positions[i + 1] = v.y;
positions[i + 2] = v.z;
}
sphere.geometry.attributes.position.needsUpdate = true;但是，正如您可以从片段中看到的，顶点的位移不是平滑的，也不像教程。我在这里错过了什么？
var renderer = new THREE.WebGLRenderer({ canvas : document.getElementById('canvas'), antialias:true});
// default bg canvas color //
renderer.setClearColor(0x7b7b7b);
// use device aspect ratio //
renderer.setPixelRatio(window.devicePixelRatio);
// set size of canvas within window //
renderer.setSize(window.innerWidth, window.innerHeight);
var scene = new THREE.Scene();
var camera = new THREE.PerspectiveCamera( 45, window.innerWidth/window.innerHeight, 0.1, 1000 );
camera.position.z = 5;
var sphere_geometry = new THREE.SphereGeometry(1, 128, 128);
const material = new THREE.MeshPhongMaterial({
color: 0x0000FF,
shininess: 1000,
})
var sphere = new THREE.Mesh(sphere_geometry, material);
scene.add(sphere);
const ambientLight = new THREE.AmbientLight(0x798296)
scene.add(ambientLight)
const directionalLight = new THREE.DirectionalLight(0xffffff, 0.5)
directionalLight.position.set(5, 10, 7)
scene.add(directionalLight);
sphere.geometry.attributes.position.needsUpdate = true;
var update = function() {
// change '0.003' for more aggressive animation
var time = performance.now() * 0.003;
//console.log(time)
//go through vertices here and reposition them
// change 'k' value for more spikes
var k = 1;
const positions = sphere.geometry.attributes.position.array;
for (var i = 0; i < positions.length - 2; i++) {
const v = new THREE.Vector3(
positions[i],
positions[i + 1],
positions[i + 2]
).normalize()
.multiplyScalar(
1 + 0.3 * noise.perlin3(positions[i] * k + time, positions[i + 1] * k,
positions[i + 2] * k));
positions[i] = v.x;
positions[i + 1] = v.y;
positions[i + 2] = v.z;
}
sphere.geometry.attributes.position.needsUpdate = true;
}
function animate() {
sphere.rotation.x += 0.01;
sphere.rotation.y += 0.01;
update();
/* render scene and camera */
renderer.render(scene,camera);
requestAnimationFrame(animate);
}
requestAnimationFrame(animate);html, body {
margin:0;
overflow:hidden
}<script src="https://fariskassim.com/stage/rebel9/teaf/blob/v4/js/perlin.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
<canvas id="canvas"></canvas>
回答 1
Stack Overflow用户
发布于 2022-03-03 06:46:19

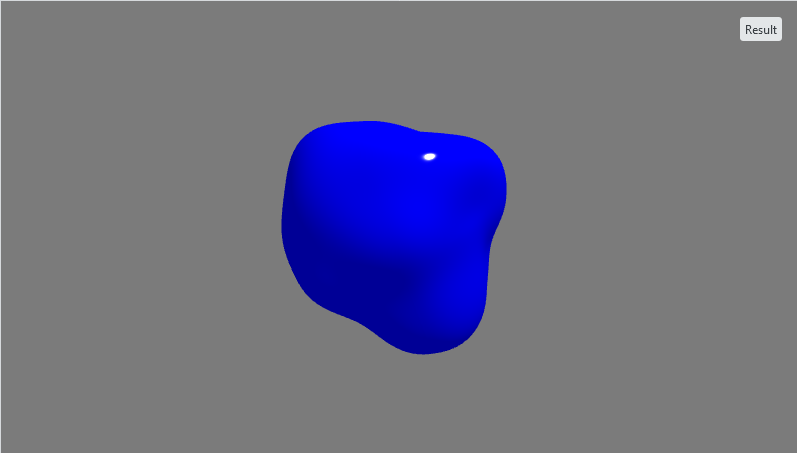

这就是如何使用BufferGeometry使一个带噪声的球体变形。
var renderer = new THREE.WebGLRenderer({ canvas : document.getElementById('canvas'), antialias:true});
// default bg canvas color //
renderer.setClearColor(0x7b7b7b);
// use device aspect ratio //
renderer.setPixelRatio(window.devicePixelRatio);
// set size of canvas within window //
renderer.setSize(window.innerWidth, window.innerHeight);
var scene = new THREE.Scene();
var camera = new THREE.PerspectiveCamera( 45, window.innerWidth/window.innerHeight, 0.1, 1000 );
camera.position.z = 5;
var sphere_geometry = new THREE.SphereGeometry(1, 128, 128);
const material = new THREE.MeshPhongMaterial({
color: 0x0000FF,
shininess: 1000,
})
var sphere = new THREE.Mesh(sphere_geometry, material);
scene.add(sphere);
const ambientLight = new THREE.AmbientLight(0x798296)
scene.add(ambientLight)
const directionalLight = new THREE.DirectionalLight(0xffffff, 0.5)
directionalLight.position.set(5, 10, 7)
scene.add(directionalLight);
sphere.geometry.attributes.position.needsUpdate = true;
var update = function() {
// change '0.003' for more aggressive animation
var time = performance.now() * 0.003;
//console.log(time)
//go through vertices here and reposition them
// change 'k' value for more spikes
var k = 1;
var v3 = new THREE.Vector3();
const positions = sphere.geometry.attributes.position;
for (var i = 0; i < positions.count; i++) {
v3.fromBufferAttribute(positions, i).setLength(k);
let n = noise.perlin3(v3.x, v3.y, v3.z);
v3.setLength(1 + 0.3 * n);
positions.setXYZ(i, v3.x, v3.y, v3.z);
}
positions.needsUpdate = true;
sphere.geometry.computeVertexNormals(); // don't forget to call this
}
function animate() {
sphere.rotation.x += 0.01;
sphere.rotation.y += 0.01;
update();
/* render scene and camera */
renderer.render(scene,camera);
requestAnimationFrame(animate);
}
requestAnimationFrame(animate);html, body {
margin:0;
overflow:hidden
}<script src="https://fariskassim.com/stage/rebel9/teaf/blob/v4/js/perlin.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
<canvas id="canvas"></canvas>
