ConstraintLayout流不包?
EN

Stack Overflow用户
提问于 2022-03-13 09:07:02
回答 1查看 395关注 0票数 0

如果有足够的空间,我想让两个视图并排显示,或者把它们垂直显示在较小的屏幕上,比如在厕所里的手机上。

我有这个:

代码语言:javascript
运行
复制
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <View
        android:id="@+id/test_view"
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:background="#4f00"
        app:layout_constraintDimensionRatio="1:1"
        app:layout_constraintHeight_max="500dp"
        app:layout_constraintWidth_max="500dp"
        app:layout_constraintWidth_min="150dp" />

    <View
        android:id="@+id/test_view2"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:background="#40f0" />

    <androidx.constraintlayout.helper.widget.Flow
        android:id="@+id/random_flow"
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_margin="16dp"
        android:orientation="horizontal"
        app:constraint_referenced_ids="test_view, test_view2"
        app:flow_horizontalGap="16dp"
        app:flow_horizontalStyle="packed"
        app:flow_maxElementsWrap="1"
        app:flow_verticalGap="16dp"
        app:flow_verticalStyle="packed"
        app:flow_wrapMode="chain"
        app:layout_constraintBottom_toTopOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

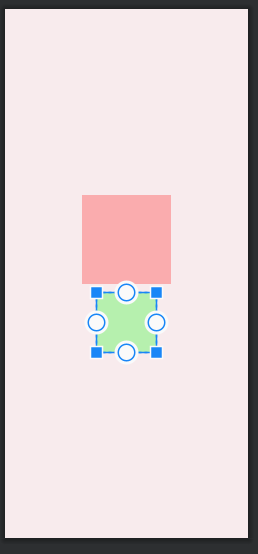

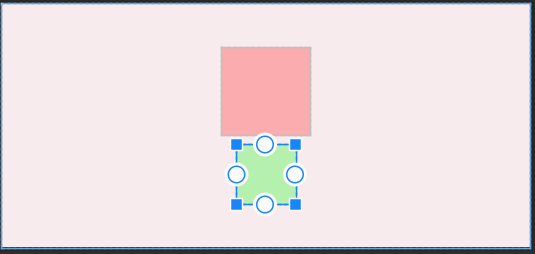

视图以垂直方向显示在所有屏幕大小中,即使我指定了orientation=“水平”。看起来他们总是包装,即使有空间显示他们水平?

我还需要test_view (红色)来占用layout_constraintWidth_max和layout_constraintWidth_min中可用的空间。看起来它总是在用最小值。

EN

回答 1

Stack Overflow用户

发布于 2022-03-13 11:52:35

1.由于constraintlayout.helper.widget.Flow的宽度和高度似乎没有一起工作,所以您必须将其中的一个更改为match_parent,或者将其中的一个更改为wrap_content。(我建议改为match_parent。因为这就是你想要的)

2.将flow_wrapMode从: chain更改为chain2。

我将修改后的代码放在这里:如果您更改view1的宽度(粉红色的)。你看方向会改变

代码语言:javascript
运行
复制
<View
    android:id="@+id/test_view"
    android:layout_width="0dp"
    android:layout_height="0dp"
    android:background="#4f00"
    app:layout_constraintDimensionRatio="1:1"
    app:layout_constraintHeight_max="500dp"
    app:layout_constraintWidth_max="500dp"
    app:layout_constraintWidth_min="150dp" />

<View
    android:id="@+id/test_view2"
    android:layout_width="100dp"
    android:layout_height="100dp"
    android:background="#40f0" />

<androidx.constraintlayout.helper.widget.Flow
    android:id="@+id/random_flow"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_margin="16dp"
    android:orientation="horizontal"
    app:constraint_referenced_ids="test_view, test_view2"
    app:flow_horizontalGap="16dp"
    app:flow_horizontalStyle="packed"
    app:flow_maxElementsWrap="1"
    app:flow_verticalGap="16dp"
    app:flow_verticalStyle="packed"
    app:flow_wrapMode="chain2"
    app:layout_constraintBottom_toTopOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toBottomOf="parent" />
票数 0
