两台VPC之间的BGP协议配置
两台VPC之间的BGP协议配置
提问于 2022-04-07 05:14:14
我需要通过SFP光纤在两个网络之间配置交叉连接。不幸的是，我在BGP配置上是新的，需要确认我是在正确的道路上做的.
我有两台VPC：
- VPC A: ASN 200 IP路由器: 169.254.250.1子网: 10.0.0.1/34
- VPC B: ASN 100 IP路由器: 169.254.250.2 4服务器: 169.254.131.1 / 169.254.131.2 / 169.254.131.3 / 169.254.131.4
VPC A是完全配置的，我购买了一个Cisco路由器C 1113-8pm来配置我的VPC B。我的目标是确保VPC A上的任何服务器都可以通过BGP访问位于VPC B中的4台服务器。
我开始写入VPC B路由器的过程：
#Configure ASN VPC B on Router
enable
configure terminal
router bgp 100
bgp router-id 169.254.250.2
timers bgp 70 120
end
# Configure ASN VPC A and routes
configure terminal
neighbor 169.254.250.1 remote-as 200
address-family ipv4 unicast
neighbor 169.254.250.1 activate
end够了吗？是否需要将VPC B的每个IP地址设置为BGP表？怎么做？
回答 1
Stack Overflow用户
回答已采纳
发布于 2022-08-03 16:33:00
目标拓扑和配置应该像我下面描述的那样

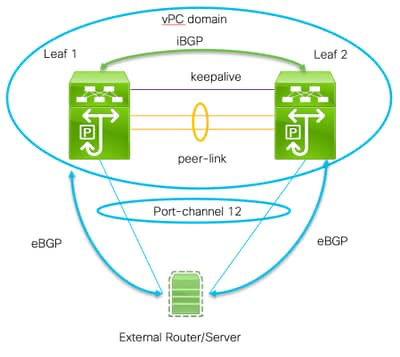

网络图
需要两个重要的命令来启用这种窥视：
- Peer-gateway : vPC对等网关功能允许vPC交换机充当寻址到vPC peer
- layer3对等路由器的路由器MAC地址的数据包的主动网关:对于发送给对等方的数据包的TTL没有变化，外部设备也从层路由协议窥视角度将vPC域视为单一的物理实体。
Configurations
Leaf 1:
! Form the vPC domain:
vpc domain 1
peer-switch
role priority 10 peer-keepalive destination 192.0.2.2 source 192.0.2.1 peer-gateway layer3 peer-router ipv6 nd synchronize ip arp synchronize
!
!vPC peer-link interface members
interface Ethernet1/53 - 54
description vPC-Peerlink member
switchport
switchport mode trunk
channel-group 11 mode active
no shutdown
!
! vPC peer-link port-channel
interface port-channel11
description vPC-peerlink
switchport
switchport mode trunk
spanning-tree port type network
no shutdown
vpc peer-link
!
! vPC port-channel member to External Device
interface Ethernet1/52
description ExternalDevice Eth2/13
switchport
switchport mode trunk
switchport trunk allowed vlan 203,205
mtu 9216
channel-group 12 mode active
no shutdown
!
! vPC port-channel to External Device
interface port-channel12
description vPC port-channel to External Device
switchport
switchport mode trunk
switchport trunk allowed vlan 203,205
mtu 9216
vpc 12
!
! Layer 3 interface to the Eternal device:
interface Vlan205
no shutdown
vrf member Customer
! BFD for eBGP
bfd interval 500 min_rx 500 multiplier 3
! Disable bfd echo, as it is not supported over vPC
no bfd echo
no ip redirects
! We use/29 as we need 3 ip address, one per each member of the ! vPC domain and 3rd for the External Device
ip address 198.51.100.1/29 tag 800204
! Disable redirects - this is needed to enable BFD
no ipv6 redirects
!
router bgp 65535
router bgp 65535
router-id 203.0.113.1
log-neighbor-changes
address-family ipv4 unicast
Customer router-id 198.51.100.1 address-family ipv4 unicast neighbor 198.51.100.2 description Leaf-2 remote-as 65535 address-family ipv4 unicast soft-reconfiguration inbound always neighbor 198.51.100.3 description to External Device bfd remote-as 65000 update-source Vlan205 address-family ipv4 unicast soft-reconfiguration inbound always ! Leaf 2:
! Form the vPC domain:
vpc domain 1
peer-switch
role priority 10
peer-keepalive destination 192.0.2.1 source 192.0.2.2
peer-gateway
layer3 peer-router
ipv6 nd synchronize
ip arp synchronize
!
!vPC peer-link interface members
interface Ethernet1/53 - 54
description vPC-Peerlink member
switchport
switchport mode trunk
channel-group 11 mode active
no shutdown
!
! vPC peer-link port-channel
interface port-channel11
description vPC-peerlink
switchport
switchport mode trunk
spanning-tree port type network
no shutdown
vpc peer-link
!
! vPC port-channel member to External Device
interface Ethernet1/52
description ExternalDevice Eth2/13
switchport
switchport mode trunk
switchport trunk allowed vlan 203,205
mtu 9216
channel-group 12 mode active
no shutdown
!
! vPC port-channel to External Device
interface port-channel12
description vPC port-channel to External Device
switchport
switchport mode trunk
switchport trunk allowed vlan 203,205
mtu 9216
vpc 12
!
! Layer 3 interface to the Eternal device:
interface Vlan205
no shutdown
vrf member Customer
! BFD for eBGP
bfd interval 500 min_rx 500 multiplier 3
! Disable bfd echo, as it is not supported over vPC
no bfd echo
no ip redirects
! We use/29 as we need 3 ip address, one per each member of the ! vPC domain and 3rd for the External Device
ip address 198.51.100.2/29 tag 800204
! Disable redirects - this is needed to enable BFD
no ipv6 redirects
!
router bgp 65535
router bgp 65535
router-id 203.0.113.2
log-neighbor-changes
address-family ipv4 unicast
vrf Customer
router-id 198.51.100.2
address-family ipv4 unicast
neighbor 198.51.100.1
description Leaf-2
remote-as 65535
address-family ipv4 unicast
soft-reconfiguration inbound always
neighbor 198.51.100.3
description to External Device
bfd
remote-as 65000
update-source Vlan205
address-family ipv4 unicast
soft-reconfiguration inbound always
!
External Device (NX-OS style CLI):
interface Ethernet2/13 - 14
switchport
switchport mode trunk
switchport trunk allowed vlan 203,205
mtu 9216
channel-group 12 mode active
no shutdown
!
interface port-channel12
switchport
switchport mode trunk
switchport trunk allowed vlan 203,205
mtu 9216
no shutdown
!
interface Vlan205
no shutdown
mtu 9216
! See notes in Leaf-1 and Leaf 2 for BFD
bfd interval 500 min_rx 500 multiplier 3
no bfd echo
no ip redirects
ip address 198.51.100.3/29
no ipv6 redirects
!
router bgp 65000
log-neighbor-changes
address-family ipv4 unicast
neighbor 198.51.100.1 remote-as 65535
description to Leaf-1
update-source Vlan205
bfd
neighbor 198.51.100.2 remote-as 65535
description to Leaf-2
update-source Vlan205
bfd
end
!验证
下面是显示bgp ipv4单播邻居的输出。它核实：
建立了
- BGP邻居关系，并在外部邻居
之间启用了稳定的
- BFD。
Troubleshoot
以下命令将有助于验证操作：
show vpc
show vpc consistency-parameters global
show vpc consistency-parameters interface <interface>
show bgp ipv4 unicast neighbors
show bgp ipv4 unicast summary参考https://www.cisco.com/c/en/us/support/docs/ip/ip-routing/217099-ebgp-peering-over-vpc-on-nexus.html
