问在python OpenCV中，如何有效地逐像素遍历图像？

EN

#!/usr/bin/env python

import itertools as its
import sys
import time

import cv2
import numpy as np


def draw_img_orig(arr_in, arr_out, *args):
    factor = round(arr_out.shape[0] / arr_in.shape[0])
    factor_2 = factor // 2
    it = np.nditer(arr_in, flags=["multi_index"])
    while not it.finished:
        y, x = it.multi_index
        color = it[0]
        it.iternext()
        center = (x * factor + factor_2, y * factor + factor_2) # corresponding circle center
        cv2.circle(arr_out, center, int(8 * color / 255), 255, -1)


def draw_img_regular_iter(arr_in, arr_out, *args):
    factor = round(arr_out.shape[0] / arr_in.shape[0])
    factor_2 = factor // 2
    for row_idx, row in enumerate(arr_in):
        for col_idx, col in enumerate(row):
            cv2.circle(arr_out, (col_idx * factor + factor_2, row_idx * factor + factor_2), int(8 * col / 255), 255, -1)


def draw_img_cache(arr_in, arr_out, *args):
    factor = round(arr_out.shape[0] / arr_in.shape[0])
    it = np.nditer(arr_in, flags=["multi_index"])
    while not it.finished:
        y, x = it.multi_index
        yf = y * factor
        xf = x *factor
        arr_out[yf: yf + factor, xf: xf + factor] = args[0][it[0]]
        it.iternext()


def generate_input_images(shape, count, dtype=np.uint8):
    return np.random.randint(256, size=(count,) + shape, dtype=dtype)


def generate_circles(shape, dtype=np.uint8, func=lambda x: int(8 * x / 255), color=255):
    ret = np.zeros((256,) + shape, dtype=dtype)
    cy = shape[0] // 2
    cx = shape[1] // 2
    for idx, arr in enumerate(ret):
        cv2.circle(arr, (cx, cy), func(idx), color, -1)
    return ret


def test_draw(imgs_in, img_out, count, draw_func, *draw_func_args):
    print("\nTesting {:s}".format(draw_func.__name__))
    start = time.time()
    for i, e in enumerate(its.cycle(range(imgs_in.shape[0]))):
        draw_func(imgs_in[e], img_out, *draw_func_args)
        if i >= count:
            break
    print("Took {:.3f} seconds ({:d} images)".format(time.time() - start, count))


def test_speed(shape_in, shape_out, dtype=np.uint8):
    imgs_in = generate_input_images(shape_in, 50, dtype=dtype)
    #print(imgs_in.shape, imgs_in)
    img_out = np.zeros(shape_out, dtype=dtype)
    circles = generate_circles((shape_out[0] // shape_in[0], shape_out[1] // shape_in[1]))
    count = 250
    test_draw(imgs_in, img_out, count, draw_img_orig)
    test_draw(imgs_in, img_out, count, draw_img_regular_iter)
    test_draw(imgs_in, img_out, count, draw_img_cache, circles)


def test_accuracy(shape_in, shape_out, dtype=np.uint8):
    img_in = np.arange(np.product(shape_in), dtype=dtype).reshape(shape_in)
    circles = generate_circles((shape_out[0] // shape_in[0], shape_out[1] // shape_in[1]))
    data = (
        (draw_img_orig, "orig.png", None),
        (draw_img_regular_iter, "regit.png", None),
        (draw_img_cache, "cache.png", circles),
    )
    imgs_out = [np.zeros(shape_out, dtype=dtype) for _ in range(len(data))]
    for idx, (draw_func, out_name, other_arg) in enumerate(data):
        draw_func(img_in, imgs_out[idx], other_arg)
        cv2.imwrite(out_name, imgs_out[idx])
    for idx, img in enumerate(imgs_out[1:], start=1):
        if not np.array_equal(img, imgs_out[0]):
            print("Image index different: {:d}".format(idx))


def main(*argv):
    dt = np.uint8
    shape_in = (32, 32)
    factor_io = 20
    shape_out = tuple(i * factor_io for i in shape_in)
    test_speed(shape_in, shape_out, dtype=dt)
    test_accuracy(shape_in, shape_out, dtype=dt)


if __name__ == "__main__":
    print("Python {:s} {:03d}bit on {:s}\n".format(" ".join(elem.strip() for elem in sys.version.split("\n")),
                                                   64 if sys.maxsize > 0x100000000 else 32, sys.platform))
    rc = main(*sys.argv[1:])
    print("\nDone.")
    sys.exit(rc)

- One that iterates the input array _Python_icly (_draw\_img\_regular\_iter_)

- One that uses cached circles, and also iterates via _np.nditer_ (_draw\_img\_cache_)

- Speed: measure the time took to process a number of images

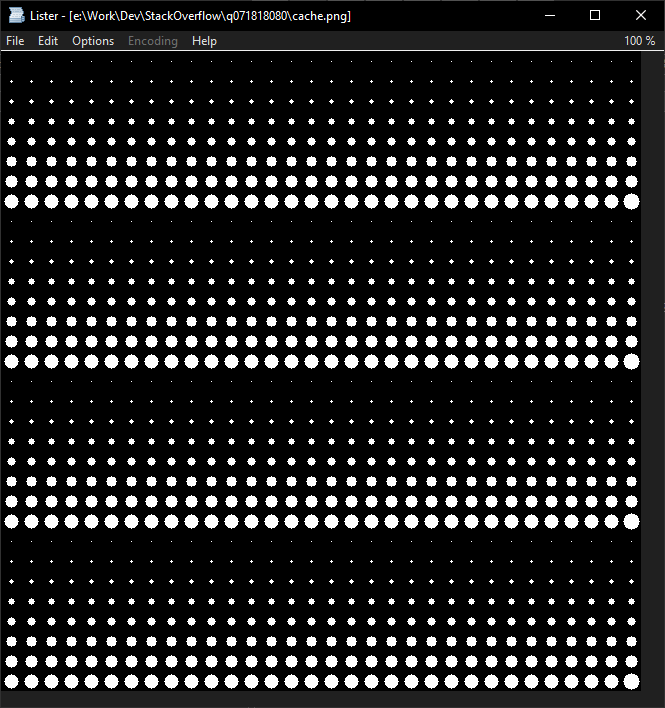

- Accuracy: measure the output for a _32x32_ input containing the interval _**[0, 255]**_ (4 times)
