通过opencv，我想从以下图片中选择收据的区域：

https://i.imgur.com/BnXzWPe.jpg

然后将它们裁剪并保存在单独的文件中。

这张照片是在1200 Dpi扫描的，在收据上加上一块黑色纸板，以便更好地识别边缘。

到目前为止，我得出的结果如下：

https://i.imgur.com/tRaPocd.jpg

在这里，您可以看到红色的边框、包含收据的矩形和带最小面积的矩形。

尽管正确地识别了Canny的边缘：

https://i.imgur.com/O5o2DWr.jpg

中央形象的绿地是不正确的，我不明白为什么。

这是源代码的摘录，您可以在这里找到完整的源代码：https://pastebin.com/NNc18pzA

Imgproc.resize (srcMat, srcMat, new Size (0,0), 0.5, 0.5, Imgproc.INTER_AREA);
Imgproc.cvtColor (srcMat, grayMat, Imgproc.COLOR_BGR2GRAY);
Imgproc.threshold (grayMat, grayMat, 177, 200, Imgproc.THRESH_BINARY);
Imgproc.GaussianBlur (grayMat, blurredMat, new Size (21,21), 0, 0, Core.BORDER_DEFAULT); // 3,3, 9,9 15,15, ....

Mat rectKernel = Imgproc.getStructuringElement (Imgproc.MORPH_RECT, new Size (21,21));

Imgproc.dilate (blurredMat, dilatedMat, rectKernel, new Point (0,0), 1);
Imgproc.Canny (dilatedMat, cannyMat, 100,200.3);

List <MatOfPoint> contours = new ArrayList <MatOfPoint> ();
final Mat hierarchy = new Mat ();

Imgproc.findContours (cannyMat, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

这些是在中间阶段处理的图像：

灰色：https://i.imgur.com/ufeIMQT.jpg

模糊：https://i.imgur.com/lQQER6T.jpg

扩张：https://i.imgur.com/sHmfZyI.jpg

这是使用的opencv版本：

<dependency>
    <groupId>org.openpnp</groupId>
    <artifactId>opencv</artifactId>
    <version>4.3.0-2</version>
</dependency>

请帮帮我。

谢谢你们所有人。

java

opencv

computer-vision

edge-detection

回答 1

Stack Overflow用户

回答已采纳

发布于 2022-04-16 22:35:30

主要问题是在Canny边缘检测后应用findContours。

Canny算子在外部轮廓中创建了很小的间隙：

结合approxPolyDP，我们得到了奇怪的结果。

简单的解决方案是跳过Canny运算符并将findContours应用于dilatedMat。

将Imgproc.findContours(cannyMat, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);替换为：

Imgproc.findContours(dilatedMat, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);

注意:建议使用RETR_EXTERNAL，但在这种情况下不是必须的。

一个小的问题是，有一些小的轮廓，是由噪音造成的。

我们可以使用打开形态学手术去除小(噪声)轮廓(更好地应用于扩张前)。

另一个简单的解决方案是跳过小面积的等高线。

我发现在10000像素以下的区域可能被认为是“小”的。

在for循环中添加一个if语句：

double area = Imgproc.contourArea(cnt);
if (area > 10000) { // Exclude small contours (noise)...

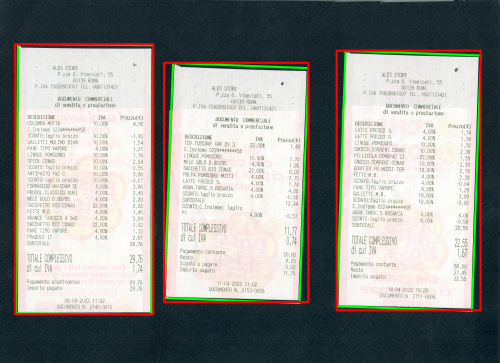

输出：

我将代码转换为Python ( JAVA代码保存在注释中)。

完整代码示例：

import cv2
import numpy as np

srcMat = cv2.imread('receipts.jpg')  # Read input image
cv2.resize(srcMat, (0, 0), srcMat, 0.1, 0.1, cv2.INTER_AREA)  # Imgproc.resize (srcMat, srcMat, new Size (0,0), 0.5, 0.5, Imgproc.INTER_AREA);
grayMat = cv2.cvtColor(srcMat, cv2.COLOR_BGR2GRAY)  # grayMat = Imgproc.cvtColor (srcMat, grayMat, Imgproc.COLOR_BGR2GRAY);
grayMat = cv2.threshold(grayMat, 177, 200, cv2.THRESH_BINARY)[1]  # Imgproc.threshold (grayMat, grayMat, 177, 200, Imgproc.THRESH_BINARY);
blurredMat = cv2.GaussianBlur(grayMat, ksize=(21, 21), sigmaX=0, sigmaY=0)  # Imgproc.GaussianBlur (grayMat, blurredMat, new Size (21,21), 0, 0, Core.BORDER_DEFAULT); // 3,3, 9,9 15,15, ....

rectKernel = cv2.getStructuringElement(cv2.MORPH_RECT, (21, 21))  # Mat rectKernel = Imgproc.getStructuringElement (Imgproc.MORPH_RECT, new Size (21,21));

dilatedMat = cv2.dilate(blurredMat, rectKernel)  # Imgproc.dilate (blurredMat, dilatedMat, rectKernel, new Point (0,0), 1);
cannyMat = cv2.Canny(dilatedMat, 100, 200.3)  # Imgproc.Canny (dilatedMat, cannyMat, 100,200.3);

# List <MatOfPoint> contours = new ArrayList <MatOfPoint> ();
# final Mat hierarchy = new Mat ();
#contours, hierarchy = cv2.findContours(cannyMat, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)  # Imgproc.findContours(cannyMat, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

# Find contours over dilatedMat (the Canny operator creates gaps in the external contour).
contours, hierarchy = cv2.findContours(dilatedMat, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)  # Imgproc.findContours(dilatedMat, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);


# Use cv2.RETR_EXTERNAL instead of cv2.RETR_TREE
#contours, hierarchy = cv2.findContours(cannyMat, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)  # Imgproc.findContours(cannyMat, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

cntImg = srcMat.copy()
# Mark best_cnt with green line - used for testing
cv2.drawContours(cntImg, contours, -1, (0, 255, 0), 20)

# for(MatOfPoint cnt : contours) {
for cnt  in contours:
    area = cv2.contourArea(cnt)

    # Exclude small contours (noise)
    if area > 10000:
        mop2f = cv2.approxPolyDP(cnt, 0.02 * cv2.arcLength(cnt, True), True)  # Imgproc.approxPolyDP(mop2f, mop2f, 0.02*Imgproc.arcLength(mop2f, true), true);
        rr = cv2.minAreaRect(mop2f) #  RotatedRect rr = Imgproc.minAreaRect(mop2f);
        m = cv2.boxPoints(rr) # Imgproc.boxPoints(rr, m);

        # Point[] rectPoints = new Point[4];
        # rr.points(rectPoints);
        rectPoints = np.int0(m)  # Convert all coordinates floating point values to int

        # for (int j = 0; j < 4; ++j) {
        #     Imgproc.line(srcMat, rectPoints[j], rectPoints[(j + 1) % 4], new Scalar(0,255,0), 20); }
        #for j in range(4):
        #    cv2.line(srcMat, tuple(rectPoints[j]), tuple(rectPoints[(j + 1) % 4]), (0, 255, 0), 20)  # Imgproc.line(srcMat, rectPoints[j], rectPoints[(j + 1) % 4], new Scalar(0,255,0), 20);

        # Deaw the rectangles using drawContours instead of drawing lines
        # https://stackoverflow.com/questions/18207181/opencv-python-draw-minarearect-rotatedrect-not-implemented
        cv2.drawContours(srcMat, [rectPoints], 0, (0, 255, 0), 20)

        boundingRect = cv2.boundingRect(cnt)  # Rect boundingRect = Imgproc.boundingRect(cnt);
        cv2.rectangle(srcMat, boundingRect, (0, 0, 255), 20)  # Imgproc.rectangle(srcMat, boundingRect, new Scalar(0,0,255),20); //scalar not is RGB but BGR !

简化执行(建议)：

使用Imgproc.THRESH_OTSU进行自动阈值选择。
没有必要应用GaussianBlur。
使用关闭而不是扩张。
没有必要应用Canny。

建议的JAVA代码：

package myproject; //package it.neo7bf;

import java.util.ArrayList;
import java.util.List;

import org.opencv.core.Core;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.MatOfPoint2f;
import org.opencv.core.Point;
import org.opencv.core.Rect;
import org.opencv.core.RotatedRect;
import org.opencv.core.Scalar;
import org.opencv.core.Size;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

//import nu.pattern.OpenCV;

public class SeparationTest3 {

    static { System.loadLibrary(Core.NATIVE_LIBRARY_NAME); }

    static class I {
        public String name;
        public int v;
        I(String name, int v) {
            this.name = name;
            this.v = v;
        }
    }

    public static void cannyTest() {

        List<I> images = List.of(
            new I("2022-04-16_085329",3)
        );

        for(I image : images) {

            Mat srcMat = Imgcodecs.imread("C:\\ProgettoScontrino\\scontrini\\campioni-test\\test-separazione\\"+image.name+".jpg");

            Mat grayMat = new Mat();
            //Mat blurredMat = new Mat();
            Mat dilatedMat = new Mat();
            //Mat cannyMat = new Mat();


            Imgproc.resize(srcMat, srcMat, new Size(0,0), 0.5, 0.5, Imgproc.INTER_AREA);
            Imgproc.cvtColor(srcMat, grayMat, Imgproc.COLOR_BGR2GRAY);
            //Imgproc.threshold(grayMat, grayMat, 177, 200, Imgproc.THRESH_BINARY);
            Imgproc.threshold(grayMat, grayMat, 0, 255, Imgproc.THRESH_OTSU);  //Use automatic threshold

            //There is no need to blur the image after threshold
            //Imgproc.GaussianBlur(grayMat, blurredMat, new Size(21,21),0, 0,Core.BORDER_DEFAULT); //3,3, 9,9 15,15,....

            Mat rectKernel = Imgproc.getStructuringElement(Imgproc.MORPH_RECT, new Size(21,21));

            //Imgproc.dilate(blurredMat, dilatedMat, rectKernel, new Point(0,0),1);
            Imgproc.morphologyEx(grayMat, dilatedMat, Imgproc.MORPH_CLOSE, rectKernel);  // Use closing instead of dilate
            //Imgproc.Canny(dilatedMat,cannyMat,100,200,3); //No need for Canny

            List<MatOfPoint> contours = new ArrayList<MatOfPoint>();
            final Mat hierarchy = new Mat();

            //Imgproc.findContours(cannyMat, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

            Imgproc.findContours(dilatedMat, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);

            //contours = getMaxContours(contours,image.v);

            for(MatOfPoint cnt : contours) {
                double area = Imgproc.contourArea(cnt);
                if (area > 10000) //Ignore small contours
                {
                    MatOfPoint2f mop2f = new MatOfPoint2f(cnt.toArray());
                    Imgproc.approxPolyDP(mop2f, mop2f, 0.02*Imgproc.arcLength(mop2f, true), true);
                    RotatedRect rr = Imgproc.minAreaRect(mop2f);
                    MatOfPoint m = new MatOfPoint();
                    Imgproc.boxPoints(rr, m);
                    Point[] rectPoints = new Point[4];
                    rr.points(rectPoints);
                    for (int j = 0; j < 4; ++j) {
                      Imgproc.line(srcMat, rectPoints[j], rectPoints[(j + 1) % 4], new Scalar(0,255,0), 20);
                    }

                    //BoundingBox
                    Rect boundingRect = Imgproc.boundingRect(cnt);
                    Imgproc.rectangle(srcMat, boundingRect, new Scalar(0,0,255),20); //scalar not is RGB but BGR !
                }
            }

            //C:\ProgettoScontrino\scontrini\campioni-test\test-separazione\output\
            Imgcodecs.imwrite("C:\\ProgettoScontrino\\scontrini\\campioni-test\\test-separazione\\output\\"+image.name+"gray.jpg", grayMat);
            //Imgcodecs.imwrite("C:\\ProgettoScontrino\\scontrini\\campioni-test\\test-separazione\\output\\"+image.name+"blurred.jpg", blurredMat);
            Imgcodecs.imwrite("C:\\ProgettoScontrino\\scontrini\\campioni-test\\test-separazione\\output\\"+image.name+"dilated.jpg", dilatedMat);
            //Imgcodecs.imwrite("C:\\ProgettoScontrino\\scontrini\\campioni-test\\test-separazione\\output\\"+image.name+"canny.jpg", cannyMat);
            Imgcodecs.imwrite("C:\\ProgettoScontrino\\scontrini\\campioni-test\\test-separazione\\output\\"+image.name+"contours.jpg", srcMat);
        }
    }

    public static void main(String[] args) {
        cannyTest();
    }
}
