问"gdstk.h没有此类文件或目录“
EN

Stack Overflow用户
提问于 2022-04-21 16:59:56
回答 1查看 171关注 0票数 0

下面回答！谢谢您的盛情邀请

我在gdstk中生成初始的红色矩形有一些困难。下面我已经将源代码复制粘贴到Eclipse中的"Hello“默认项目中，但是正在收到上面的错误。我认为这是因为我需要“指向”或包含引用的头文件，或者将其包含在二进制文件中的列表中(非常类似和 live)。我在Eclipse菜单中查看了如何添加".h“文件头，但似乎帮助菜单也被破坏了。

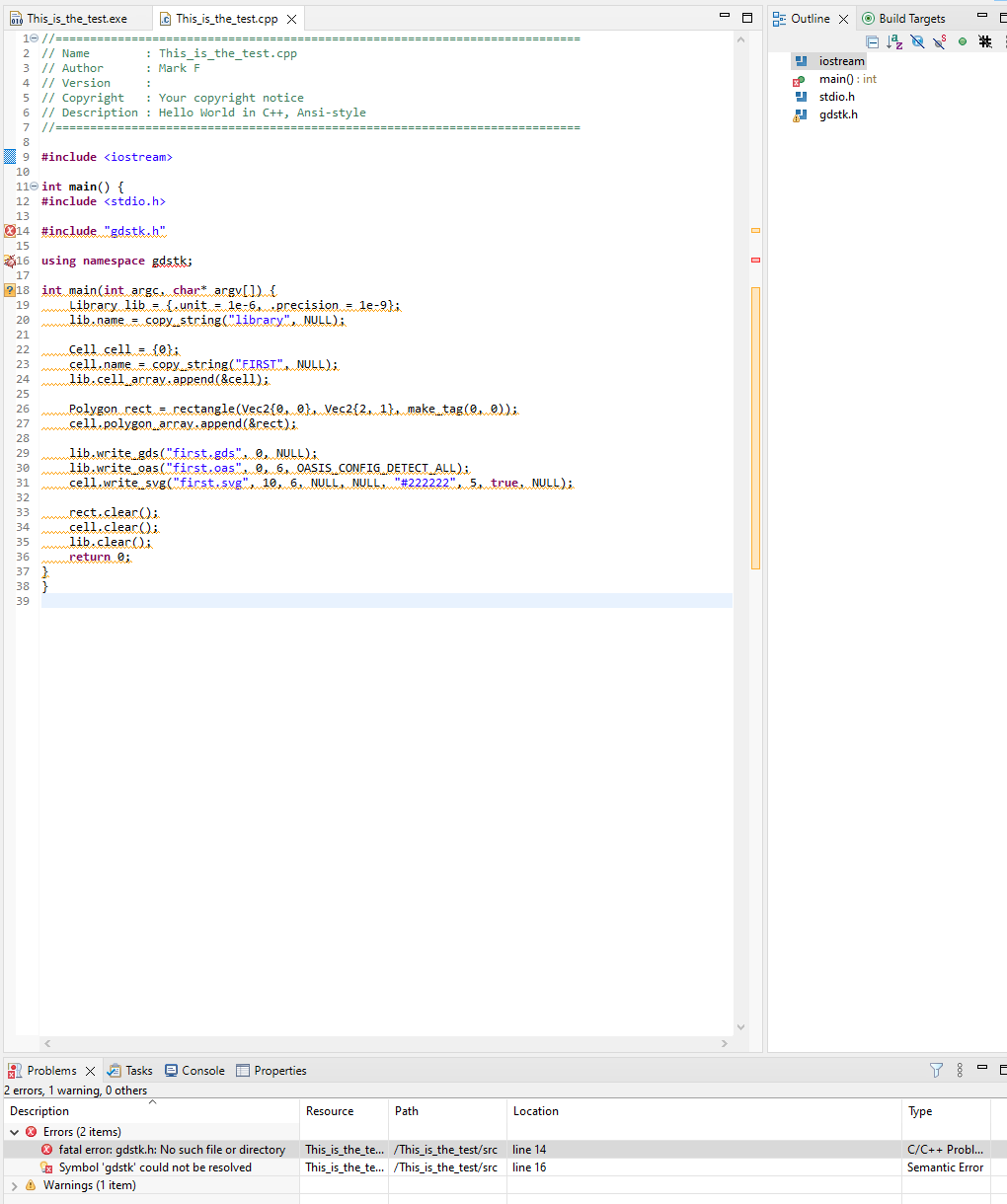

eclipse中的C++代码：

​

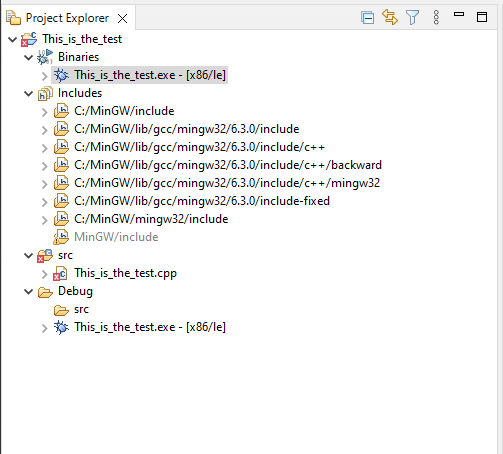

窗口：

​

另外，我最终从Eclipse中的Git透视图工具获得了它作为一个项目加载(我认为)，但是现在当“构建”时，我得到了下面的错误"No“。原来的错误被这一次超越了。**

代码语言：javascript
运行
复制
[No Toolchain found][3]

尝试以下一些建议：“将目录更改为包含CMakeLists.txt的文件夹。然后键入mkdir并按enter，然后键入cmake.-B构建并按enter。这将在build文件夹中构建一个C++静态库。

在此之后，我得到了以下错误：

代码语言：javascript
运行
复制
(base) C:\Users\me>cd C:\Users\me\git\gdstk

(base) C:\Users\me\git\gdstk>mkdir build
A subdirectory or file build already exists.

(base) C:\Users\me\git\gdstk>cmake -S . -B build
-- Building for: NMake Makefiles
CMake Error at CMakeLists.txt:7 (project):
  Running

   'nmake' '-?'

  failed with:

   The system cannot find the file specified


CMake Error: CMAKE_C_COMPILER not set, after EnableLanguage
CMake Error: CMAKE_CXX_COMPILER not set, after EnableLanguage
-- Configuring incomplete, errors occurred!
See also "C:/Users/me/git/gdstk/build/CMakeFiles/CMakeOutput.log".

我尝试了更多的东西，现在被困在这里：**

代码语言：javascript
运行
复制
(base) C:\Users\me>conda config --env --add channels conda-forge

(base) C:\Users\me>conda config --env --set channel_priority strict

(base) C:\Users\me># Install gdstk
'#' is not recognized as an internal or external command,
operable program or batch file.

(base) C:\Users\me>conda config --env --add channels conda-forge
Warning: 'conda-forge' already in 'channels' list, moving to the top

(base) C:\Users\me>conda config --env --set channel_priority strict

(base) C:\Users\me>conda install gdstk
Collecting package metadata (current_repodata.json): done
Solving environment: failed with initial frozen solve. Retrying with flexible solve.
Solving environment: failed with repodata from current_repodata.json, will retry with next repodata source.
Collecting package metadata (repodata.json): done
Solving environment: failed with initial frozen solve. Retrying with flexible solve.
Solving environment: done

## Package Plan ##

  environment location: C:\Users\me\Anaconda3

  added / updated specs:
    - gdstk


The following packages will be downloaded:

    package                    |            build
    ---------------------------|-----------------
    gdstk-0.5.0                |   py39h5ff6c76_0         489 KB  conda-forge
    libblas-3.9.0              |1_h8933c1f_netlib         193 KB  conda-forge
    liblapack-3.9.0            |5_hd5c7e75_netlib         2.7 MB  conda-forge
    libsodium-1.0.18           |       h62dcd97_0         477 KB
    zeromq-4.3.4               |       hd77b12b_0         4.2 MB
    ------------------------------------------------------------
                                           Total:         8.1 MB

The following NEW packages will be INSTALLED:

  gdstk              conda-forge/win-64::gdstk-0.5.0-py39h5ff6c76_0
  libblas            conda-forge/win-64::libblas-3.9.0-1_h8933c1f_netlib
  liblapack          conda-forge/win-64::liblapack-3.9.0-5_hd5c7e75_netlib

The following packages will be SUPERSEDED by a higher-priority channel:

  conda              conda-forge::conda-4.12.0-py39hcbf530~ --> pkgs/main::conda-4.12.0-py39haa95532_0
  libsodium          conda-forge::libsodium-1.0.18-h8d1472~ --> pkgs/main::libsodium-1.0.18-h62dcd97_0
  zeromq               conda-forge::zeromq-4.3.4-h0e60522_1 --> pkgs/main::zeromq-4.3.4-hd77b12b_0


Proceed ([y]/n)? y


Downloading and Extracting Packages
zeromq-4.3.4         | 4.2 MB    | ############################################################################ | 100%
gdstk-0.5.0          | 489 KB    | ############################################################################ | 100%
libblas-3.9.0        | 193 KB    | ############################################################################ | 100%
liblapack-3.9.0      | 2.7 MB    | ############################################################################ | 100%
libsodium-1.0.18     | 477 KB    | ############################################################################ | 100%
Preparing transaction: done
Verifying transaction: done
Executing transaction: done

(base) C:\Users\me>cd C:\Users\me\git\gdstk

(base) C:\Users\me\git\gdstk>mkdir build
A subdirectory or file build already exists.

(base) C:\Users\me\git\gdstk>python setup.py install
running install
running bdist_egg
running egg_info
writing gdstk.egg-info\PKG-INFO
writing dependency_links to gdstk.egg-info\dependency_links.txt
writing requirements to gdstk.egg-info\requires.txt
writing top-level names to gdstk.egg-info\top_level.txt
reading manifest file 'gdstk.egg-info\SOURCES.txt'
reading manifest template 'MANIFEST.in'
adding license file 'LICENSE'
writing manifest file 'gdstk.egg-info\SOURCES.txt'
installing library code to build\bdist.win-amd64\egg
running install_lib
running build_ext
cmake -S C:\Users\me\git\gdstk -B C:\Users\me\git\gdstk\build\temp.win-amd64-3.9\Release\cmake_build -DCMAKE_INSTALL_PREFIX=C:\Users\me\git\gdstk\build\temp.win-amd64-3.9\Release\cmake_build\install -DCMAKE_BUILD_TYPE=Release
CMake Error at CMakeLists.txt:7 (project):
  Running

   'nmake' '-?'

  failed with:

   The system cannot find the file specified


CMake Error: CMAKE_C_COMPILER not set, after EnableLanguage
CMake Error: CMAKE_CXX_COMPILER not set, after EnableLanguage
-- Configuring incomplete, errors occurred!
See also "C:/Users/me/git/gdstk/build/temp.win-amd64-3.9/Release/cmake_build/CMakeFiles/CMakeOutput.log".
error: command 'C:\\Program Files\\CMake\\bin\\cmake.exe' failed with exit code 1

(base) C:\Users\me\git\gdstk>cmake -S . -B build
CMake Error at CMakeLists.txt:7 (project):
  Running

   'nmake' '-?'

  failed with:

   The system cannot find the file specified


CMake Error: CMAKE_C_COMPILER not set, after EnableLanguage
CMake Error: CMAKE_CXX_COMPILER not set, after EnableLanguage
-- Configuring incomplete, errors occurred!
See also "C:/Users/me/git/gdstk/build/CMakeFiles/CMakeOutput.log".

(base) C:\Users\me\git\gdstk>

编辑我尝试了下面给出的第一个答案，在配置/生成cmake时遇到了以下问题：

代码语言：javascript
运行
复制
me@l-ul71kght6q MINGW64 ~/projects/gdstk
$ cmake -S . -B build -G"MSYS Makefiles"
CMake Error: Could not create named generator MSYS Makefiles

Generators
* Unix Makefiles               = Generates standard UNIX makefiles.
  Ninja                        = Generates build.ninja files.
  Ninja Multi-Config           = Generates build-<Config>.ninja files.
  CodeBlocks - Ninja           = Generates CodeBlocks project files.
  CodeBlocks - Unix Makefiles  = Generates CodeBlocks project files.
  CodeLite - Ninja             = Generates CodeLite project files.
  CodeLite - Unix Makefiles    = Generates CodeLite project files.
  Eclipse CDT4 - Ninja         = Generates Eclipse CDT 4.0 project files.
  Eclipse CDT4 - Unix Makefiles= Generates Eclipse CDT 4.0 project files.
  Kate - Ninja                 = Generates Kate project files.
  Kate - Unix Makefiles        = Generates Kate project files.
  Sublime Text 2 - Ninja       = Generates Sublime Text 2 project files.
  Sublime Text 2 - Unix Makefiles
                               = Generates Sublime Text 2 project files.
c++
eclipse
EN

回答 1

Stack Overflow用户

发布于 2022-04-23 12:00:43

先决条件:使用MinGW : MSYS2：How to install MinGW-w64 and MSYS2?安装How to install MinGW-w64 and MSYS2?

为了构建gdstk，我在windows 10文件资源管理器中打开了C:\msys64 64文件夹，并在mingw64.exe上双击以打开带有mingw64设置的终端。

确保在msys2中安装了cmake：

代码语言：javascript
运行
复制
JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~
# pacman -S cmake
warning: cmake-3.22.1-2 is up to date -- reinstalling
resolving dependencies...
looking for conflicting packages...

Packages (1) cmake-3.22.1-2

Total Installed Size:  35.63 MiB
Net Upgrade Size:       0.00 MiB

:: Proceed with installation? [Y/n] y
(1/1) checking keys in keyring                     [#####################] 100%
(1/1) checking package integrity                   [#####################] 100%
(1/1) loading package files                        [#####################] 100%
(1/1) checking for file conflicts                  [#####################] 100%
(1/1) checking available disk space                [#####################] 100%
:: Processing package changes...
(1/1) reinstalling cmake                           [#####################] 100%

然后，我输入以下内容以创建并将目录更改为projects文件夹：

代码语言：javascript
运行
复制
JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~
# mkdir projects

JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~
# cd projects/

然后克隆存储库：

代码语言：javascript
运行
复制
JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~/projects
# git clone https://github.com/heitzmann/gdstk.git
Cloning into 'gdstk'...
remote: Enumerating objects: 3789, done.
remote: Counting objects: 100% (618/618), done.
remote: Compressing objects: 100% (121/121), done.
remote: Total 3789 (delta 524), reused 497 (delta 497), pack-reused 3171
Receiving objects: 100% (3789/3789), 4.83 MiB | 13.37 MiB/s, done.
Resolving deltas: 100% (2982/2982), done.

然后将目录更改为gdsdk文件夹并创建一个构建文件夹：

代码语言：javascript
运行
复制
JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~/projects
# cd gdstk/

JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~/projects/gdstk
# mkdir build

然后在cmake中配置和生成。

代码语言：javascript
运行
复制
JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~/projects/gdstk
# cmake -S . -B build -G"MSYS Makefiles"
-- The C compiler identification is GNU 11.2.0
-- The CXX compiler identification is GNU 11.2.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: C:/msys64/mingw64/bin/gcc.exe - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: C:/msys64/mingw64/bin/g++.exe - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Found ZLIB: C:/msys64/mingw64/lib/libz.dll.a (found suitable version "1.2.12", minimum required is "1.2.9")
-- Configuring done
-- Generating done
-- Build files have been written to: C:/msys64/home/dresc/projects/gdstk/build

JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~/projects/gdstk
#

然后构建并安装：

代码语言：javascript
运行
复制
JMDLAPTOP1+dresc@JMDLAPTOP1 MINGW64 ~/projects/gdstk
# cmake --build build --target install
[  2%] Building CXX object CMakeFiles/gdstk.dir/src/cell.cpp.obj
[  5%] Building CXX object CMakeFiles/gdstk.dir/src/clipper_tools.cpp.obj
[  8%] Building CXX object CMakeFiles/gdstk.dir/src/curve.cpp.obj
[ 11%] Building CXX object CMakeFiles/gdstk.dir/src/flexpath.cpp.obj
[ 14%] Building CXX object CMakeFiles/gdstk.dir/src/gdsii.cpp.obj
[ 17%] Building CXX object CMakeFiles/gdstk.dir/src/label.cpp.obj
[ 20%] Building CXX object CMakeFiles/gdstk.dir/src/library.cpp.obj
[ 22%] Building CXX object CMakeFiles/gdstk.dir/src/oasis.cpp.obj
[ 25%] Building CXX object CMakeFiles/gdstk.dir/src/polygon.cpp.obj
[ 28%] Building CXX object CMakeFiles/gdstk.dir/src/property.cpp.obj
[ 31%] Building CXX object CMakeFiles/gdstk.dir/src/rawcell.cpp.obj
[ 34%] Building CXX object CMakeFiles/gdstk.dir/src/reference.cpp.obj
[ 37%] Building CXX object CMakeFiles/gdstk.dir/src/repetition.cpp.obj
[ 40%] Building CXX object CMakeFiles/gdstk.dir/src/robustpath.cpp.obj
[ 42%] Building CXX object CMakeFiles/gdstk.dir/src/style.cpp.obj
[ 45%] Building CXX object CMakeFiles/gdstk.dir/src/utils.cpp.obj
[ 48%] Building CXX object CMakeFiles/gdstk.dir/src/clipperlib/clipper.cpp.obj
[ 51%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/global_r.c.obj
[ 54%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/stat_r.c.obj
[ 57%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/geom2_r.c.obj
[ 60%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/poly2_r.c.obj
[ 62%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/merge_r.c.obj
[ 65%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/libqhull_r.c.obj
[ 68%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/geom_r.c.obj
[ 71%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/poly_r.c.obj
[ 74%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/qset_r.c.obj
[ 77%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/mem_r.c.obj
[ 80%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/random_r.c.obj
[ 82%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/usermem_r.c.obj
[ 85%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/userprintf_r.c.obj
[ 88%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/io_r.c.obj
[ 91%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/user_r.c.obj
[ 94%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/rboxlib_r.c.obj
[ 97%] Building C object CMakeFiles/gdstk.dir/src/libqhull_r/userprintf_rbox_r.c.obj
[100%] Linking CXX static library libgdstk.a
[100%] Built target gdstk
Install the project...
-- Install configuration: "Release"
-- Installing: C:/Program Files (x86)/gdstk/lib/libgdstk.a
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/allocator.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/array.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/cell.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/clipper_tools.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/curve.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/flexpath.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/font.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/gdsii.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/gdswriter.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/label.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/library.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/map.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/oasis.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/pathcommon.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/polygon.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/property.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/rawcell.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/reference.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/repetition.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/robustpath.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/set.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/sort.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/style.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/utils.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk/vec.h
-- Installing: C:/Program Files (x86)/gdstk/include/gdstk.h
-- Installing: C:/Program Files (x86)/gdstk/lib/pkgconfig/gdstk.pc
票数 0
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/71958229

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
