入口资源文件错误aks-spec.rules[0].http.paths[0].pathType:必需值:必须指定pathType
EN

Stack Overflow用户
提问于 2022-05-14 20:33:25
回答 1查看 1.9K关注 0票数 0

我正在跟踪MS文档来创建ingress控制器。

代码语言:javascript
运行
复制
https://learn.microsoft.com/en-us/learn/modules/aks-workshop/07-deploy-ingress

但是下面的yaml文件给了我错误:The Ingress "ratings-web-ingress" is invalid: spec.rules[0].http.paths[0].pathType: Required value: pathType must be specified

命令:kubectl apply --namespace ratingsapp -f ratings-web-ingress.yaml --validate=false

代码语言:javascript
运行
复制
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ratings-web-ingress
  annotations:
    kubernetes.io/ingress.class: nginx
spec:
  rules:
  - host: frontend.20-83-140-186.nip.io # IMPORTANT: update <ingress ip> with the dashed public IP of your ingress, for example frontend.13-68-177-68.nip.io
    http:
      paths:
      - path: /
      pathType: Prefix
      backend:
      service:
      name: ratings-web
      port:
      number: 80
EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2022-05-16 09:03:58

我尝试用相同的代码复制创建入口NGINX控制器,并得到了相同的错误

要解决错误"spec.rules.http.paths.pathType:必需值: pathType必须指定“在pathType后替换pathType,如下所示:

代码语言:javascript
运行
复制
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ratings-web-ingress
  annotations:
    kubernetes.io/ingress.class: nginx
spec:
  rules:
  - host: frontend.10.0.0.1.nip.io # IMPORTANT: update <ingress ip> with the dashed public IP of your ingress, for example frontend.13-68-177-68.nip.io
    http:
      paths:
      - backend:
          service:
            name: ratings-web
            port:
              number: 80
        path: /
        pathType: ImplementationSpecific

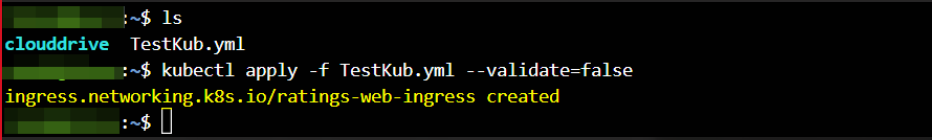

修改yaml文件后,我成功地创建了入口:

有关更多细节,请参考下面的链接

Lab10.1 -创建入口规则错误:“必须指定pathType”-论坛

票数 2
