社区首页 >问答首页 >Spring启动SOAP服务“没有端点适配器”作为响应

问Spring启动SOAP服务“没有端点适配器”作为响应
EN

Stack Overflow用户

提问于 2022-06-24 08:33:42

回答 2查看 302关注 0票数 1

我正在尝试挖掘Spring服务和JAXB类生成。在spring.io教程之后，我成功地创建了一个简单的web服务应用程序，但它并没有响应我的请求。下面是我的代码，配置(UPD修复了，多亏了DimasG，但仍然无法工作)：

@EnableWs
@Configuration
public class WebServiceConfiguration extends WsConfigurerAdapter {

    @Bean
    public ServletRegistrationBean registrationBean(ApplicationContext context) {
        MessageDispatcherServlet servlet = new MessageDispatcherServlet();
        servlet.setApplicationContext(context);
        servlet.setTransformWsdlLocations(true);
        return new ServletRegistrationBean(servlet, "/ws/*");
    }

    @Bean(name = "employees")
    public DefaultWsdl11Definition defaultWsdl11Definition(XsdSchema schema) {
        DefaultWsdl11Definition definition = new DefaultWsdl11Definition();
        definition.setPortTypeName("EmployeesPort");
        definition.setLocationUri("/ws");
        definition.setTargetNamespace("http://spring/demo/webservice");
        definition.setSchema(schema);
        return definition;
    }

    @Bean
    public XsdSchema employeesSchema() {
        return new SimpleXsdSchema(new ClassPathResource("xsd/employees.xsd"));
    }

}

XSD模式文件：

<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:tns="http://spring/demo/webservice"
           targetNamespace="http://spring/demo/webservice" elementFormDefault="qualified">

    <xs:element name="getEmployeeRequest">
        <xs:complexType>
            <xs:sequence>
                <xs:element name="name" type="xs:string"/>
            </xs:sequence>
        </xs:complexType>
    </xs:element>

    <xs:element name="getEmployeeResponse">
        <xs:complexType>
            <xs:sequence>
                <xs:element name="employee" type="tns:employee"/>
            </xs:sequence>
        </xs:complexType>
    </xs:element>

    <xs:complexType name="employee">
        <xs:sequence>
            <xs:element name="name" type="xs:string"/>
            <xs:element name="age" type="xs:int"/>
            <xs:element name="position" type="xs:string"/>
            <xs:element name="gender" type="tns:gender"/>
        </xs:sequence>
    </xs:complexType>

    <xs:simpleType name="gender">
        <xs:restriction base="xs:string">
            <xs:enumeration value="M"/>
            <xs:enumeration value="F"/>
        </xs:restriction>
    </xs:simpleType>
</xs:schema>

端点：

@Endpoint
public class EmployeeWebService {

    private static final String NAMESPACE_URI = "http://spring/demo/webservice";

    private final List<Employee> employees = new ArrayList<>();

    @PostConstruct
    public void init() {
        employees.addAll(
                Arrays.asList(
                        createEmployee("John Doe", 30, Gender.M, "Manager"),
                        createEmployee("Jane Doe", 27, Gender.F, "QA"),
                        createEmployee("Bob Johns", 28, Gender.M, "Programmer"),
                        createEmployee("Tiffany Collins", 24, Gender.F, "CEO"),
                        createEmployee("Alice", 25, Gender.F, "Secretary")
                )
        );
    }

    @PayloadRoot(namespace = NAMESPACE_URI, localPart = "getEmployeeRequest")
    @ResponsePayload
    public GetEmployeeResponse get(@RequestPayload GetEmployeeRequest request) {
        Employee found = employees.stream()
                .filter(emp -> emp.getName().equals(request.getName()))
                .findFirst()
                .orElseThrow(() -> new RuntimeException("Not found"));
        GetEmployeeResponse response = new GetEmployeeResponse();
        response.setEmployee(found);
        return response;
    }

}

SOAP getEmployeeRequest：

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
                  xmlns:gs="http://spring/demo/webservice">
    <soapenv:Header/>
    <soapenv:Body>
        <gs:getEmployeeRequest>
            <gs:name>Alice</gs:name>
        </gs:getEmployeeRequest>
    </soapenv:Body>
</soapenv:Envelope>

通过提供的代码，我将得到错误消息：

<faultstring xml:lang="en">No adapter for endpoint [public spring.demo.webservice.GetEmployeeResponse com.abondarenkodev.demo.spring.webservice.controller.EmployeeWebService.get(spring.demo.webservice.GetEmployeeRequest)]: Is your endpoint annotated with @Endpoint, or does it implement a supported interface like MessageHandler or PayloadEndpoint?</faultstring>

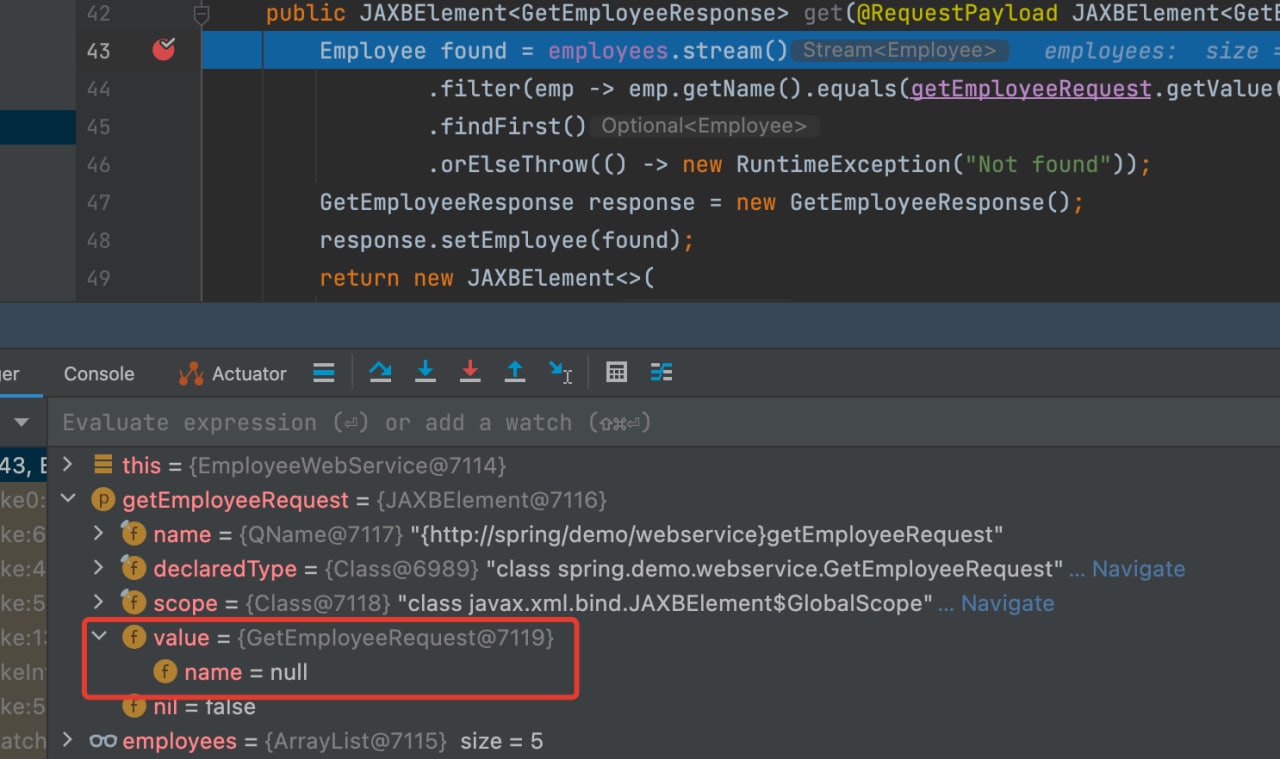

我找到了一个可能的解决方案，可以用JAXBElement包装响应和请求类。端点方法如下所示：

@PayloadRoot(namespace = NAMESPACE_URI, localPart = "getEmployeeRequest")
@ResponsePayload
public JAXBElement<GetEmployeeResponse> get(@RequestPayload JAXBElement<GetEmployeeRequest> request) {
    Employee found = employees.stream()
            .filter(emp -> emp.getName().equals(request.getValue().getName()))
            .findFirst()
            .orElseThrow(() -> new RuntimeException("Not found"));
    GetEmployeeResponse response = new GetEmployeeResponse();
    response.setEmployee(found);
    return new JAXBElement<>(
            QName.valueOf("GetEmployeeResponse"),
            GetEmployeeResponse.class,
            response
    );
}

JAXBElement有两个选项: jakarta.xml.bind.JAXBElement和javax.xml.bind.JAXBElement。对于jakarta，我得到了相同的'No adapter‘消息，而使用javax元素，我得到了"Not“异常，因为request.getValue()将以null的形式出现。

我发现的第二个可能的解决方案是检查请求和响应生成的类是否用XmlRootElement注释，并且它们确实被注释了。这是我的pom文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.0</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.abondarenkodev.demo.spring.webservice</groupId>
    <artifactId>spring-soap-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-soap-demo</name>
    <description>Demo project for Spring Boot WebServices</description>

    <properties>
        <java.version>11</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web-services</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>wsdl4j</groupId>
            <artifactId>wsdl4j</artifactId>
            <version>1.6.3</version>
        </dependency>

        <dependency>
            <groupId>jakarta.xml.bind</groupId>
            <artifactId>jakarta.xml.bind-api</artifactId>
            <version>4.0.0</version>
        </dependency>

        <dependency>
            <groupId>org.jdom</groupId>
            <artifactId>jdom2</artifactId>
            <version>2.0.6.1</version>
        </dependency>

        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.1</version>
        </dependency>

        <dependency>
            <groupId>org.glassfish.jaxb</groupId>
            <artifactId>jaxb-runtime</artifactId>
            <version>2.3.1</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>

            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>jaxb2-maven-plugin</artifactId>
                <version>3.1.0</version>
                <executions>
                    <execution>
                        <id>xjc</id>
                        <goals>
                            <goal>xjc</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <sources>
                        <source>${project.basedir}/src/main/resources/xsd</source>
                    </sources>
                    <outputDirectory>${project.build.directory}/generated-sources/jaxb/</outputDirectory>
                    <clearOutputDir>false</clearOutputDir>
                </configuration>
            </plugin>

        </plugins>
    </build>

</project>

我会感谢你的帮助。谢谢。

java

xml

spring

spring-boot

soap

回答 2

Stack Overflow用户

回答已采纳

发布于 2022-06-26 20:30:16

我已经通过将Jaxb2 Maven插件降级到2.5.0版本来解决这个问题。这个插件的最后一个可用版本(3.1.0)使用jakarta生成类，而2.5.0使用javax导入生成类。

如果有人不小心踩到了这个问题，而你知道如何用雅加达进口来解决这个问题，请告诉我。

我的项目的最终pom文件如下(控制器中不需要JAXBElement )：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.1</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.demo.spring.webservice</groupId>
    <artifactId>demo-spring-webservice</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo-spring-webservice</name>
    <description>Demo project for Spring Boot WebServices</description>

    <properties>
        <java.version>11</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web-services</artifactId>
        </dependency>

        <dependency>
            <groupId>wsdl4j</groupId>
            <artifactId>wsdl4j</artifactId>
            <version>1.6.3</version>
        </dependency>

        <dependency>
            <groupId>org.glassfish.jaxb</groupId>
            <artifactId>jaxb-runtime</artifactId>
            <version>2.3.1</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>jaxb2-maven-plugin</artifactId>
                <version>2.5.0</version>
                <executions>
                    <execution>
                        <id>xjc</id>
                        <goals>
                            <goal>xjc</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <sources>
                        <source>${project.basedir}/src/main/resources/xsd</source>
                    </sources>
                    <outputDirectory>${project.build.directory}/generated-sources/jaxb/</outputDirectory>
                    <clearOutputDir>false</clearOutputDir>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

票数 0

Stack Overflow用户

发布于 2022-06-24 10:51:36

在DefaultWsdl11Definition中，正如我所看到的，targetNameSpace与xsd中的不同。在ServletRegistrationBean /ws/*中应该是/webservice/*

票数 0
