Gridstack.js + Vue 3组件
Gridstack.js + Vue 3组件
提问于 2022-06-30 09:28:13
我试图用Vue 3创建一个gridstack.js仪表板，我希望网格堆栈项包含反应性vue 3组件。
问题是这些网格堆栈项只能传递HTML。文档声明您应该能够将Vue组件作为内容添加，但是示例是针对Vue 2的，我正努力在Vue 3中实现这一点。
我有以下代码：
<template>
<div class="p-6 h-full flex flex-col">
<header class="flex flex-row items-center justify-between mb-6">
<div>
<h1 class="text-3xl font-bold">
Workbench
</h1>
<p class="leading-6 text-gray-600 text-sm mt-2">
{{ info }}
</p>
</div>
<div class="flex flex-row items-center">
<button type="button" @click="addPanel()">Add Panel</button>
</div>
</header>
<div class="flex-1">
<section class="grid-stack"></section>
</div>
</div>
</template>
<script setup>
import { ref, onMounted, defineComponent, createApp } from "vue"
import TestPanel from "./../components/panels/TestPanel.vue"
let grid = null;
const items = [
{ x: 0, y: 0, h: 4, w: 6 },
{ x: 7, y: 0, h: 4, w: 6 },
{ x: 0, y: 5, h: 4, w: 4 },
{ x: 4, y: 5, h: 4, w: 4 },
{ x: 8, y: 5, h: 4, w: 4 },
];
onMounted(() => {
grid = GridStack.init({
// float: true,
cellHeight: "70px",
minRow: 1,
});
grid.load(items)
});
function addPanel() {
const div = document.createElement("div")
div.id = Math.random().toString(24).substring(8)
const componentInstance = defineComponent({
extends: TestPanel, data() {
return {
test: "this is a test"
}
}
})
const app = createApp(componentInstance)
app.mount(div)
let widget = grid.addWidget({
x: 0,
y: 0,
w: 6,
h: 3,
content: div.outerHTML,
})
app.mount(div.id)
}
</script>
<style>
.grid-stack-item-content {
background-color: #18BC9C;
}
</style>这将在堆栈网格项中加载vue组件，但组件不再是反应性的。
任何帮助都将不胜感激，谢谢！
回答 2
Stack Overflow用户
发布于 2022-09-30 19:29:14
这可能并不是网格堆栈创建者所想的那样，但您可以这样做：
<template>
<button @click="addNewWidget()">Add Widget</button> {{ info }}
<section class="grid-stack">
<div
v-for="(component, key, index) in components"
:key="'component'+index"
:gs-id="key"
class="grid-stack-item"
:gs-x="component.gridPos.x"
:gs-y="component.gridPos.y"
:gs-h="component.gridPos.h"
:gs-w="component.gridPos.w"
gs-auto-position="true"
>
<div class="grid-stack-item-content">
<component :is="component.name" v-bind="component.props" />
</div>
</div>
</section>
</template>
<script>
import { ref, onMounted, reactive, nextTick } from 'vue';
import 'gridstack/dist/gridstack.min.css';
import { GridStack } from 'gridstack';
import YourRandomComponent1 from '../YourRandomComponent1.vue';
import YourRandomComponent2 from '../YourRandomComponent2.vue';
import YourRandomComponent3 from '../YourRandomComponent3.vue';
export default {
name: "WidgetGrid",
setup() {
let info = ref("");
let grid = null;
let components = reactive({
yourRandomComponent1: {
name: "YourRandomComponent1", props: {}, gridPos: { x: 0, y: 1, w: 4, h: 5 }
},
yourRandomComponent2: {
name: "YourRandomComponent2", props: {}, gridPos: { x: 0, y: 1, w: 2, h: 5 }
},
});
onMounted(() => {
grid = GridStack.init({
float: true,
cellHeight: "70px",
minRow: 1,
});
grid.on("dragstop", (event, element) => {
console.log("move event!", event, element);
const node = element.gridstackNode;
info.value = `you just dragged node #${node.id} to ${node.x},${node.y} – good job!`;
});
});
// this will of course only work once because of the object-key
function addNewWidget() {
components.yourRandomComponent3= {
name: "YourRandomComponent3", props: {}, gridPos: { x: 0, y: 1, w: 2, h: 5 }
};
// we have to wait for vue to update v-for,
// until then the querySelector wont find the element
nextTick(() => {
console.log(grid);
let compEl = document.querySelector('[gs-id="yourRandomComponent3"]');
console.log(compEl);
grid.makeWidget(compEl);
});
console.warn("i will only work once, fix my inputs to reuse me");
}
return {
info,
components,
};
},
components: {
// eslint-disable-next-line vue/no-unused-components
YourRandomComponent1,
// eslint-disable-next-line vue/no-unused-components
YourRandomComponent2,
},
}
</script>
<style>
.grid-stack {
background-color: #FAFAFF;
border-style: dashed;
}
.grid-stack-item {
color: #2c3e50;
text-align: center;
border-style: solid;
overflow: auto;
z-index: 50;
}
</style>在我的例子中，缺少一个包含组件的grid-stack-item-content-class的div使小部件不可移动。我还添加了一个新增小部件函数，演示如何向网格中添加新小部件。关键是使用reactive()，以便Vue将重新呈现页面。重新呈现后，需要使用grid.makeWidget将组件注册为网格元素.为此，我们需要组件的Dom元素，这是在Vue用nextTick重新呈现之后得到的。
Stack Overflow用户
发布于 2022-12-02 11:01:26
您可以像这样在Vue3中使用自己的组件
<div class="grid-stack" :style="{ 'background-color': hex }" >
<widget v-for="widget in widgets" :widget="widget" :key="widget" />
</div>导入组件
import Widget from "src/components/GridStackComponent.vue";将组件添加到导出
export default {
name: 'GridStack',
components: {
Widget
},
data() {
...
},
...

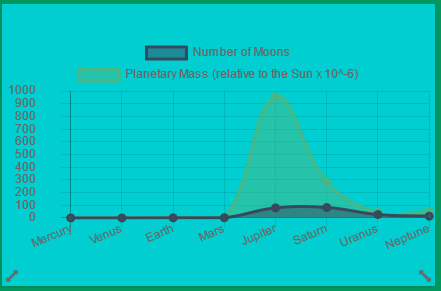

}仅此而已。结果可能是这样的
