水平ScrollBar在具有约束调整大小策略的TableView中可见。
EN

Stack Overflow用户
提问于 2022-07-21 03:15:35
回答 2查看 134关注 0票数 2

ScrollBar被调整(缩小)时,TableView的水平TableView (具有受限的调整大小策略)保持闪烁。我相信这是一个长期存在的问题,因为我可以找到JDK-8089009和其他参考问题JDK-8115476 & JDK-8089280的公开发行票。

我现在问这个问题的目的,是看看是否有人有办法或解决办法来解决这个现存的问题。

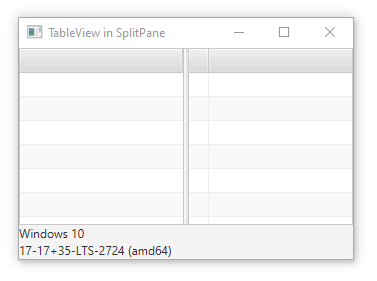

下面是在JDK-8089009中提供的演示代码,其中问题可以与JavaFX的最新版本(18+)重复。

代码语言:javascript
运行
复制
import javafx.application.Application;
import javafx.geometry.Orientation;
import javafx.scene.Scene;
import javafx.scene.control.Label;
import javafx.scene.control.SplitPane;
import javafx.scene.control.TableColumn;
import javafx.scene.control.TableView;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class HorizontalConstrainedTableScrolling extends Application {
    @Override
    public void start(final Stage primaryStage) throws Exception {
        final TableView<Object> left = new TableView<>();
        final TableColumn<Object, String> leftColumn = new TableColumn<>();
        left.getColumns().add(leftColumn);
        left.getItems().add(new Object());
        left.setColumnResizePolicy(TableView.CONSTRAINED_RESIZE_POLICY);

        final TableView<Object> right = new TableView<>();
        final TableColumn<Object, String> rightColumn = new TableColumn<>();
        right.getColumns().add(rightColumn);
        right.getItems().add(new Object());

        final SplitPane splitPane = new SplitPane();
        splitPane.setOrientation(Orientation.HORIZONTAL);
        splitPane.getItems().addAll(left, right);

        Label osLabel = new Label(System.getProperty("os.name"));
        Label jvmLabel = new Label(
                System.getProperty("java.version") +
                        "-" + System.getProperty("java.vm.version") +
                        " (" + System.getProperty("os.arch") + ")"
        );

        primaryStage.setScene(new Scene(new BorderPane(splitPane, null, null, new VBox(osLabel, jvmLabel), null)));
        primaryStage.setWidth(600);
        primaryStage.setHeight(400);
        primaryStage.setTitle("TableView in SplitPane");
        primaryStage.show();
    }
}

更新

下面是我通常遇到的使用受限调整大小策略的用法。

要求是,通常一个列是可维护的,而其他所有列都有一些最小/最大宽度,因此它们不能超出这些大小。如果所有列都有足够的空间,那么所有列都应该安装在tableView中,如果空间小于它们所能容纳的空间,那么滚动条就会出现。

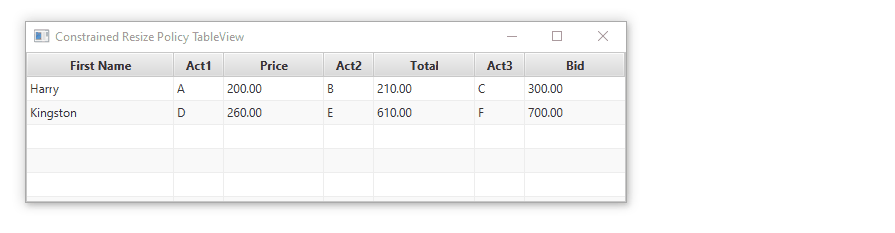

下面是演示该示例的演示(使用滚动条问题):

代码语言:javascript
运行
复制
import javafx.application.Application;
import javafx.beans.property.SimpleStringProperty;
import javafx.beans.property.StringProperty;
import javafx.collections.FXCollections;
import javafx.collections.ObservableList;
import javafx.scene.Scene;
import javafx.scene.control.TableColumn;
import javafx.scene.control.TableView;
import javafx.stage.Stage;

public class ConstrainedResizePolicyDemo extends Application {
    @Override
    public void start(Stage primaryStage) throws Exception {
        TableColumn<Person, String> fnCol = new TableColumn<>("First Name");
        fnCol.setMinWidth(100);
        fnCol.setCellValueFactory(param -> param.getValue().firstNameProperty());

        TableColumn<Person, String> act1Col = new TableColumn<>("Act1");
        act1Col.setMinWidth(50);
        act1Col.setMaxWidth(50);
        act1Col.setResizable(false);
        act1Col.setCellValueFactory(param -> param.getValue().act1Property());

        TableColumn<Person, String> priceCol = new TableColumn<>("Price");
        priceCol.setMinWidth(100);
        priceCol.setMaxWidth(150);
        priceCol.setCellValueFactory(param -> param.getValue().priceProperty());

        TableColumn<Person, String> act2Col = new TableColumn<>("Act2");
        act2Col.setMinWidth(50);
        act2Col.setMaxWidth(50);
        act2Col.setResizable(false);
        act2Col.setCellValueFactory(param -> param.getValue().act2Property());

        TableColumn<Person, String> totalCol = new TableColumn<>("Total");
        totalCol.setMinWidth(100);
        totalCol.setMaxWidth(150);
        totalCol.setCellValueFactory(param -> param.getValue().totalProperty());

        TableColumn<Person, String> act3Col = new TableColumn<>("Act3");
        act3Col.setMinWidth(50);
        act3Col.setMaxWidth(50);
        act3Col.setResizable(false);
        act3Col.setCellValueFactory(param -> param.getValue().act3Property());

        TableColumn<Person, String> bidCol = new TableColumn<>("Bid");
        bidCol.setMinWidth(100);
        bidCol.setMaxWidth(150);
        bidCol.setCellValueFactory(param -> param.getValue().bidProperty());

        ObservableList<Person> persons = FXCollections.observableArrayList();
        persons.add(new Person("Harry", "A", "200.00", "B", "210.00", "C", "300.00"));
        persons.add(new Person("Kingston", "D", "260.00", "E", "610.00", "F", "700.00"));

        TableView<Person> tableView = new TableView<>();
        tableView.getColumns().addAll(fnCol, act1Col, priceCol, act2Col, totalCol, act3Col, bidCol);
        tableView.setItems(persons);
        tableView.setColumnResizePolicy(TableView.CONSTRAINED_RESIZE_POLICY);

        Scene scene = new Scene(tableView, 600, 150);
        primaryStage.setScene(scene);
        primaryStage.setTitle("Constrained Resize Policy TableView");
        primaryStage.show();
    }

    class Person {
        private StringProperty firstName = new SimpleStringProperty();
        private StringProperty act1 = new SimpleStringProperty();
        private StringProperty price = new SimpleStringProperty();
        private StringProperty act2 = new SimpleStringProperty();
        private StringProperty total = new SimpleStringProperty();
        private StringProperty act3 = new SimpleStringProperty();
        private StringProperty bid = new SimpleStringProperty();

        public Person(String fn, String act1, String price, String act2, String total, String act3, String bid) {
            setFirstName(fn);
            setAct1(act1);
            setPrice(price);
            setAct2(act2);
            setTotal(total);
            setAct3(act3);
            setBid(bid);
        }

        public StringProperty firstNameProperty() {
            return firstName;
        }

        public void setFirstName(String firstName) {
            this.firstName.set(firstName);
        }

        public StringProperty act1Property() {
            return act1;
        }

        public void setAct1(String act1) {
            this.act1.set(act1);
        }

        public StringProperty priceProperty() {
            return price;
        }

        public void setPrice(String price) {
            this.price.set(price);
        }

        public StringProperty act2Property() {
            return act2;
        }

        public void setAct2(String act2) {
            this.act2.set(act2);
        }

        public StringProperty totalProperty() {
            return total;
        }

        public void setTotal(String total) {
            this.total.set(total);
        }

        public StringProperty act3Property() {
            return act3;
        }

        public void setAct3(String act3) {
            this.act3.set(act3);
        }

        public StringProperty bidProperty() {
            return bid;
        }

        public void setBid(String bid) {
            this.bid.set(bid);
        }
    }
}
EN

回答 2

Stack Overflow用户

发布于 2022-07-21 10:10:54

和以往一样,对于长期存在的错误,唯一的出路就是黑客攻击。其基本思想是根据调整大小策略将滚动条的大小约束设置为0:对于约束策略,固定为0,对于无约束策略,则设置通常的useComputed。下面是实现hack的实用程序方法。

备注

  • 必须在表可见后调用。
  • 必须在策略在运行时发生更改时调用。
  • 注意:当调整大小到很小的值时,似乎仍然有一个轻微的视觉伪像:看起来像一个箭头(或两者都出现)(不是它们的背景,只是箭头)。

守则:

代码语言:javascript
运行
复制
public static void updateScrollBar(final TableView<Object> table) {
    // lookup the horizontal scroll bar
    ScrollBar hbar = null;
    Set<Node> scrollBars = table.lookupAll(".scroll-bar");
    for (Node node : scrollBars) {
        ScrollBar bar = (ScrollBar) node;
        if (bar.getOrientation() == Orientation.HORIZONTAL) {
            hbar = bar;
            break;
        }
    }

    // choose sizing constraint as either 0 or useComputed, depending on policy
    Callback<?, ?> policy = table.getColumnResizePolicy();
    double pref = policy == CONSTRAINED_RESIZE_POLICY ? 0 : USE_COMPUTED_SIZE;

    // set all sizing constraints
    hbar.setPrefSize(pref, pref);
    hbar.setMaxSize(pref, pref);
    hbar.setMinSize(pref, pref);
}
票数 2
EN

Stack Overflow用户

发布于 2022-11-15 08:28:13

我使用的是从JavaFX 8开始对我有效的解决方案,在JavaFX 19中仍然是这样,但是使用这个解决方案意味着您必须遵守一些规则。为了使其发挥作用:

  • 任何具有TableColumn集的maxWidth都不能调整大小。
  • 可调整大小的列必须相邻,否则调整大小有时会显示hbar。
  • 然后,您应该禁用所有列的重新排序,这样用户就不能在此解决方案不起作用的情况下重新排列它们。一旦这是有序的,你只需要一个绑定和一个侦听器。绑定在调整表大小时注意滚动条,监听器在调整列大小时负责滚动条。

下面的代码适用于您的第一个示例代码。不需要侦听器,因为只有一个列:

代码语言:javascript
运行
复制
leftColumn.prefWidthProperty().bind(left.widthProperty().subtract(1));

下面的代码适用于第二个示例代码,包括可重排序和可调整大小的更改。绑定和侦听器可以应用于您选择的TableColumns,条件是所选列是可调整大小的,并且没有设置maxWidth:

代码语言:javascript
运行
复制
    @Override
    public void start(Stage primaryStage) throws Exception {
        TableColumn<Person, String> fnCol = new TableColumn<>("First Name");
        fnCol.setMinWidth(100);
        fnCol.setReorderable(false);
        fnCol.setCellValueFactory(param -> param.getValue().firstNameProperty());

        TableColumn<Person, String> priceCol = new TableColumn<>("Price");
        priceCol.setMinWidth(100);
        priceCol.setReorderable(false);
        priceCol.setCellValueFactory(param -> param.getValue().priceProperty());

        TableColumn<Person, String> totalCol = new TableColumn<>("Total");
        totalCol.setMinWidth(100);
        totalCol.setReorderable(false);
        totalCol.setCellValueFactory(param -> param.getValue().totalProperty());

        TableColumn<Person, String> bidCol = new TableColumn<>("Bid");
        bidCol.setMinWidth(100);
        bidCol.setReorderable(false);
        bidCol.setCellValueFactory(param -> param.getValue().bidProperty());

        TableColumn<Person, String> act1Col = new TableColumn<>("Act1");
        act1Col.setMinWidth(50);
        act1Col.setMaxWidth(50);
        act1Col.setResizable(false);
        act1Col.setReorderable(false);
        act1Col.setCellValueFactory(param -> param.getValue().act1Property());

        TableColumn<Person, String> act2Col = new TableColumn<>("Act2");
        act2Col.setMinWidth(50);
        act2Col.setMaxWidth(50);
        act2Col.setResizable(false);
        act2Col.setReorderable(false);
        act2Col.setCellValueFactory(param -> param.getValue().act2Property());

        TableColumn<Person, String> act3Col = new TableColumn<>("Act3");
        act3Col.setMinWidth(50);
        act3Col.setMaxWidth(50);
        act3Col.setResizable(false);
        act3Col.setReorderable(false);
        act3Col.setCellValueFactory(param -> param.getValue().act3Property());

        ObservableList<Person> persons = FXCollections.observableArrayList();
        persons.add(new Person("Harry", "A", "200.00", "B", "210.00", "C", "300.00"));
        persons.add(new Person("Kingston", "D", "260.00", "E", "610.00", "F", "700.00"));

        TableView<Person> tableView = new TableView<>();
        tableView.setPadding(Insets.EMPTY);
        tableView.getColumns().addAll(fnCol, priceCol, totalCol, bidCol, act1Col, act2Col, act3Col);
        tableView.setItems(persons);
        tableView.setColumnResizePolicy(TableView.CONSTRAINED_RESIZE_POLICY);

        fnCol.widthProperty().addListener((obs, ov, nv)->{
            if (nv != null && !ov.equals(nv) && (double)nv > 0) {
                if ((double)nv > (double)ov) {
                    fnCol.prefWidthProperty().unbind();
                    fnCol.setPrefWidth(tableView.getWidth() - act1Col.getWidth() - priceCol.getWidth() - act2Col.getWidth() - totalCol.getWidth() - act3Col.getWidth() - bidCol.getWidth());
                    fnCol.prefWidthProperty().bind(
                        tableView.widthProperty()
                        .subtract(act1Col.widthProperty())
                        .subtract(priceCol.widthProperty())
                        .subtract(act2Col.widthProperty())
                        .subtract(totalCol.widthProperty())
                        .subtract(act3Col.widthProperty())
                        .subtract(bidCol.widthProperty())
                    );
                }
            }
        });
        fnCol.prefWidthProperty().bind(
            tableView.widthProperty()
            .subtract(act1Col.widthProperty())
            .subtract(priceCol.widthProperty())
            .subtract(act2Col.widthProperty())
            .subtract(totalCol.widthProperty())
            .subtract(act3Col.widthProperty())
            .subtract(bidCol.widthProperty())
        );

        Scene scene = new Scene(tableView, 600, 150);
        primaryStage.setScene(scene);
        primaryStage.setTitle("Constrained Resize Policy TableView");
        primaryStage.show();
    }

我假设这样做的原因很简单,因为何时精确计算列宽,何时触发水平滚动条可见性,以及所有这些事情发生的顺序。

票数 0
