问如何使用matplotlib cartopy绘制半球面地图(如北半球)

EN

import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import matplotlib.path as mpath
import numpy as np
from geographiclib.geodesic import Geodesic

fig = plt.figure(figsize=[12, 12])
proj = ccrs.NearsidePerspective(central_longitude=-45, central_latitude=21, satellite_height=35785831)
ax = plt.subplot(projection=proj)

# The value of r is obtained by previous run of this code ...
#  with the line .. #print(ax.get_xlim()) uncommented
r = 5476336.098
ax.set_xlim(-r, r)
ax.set_ylim(-r, r)

ax.stock_img()
ax.coastlines(lw=1, color="darkblue")

# Find the locations of points along the equatorial arc
# start location
lon_fr, lat_fr = 30, 0
# end location
lon_to, lat_to = -120, 0

# This gets geodesic between the two points, WGS84 ellipsoid is used
geodl = Geodesic.WGS84.InverseLine(lat_fr, lon_fr, lat_to, lon_to)

lonlist, latlist = [], []
num_points = 32  #for series of points on geodesic/equator
for ea in np.linspace(0, geodl.s13, num_points):
    g = geodl.Position(ea, Geodesic.STANDARD | Geodesic.LONG_UNROLL)
    #print("{:.0f} {:.5f} {:.5f} {:.5f}".format(g['s12'], g['lat2'], g['lon2'], g['azi2']))
    lon2, lat2 = g['lon2'], g['lat2']
    lonlist.append( g['lon2'] )
    latlist.append( g['lat2'] )

# Get data-coords from (lonlist, latlist)
# .. as points along equatorial arc
dataxy = proj.transform_points(ccrs.PlateCarree(), np.array(lonlist), np.array(latlist))

# (Uncomment to) Plot equator line
#ax.plot(dataxy[:, 0:1], dataxy[:, 1:2], "go-", linewidth=2, markersize=5, zorder=10)

# Top semi-circle arc for map extent
theta = np.linspace(-0.5*np.pi, 0.5*np.pi, 64)
center, radius = [0, 0], r
verts = np.vstack([np.sin(theta), np.cos(theta)]).T

# Combine vertices of the semi-circle and equatorial arcs
# These points are in data coordinates, ready to plot on the axes.
verts = np.vstack([verts*r, dataxy[:, 0:2]])

polygon = mpath.Path(verts + center)
ax.set_boundary(polygon) #This masks-out unwanted part of the plot

gl = ax.gridlines(draw_labels=True, xlocs=range(-150,180,30), ylocs=range(0, 90, 15),
                  y_inline=True, linestyle='--', lw= 5, color= "w", )

# Get limits, the values are the radius of the circular map extent
# The values is then used as r = 5476336.09797 on top of the code
#print(ax.get_xlim())
#print(ax.get_ylim())

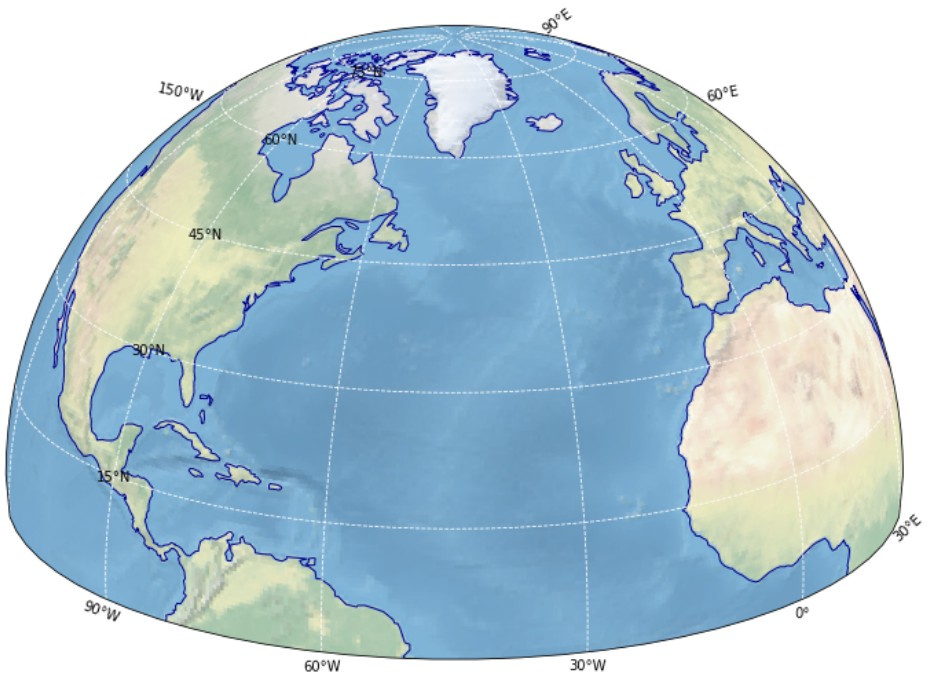

plt.show()
