问使用JDK 17和SOAP服务的Spring引导2.7.2
EN

Stack Overflow用户
提问于 2022-08-09 08:01:59
回答 1查看 1.6K关注 0票数 0

我试图在JDK 18上设置Spring (2.7.2)，将Web服务端点与正常的REST端点一起公开。

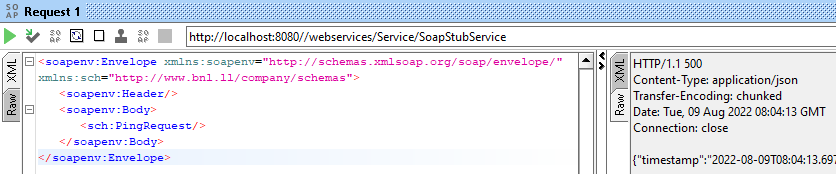

应用程序在没有任何错误的情况下启动，并且可以在没有任何问题的情况下服务器我的REST端点，但是当它接收到SOAP请求时，它就会失败，出现以下错误消息：

代码语言：javascript
复制
: Servlet.init() for servlet [messageDispatcherServlet] threw exception

org.springframework.beans.factory.BeanInitializationException: Could not initialize WebServiceMessageReceiverHandlerAdapter; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.ws.soap.saaj.SaajSoapMessageFactory]: Unresolvable class definition; nested exception is java.lang.NoClassDefFoundError: javax/xml/soap/SOAPException
at org.springframework.ws.transport.http.MessageDispatcherServlet.initMessageReceiverHandlerAdapter(MessageDispatcherServlet.java:380)
at org.springframework.ws.transport.http.MessageDispatcherServlet.initStrategies(MessageDispatcherServlet.java:361)
at org.springframework.ws.transport.http.MessageDispatcherServlet.onRefresh(MessageDispatcherServlet.java:296)
at org.springframework.web.servlet.FrameworkServlet.initWebApplicationContext(FrameworkServlet.java:599)
at org.springframework.web.servlet.FrameworkServlet.initServletBean(FrameworkServlet.java:530)
at org.springframework.web.servlet.HttpServletBean.init(HttpServletBean.java:170)
at javax.servlet.GenericServlet.init(GenericServlet.java:158)
at org.apache.catalina.core.StandardWrapper.initServlet(StandardWrapper.java:1164)
at org.apache.catalina.core.StandardWrapper.allocate(StandardWrapper.java:804)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:128)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:97)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:541)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:135)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:78)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:360)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:399)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:890)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1789)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.base/java.lang.Thread.run(Thread.java:833)
Caused by: org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.ws.soap.saaj.SaajSoapMessageFactory]: Unresolvable class definition; nested exception is java.lang.NoClassDefFoundError: javax/xml/soap/SOAPException
at org.springframework.beans.BeanUtils.instantiateClass(BeanUtils.java:156)
at org.springframework.ws.support.DefaultStrategiesHelper.instantiateBean(DefaultStrategiesHelper.java:149)
at org.springframework.ws.support.DefaultStrategiesHelper.getDefaultStrategies(DefaultStrategiesHelper.java:134)
at org.springframework.ws.support.DefaultStrategiesHelper.getDefaultStrategy(DefaultStrategiesHelper.java:214)
at org.springframework.ws.transport.http.MessageDispatcherServlet.initWebServiceMessageFactory(MessageDispatcherServlet.java:389)
at org.springframework.ws.transport.http.MessageDispatcherServlet.initMessageReceiverHandlerAdapter(MessageDispatcherServlet.java:377)
... 24 common frames omitted
 Caused by: java.lang.NoClassDefFoundError: javax/xml/soap/SOAPException
at java.base/java.lang.Class.getDeclaredConstructors0(Native Method)
at java.base/java.lang.Class.privateGetDeclaredConstructors(Class.java:3405)
at java.base/java.lang.Class.getConstructor0(Class.java:3610)
at java.base/java.lang.Class.getDeclaredConstructor(Class.java:2786)
at org.springframework.beans.BeanUtils.instantiateClass(BeanUtils.java:146)
... 29 common frames omitted
Caused by: java.lang.ClassNotFoundException: javax.xml.soap.SOAPException
at java.base/jdk.internal.loader.BuiltinClassLoader.loadClass(BuiltinClassLoader.java:641)
at java.base/jdk.internal.loader.ClassLoaders$AppClassLoader.loadClass(ClassLoaders.java:188)
at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:521)
... 34 common frames omitted

这是我的pom.xml：

代码语言：javascript
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.7.2</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>
<groupId>com.company</groupId>
<artifactId>simulator-service</artifactId>
<version>1.0.0-SNAPSHOT</version>
<name>simulator-service</name>
<description>Microservice to simulate X</description>

<properties>
    <java.version>17</java.version>
    <maven.compiler.source>17</maven.compiler.source>
    <maven.compiler.target>17</maven.compiler.target>
    <mapstruct.version>1.4.2.Final</mapstruct.version>
    <swagger.v3.annotations.version>2.1.12</swagger.v3.annotations.version>
    <commons.validator.version>1.7</commons.validator.version>
    <logback.ecs.version>1.3.0</logback.ecs.version>
    <lombok.mapstruct.version>0.2.0</lombok.mapstruct.version>
    <commons.io.version>2.11.0</commons.io.version>
    <springdoc.version>1.6.4</springdoc.version>
    <hamcrest-all.version>1.3</hamcrest-all.version>
    <swagger.annotations.version>1.6.4</swagger.annotations.version>
    <jose4j.version>0.7.12</jose4j.version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-validation</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web-services</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-configuration-processor</artifactId>
    </dependency>
    <dependency>
        <groupId>org.flywaydb</groupId>
        <artifactId>flyway-core</artifactId>
    </dependency>
    <dependency>
        <groupId>com.h2database</groupId>
        <artifactId>h2</artifactId>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.mapstruct</groupId>
        <artifactId>mapstruct</artifactId>
        <version>${mapstruct.version}</version>
    </dependency>
    <dependency>
        <groupId>org.mapstruct</groupId>
        <artifactId>mapstruct-processor</artifactId>
        <version>${mapstruct.version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-databind</artifactId>
    </dependency>
    <dependency>
        <groupId>wsdl4j</groupId>
        <artifactId>wsdl4j</artifactId>
    </dependency>
    <dependency>
        <groupId>io.swagger.core.v3</groupId>
        <artifactId>swagger-annotations</artifactId>
        <version>${swagger.v3.annotations.version}</version>
    </dependency>
    <dependency>
        <groupId>commons-validator</groupId>
        <artifactId>commons-validator</artifactId>
        <version>${commons.validator.version}</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok-mapstruct-binding</artifactId>
        <version>${lombok.mapstruct.version}</version>
    </dependency>
    <dependency>
        <groupId>commons-io</groupId>
        <artifactId>commons-io</artifactId>
        <version>${commons.io.version}</version>
    </dependency>
    <dependency>
      <groupId>org.bitbucket.b_c</groupId>
      <artifactId>jose4j</artifactId>
      <version>${jose4j.version}</version>
    </dependency>
  <!--    expose swagger-->
    <dependency>
        <groupId>org.springdoc</groupId>
        <artifactId>springdoc-openapi-ui</artifactId>
        <version>${springdoc.version}</version>
    </dependency>
  <dependency>
    <groupId>io.swagger</groupId>
    <artifactId>swagger-annotations</artifactId>
    <version>${swagger.annotations.version}</version>
  </dependency>
</dependencies>

<build>
    <finalName>${project.artifactId}-${project.version}</finalName>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <executions>
                <execution>
                    <id>build-info</id>
                    <goals>
                        <goal>build-info</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-dependency-plugin</artifactId>
            <version>${maven-dependency-plugin.version}</version>
            <executions>
                <execution>
                    <id>unpack</id>
                    <phase>package</phase>
                    <goals>
                        <goal>unpack</goal>
                    </goals>
                    <configuration>
                        <artifactItems>
                            <artifactItem>
                                <groupId>${project.groupId}</groupId>
                                <artifactId>${project.artifactId}</artifactId>
                                <version>${project.version}</version>
                            </artifactItem>
                        </artifactItems>
                    </configuration>
                </execution>
            </executions>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-surefire-plugin</artifactId>
            <configuration>
                <runOrder>alphabetical</runOrder>
            </configuration>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-failsafe-plugin</artifactId>
        </plugin>
    </plugins>
</build>
<profiles>
    <profile>
        <id>dependency-check</id>
        <build>
            <plugins>
                <plugin>
                    <groupId>org.owasp</groupId>
                    <artifactId>dependency-check-maven</artifactId>
                    <version>6.0.3</version>
                    <executions>
                        <execution>
                            <id>verify</id>
                            <phase>verify</phase>
                            <goals>
                                <goal>check</goal>
                            </goals>
                            <configuration>
                                <format>XML</format>
                            </configuration>
                        </execution>
                    </executions>
                </plugin>
            </plugins>
        </build>
    </profile>
    <profile>
        <id>swaggergen</id>
        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <configuration>
                        <profiles>swaggergen</profiles>
                        <jvmArguments>-Dspring.application.admin.enabled=false</jvmArguments>
                    </configuration>
                    <executions>
                        <execution>
                            <id>pre-integration-test</id>
                            <goals>
                                <goal>start</goal>
                            </goals>
                        </execution>
                        <execution>
                            <id>post-integration-test</id>
                            <goals>
                                <goal>stop</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>
            </plugins>
        </build>
    </profile>

</profiles>

我创建了以下配置类：

代码语言：javascript
复制
@EnableWs
@Configuration
public class WebServiceConfig
    extends WsConfigurerAdapter
{
  @Bean
  public ServletRegistrationBean messageDispatcherServlet(ApplicationContext applicationContext) {
    MessageDispatcherServlet servlet = new MessageDispatcherServlet();
    servlet.setApplicationContext(applicationContext);
    servlet.setTransformWsdlLocations(true);
    return new ServletRegistrationBean(servlet, "/webservices/Service/SoapStubService", "/webservices/Service/*");
  }

  @Bean(name = "bnl")
  public DefaultWsdl11Definition defaultWsdl11Definition(XsdSchema bnlSchema) {
    DefaultWsdl11Definition wsdl11Definition = new DefaultWsdl11Definition();
    wsdl11Definition.setPortTypeName("bnlPort");
    wsdl11Definition.setLocationUri("/webservices/Service/SoapStubService");
    wsdl11Definition.setTargetNamespace("http://www.bnl.ll/company/schemas");
    wsdl11Definition.setSchema(bnlSchema);
    return wsdl11Definition;
  }

  @Bean
  public XsdSchema bnlSchema() {
    return new SimpleXsdSchema(new ClassPathResource("/xsd/bnl.xsd"));
  }
}

以及接收传入请求的以下端点类：

代码语言：javascript
复制
@Endpoint
public class BnlSoapEndpoint
{
  private static final String NAMESPACE_URI = "http://www.bnl.ll/company/schemas";

  @Autowired
  public BilSoapEndpoint() {
    super();
  }

  @PayloadRoot(namespace = NAMESPACE_URI, localPart = "PingBnl")
  @ResponsePayload
  public PingResponse pingBnl(@RequestPayload PingRequest pingRequest) {
    PingResponse response = new PingResponse();
    response.setStatus(PingStatus.SUCCESS);
    return response;
  }

}

匹配的POJO使用的是javax.xml.bind包，这些包看起来运行得很好。试图将它们替换为用于更新的JDK的Jakarta等价物会在运行时引发Hibernate问题。

2015-2018年，我尝试了一系列谷歌搜索结果和StackOverflow结果，但没有一个解决了我的问题。下面是我尝试过的一些依赖关系，但没有成功，也没有对异常进行任何更改：

代码语言：javascript
复制
    <!-- <dependency>
      <groupId>jakarta.xml.soap</groupId>
      <artifactId>jakarta.xml.soap-api</artifactId>
      <version>3.0.0</version>
    </dependency> -->
    <!-- <dependency>
      <groupId>javax.xml.soap</groupId>
      <artifactId>javax.xml.soap-api</artifactId>
      <version>1.4.0</version>
    </dependency>
    <dependency>
      <groupId>javax.xml.ws</groupId>
      <artifactId>jaxws-api</artifactId>
      <version>2.3.1</version>
    </dependency>
    <dependency>
      <groupId>com.sun.xml.messaging.saaj</groupId>
      <artifactId>saaj-impl</artifactId>
      <version>3.0.0</version>
    </dependency> -->
  <!-- <dependency>
    <groupId>jakarta.xml.bind</groupId>
    <artifactId>jakarta.xml.bind-api</artifactId>
    <version>4.0.0</version>
  </dependency>
    <dependency>
      <groupId>org.glassfish.jaxb</groupId>
      <artifactId>jaxb-runtime</artifactId>
      <version>4.0.0</version>
    </dependency> -->

对解决这一问题的任何帮助都将不胜感激。

PS:我在下面阅读和试用的资源

ExceptionError - ClassNotFoundException: javax.xml.soap.SOAPException

StackOverflow -问题48626824

StackOverflow - JAXB插件的差异

StackOverflow -如何使用Spring

StackOverflow -

编辑：

bnl.xsd应请求：

代码语言：javascript
复制
<xs:schema elementFormDefault="qualified" targetNamespace="http://www.bnl.ll/company/schemas" version="1.0"
           xmlns:tns="http://www.bnl.ll/company/schemas" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="PingRequest">
    <xs:complexType>
      <xs:sequence/>
    </xs:complexType>
  </xs:element>
  <xs:element name="PingResponse">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="status" type="tns:PingStatus"/>
        <xs:element name="message" type="xs:string"/>
      </xs:sequence>
    </xs:complexType>
  </xs:element>
  <xs:complexType abstract="true" name="number">
    <xs:sequence/>
  </xs:complexType>
  <xs:simpleType name="PingStatus">
    <xs:restriction base="xs:string">
      <xs:enumeration value="SUCCESS"/>
      <xs:enumeration value="ERROR"/>
    </xs:restriction>
  </xs:simpleType>
</xs:schema>

soapUI请求的屏幕截图失败：

​

​

java
spring-boot
maven
soap
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/73288392

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
