问更改“数据视图”复选框单元格的checkBox大小并增加可单击区域

EN

public class CustomDataGridViewCheckBoxColumn : DataGridViewCheckBoxColumn
{
    public CustomDataGridViewCheckBoxColumn() : base() =>
        CellTemplate = new CustomDataGridViewCheckBoxCell();

    public override DataGridViewCell CellTemplate
    {
        get => base.CellTemplate;
        set
        {
            if (value != null &&
                !value.GetType().IsAssignableFrom(typeof(CustomDataGridViewCheckBoxCell)))
                throw new InvalidCastException("CustomDataGridViewCheckBoxCell.");

            base.CellTemplate = value;
        }
    }

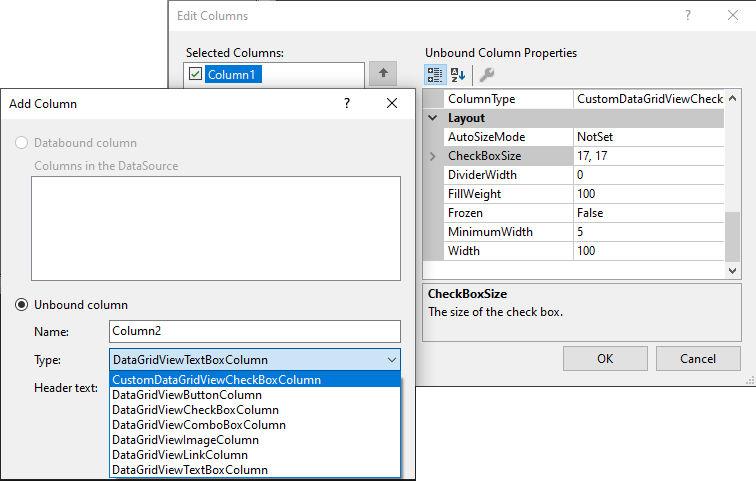

    [Category("Appearance")]
    [DefaultValue(typeof(Size), "17, 17")]
    [Description("The size of the check box.")]
    public Size CheckBoxSize { get; set; } = new Size(17, 17);

    // We should copy the new properties.
    public override object Clone()
    {
        var c = base.Clone() as CustomDataGridViewCheckBoxColumn;
        c.CheckBoxSize = CheckBoxSize;
        return c;
    }
}

public class CustomDataGridViewCheckBoxCell : DataGridViewCheckBoxCell
{
    private Rectangle curCellBounds;
    private Rectangle checkBoxRect;

    public CustomDataGridViewCheckBoxCell() : base() { }

    protected override void Paint(
        Graphics g,
        Rectangle clipBounds,
        Rectangle cellBounds,
        int rowIndex,
        DataGridViewElementStates elementState,
        object value,
        object formattedValue,
        string errorText,
        DataGridViewCellStyle cellStyle,
        DataGridViewAdvancedBorderStyle advancedBorderStyle,
        DataGridViewPaintParts paintParts)
    {
        // Paint default except the check box parts.
        var parts = paintParts & ~(DataGridViewPaintParts.ContentForeground
            | DataGridViewPaintParts.ContentBackground);

        base.Paint(g,
            clipBounds,
            cellBounds,
            rowIndex,
            elementState,
            value,
            formattedValue,
            errorText,
            cellStyle,
            advancedBorderStyle,
            parts);

        if (curCellBounds != cellBounds)
        {
            // To get the box size...
            var col = OwningColumn as CustomDataGridViewCheckBoxColumn;

            curCellBounds = cellBounds;
            // ToDo: Use col.DefaultCellStyle.Alignment or
            // DataGridView.ColumnHeadersDefaultCellStyle.Alignment
            // to position the box. MiddleCenter here...
            checkBoxRect = new Rectangle(
                (cellBounds.Width - col.CheckBoxSize.Width) / 2 + cellBounds.X,
                (cellBounds.Height - col.CheckBoxSize.Height) / 2 + cellBounds.Y,
                col.CheckBoxSize.Width,
                col.CheckBoxSize.Height);
        }

        ControlPaint.DrawCheckBox(g, checkBoxRect, (bool)formattedValue
            ? ButtonState.Checked | ButtonState.Flat
            : ButtonState.Flat);
    }

    // In case you don't use the `Alignment` property to position the
    // box. This is to disallow toggling the state if you click on the
    // original content area outside the drawn box.
    protected override void OnContentClick(DataGridViewCellEventArgs e)
    {
        if (!ReadOnly &&
            checkBoxRect.Contains(DataGridView.PointToClient(Cursor.Position)))
            base.OnContentClick(e);
    }

    protected override void OnContentDoubleClick(DataGridViewCellEventArgs e)
    {
        if (!ReadOnly &&
            checkBoxRect.Contains(DataGridView.PointToClient(Cursor.Position)))
            base.OnContentDoubleClick(e);
    }

    // Toggle the checked state by mouse clicks...
    protected override void OnMouseUp(DataGridViewCellMouseEventArgs e)
    {
        base.OnMouseUp(e);

        if (!ReadOnly && e.Button == MouseButtons.Left &&
            checkBoxRect.Contains(DataGridView.PointToClient(Cursor.Position)))
        {
            Value = Value == null || !Convert.ToBoolean(Value);
            DataGridView.RefreshEdit();
            DataGridView.NotifyCurrentCellDirty(true);
        }
    }

    // ... and Space key...
    protected override void OnKeyDown(KeyEventArgs e, int rowIndex)
    {
        base.OnKeyDown(e, rowIndex);
        if (!ReadOnly && e.KeyCode == Keys.Space)
        {
            Value = Value == null || !Convert.ToBoolean(Value.ToString());
            DataGridView.RefreshEdit();
            DataGridView.NotifyCurrentCellDirty(true);
        }
    }
}

private readonly static Random rnd = new Random();
//..

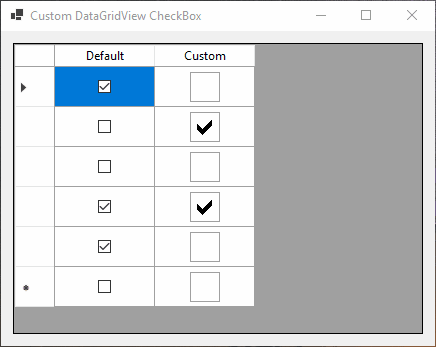

var dt = new DataTable();
dt.Columns.AddRange(new[]
{
    new DataColumn("Default", typeof(bool)),
    new DataColumn("Custom", typeof(bool))
});

for (int i = 1; i < 6; i++)
    dt.Rows.Add(rnd.Next(0, 2), rnd.Next(0, 2));

dataGridView1.AutoGenerateColumns = false;
dataGridView1.Columns.AddRange(new[]
{
    new DataGridViewCheckBoxColumn { HeaderText = "Default" },
    new CustomDataGridViewCheckBoxColumn
    {
        HeaderText = "Custom",
        CheckBoxSize = new Size(32, 32)
    }
});
dataGridView1.DataSource = dt;
