geom_tile()中的数据排序
geom_tile()中的数据排序
提问于 2022-09-11 20:26:09
我的数据：
GFP_mywide<-bothdata[1:10,c(2,3,4)]
GFP_long<-melt(GFP_mywide, id =c('Entrez.Symbol'))看起来是这样的：
>GFP_long
Entrez.Symbol variable value
1 TRIP11 GFP_my 1.015
2 SIN3B GFP_my 0.336
3 SF3B1 GFP_my 0.315
4 PSMD14 GFP_my 0.254
5 RAD51 GFP_my 0.286
6 BARD1 GFP_my 0.157
7 BRCA1 GFP_my 0.275
8 BRCA1 GFP_my 0.230
9 U5200KD GFP_my 0.772
10 SETD5 GFP_my 0.364
11 TRIP11 GFP_wide 0.020
12 SIN3B GFP_wide 0.055
13 SF3B1 GFP_wide 0.071
14 PSMD14 GFP_wide 0.102
15 RAD51 GFP_wide 0.109
16 BARD1 GFP_wide 0.139
17 BRCA1 GFP_wide 0.146
18 BRCA1 GFP_wide 0.146
19 U5200KD GFP_wide 0.151
20 SETD5 GFP_wide 0.179当值按照排序时，我想要创建一个热图，所以在图中，我将看到GFP_wide的绿色变成红色，而GFP_my将由相同的Entrez.Symbol命令。到目前为止，我有一个热图，但无法找到基于GFP_wide的值排序方法。我该怎么做？

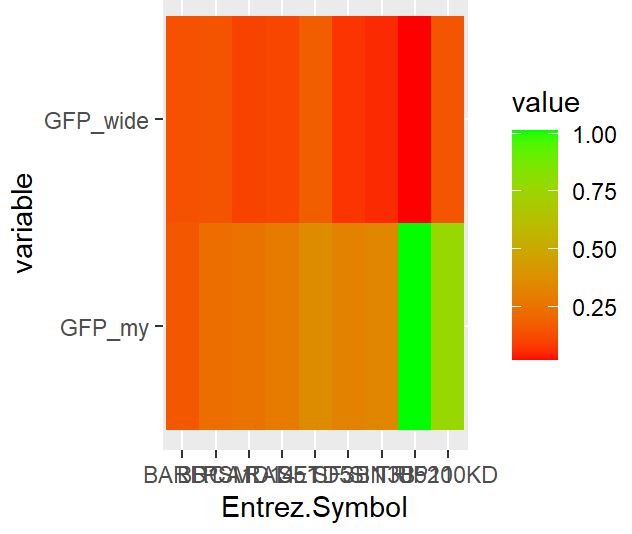

这是我的代码和结果：
ggplot(GFP_long, aes(x=Entrez.Symbol,y=variable,fill=value)) +
geom_tile(aes(fill = value))+
scale_fill_gradient(low="red", high="green")
回答 1
Stack Overflow用户
回答已采纳
发布于 2022-09-12 18:43:33

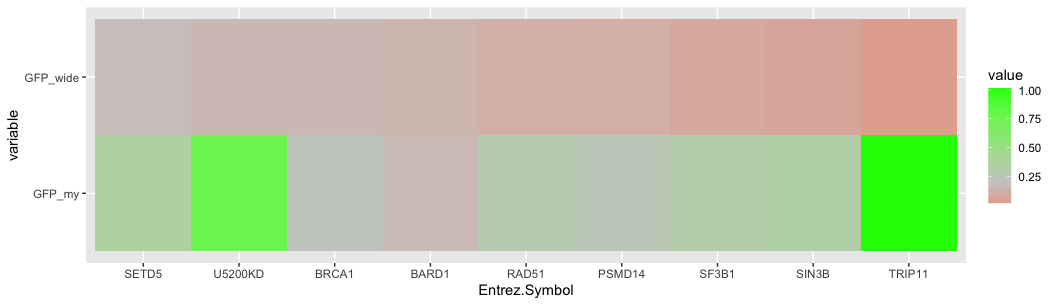

使用来自另一个问题的数据：
library(dplyr); library(forcats) # please check these load successfully
GFP_long %>%
arrange(desc(variable), -value) %>%
mutate(Entrez.Symbol = fct_inorder(Entrez.Symbol)) %>%
ggplot(aes(x=Entrez.Symbol,y=variable,fill=value)) +
geom_tile(aes(fill = value))+
# I'm modifying here to show the top row is ordered; hard to see in original
scale_fill_gradient2(low="red", mid = "gray80", high="green", midpoint = 0.2)
数据：how to order column by a different column value r
GFP_long<-data.frame(Entrez.Symbol<-c("TRIP11","SIN3B","SF3B1","PSMD14","RAD51","BARD1",
"BRCA1","BRCA1","U5200KD","SETD5","TRIP11","SIN3B",
"SF3B1","PSMD14","RAD51","BARD1","BRCA1","BRCA1",
"U5200KD","SETD5"),
variable<-c("GFP_my","GFP_my","GFP_my","GFP_my","GFP_my","GFP_my","GFP_my",
"GFP_my","GFP_my","GFP_my","GFP_wide","GFP_wide","GFP_wide","GFP_wide",
"GFP_wide","GFP_wide","GFP_wide","GFP_wide","GFP_wide","GFP_wide"),
value<-c(1.015,0.336,0.315,0.254,0.286,0.157,0.275,0.230,0.772,0.364,
0.020,0.055,0.071,0.102,0.109,0.139,0.146,0.146,0.151,0.179))
colnames(GFP_long)<-c("Entrez.Symbol","variable","value")页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/73682430
