社区首页 >问答首页 >如何更新Azure AD B2C用户名示例，以便使用SendGrid发送自定义电子邮件？

问如何更新Azure AD B2C用户名示例，以便使用SendGrid发送自定义电子邮件？
EN

Stack Overflow用户

提问于 2022-09-13 15:01:14

回答 1查看 78关注 0票数 0

我用这一政策作为基于用户名的SUSI扩展了这个起动机包的本地帐户SUSI。但我也改变了与SendGrid的自定义验证电子邮件的启动包，根据怎么-怎么在这里找到。登录的要求从“只使用B2C”到“用用户名登录，任何数量的用户都可以共享验证电子邮件”。

我知道TrustFrameworkExtensions_Username正在从本地帐户初学者包中扩展TrustFrameworkExtensions。我可以将相同的重写从LocalAccountSignUpWithLogonEmail和LocalAccountDiscoveryUsingEmailAddress TechnicalProfiles上的"Local“TechnicalProfiles应用到"Local”ClaimsProvider的LocalAccountSignUpWithLogonName和LocalAccountDiscoveryUsingUserNameAndValidateStrongAuthenticationEmailAddress TechnicalProfiles中。

策略继承如下所示：

LocalAccounts starter pack TrustFrameworkBase
                                        |
                                        v
LocalAccounts starter pack TrustFrameworkLocalization
                                        |
                                        v
LocalAccounts starter pack TrustFrameworkExtensions <- modified for custom emails via SendGrid
                                        |
                                        v
username-signup-or-signin sample TrustFrameworkExtenions_Username
                                        |                       |
                                        v                       v
username-signup-or-signin sample SignupOrSignin_Username and PasswordReset_Username

从“如何”到“到”的本地扩展中的显示控件：

<DisplayControls>
  <DisplayControl Id="emailVerificationControl" UserInterfaceControlType="VerificationControl">
    <DisplayClaims>
      <DisplayClaim ClaimTypeReferenceId="email" Required="true" />
      <DisplayClaim ClaimTypeReferenceId="verificationCode" ControlClaimType="VerificationCode" Required="true" />
    </DisplayClaims>
    <OutputClaims>
      <OutputClaim ClaimTypeReferenceId="email" />
    </OutputClaims>
    <Actions>
      <Action Id="SendCode">
        <ValidationClaimsExchange>
          <ValidationClaimsExchangeTechnicalProfile TechnicalProfileReferenceId="GenerateOtp" />
          <ValidationClaimsExchangeTechnicalProfile TechnicalProfileReferenceId="SendOtp" />
        </ValidationClaimsExchange>
      </Action>
      <Action Id="VerifyCode">
        <ValidationClaimsExchange>
          <ValidationClaimsExchangeTechnicalProfile TechnicalProfileReferenceId="VerifyOtp" />
        </ValidationClaimsExchange>
      </Action>
    </Actions>
  </DisplayControl>
</DisplayControls>

从显示控件引用的技术配置文件：

<ClaimsProvider>
  <DisplayName>One time password technical profiles</DisplayName>
  <TechnicalProfiles>
    <TechnicalProfile Id="GenerateOtp">
      <DisplayName>Generate one time password</DisplayName>
      <Protocol Name="Proprietary" Handler="Web.TPEngine.Providers.OneTimePasswordProtocolProvider, Web.TPEngine, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" />
      <Metadata>
        <Item Key="Operation">GenerateCode</Item>
        <Item Key="CodeExpirationInSeconds">1200</Item>
        <Item Key="CodeLength">6</Item>
        <Item Key="CharacterSet">0-9</Item>
        <Item Key="ReuseSameCode">true</Item>
        <Item Key="NumRetryAttempts">5</Item>
      </Metadata>
      <InputClaims>
        <InputClaim ClaimTypeReferenceId="email" PartnerClaimType="identifier" />
      </InputClaims>
      <OutputClaims>
        <OutputClaim ClaimTypeReferenceId="otp" PartnerClaimType="otpGenerated" />
      </OutputClaims>
    </TechnicalProfile>

    <TechnicalProfile Id="VerifyOtp">
      <DisplayName>Verify one time password</DisplayName>
      <Protocol Name="Proprietary" Handler="Web.TPEngine.Providers.OneTimePasswordProtocolProvider, Web.TPEngine, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" />
      <Metadata>
        <Item Key="Operation">VerifyCode</Item>
      </Metadata>
      <InputClaims>
        <InputClaim ClaimTypeReferenceId="email" PartnerClaimType="identifier" />
        <InputClaim ClaimTypeReferenceId="verificationCode" PartnerClaimType="otpToVerify" />
      </InputClaims>
    </TechnicalProfile>
   </TechnicalProfiles>
</ClaimsProvider>

<ClaimsProvider>
  <DisplayName>RestfulProvider</DisplayName>
  <TechnicalProfiles>
    <TechnicalProfile Id="SendOtp">
      <DisplayName>Use SendGrid's email API to send the code the the user</DisplayName>
      <Protocol Name="Proprietary" Handler="Web.TPEngine.Providers.RestfulProvider, Web.TPEngine, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" />
      <Metadata>
        <Item Key="ServiceUrl">https://api.sendgrid.com/v3/mail/send</Item>
        <Item Key="AuthenticationType">Bearer</Item>
        <Item Key="SendClaimsIn">Body</Item>
        <Item Key="ClaimUsedForRequestPayload">emailRequestBody</Item>
      </Metadata>
      <CryptographicKeys>
        <Key Id="BearerAuthenticationToken" StorageReferenceId="B2C_1A_SendGridSecret" />
      </CryptographicKeys>
      <InputClaimsTransformations>
        <InputClaimsTransformation ReferenceId="GenerateEmailRequestBody" />
      </InputClaimsTransformations>
      <InputClaims>
        <InputClaim ClaimTypeReferenceId="emailRequestBody" />
      </InputClaims>
    </TechnicalProfile>
  </TechnicalProfiles>
</ClaimsProvider>

SUSI技术配置文件覆盖本地扩展：

<ClaimsProvider>
  <DisplayName>Local Account</DisplayName>
  <TechnicalProfiles>
    <TechnicalProfile Id="LocalAccountSignUpWithLogonEmail">
      <DisplayClaims>
        <DisplayClaim DisplayControlReferenceId="emailVerificationControl" />
        <DisplayClaim ClaimTypeReferenceId="givenName" Required="true" />
        <DisplayClaim ClaimTypeReferenceId="surName" Required="true" />
        <DisplayClaim ClaimTypeReferenceId="newPassword" Required="true" />
        <DisplayClaim ClaimTypeReferenceId="reenterPassword" Required="true" />
      </DisplayClaims>
    </TechnicalProfile>
    <TechnicalProfile Id="LocalAccountDiscoveryUsingEmailAddress">
      <DisplayClaims>
        <DisplayClaim DisplayControlReferenceId="emailVerificationControl" />
      </DisplayClaims>
    </TechnicalProfile>
  </TechnicalProfiles>
</ClaimsProvider>

我可以以这种方式完成旅程的注册部分--我可以在怎么-到这里来中找到的扩展更改中进行重写，并将DisplayClaims添加到TrustFrameworkExtensions_Username.xml中的LocalAccountSignUpWithLogonName TechnicalProfile中：

<TechnicalProfile Id="LocalAccountSignUpWithLogonName">
    <DisplayName>User ID signup</DisplayName>
    <Protocol Name="Proprietary" Handler="Web.TPEngine.Providers.SelfAssertedAttributeProvider, Web.TPEngine, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" />
    <Metadata>
        <Item Key="IpAddressClaimReferenceId">IpAddress</Item>
        <Item Key="ContentDefinitionReferenceId">api.localaccountsignup</Item>
        <Item Key="LocalAccountType">Username</Item>
        <Item Key="LocalAccountProfile">true</Item>
        <Item Key="language.button_continue">Create</Item>
    </Metadata>
    <InputClaims>
        <InputClaim ClaimTypeReferenceId="signInName" />
    </InputClaims>
    <DisplayClaims>
        <DisplayClaim ClaimTypeReferenceId="signInName" Required="true" />
        <DisplayClaim DisplayControlReferenceId="emailVerificationControl" />
        <DisplayClaim ClaimTypeReferenceId="newPassword" Required="true" />
        <DisplayClaim ClaimTypeReferenceId="reenterPassword" Required="true" />
    </DisplayClaims>
    <OutputClaims>
        <OutputClaim ClaimTypeReferenceId="objectId" Required="true" />
        <OutputClaim ClaimTypeReferenceId="signInName" Required="true" />
        <OutputClaim ClaimTypeReferenceId="newPassword" Required="true" />
        <OutputClaim ClaimTypeReferenceId="reenterPassword" Required="true" />
        <OutputClaim ClaimTypeReferenceId="email" Required="true" />
        <OutputClaim ClaimTypeReferenceId="executed-SelfAsserted-Input" DefaultValue="true" />
        <OutputClaim ClaimTypeReferenceId="newUser" />
        <OutputClaim ClaimTypeReferenceId="authenticationSource" />
        <OutputClaim ClaimTypeReferenceId="userPrincipalName" />
    </OutputClaims>
    <ValidationTechnicalProfiles>
        <ValidationTechnicalProfile ReferenceId="AAD-UserWriteUsingLogonName" />
    </ValidationTechnicalProfiles>
    <UseTechnicalProfileForSessionManagement ReferenceId="SM-AAD" />
</TechnicalProfile>

从OutputClaim with ClaimTypeReferenceId=email PartnerClaimType="Verified.Email"中删除。对于实际使用显示控件不是必需的，但对于以后在随后的编排步骤中在索赔包中使用电子邮件声明(否则没有设置)。

但是，当以类似的方式更新TechnicalProfile用于LocalAccountDiscoveryUsingUserNameAndValidateStrongAuthenticationEmailAddress时：

<TechnicalProfile Id="LocalAccountDiscoveryUsingUserNameAndValidateStrongAuthenticationEmailAddress">
  <DisplayName>Reset password using username</DisplayName>
  <Protocol Name="Proprietary" Handler="Web.TPEngine.Providers.SelfAssertedAttributeProvider, Web.TPEngine, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" />
  <Metadata>
    <Item Key="IpAddressClaimReferenceId">IpAddress</Item>
    <Item Key="ContentDefinitionReferenceId">api.localaccountpasswordchange1.1</Item>
    <Item Key="AllowGenerationOfClaimsWithNullValues">true</Item>
    <Item Key="UserMessageIfClaimsTransformationStringsAreNotEqual">An account could not be found for the provided user ID.</Item>
    <Item Key="UserMessageIfClaimsTransformationBooleanValueIsNotEqual">Your account has been locked. Contact your support person to unlock it, then try again.</Item>
    <Item Key="LocalAccountType">Username</Item>
    <Item Key="LocalAccountProfile">true</Item>
    <!-- Reduce the default self-asserted retry limit of 7 for the reset journey -->
    <Item Key="setting.retryLimit">3</Item>
  </Metadata>
  <CryptographicKeys>
    <Key Id="issuer_secret" StorageReferenceId="B2C_1A_TokenSigningKeyContainer" />
  </CryptographicKeys>
  <!-- using this requires removal of OutputClaim ClaimTypeReferenceId="email" PartnerClaimType="Verified.Email" Required="true", below
  according to https://stackoverflow.com/a/73709880/2347078 -->
  <!-- line is required for non-customized email journey presently -->
  <DisplayClaims>
    <DisplayClaim DisplayControlReferenceId="emailVerificationControl" />
  </DisplayClaims>
  <OutputClaims>
    <OutputClaim ClaimTypeReferenceId="signInName" Required="true" />
    <!-- <OutputClaim ClaimTypeReferenceId="email" PartnerClaimType="Verified.Email" Required="true" /> -->
    <OutputClaim ClaimTypeReferenceId="email" Required="true" />
    <OutputClaim ClaimTypeReferenceId="emails" />
    <OutputClaim ClaimTypeReferenceId="objectId" />
    <OutputClaim ClaimTypeReferenceId="userPrincipalName" />
    <OutputClaim ClaimTypeReferenceId="sub" />
    <OutputClaim ClaimTypeReferenceId="authenticationSource" />
    <OutputClaim ClaimTypeReferenceId="strongAuthenticationEmailAddress" />
  </OutputClaims>
  <OutputClaimsTransformations>
    <OutputClaimsTransformation ReferenceId="CreateSubjectClaimFromObjectID" />
  </OutputClaimsTransformations>
  <ValidationTechnicalProfiles>
    <ValidationTechnicalProfile ReferenceId="AAD-UserReadUsingUserNameAndValidateStrongAuthenticationEmailAddress" />
  </ValidationTechnicalProfiles>
  <UseTechnicalProfileForSessionManagement ReferenceId="SM-Noop" />
</TechnicalProfile>

在本例中，请参阅关于为什么修改带有ClaimTypeReferenceId="email"的ClaimTypeReferenceId="email"的注释，该注释引用的是下面的Jas Suri - MSFT。由于OutputClaim看起来像<OutputClaim ClaimTypeReferenceId="email" Required="true" />，显示声明被完全忽略了(内置的验证控件出现了)。

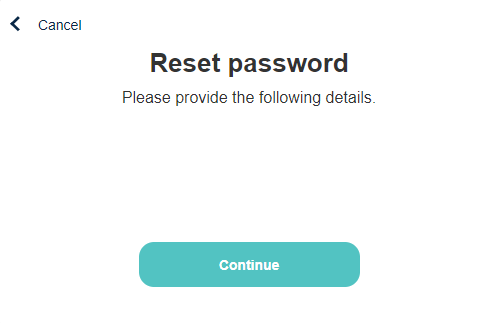

在完全删除OutputClaim之后，密码重置策略最终没有任何字段：

所有初学者包/示例都来自当前的repos，并且使用支持显示声明的v2页面。

azure-ad-b2c

azure-ad-b2c-custom-policy

回答 1

Stack Overflow用户

发布于 2022-09-13 22:58:14

删除<OutputClaim ClaimTypeReferenceId="email" PartnerClaimType="Verified.Email" Required="true" />

票数 0

页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持

原文链接：

https://stackoverflow.com/questions/73705209
