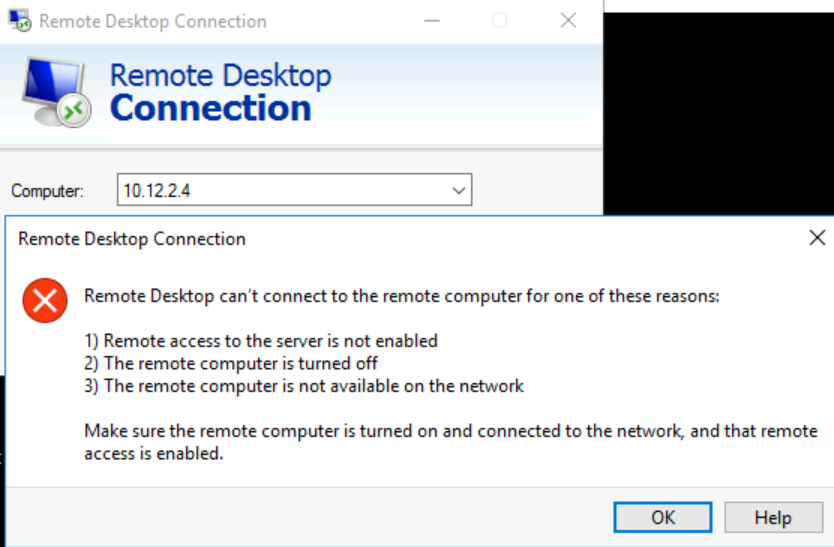

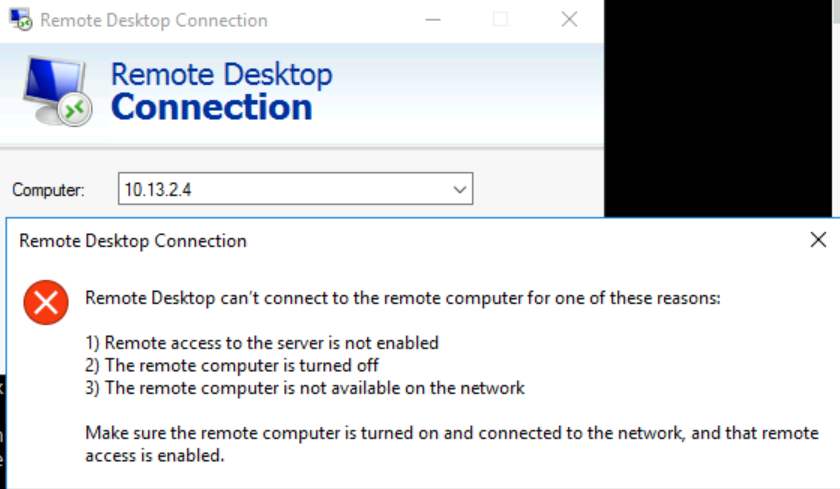

问Azure:无法通过RDP访问另一个辐式虚拟网络中的VM

EN

# Define Variable
rgName=SpokeToSpoke
location=eastus
hubVNetName=vnet-hub
prodVnetName=vnet-prod
devVnetName=vnet-dev
myFirewallPublicIPName="firewallPublicIP"
azFirewallName="azFirewallName"
azureworkloadRG="AzureProdWorkLoad"
azureDevWorkloadRG="AzureDevWorkLoad"
VmUser="demouserXXX"
VmName1="ProdSever"
VmName2="DevSever"
fwRouteTableProdName=prod-route-table
fwRouteTableDevName=dev-route-table
bastionName="MyBastion"
bastionPIPName="bastionpip"
rdpRuleName=AllowRDP
priority=200
rgroup=prod-ukw-core-rg
access=Allow
description="Allow RDP from office IP address"
destPort=3389
direction=Inbound
protocol=TCP

# Create Resource Group
az group create --name $rgName --location $location

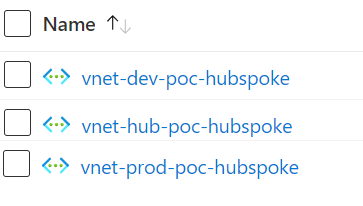

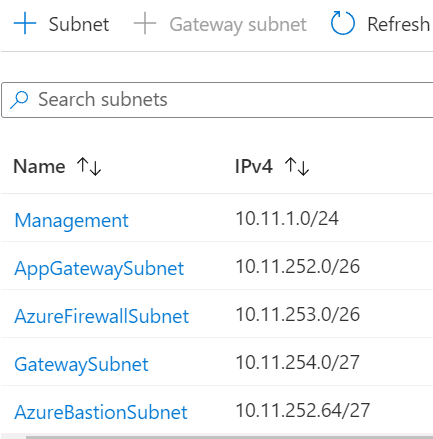

# Create Azure Hub VNET
az network vnet create -g $rgName --name $hubVNetName --address-prefixes 10.11.0.0/16 --location $location
az network vnet subnet create -g $rgName --vnet-name $hubVNetName --name Management --address-prefix 10.11.1.0/24
az network vnet subnet create -g $rgName --vnet-name $hubVNetName --name AppGatewaySubnet --address-prefix 10.11.252.0/26
az network vnet subnet create -g $rgName --vnet-name $hubVNetName --name AzureBastionSubnet --address-prefix 10.11.252.64/27
az network vnet subnet create -g $rgName --vnet-name $hubVNetName --name AzureFirewallSubnet --address-prefix 10.11.253.0/26
az network vnet subnet create -g $rgName --vnet-name $hubVNetName --name GatewaySubnet --address-prefix 10.11.254.0/27

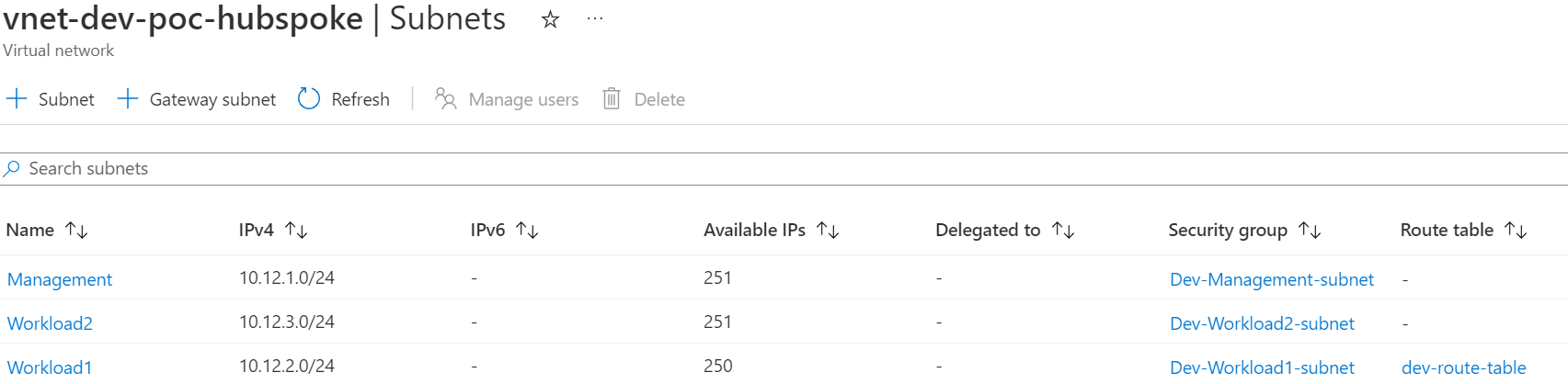

# Create Azure Dev VNET
az network vnet create -g $rgName --name $devVnetName --address-prefixes 10.12.0.0/16  --location $location
az network vnet subnet create -g $rgName --vnet-name $devVnetName --name Management --address-prefix 10.12.1.0/24
az network vnet subnet create -g $rgName --vnet-name $devVnetName --name Workload1 --address-prefix 10.12.2.0/24

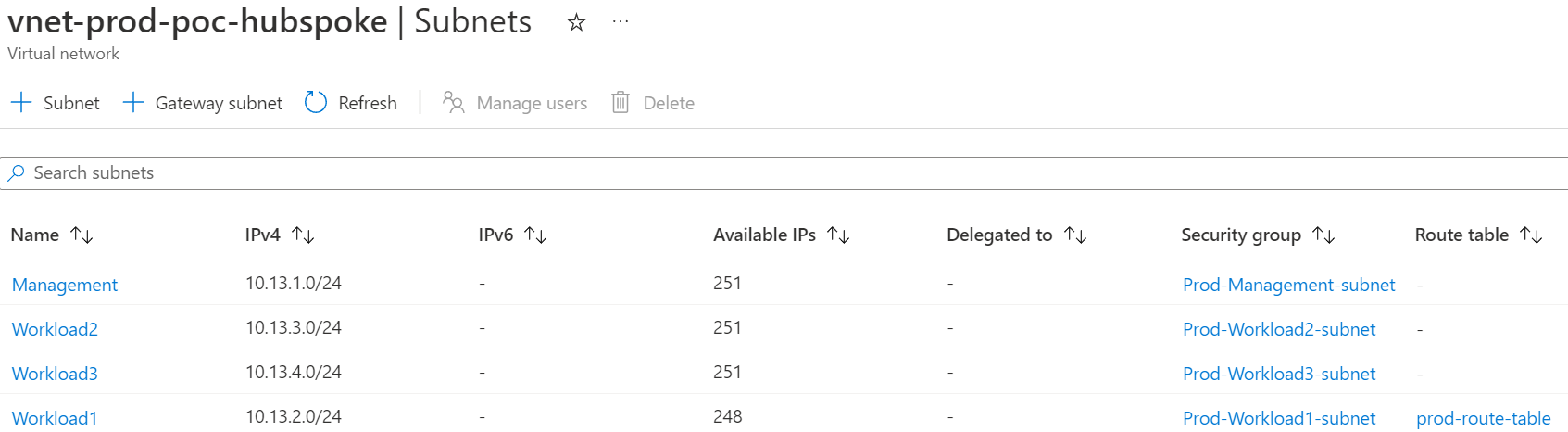

# Create Azure Prod VNET
az network vnet create -g $rgName --name $prodVnetName --address-prefixes 10.13.0.0/16  --location $location
az network vnet subnet create -g $rgName --vnet-name $prodVnetName --name Management --address-prefix 10.13.1.0/24
az network vnet subnet create -g $rgName --vnet-name $prodVnetName --name Workload1 --address-prefix 10.13.2.0/24

# Dev Subnet NSG
az network nsg create -g $rgName -n Dev-Management-subnet -l $location -o table
az network nsg create -g $rgName -n Dev-Workload1-subnet -l $location -o table
az network vnet subnet update -g $rgName --vnet-name $devVnetName --name Management --network-security-group Dev-Management-subnet
az network vnet subnet update -g $rgName --vnet-name $devVnetName --name Workload1 --network-security-group Dev-Workload1-subnet

# Prod Subnet NSG
az network nsg create -g $rgName -n Prod-Management-subnet -l $location -o table
az network nsg create -g $rgName -n Prod-Workload1-subnet -l $location -o table
az network vnet subnet update -g $rgName --vnet-name $prodVnetName --name Management --network-security-group Prod-Management-subnet
az network vnet subnet update -g $rgName --vnet-name $prodVnetName --name Workload1 --network-security-group Prod-Workload1-subnet

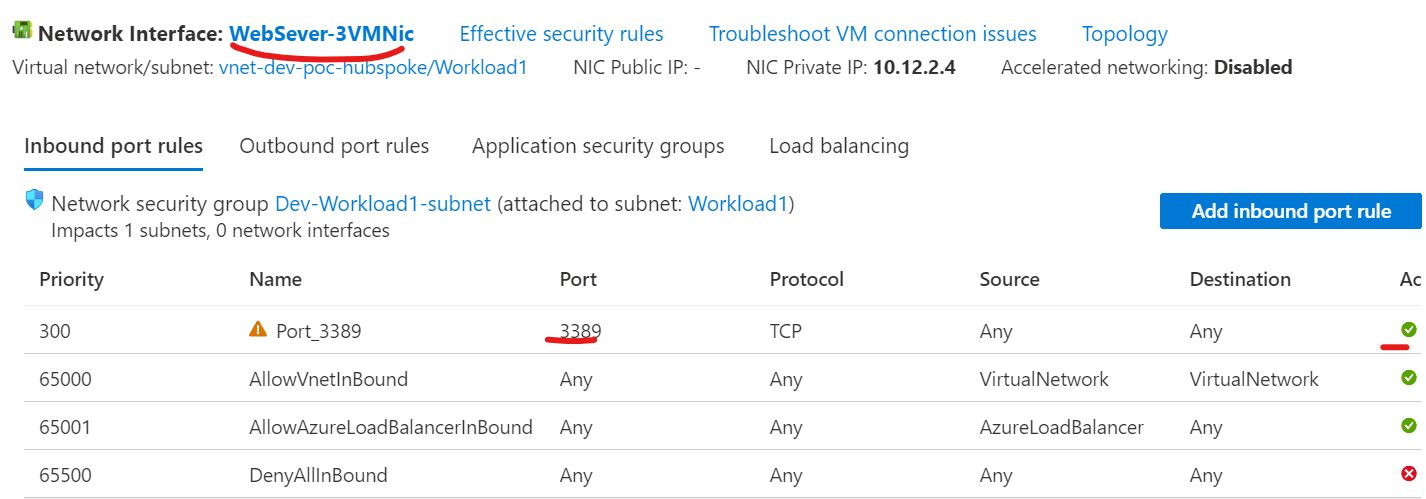

# Enable RDP at NSG Level for Dev Workload
az network nsg rule create --name $rdpRuleName --nsg-name Dev-Workload1-subnet --priority $priority --resource-group $rgName --access $access --description "$description" --destination-port-ranges $destPort --direction $direction --protocol $protocol --source-address-prefixes "*"

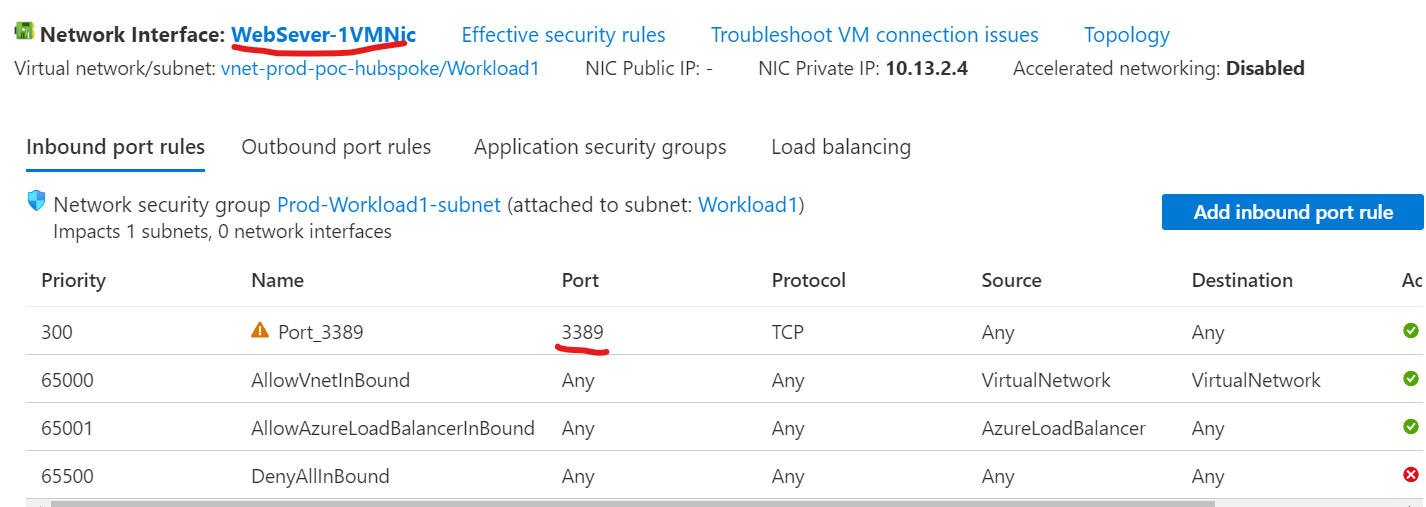

# Enable RDP at NSG Level for Prod Workload
az network nsg rule create --name $rdpRuleName --nsg-name Prod-Workload1-subnet --priority $priority --resource-group $rgName --access $access --description "$description" --destination-port-ranges $destPort --direction $direction --protocol $protocol --source-address-prefixes "*"

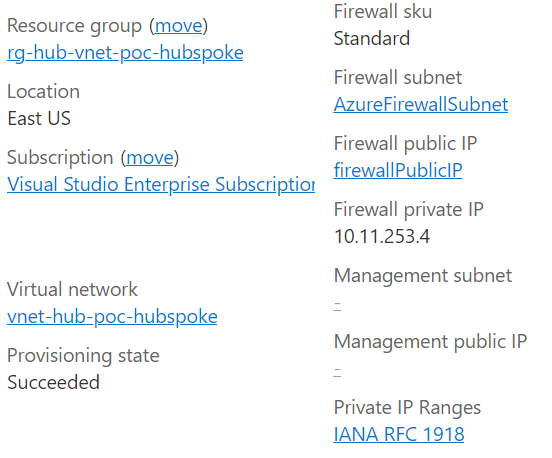

# Create Firewall
az network public-ip create --name $myFirewallPublicIPName --resource-group $rgName --sku Standard --allocation-method Static
az network firewall create -g $rgName -n $azFirewallName --vnet-name $hubVNetName --sku AZFW_VNet --tier Standard
az network firewall ip-config create   --firewall-name $azFirewallName   --name FW-config1 --public-ip-address $myFirewallPublicIPName  --resource-group $rgName   --vnet-name $hubVNetName
az network firewall update --name $azFirewallName --resource-group $rgName
fwprivaddr="$(az network firewall ip-config list -g $rgName -f $azFirewallName --query "[?name=='FW-config1'].privateIpAddress" --output tsv)"

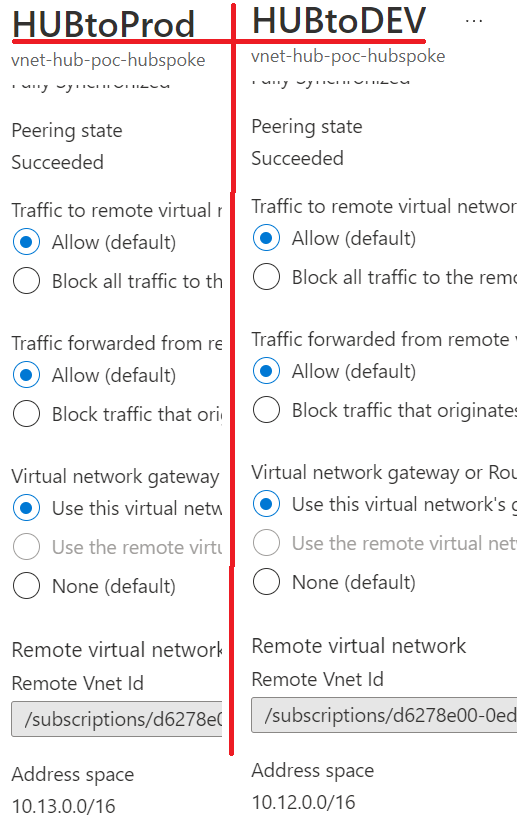

# Hub-Spoke-Hub Peering
az network vnet peering create -g $rgName --name HUBtoProd --vnet-name $hubVNetName --remote-vnet $prodVnetName --allow-vnet-access --allow-forwarded-traffic --allow-gateway-transit

az network vnet peering create -g $rgName --name HUBtoDEV --vnet-name $hubVNetName --remote-vnet $devVnetName --allow-vnet-access --allow-forwarded-traffic  --allow-gateway-transit

az network vnet peering create -g $rgName --name ProdtoHUB --vnet-name $prodVnetName --remote-vnet $hubVNetName --allow-vnet-access --allow-forwarded-traffic --allow-gateway-transit

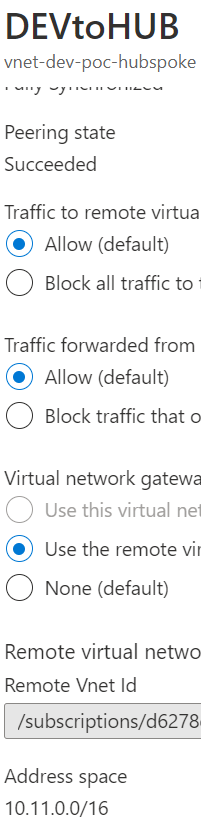

az network vnet peering create -g $rgName --name DEVtoHUB --vnet-name $devVnetName --remote-vnet $hubVNetName --allow-vnet-access --allow-forwarded-traffic --allow-gateway-transit

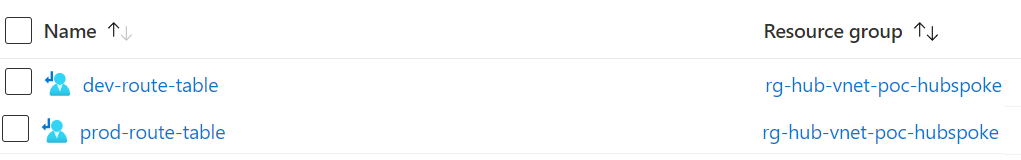

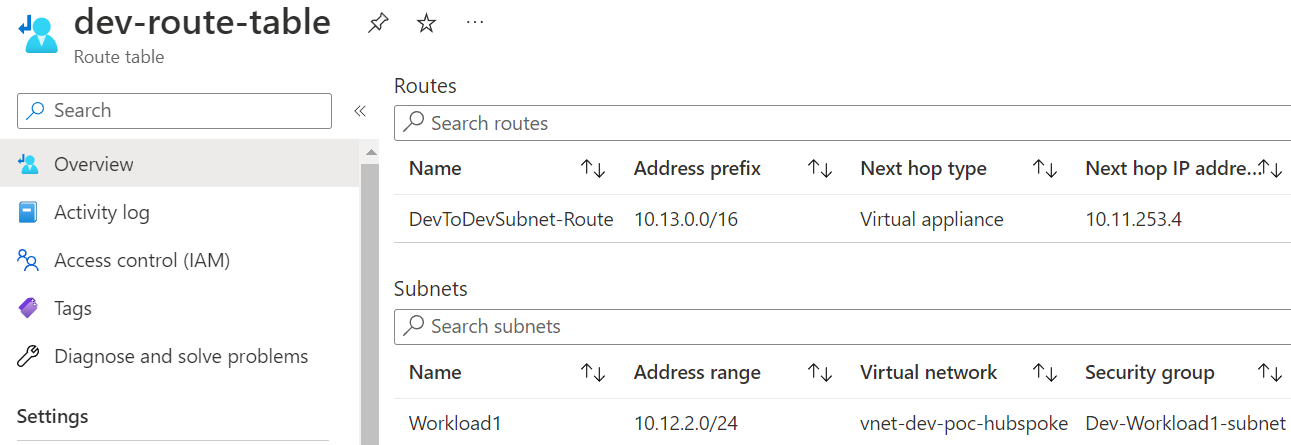

# Create Route table from Dev to Hub
az network route-table create --name $fwRouteTableDevName -g $rgName -l $location --disable-bgp-route-propagation true
az network route-table route create -g $rgName --name DevToProdSubnet-Route --route-table-name $fwRouteTableDevName --address-prefix 10.13.0.0/16  --next-hop-type VirtualAppliance --next-hop-ip-address $fwprivaddr
az network vnet subnet update -g $rgName --vnet-name $devVnetName -n Workload1 --address-prefixes 10.12.2.0/24 --route-table $fwRouteTableDevName

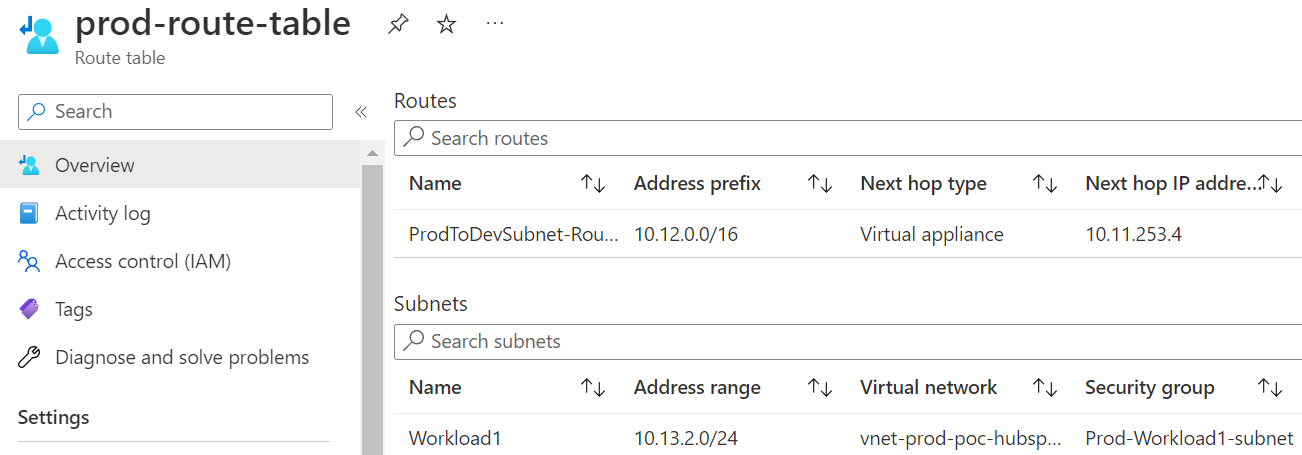

# Create Route table from Prod to Hub
az network route-table create --name $fwRouteTableProdName -g $rgName -l $location --disable-bgp-route-propagation true
az network route-table route create -g $rgName --name ProdToHubSubnet-Route --route-table-name $fwRouteTableProdName --address-prefix 10.12.0.0/16  --next-hop-type VirtualAppliance --next-hop-ip-address $fwprivaddr
az network vnet subnet update -g $rgName --vnet-name $prodVnetName -n Workload1 --address-prefixes 10.13.2.0/24 --route-table $fwRouteTableProdName

# Create Azure Bastion for Azure
az network public-ip create --resource-group $rgName --name $bastionPIPName --sku Standard --location $location
az network bastion create --name $bastionName --public-ip-address $bastionPIPName --resource-group $rgName --vnet-name $hubVNetName --location $location

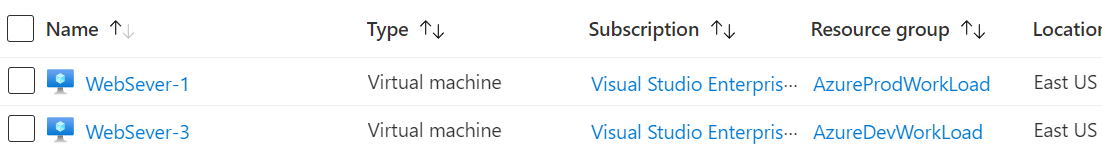

# Create VM in Dev Vnet - Workload1 Subnet to test Spoke-to-Spoke communication
az group create --name $azureDevWorkloadRG --location $location
devWorkLoadSubNetID=$(az network vnet subnet show --resource-group $rgName --name "Workload1" --vnet-name $devVnetName --query id -o tsv)
az vm create --resource-group $azureDevWorkloadRG --name $VmName --image win2016datacenter --admin-username $VmUser --admin-password $AdminPassword --size Standard_B1s --use-unmanaged-disk --storage-sku Standard_LRS --subnet $devWorkLoadSubNetID --nsg "" --public-ip-address ""

# Create VM in Prod VNet - Workload1 Subnet
az group create --name $azureworkloadRG --location $location
prodWorkLoadSubNetID=$(az network vnet subnet show --resource-group $rgName --name "Workload1" --vnet-name $prodVnetName --query id -o tsv)
az vm create --resource-group $azureworkloadRG --name $VmName1 --image win2016datacenter --admin-username $VmUser --admin-password $AdminPassword --size Standard_B1s --use-unmanaged-disk --storage-sku Standard_LRS --subnet $prodWorkLoadSubNetID --nsg "" --public-ip-address ""

# Azure VNET Gateway
az network public-ip create -g $rgName --name pip-hub-gateway --allocation-method dynamic --dns-name $hubVNetName
az network vnet-gateway create -g $rgName --name vgw --vnet $hubVNetName --public-ip-address pip-hub-gateway --gateway-type vpn --client-protocol SSTP --sku Basic

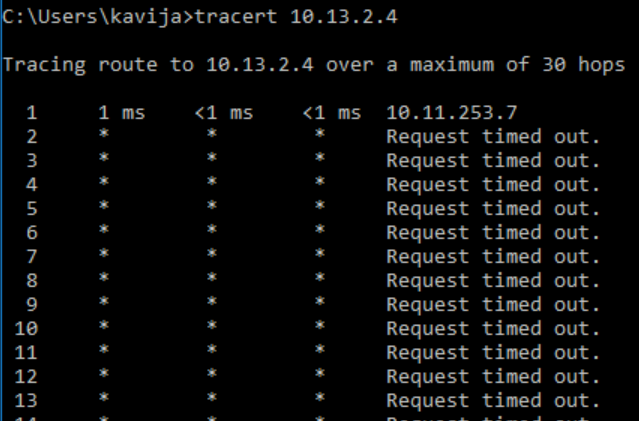

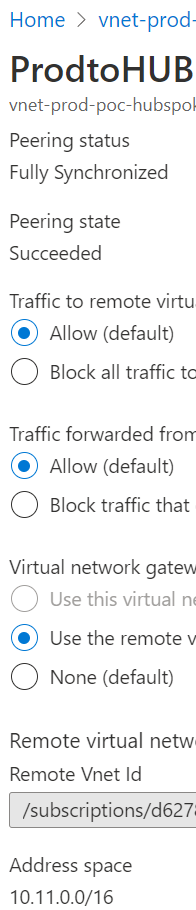

az network vnet peering create -g $rgName --name ProdtoHUB --vnet-name $prodVnetName --remote-vnet $hubVNetName --allow-vnet-access --allow-forwarded-traffic --allow-gateway-transit  --use-remote-gateways

az network vnet peering create -g $rgName --name DEVtoHUB --vnet-name $devVnetName --remote-vnet $hubVNetName --allow-vnet-access --allow-forwarded-traffic --allow-gateway-transit  --use-remote-gateways

az network route-table route create -g $rgName --name DevToProdSubnet-Route --route-table-name $fwRouteTableDevName --address-prefix 10.13.0.0/16   --next-hop-type VirtualNetworkGateway

az network route-table route create -g $rgName --name ProdToHubSubnet-Route --route-table-name $fwRouteTableProdName --address-prefix 10.12.0.0/16   --next-hop-type VirtualNetworkGateway
