在azure逻辑应用程序中从json数组中检索值
在azure逻辑应用程序中从json数组中检索值
提问于 2022-09-17 14:34:59
在逻辑应用程序中，从下面的json检索"HydraulicPressure“和"FailedPickupsLastHr”值的最简单方法是什么？
{
"variables": [
{
"name": "sensorarray",
"type": "String",
"value": "{\"ContentData\":{\"applicationId\":\"0db2345\",\"deviceId\":\"178\",\"enqueuedTime\":\"2022-09-17T14:27:22.386Z\",\"enrichments\":{},\"messageSource\":\"properties\",\"messageType\":\"devicePropertyReportedChange\",\"properties\":[{\"name\":\"FailedPickupsLastHr\",\"value\":42},{\"name\":\"HydraulicPressure\",\"value\":30.863390107917837}],\"schema\":\"default@v1\",\"templateId\":\"dtmi:z\"},\"Properties\":{\"iotcentral-application-id\":\"05\",\"iotcentral-message-source\":\"properties\",\"iotcentral-message-type\":\"devicePropertyReportedChange\",\"iotcentral-device-id\":\"1q9hn5l4xcl\",\"x-opt-sequence-number\":5663,\"x-opt-offset\":\"5307784\",\"x-opt-enqueued-time\":\"2022-09-17T14:27:28.046Z\",\"message-id\":{\"EncodeSize\":38},\"group-sequence\":0},\"SystemProperties\":{\"EnqueuedTimeUtc\":\"2022-09-17T14:27:28.046Z\",\"Offset\":\"5307784\",\"PartitionKey\":null,\"SequenceNumber\":5663}}"
}
]
}回答 2
Stack Overflow用户
回答已采纳
发布于 2022-09-17 23:10:15
将此定义作为新的LogicApp加载到租户中..。
{
"definition": {
"$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
"actions": {
"Initialize_Failed_Pickups_Last_Hr": {
"inputs": {
"variables": [
{
"name": "FailedPickupsLastHr",
"type": "integer",
"value": "@variables('Object')['ContentData']['properties'][0]['value']"
}
]
},
"runAfter": {
"Initialize_Hydraulic_Pressure": [
"Succeeded"
]
},
"type": "InitializeVariable"
},
"Initialize_Hydraulic_Pressure": {
"inputs": {
"variables": [
{
"name": "HydraulicPressure",
"type": "string",
"value": "@{variables('Object')['ContentData']['properties'][1]['value']}"
}
]
},
"runAfter": {
"Initialize_Object": [
"Succeeded"
]
},
"type": "InitializeVariable"
},
"Initialize_Object": {
"inputs": {
"variables": [
{
"name": "Object",
"type": "object",
"value": "@JSON(variables('Payload'))"
}
]
},
"runAfter": {
"Initialize_Payload": [
"Succeeded"
]
},
"type": "InitializeVariable"
},
"Initialize_Payload": {
"inputs": {
"variables": [
{
"name": "Payload",
"type": "string",
"value": "{\"ContentData\":{\"applicationId\":\"0db2345\",\"deviceId\":\"178\",\"enqueuedTime\":\"2022-09-17T14:27:22.386Z\",\"enrichments\":{},\"messageSource\":\"properties\",\"messageType\":\"devicePropertyReportedChange\",\"properties\":[{\"name\":\"FailedPickupsLastHr\",\"value\":42},{\"name\":\"HydraulicPressure\",\"value\":30.863390107917837}],\"schema\":\"default@v1\",\"templateId\":\"dtmi:z\"},\"Properties\":{\"iotcentral-application-id\":\"05\",\"iotcentral-message-source\":\"properties\",\"iotcentral-message-type\":\"devicePropertyReportedChange\",\"iotcentral-device-id\":\"1q9hn5l4xcl\",\"x-opt-sequence-number\":5663,\"x-opt-offset\":\"5307784\",\"x-opt-enqueued-time\":\"2022-09-17T14:27:28.046Z\",\"message-id\":{\"EncodeSize\":38},\"group-sequence\":0},\"SystemProperties\":{\"EnqueuedTimeUtc\":\"2022-09-17T14:27:28.046Z\",\"Offset\":\"5307784\",\"PartitionKey\":null,\"SequenceNumber\":5663}}"
}
]
},
"runAfter": {},
"type": "InitializeVariable"
}
},
"contentVersion": "1.0.0.0",
"outputs": {},
"parameters": {
"ParameterTest1": {
"defaultValue": "\"\"",
"type": "String"
}
},
"triggers": {
"manual": {
"inputs": {
"method": "GET",
"schema": {}
},
"kind": "Http",
"type": "Request"
}
}
},
"parameters": {}
}它会给你我的完整的答案，并告诉你如何得到你想要的价值。
基本步骤是..。
- 初始化您拥有的初始JSON作为字符串。
- 然后使用
jsonExpression - 将该字符串转换为对象。最后两个步骤涉及表达式，以提取所需的值。
基本上，您需要将字符串值解析为一个对象，然后计算它。
Stack Overflow用户
发布于 2022-09-17 16:52:45
在我的环境中，您可以对json数组进行类似的操作，如下所示:首先，选择初始化变量步骤，然后用下面的json示例设置它：
[{
"variables":
{
"name": "sensorarray",
"type": "String"
}

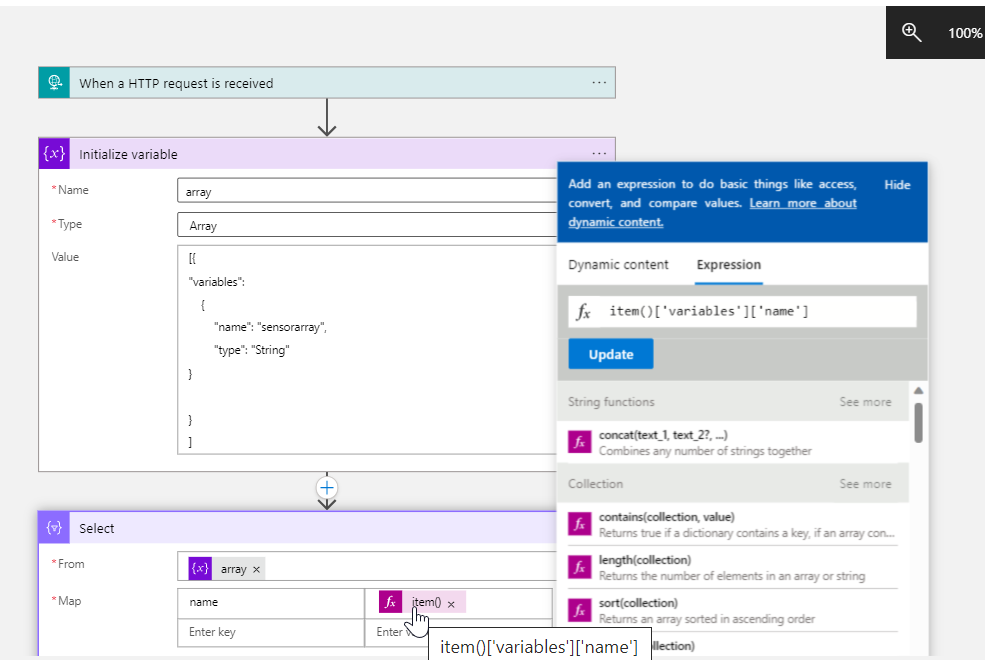

}]然后，选择选择步骤，然后从数组中选择您想要的变量，然后通过使用条目获得它，如下所示：

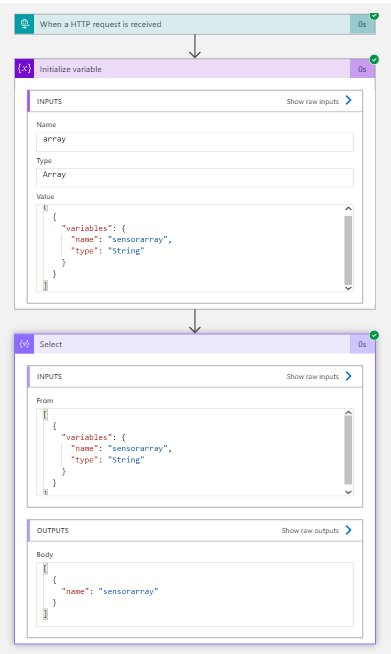

输出：
尝试更新您的数组作为给定的例子，并尝试上述步骤，您将得到如上所述的输出。
