问通过Visual部署Logic时Salesforce连接器中断
EN

Stack Overflow用户

提问于 2022-10-04 22:37:06

回答 1查看 108关注 0票数 0

我在Azure Portal中开发了一个Logic，并使用UI中的参数选项卡对其进行了参数化。LA使用用于Salesforce、通用数据服务和服务总线的连接器，这些连接器是手动创建的。我已经使用Powershell脚本下载了Logic和参数文件，当我试图重新部署LA时，SF连接器失败了，API的连接显示无效。通过故障排除，我发现当我试图通过Visual重新部署时，ARM模板尝试创建一个新的SF连接，但在授权步骤中失败了。我们还有其他有SF连接的LAs，Visual对它们的部署也很好。我在LA中遇到问题，它是通过Powershell脚本下载的，现在正试图通过Visual重新部署。我不确定模板中是什么触发LA模板来创建新的SF连接。

下面是我的LA.json脚本的资源部分和参数部分

"resources": [
    {
      "type": "Microsoft.Logic/workflows",
      "apiVersion": "2019-05-01",
      "name": "[parameters('logicAppName')]",
      "location": "[parameters('logicAppLocation')]",
      "dependsOn": [
        "[resourceId('Microsoft.Web/connections', parameters('salesforce-3_name'))]"
      ],
      "properties": {
        "definition": {
          "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
          "contentVersion": "1.0.0.0",
          "parameters": {
            "$connections": {
              "defaultValue": {},
              "type": "Object"
            }
          },
          "triggers": {
            "When_a_record_is_modified": {
              "recurrence": {
                "frequency": "[parameters('When_a_record_is_modifiedFrequency')]",
                "interval": "[parameters('When_a_record_is_modifiedInterval')]"
              },
              "splitOn": "@triggerBody()?['value']",
              "type": "ApiConnection",
              "inputs": {
                "host": {
                  "connection": {
                    "name": "@parameters('$connections')['salesforce_1']['connectionId']"
                  }
                },
                "method": "get",
                "path": "/datasets/default/tables/@{encodeURIComponent(encodeURIComponent('Account'))}/onupdateditems"
              }
            }
          },
          "actions": {},
          "outputs": {}
        },
        "parameters": {
          "$connections": {
            "value": {
              "salesforce_1": {
                "id": "[concat('/subscriptions/',subscription().subscriptionId,'/providers/Microsoft.Web/locations/',parameters('logicAppLocation'),'/managedApis/salesforce')]",
                "connectionId": "[resourceId('Microsoft.Web/connections', parameters('salesforce-3_name'))]",
                "connectionName": "[parameters('salesforce-3_name')]"
              }
            }
          }
        }
      },
      "tags": {
        "displayName": "[parameters('displayName_Tag')]"
      }
    },
    {
      "type": "Microsoft.Web/connections",
      "apiVersion": "2016-06-01",
      "location": "[parameters('logicAppLocation')]",
      "name": "[parameters('salesforce-3_name')]",
      "properties": {
        "api": {
          "id": "[concat('/subscriptions/',subscription().subscriptionId,'/providers/Microsoft.Web/locations/',parameters('logicAppLocation'),'/managedApis/salesforce')]"
        },
        "displayName": "[parameters('salesforce-3_displayName')]",
        "parameterValues": {
          "token:LoginUri": "[parameters('salesforce-3_token:LoginUri')]",
          "salesforceApiVersion": "[parameters('salesforce-3_salesforceApiVersion')]"
        }
      }
    }
  ],

下面是参数文件代码：

{
  "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
    "logicAppName": {
      "value": "param-dynamicexpression"
    },
    "When_a_record_is_modifiedFrequency": {
      "value": "Month"
    },
    "When_a_record_is_modifiedInterval": {
      "value": 3
    },
    "displayName_Tag": {
      "value": "LogicApp"
    },
    "salesforce-3_name": {
      "value": "salesforce-3"
    },
    "salesforce-3_displayName": {
      "value": "Salesforce"
    },
    "salesforce-3_token:LoginUri": {
      "value": "https://test.salesforce.com"
    },
    "salesforce-3_salesforceApiVersion": {
      "value": "v50"
    }
  }
}

我尝试删除loginurl链接，尝试更新参数，但似乎没有任何工作。每次部署之后，以前良好的连接都会中断。在过去的两天里，我一直被困在这个问题上，任何帮助或建议都是非常感谢的。

azure-logic-apps

arm-template

visual-studio

powershell

回答 1

Stack Overflow用户

发布于 2022-11-01 14:27:46

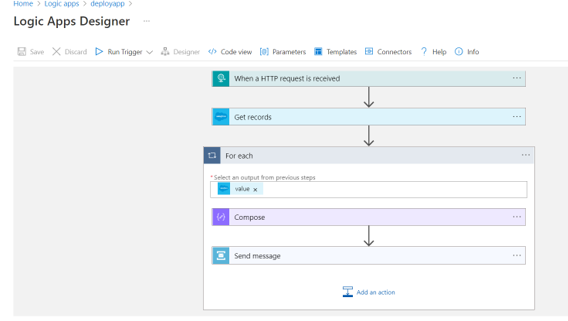

I有一个逻辑应用程序，其中包含salesforce和服务总线操作，如下所示，

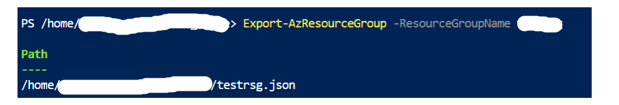

2.我在蔚蓝中运行过电源外壳命令，

Export demogroup

Note：我在资源组中只有逻辑应用程序。

上面步骤的输出是，

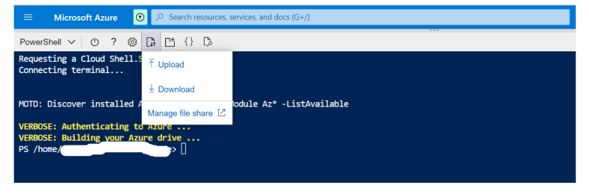

单击上载/下载文件，如下所示，

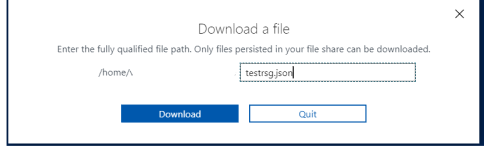

从第3步给出json文件的名称，如下所示，

逻辑应用程序json文件将被下载到本地系统.

7.接下来创建了一个新的Azure资源组项目，然后基于模板编辑了logicapp.json &逻辑应用参数文件。

8.然后在visual studio中使用Deploy选项进行部署，部署成功。

LogicApp.json文件代码，

{

"$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"workflows_deployapp_name": {
"type": "String"
 },
"connections_salesforce_externalid": {
"type": "String"
 },
"connections_servicebus_externalid": {
"type": "String"
 }
},
"variables": {},
"resources": [
{
"type": "Microsoft.Logic/workflows",
"apiVersion": "2017-07-01",
"name": "[parameters('workflows_deployapp_name')]",
"location": "centralus",
"properties": {
"state": "Enabled",
"definition": {
"$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"$connections": {
"defaultValue": {},
"type": "Object"
  }
},
"triggers": {
"manual": {
"type": "Request",
"kind": "Http",
"inputs": {}
 }
},
"actions": {
"For_each": {
"foreach": "@body('Get_records')?['value']",
"actions": {
"Compose": {
"runAfter": {},
"type": "Compose",
"inputs": {
"Account Name": "@items('For_each')?['Name']",
"Billing Street": "@items('For_each')?['BillingStreet']"
  }
},
"Send_message": {
"runAfter": {
"Compose": [
"Succeeded"
 ]
},
"type": "ApiConnection",
"inputs": {
"body": {
"ContentData": "@{base64(outputs('Compose'))}"
},
"host": {
"connection": {
"name": "@parameters('$connections')['servicebus']['connectionId']"
 }
},
"method": "post",
"path": "/@{encodeURIComponent(encodeURIComponent('sbqu01'))}/messages",
"queries": {
"systemProperties": "None"
   }
  }
}
},
"runAfter": {
"Get_records": [
"Succeeded"
 ]
},

"type": "Foreach"
},
"Get_records": {
"runAfter": {},
"type": "ApiConnection",
"inputs": {
"host": {
"connection": {
"name": "@parameters('$connections')['salesforce']['connectionId']"
  }
},
"method": "get",
"path": "/datasets/default/tables/@{encodeURIComponent(encodeURIComponent('Account'))}/items"
   }
  }
},
"outputs": {}
},
"parameters": {
"$connections": {
"value": {
"salesforce": {
"connectionId": "[parameters('connections_salesforce_externalid')]",
"connectionName": "salesforce",
"id": "/subscriptions/<yoursubscriptionid>/providers/Microsoft.Web/locations/centralus/managedApis/salesforce"
},
"servicebus": {
"connectionId": "[parameters('connections_servicebus_externalid')]",
"connectionName": "servicebus",
"id": "/subscriptions/<yoursubscriptionid>/providers/Microsoft.Web/locations/centralus/managedApis/servicebus"

       }
      }
     }
    }
   }
  }
 ]
}

LogicApp.parameters.json文件代码，

{
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentParameters.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"workflows_deployapp_name": {
"value": "lapp01"
},
"connections_salesforce_externalid": {
"value": "/subscriptions/<yoursubscriptionid>/providers/Microsoft.Web/locations/centralus/managedApis/salesforce"
},
"connections_servicebus_externalid": {
"value": "/subscriptions/<yoursubscriptionid>/providers/Microsoft.Web/locations/centralus/managedApis/servicebus"
    }
  }
 }

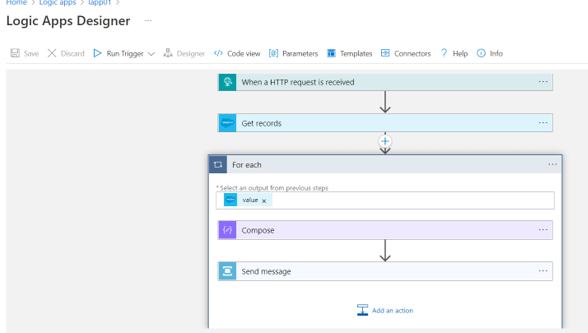

来自visual studio的部署逻辑应用程序的

设计器是

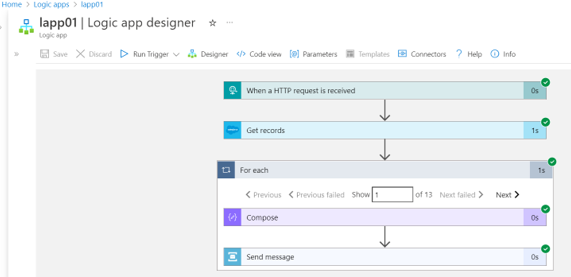

12.经过测试的逻辑应用程序已经成功运行，

票数 0
