azurerm_mssql_virtual_machine -已经存在
azurerm_mssql_virtual_machine -已经存在
提问于 2022-10-10 15:42:47
试图做一个AZ Terraform部署，但失败可怕-寻找一些想法，我错过了什么。基本上，我尝试用可变大小的磁盘部署2个VM-(可能稍后更多)，将它们加入域并向其添加SQL服务器。(对我温柔点，我来自VMWare-Tf背景，这是我第一次在AZ上部署SQL！)
我的模块：
## main.tf:
# ----------- NIC --------------------------------
resource "azurerm_network_interface" "nic" {
name = "${var.vm_name}-nic"
resource_group_name = var.rg.name
location = var.location
ip_configuration {
name = "${var.vm_name}-internal"
subnet_id = var.subnet_id
private_ip_address_allocation = "Static"
private_ip_address = var.private_ip
}
dns_servers = var.dns_servers
}
# ----------- VM --------------------------------
resource "azurerm_windows_virtual_machine" "vm" {
/* count = length(var.instances) */
name = var.vm_name
location = var.location
resource_group_name = var.rg.name
network_interface_ids = [azurerm_network_interface.nic.id]
size = var.size
zone = var.zone
admin_username = var.win_admin_user
admin_password = var.win_admin_pw # data.azurerm_key_vault_secret.vmadminpwd.value
enable_automatic_updates = "false"
patch_mode = "Manual"
provision_vm_agent = "true"
tags = var.vm_tags
source_image_reference {
publisher = "MicrosoftSQLServer"
offer = "sql2019-ws2019"
sku = "enterprise"
version = "latest"
}
os_disk {
name = "${var.vm_name}-osdisk"
caching = "ReadWrite"
storage_account_type = "StandardSSD_LRS"
disk_size_gb = 250
}
}
# ----------- DOMAIN JOIN --------------------------------
// Waits for up to 1 hour for the Domain to become available. Will return an error 1 if unsuccessful preventing the member attempting to join.
resource "azurerm_virtual_machine_extension" "wait-for-domain-to-provision" {
name = "TestConnectionDomain"
publisher = "Microsoft.Compute"
type = "CustomScriptExtension"
type_handler_version = "1.9"
virtual_machine_id = azurerm_windows_virtual_machine.vm.id
settings = <<SETTINGS
{
"commandToExecute": "powershell.exe -Command \"while (!(Test-Connection -ComputerName ${var.active_directory_domain_name} -Count 1 -Quiet) -and ($retryCount++ -le 360)) { Start-Sleep 10 } \""
}
SETTINGS
}
resource "azurerm_virtual_machine_extension" "join-domain" {
name = azurerm_windows_virtual_machine.vm.name
publisher = "Microsoft.Compute"
type = "JsonADDomainExtension"
type_handler_version = "1.3"
virtual_machine_id = azurerm_windows_virtual_machine.vm.id
settings = <<SETTINGS
{
"Name": "${var.active_directory_domain_name}",
"OUPath": "",
"User": "${var.active_directory_username}@${var.active_directory_domain_name}",
"Restart": "true",
"Options": "3"
}
SETTINGS
protected_settings = <<SETTINGS
{
"Password": "${var.active_directory_password}"
}
SETTINGS
depends_on = [azurerm_virtual_machine_extension.wait-for-domain-to-provision]
}
# ----------- DISKS --------------------------------
resource "azurerm_managed_disk" "data" {
for_each = var.disks
name = "${var.vm_name}-${each.value.name}"
location = var.location
resource_group_name = var.rg.name
storage_account_type = each.value.sa
create_option = each.value.create
disk_size_gb = each.value.size
zone = var.zone
}
resource "azurerm_virtual_machine_data_disk_attachment" "disk-attachment" {
for_each = var.disks
managed_disk_id = azurerm_managed_disk.data[each.key].id
virtual_machine_id = azurerm_windows_virtual_machine.vm.id
lun = each.value.lun
caching = "ReadWrite"
depends_on = [azurerm_windows_virtual_machine.vm]
}
# ----------- SQL --------------------------------
# configure the SQL side of the deployment
resource "azurerm_mssql_virtual_machine" "sqlvm" {
/* count = length(var.instances) */
virtual_machine_id = azurerm_windows_virtual_machine.vm.id
sql_license_type = "PAYG"
r_services_enabled = true
sql_connectivity_port = 1433
sql_connectivity_type = "PRIVATE"
/* sql_connectivity_update_username = var.sqladmin
sql_connectivity_update_password = data.azurerm_key_vault_secret.sqladminpwd.value */
#The storage_configuration block supports the following:
storage_configuration {
disk_type = "NEW" # (Required) The type of disk configuration to apply to the SQL Server. Valid values include NEW, EXTEND, or ADD.
storage_workload_type = "OLTP" # (Required) The type of storage workload. Valid values include GENERAL, OLTP, or DW.
data_settings {
default_file_path = "F:\\Data"
luns = [1]
}
log_settings {
default_file_path = "G:\\Log"
luns = [2]
}
temp_db_settings {
default_file_path = "D:\\TempDb"
luns = [0]
}
}
}
## provider.tf
terraform {
required_providers {
azurerm = {
source = "hashicorp/azurerm"
version = ">=3.0.1"
#configuration_aliases = [azurerm.corp]
}
}
}
variables.tf
# ----------- COMMON --------------------------------
variable "vm_name" {
type = string
}
variable "rg" {
/* type = string */
description = "STACK - resource group"
}
variable "location" {
type = string
description = "STACK - location"
}
# ----------- NIC --------------------------------
variable "subnet_id" {
type = string
description = "STACK - subnet"
}
variable "private_ip" {
}
variable "dns_servers" {
}
# ----------- VM --------------------------------
variable "size" {
description = "VM - size"
type = string
}
variable "win_admin_user" {
sensitive = true
type = string
}
variable "win_admin_pw" {
sensitive = true
type = string
}
variable "os_storage_type" {
type = string
}
variable "vm_tags" {
type = map(any)
}
variable "zone" {
#type = list
description = "VM AZ"
}
# ----------- DOMAIN JOIN --------------------------------
variable "active_directory_domain_name" {
type = string
}
variable "active_directory_username" {
sensitive = true
}
variable "active_directory_password" {
sensitive = true
}
# ----------- SQL --------------------------------
variable "sql_maint_day" {
type = string
description = "SQL - maintenance day"
}
variable "sql_maint_length_min" {
type = number
description = "SQL - maintenance duration (min)"
}
variable "sql_maint_start_hour" {
type = number
description = "SQL- maintenance start (hour of the day)"
}
# ----------- DISKS --------------------------------
/* variable "disk_storage_account" {
type = string
default = "Standard_LRS"
description = "DATA DISKS - storage account type"
}
variable "disk_create_method" {
type = string
default = "Empty"
description = "DATA DISKS - creation method"
}
variable "disk_size0" {
type = number
}
variable "disk_size1" {
type = number
}
variable "disk_size2" {
type = number
}
variable "lun0" {
type = number
default = 0
}
variable "lun1" {
type = number
default = 1
}
variable "lun2" {
default = 2
type = number
} */
/* variable "disks" {
description = "List of disks to create"
type = map(any)
default = {
disk0 = {
name = "data0"
size = 200
create = "Empty"
sa = "Standard_LRS"
lun = 0
}
disk1 = {
name = "data1"
size = 500
create = "Empty"
sa = "Standard_LRS"
lun = 1
}
}
} */
variable "disks" {
type = map(object({
name = string
size = number
create = string
sa = string
lun = number
}))
}实际部署：
main.tf
/*
PS /home/fabrice> Get-AzVMSize -Location northeurope | where-object {$_.Name -like "*ds13*"}
*/
module "uat_set" {
source = "../modules/vm"
providers = {
azurerm = azurerm.cbank-test
}
for_each = var.uat_set
active_directory_domain_name = local.uat_ad_domain
active_directory_password = var.domain_admin_password
active_directory_username = var.domain_admin_username
disks = var.disk_allocation
dns_servers = local.dns_servers
location = local.uat_location
os_storage_type = local.uat_storage_type
private_ip = each.value.private_ip
rg = data.azurerm_resource_group.main
size = each.value.vm_size
sql_maint_day = local.uat_sql_maintenance_day
sql_maint_length_min = local.uat_sql_maintenance_min
sql_maint_start_hour = local.uat_sql_maintenance_start_hour
subnet_id = data.azurerm_subnet.main.id
vm_name = each.key
vm_tags = var.default_tags
win_admin_pw = var.admin_password
win_admin_user = var.admin_username
zone = each.value.zone[0]
}
variable "uat_set" {
description = "List of VM-s to create"
type = map(any)
default = {
UAT-SQLDB-NE-01 = {
private_ip = "192.168.32.8"
vm_size = "Standard_DS13-4_v2"
zone = ["1"]
}
UAT-SQLDB-NE-02 = {
private_ip = "192.168.32.10"
vm_size = "Standard_DS13-4_v2"
zone = ["2"]
}
}
}
variable "disk_allocation" {
type = map(object({
name = string
size = number
create = string
sa = string
lun = number
}))
default = {
"temp" = {
name = "temp"
size = 200
create = "Empty"
sa = "Standard_LRS"
lun = 0
},
"disk1" = {
name = "data1"
size = 500
create = "Empty"
sa = "Standard_LRS"
lun = 1
},
"disk2" = {
name = "data2"
size = 500
create = "Empty"
sa = "Standard_LRS"
lun = 2
}
}
}
locals {
dns_servers = ["192.168.34.5", "192.168.34.10"]
uat_storage_type = "Standard_LRS"
uat_sql_maintenance_day = "Saturday"
uat_sql_maintenance_min = 180
uat_sql_maintenance_start_hour = 23
uat_ad_domain = "civbdev.local"
uat_location = "North Europe"
}
## variables.tf
# new build variables
variable "Environment" {
default = "DEV"
description = "this is the environment variable used to intperpolate with others vars"
}
variable "default_tags" {
type = map(any)
default = {
Environment = "DEV"
Product = "dev-XXXtemplateXXX"
Terraformed = "https://AllicaBankLtd@dev.azure.com/XXXtemplateXXX/Terraform/DEV"
}
}
variable "admin_username" {
sensitive = true
}
variable "admin_password" {
sensitive = true
}
variable "domain_admin_username" {
sensitive = true
}
variable "domain_admin_password" {
sensitive = true
}资源创建OK，但SQL-部件除外。

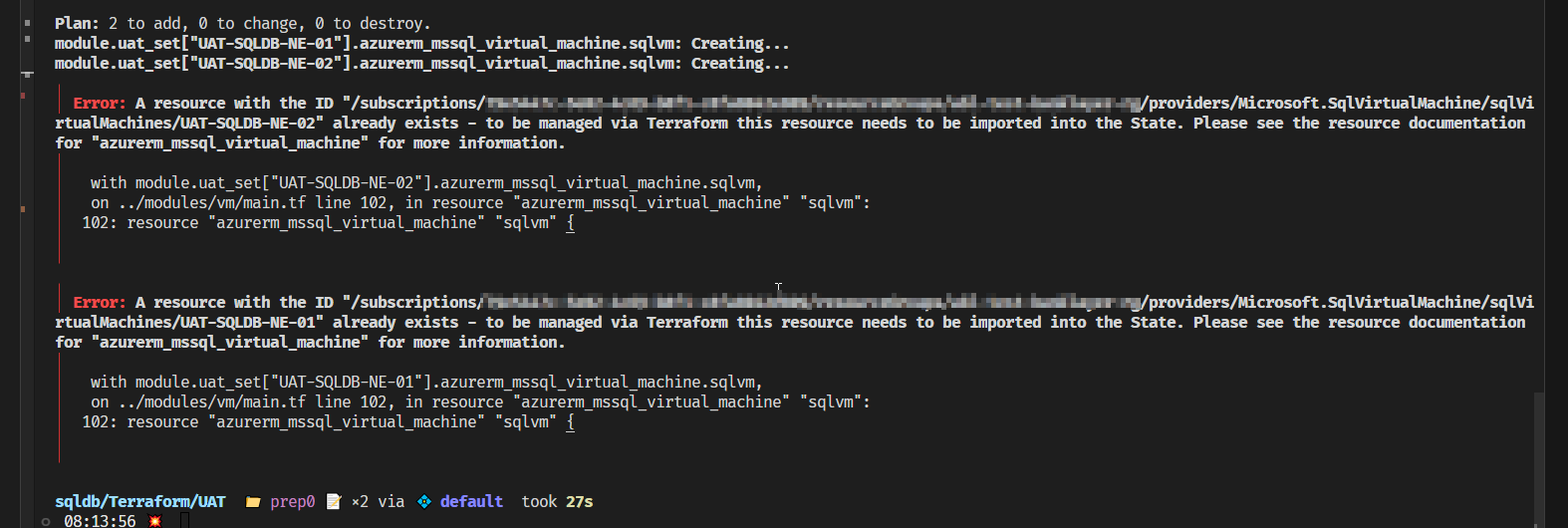

│ Error: A resource with the ID "/subscriptions/<..redacted...>/providers/Microsoft.SqlVirtualMachine/sqlVirtualMachines/UAT-SQLDB-NE-02" already exists - to be managed via Terraform this resource needs to be imported into the State. Please see the resource documentation for "azurerm_mssql_virtual_machine" for more information.
│
│ with module.uat_set["UAT-SQLDB-NE-02"].azurerm_mssql_virtual_machine.sqlvm,
│ on ../modules/vm/main.tf line 115, in resource "azurerm_mssql_virtual_machine" "sqlvm":
│ 115: resource "azurerm_mssql_virtual_machine" "sqlvm" {
│
╵
╷
│ Error: A resource with the ID "/subscriptions/<..redacted...>/providers/Microsoft.SqlVirtualMachine/sqlVirtualMachines/UAT-SQLDB-NE-01" already exists - to be managed via Terraform this resource needs to be imported into the State. Please see the resource documentation for "azurerm_mssql_virtual_machine" for more information.
│
│ with module.uat_set["UAT-SQLDB-NE-01"].azurerm_mssql_virtual_machine.sqlvm,
│ on ../modules/vm/main.tf line 115, in resource "azurerm_mssql_virtual_machine" "sqlvm":
│ 115: resource "azurerm_mssql_virtual_machine" "sqlvm" {
│
╵有什么想法吗?我可能错过了什么？
塔·法布里斯
更新：
谢谢你的答复。只是确认一下:它不是一个已经存在的资源。在创建这些VM-s时，我直接得到了这个错误。

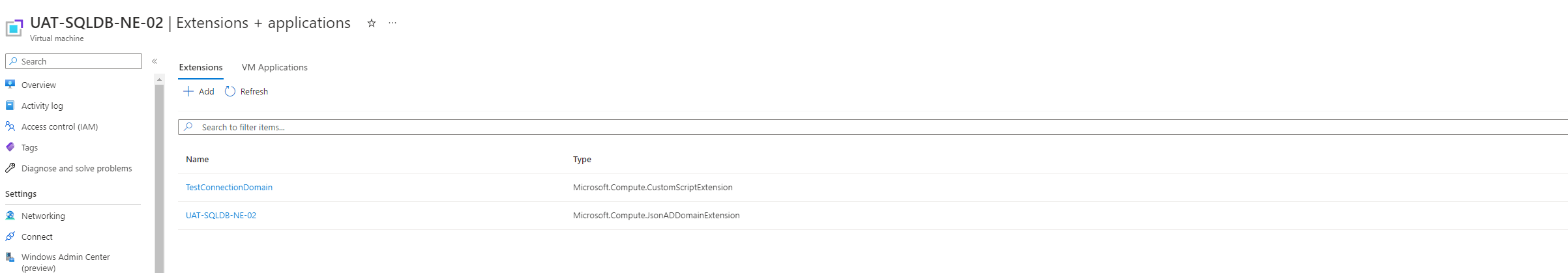

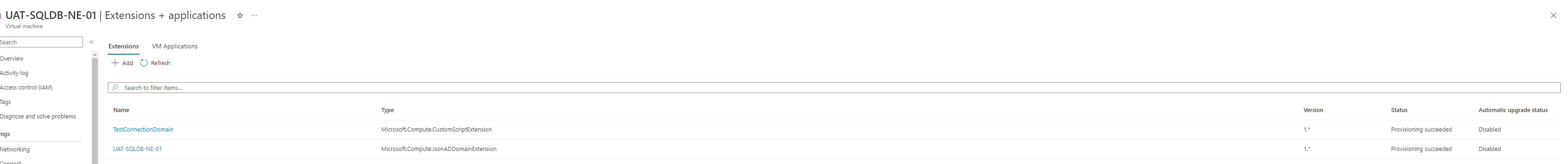

例如，这些是Terraform运行后的vm-s (其中没有一个具有sql扩展)。
计划甚至声明它将创建以下内容：
Terraform will perform the following actions:
# module.uat_set["UAT-SQLDB-NE-01"].azurerm_mssql_virtual_machine.sqlvm will be created
+ resource "azurerm_mssql_virtual_machine" "sqlvm" {
+ id = (known after apply)
+ r_services_enabled = true
+ sql_connectivity_port = 1433
+ sql_connectivity_type = "PRIVATE"
+ sql_license_type = "PAYG"
+ virtual_machine_id = "/subscriptions/..../providers/Microsoft.Compute/virtualMachines/UAT-SQLDB-NE-01"
+ storage_configuration {
+ disk_type = "NEW"
+ storage_workload_type = "OLTP"
+ data_settings {
+ default_file_path = "F:\\Data"
+ luns = [
+ 1,
]
}
+ log_settings {
+ default_file_path = "G:\\Log"
+ luns = [
+ 2,
]
}
+ temp_db_settings {
+ default_file_path = "Z:\\TempDb"
+ luns = [
+ 0,
]
}
}
}
# module.uat_set["UAT-SQLDB-NE-02"].azurerm_mssql_virtual_machine.sqlvm will be created
+ resource "azurerm_mssql_virtual_machine" "sqlvm" {
+ id = (known after apply)
+ r_services_enabled = true
+ sql_connectivity_port = 1433
+ sql_connectivity_type = "PRIVATE"
+ sql_license_type = "PAYG"
+ virtual_machine_id = "/subscriptions/..../providers/Microsoft.Compute/virtualMachines/UAT-SQLDB-NE-02"
+ storage_configuration {
+ disk_type = "NEW"
+ storage_workload_type = "OLTP"
+ data_settings {
+ default_file_path = "F:\\Data"
+ luns = [
+ 1,
]
}
+ log_settings {
+ default_file_path = "G:\\Log"
+ luns = [
+ 2,
]
}
+ temp_db_settings {
+ default_file_path = "Z:\\TempDb"
+ luns = [
+ 0,
]
}
}
}
Plan: 2 to add, 0 to change, 0 to destroy.想必，如果这些资源以某种方式存在--这将是奇怪的，就像Tf刚刚创建的VM--那么它不会在计划中说它现在就会创建它，对吗？
因此，这个错误是我困惑的根源，因为如果刚刚创建了VM，扩展的创建就失败了--它怎么可能存在？
回答 1
Stack Overflow用户
发布于 2022-10-11 13:58:50
在这种情况下，您可能应该导入模块，因为错误提示您的terraform状态。
例如，terraform import module.uat_set[\"UAT-SQLDB-NE-02\"].azurerm_mssql_virtual_machine.sqlvm "/subscriptions/<..redacted...>/providers/Microsoft.SqlVirtualMachine/sqlVirtualMachines/UAT-SQLDB-NE-02"
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/74017412
复制相关文章
相似问题
腾讯云开发者
